SAM9X75 Early Access Curiosity Wireless Kit

This kit includes two Linux and MPLAB® Harmony v3 Getting Started Demos. Follow these steps to get the Wi-Fi up and running in less than 10 minutes.

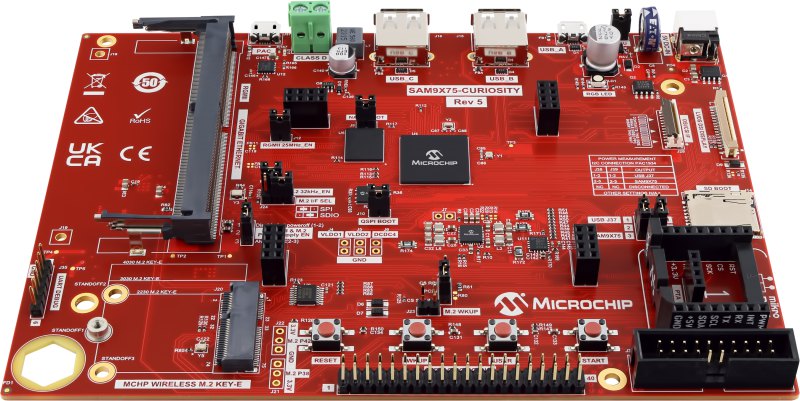

The SAM9X75 Early Access Wireless Curiosity Kit is an Early Access development kit intended to provide early access for evaluation and prototyping with Microchip's upcoming Wireless solutions based on SAM9X75D2G microprocessor (MPU). The SAM9X75D2G is a high-performance, ultra-low power ARM926EJ-S CPU-based embedded microprocessor (MPU) running up to 800 MHz, with an integrated 2 Gbit DDR3L memory. The device integrates powerful peripherals for connectivity and user interface applications, including MIPI DSI®, LVDS, RGB and 2D graphics, MIPI-CSI-2, Gigabit Ethernet with TSN, USB and CAN-FD. Advanced security functions are offered, such as tamper detection, secure boot, secure key storage, TRNG, PUF as well as high-performance crypto accelerators for AES and SHA.

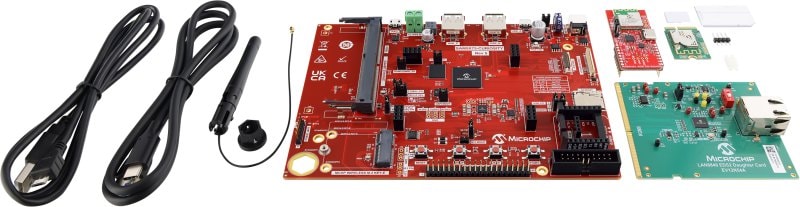

The SAM9X75 Early Access Wireless Curiosity Kit includes a 4Gbit SLC NAND Flash, a 64Mb QSPI Nor Flash, a Gigabit Ethernet interface through SODIMM 260-pin connector, with the provided LAN8840 EDS2 daughter Card to evaluate Microchip LAN8840 Gigabit Ethernet RGMII Ethernet PHY, an RNBD451 Add-on board to demonstrate Bluetooth wireless capabilities using mikroBUS™ interface, a WIxCS02 M.2 Wi-Fi Module Card to demonstrate the Wi-Fi capabilities, a microSD card interface, a Raspberry Pi® 40-pin GPIO connector, and an MCP16502 Power Management IC optimized for the SAM9X75.

This kit is delivered with :

• A free Linux mainline distribution
• MPLAB® X Integrated Development Environment
• MPLAB® Harmony v3 framework with dedicated C code examples
• Microchip Graphics Suite support.
