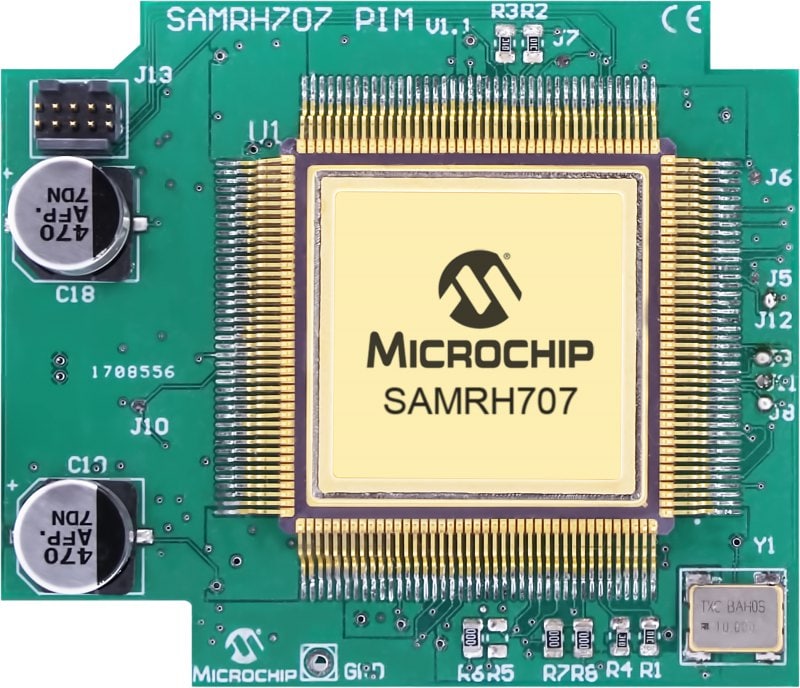

220930-adg-photo-samrh707_pim-front-transparent

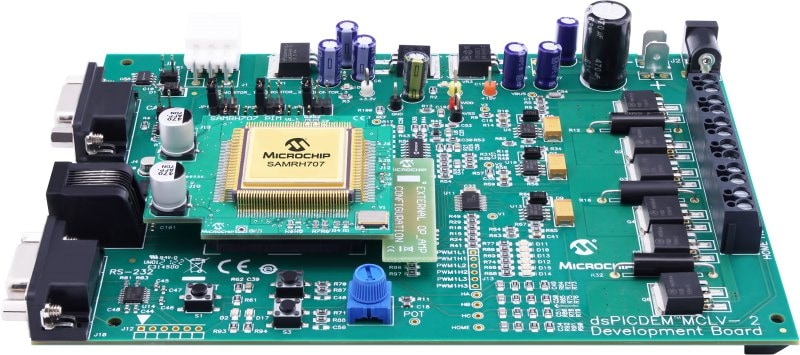

220930-adg-photo-samrh707_pim-over-mclv2-board-dynamic2-transparent
220930-adg-photo-samrh707_pim-front-transparent
220930-adg-photo-samrh707_pim-over-mclv2-board-dynamic2-transparent

Part Number: SAMRH707F18-PIM

SAMRH707F18 MOTOR CONTROL PLUG IN MODULE

Download Primary User Guide

Overview

This plug-in module comes with a SAMRH707F18 32-Bit ARM Cortex M7 MCU device. It can be used with the Microchip MCHV-3 [DM330023-3] and MCLV-2 [DM330021-2].

MCLV-2 Low Voltage BLDC Kit - DM330021-2

MCHV-3 High Voltage BLDC Kit - DM330023-3

Field Oriented Control code is available at the attached download package for PMSM type motors to enable customers to get started immediately.

PLEASE NOTE: For use with the MCHV-2 and MCHV-3 (High Voltage) external programming adapter AC320202 is required to safely connect to a PC.

AC320202 Isolated Debugger Interface

All of the software covered in this application note is available as a MPLAB Harmony application. This application can be found with the <installdir>\apps\motor_control folder of your MPLAB Harmony installation.

The MPLAB Harmony Integrated Software framework can be downloaded from: https://www.microchip.com/en-us/tools-resources/configure/mplab-harmony

Package Contents

SAMRH707F18 Plug In Module

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

MPLAB-X-IDE

MPLAB X INTEGRATED DEVELOPMENT ENVIRONMENT (IDE)

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.

DM330021-2

DSPICDEM™ MCLV-2 DEVELOPMENT BOARD (MOTOR CONTROL LOW-VOLTAGE)

The dsPICDEM™ MCLV-2 Development Board provides a cost-effective method of evaluating and developing sensored or sensorless Brushless DC (BLDC) and Permanent Magnet Synchronous Motor (PMSM) 3-phase low-voltage motor control applications.

DM330023-3

DSPICDEM™ MCHV-3 DEVELOPMENT BOARD (HIGH VOLTAGE)

TThe Microchip dsPICDEM™ MCHV-3 Development Board aids in the rapid evaluation and development of a wide variety of high-voltage motor control applications. This development board is targeted to control Brushless DC (BLDC) motors, Permanent Magnet Synchronous Motors (PMSM), and AC Induction Motors (ACIM) in both sensored or sensorless operation.
