Part Number: MPF200-ETH-SENSOR-BRIDGE

PolarFire Ethernet Sensor Bridge

  • One PolarFire® FPGA MPF200T-FCG784E
  • Two 4x lane MIPI Rx connections
  • Two 10G SFP+ connectors
  • 2GB DDR4 x64
  • 512 MB SPI Flash memory for remote FPGA programming
  • Vita 57.1 FMC connector (HPC)
  • One 2KB EEPROM
Buy Now
Contact Us
Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart

Overview

The PolarFire® Ethernet Sensor Bridge from Microchip is a new sensor-bridging platform to accelerate the development of edge AI applications using the NVIDIA® Jetson™ AGX Orin™ and IGX developer platforms.Based on power-efficient PolarFire FPGA architecture, this platform is designed to address developer's needs for connectivity to a diverse variety of sensors and interfaces. This versatile platform offers design scalability and supports low-latency interfacing when developing the next generation edge AI applications for healthcare, robotics, and embedded vision.
The Ethernet Sensor Bridge is fully compatible with the NVIDIA Holoscan SDK for AI-driven sensor data processing, including libraries, AI models, and modular components. It comes preprogrammed with dual MIPI® CSI-2 support and converts the streams to 10G Ethernet, enabling rapid edge-to-cloud development.
Additional protocols, including CoaXPress®, SLVS-EC, SDI, and JESD204B, are currently in development and will be available soon.

Click here to visit the Ethernet Sensor Bridge solutions page.

Package Contents
  • PolarFire Ethernet Sensor Bridge Board
  • 12.3MP 477M HQ, Arducam module (SKU:B0466R)
    • One 15-22pin ribbon Cable
    • One 22-22pin ribbon Cable
  • One 10GBase-T SFP+ to RJ45 nodule
  • Cat 7 10G Ethernet Cable
  • 12V AC Adapter
  • 12V POWER CORD
  • USB 2.0 , Type C USB Cable
  • Quickstart Card
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

VIDEO-DC-CXP

CoaXPress FMC Daughter Card

This FMC daughter card is a hardware evaluation platform for evaluating and testing the 12.5 Gbps CoaXPress protocol.

VIDEO-DC-SDI

SDI FMC Daughter Card

This FMC daughter card is a hardware evaluation platform for evaluating and testing the Serial Digital Interface (SDI) IP.

VIDEO-DC-USXGMII

USXGMII FMC Daughter Card

This FMC daughter card is a hardware evaluation platform for evaluating and testing the quadrate PHY IP.

VIDEO-DC-SLVS

SLVS-EC FMC Card

This FMC daughter card is a dedicated platform for evaluating and testing the SLVS-EC receiver IP with PolarFire FPGAs.

All Application Notes

Documentation

Title
Document Id
MPF200-ETH-SENSOR-BRIDGE_Schematics Download 1a5c7383-450e-48ca-a48c-2e4b3bec3c2d
MPF200-ETH-SENSOR-BRIDGE_User Guide Download 3b03dc31-7949-4cf8-9f9d-9716b3392bf9
MPF200-ETH-SENSOR-BRIDGE_Board Files Download b1159f19-97b5-4264-aaea-0d95a69f73d6
MPF200-ETH-SENSOR-BRIDGE_Statement of Volatility Download 77599a04-59e1-497e-9fe3-f1fb8c30b30b
MPF200-ETH-SENSOR-BRIDGE-QuickStart Guide PDF | HTML 5948b26e-b660-4237-bd45-e0077a587f72

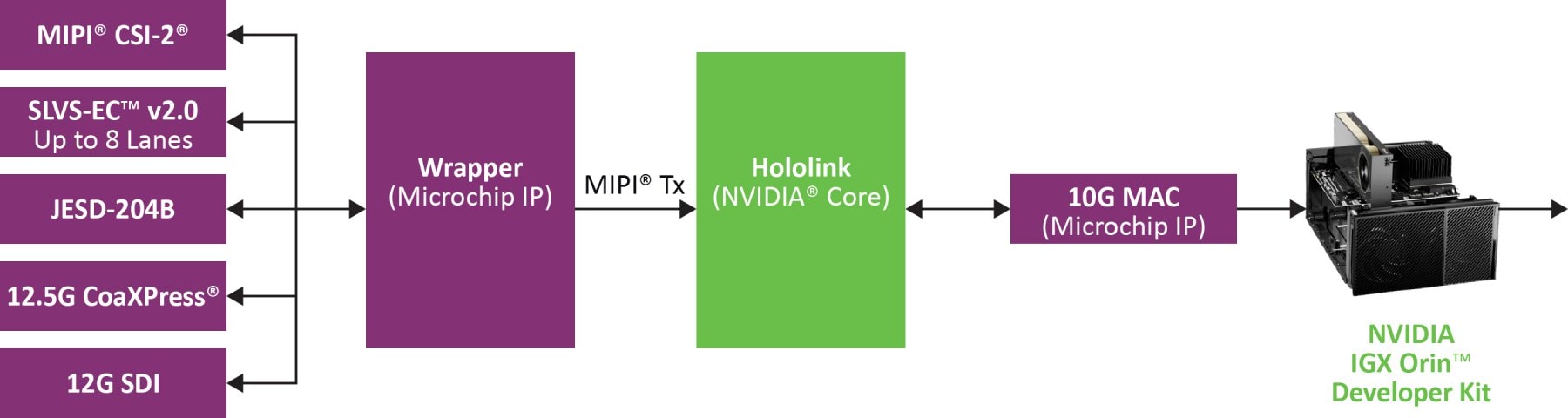

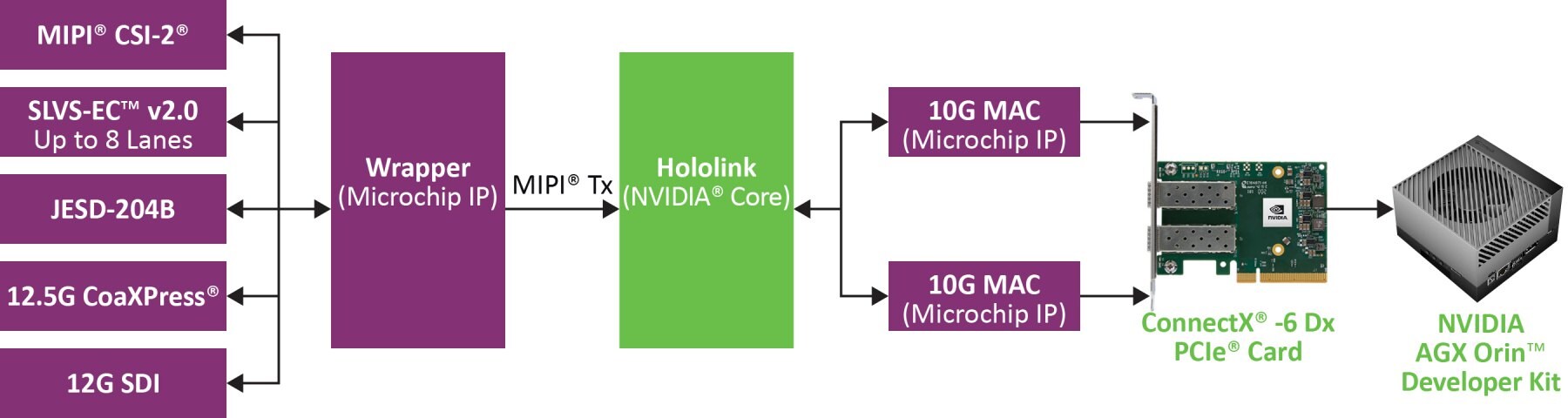

Block Diagram

block diagram

Application Notes

Title
Date
Document Category
AN5522: PolarFire Ethernet Sensor Bridge for Nvidia Jetson AGX Orin Developer Kit AI Applications 08 Nov 2024 Link Application Notes
