Part Number: EV26Q64A

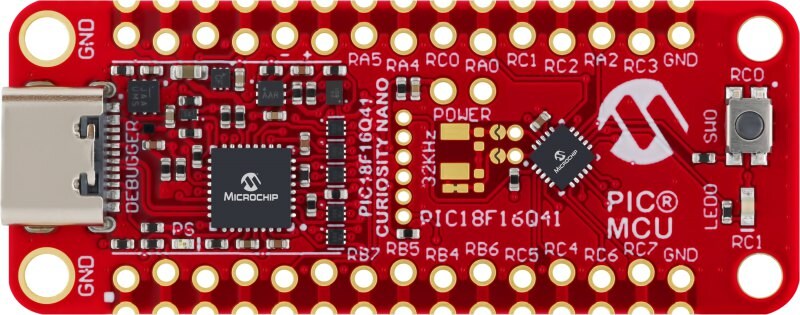

PIC18F16Q41 CURIOSITY NANO EVALUATION KIT
- PIC18F16Q41 microcontroller
- One mechanical user switch
- One yellow user LED
- On-board debugger
- Board identification in Microchip MPLAB X
- One green power and status LED
- Programming and debugging
- Virtual serial port (CDC)
- One logic analyzer channel (GPIO)
- USB powered
- Adjustable target voltage
- MIC5353 LDO regulator controlled by the on-board debugger
- 1.8 - 5.5 V output voltage (limited by USB input voltage)
- 500mA maximum output current
Overview
Take your next idea to market with a development board that you can keep in your pocket. With full programming and debugging capabilities, the PIC18F16Q41 Curiosity Nano Evaluation Kit has pre-programmed firmware to start development immediately!
With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and Core Independent Peripherals on the PIC18F16Q41. MCC is a free, graphical programming tool to configure the rich set of peripherals and functions specific for your application.
Package Contents
- PIC18F16Q41 Curiosity Nano Evaluation Board
- Two 100mil, 1x15 pin header strips
Documentation
|
Title
|
|||
|---|---|---|---|
| PIC18F16Q41 Curiosity Nano Hardware User Guide | PDF | HTML | ||
| PIC18F16Q41 Curiosity Nano Schematics | Download | ||
| PIC18F16Q41 Curiosity Nano Pinout | Download | ||
| Explorer Pinouts for all Curiosity Nanos | Download | ||
| PIC18F16Q41 Curiosity Nano Altium Project | Download | ||
| PIC18F16Q41 Curiosity Nano Design Documentation | Download |
