Part Number: MPFS250-VIDEO-KIT

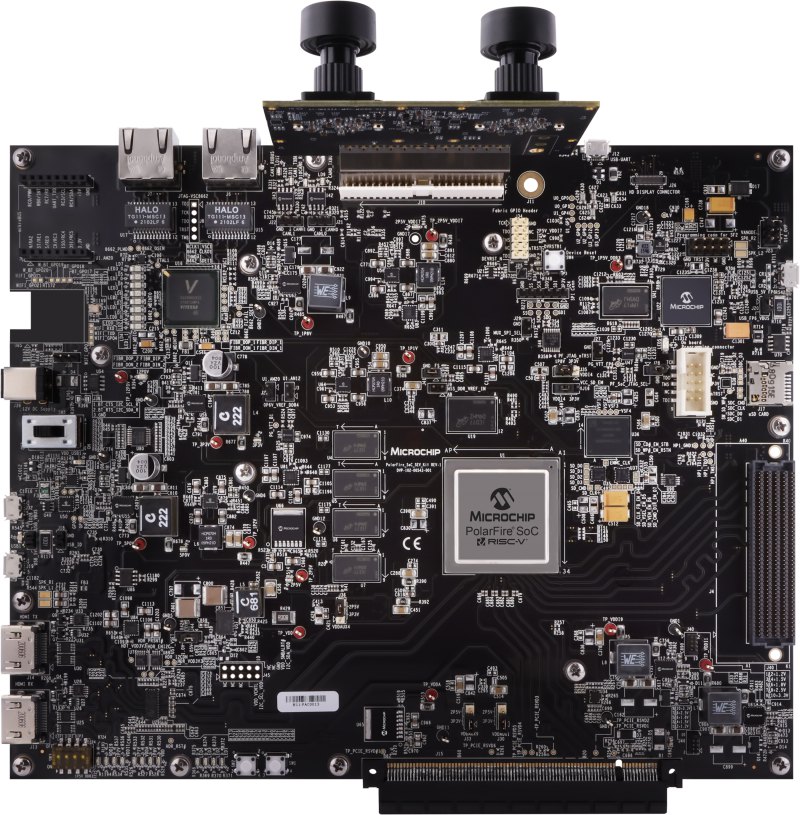

PolarFire® SoC Video Kit
Hardware Features
- PolarFire SoC FPGA (MPFS250TS-1FCG1152I)
- SiFive E51 monitor core (1 x RV64IMAC)
- SiFive U54 application cores (4 x RV64GC) and secure boot
- Sony 4K dual camera sensors (IMX334)
- CE, RoHS

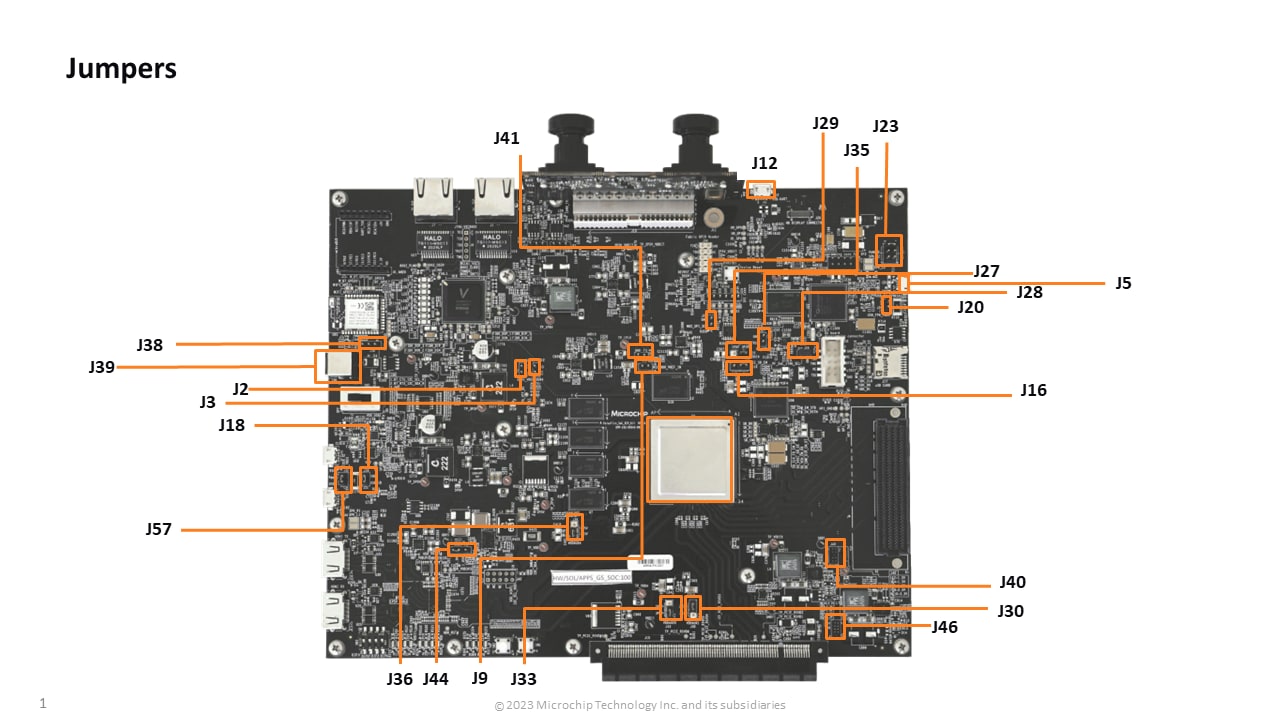

- Programming and Debugging
- Onboard JTAG or (multiplexed) onboard embedded FlashPro
- Memory and Storage
- 4 GB DDR4 x 64
- 2 GB LPDDR4 x 32
- 1 GB SPI flash
- 8 GB eMMC flash and SD card slot (multiplexed)
- User Defined I/O
- 4x LEDs
- 4x user push buttons
- 1x DIP switch (x 4)

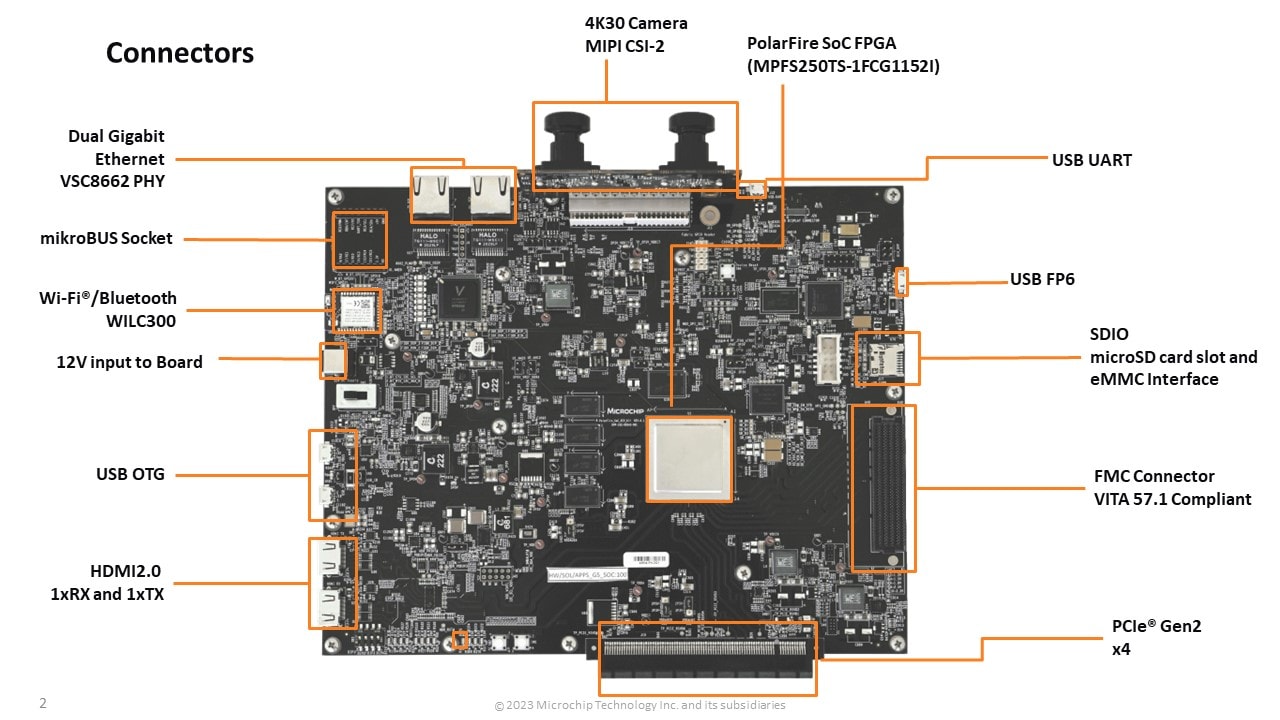

- Expansion Connectors
- 1x VITA 57.1 HPC FMC
- PCIe Gen2 x 4
- 1x Mikrobus socket
- Communication and Networking
- 4 x UART (through USB bridge)
- 1 x CAN-FD header
- 2 x GbE RJ-45 connectors
- 1 x microUSB high-speed USB 2.0 OTG
- 1 x I2C (through USB bridge)
- Imaging and Video
- HDMI2.0 video output
- HDMI2.0 video input
- MIPI DSI output
- MIPI CSI-2 input
- Clocking
- 50 MHz MEMS oscillator
- Power
- 12V DC supply
Overview
The PolarFire® SoC Video kit is the Industry’s first RISC V SoC FPGA- based, full-featured embedded vision development platform targeting secure, reliable, and power-efficient vision applications at the edge, including Microchip’s VectorBlox Accelerator SDK and Neural Network IP, and Industrial IoT and Automation.
The kit supports dual 4K MIPI CSI-2 cameras, HDMI 2.0 with FMC-based expansion towards CoaXPress 2.0, 6/12G SDI, 1/ 2.5/ 5/ 10G USXGMII, and USB 3.1 Gen1 and Gen2 protocols. It also includes USB 2.0, SD Card, eMMC, PCIe Gen2x4 endpoint or root port, and a MikroBus connector facilitate Microchip’s Trust & Go platform for cloud connectivity.
Package Contents

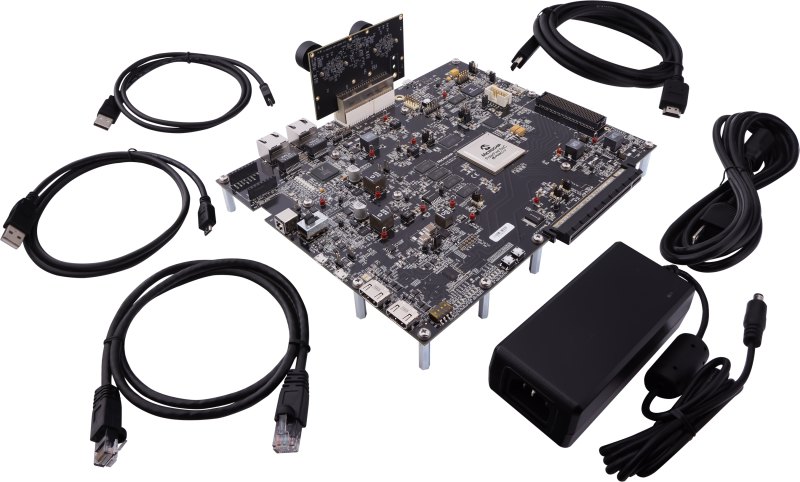

- PolarFire SoC Video Kit Board with (MPFS250TS-1FCG1152I)
- 4K30 Dual Camera Sensor with Sony IMX334s
- HDMI cable
- Micro B USB cable - 2
- RJ45 Ethernet cable
- 12V AC adapter
- 12V power cord
- Quick start card
Block Diagram
Application Notes
|
Title
|
Date
|
Document Category
|
|
|---|---|---|---|
| AN4529: PolarFire SoC FPGA H.264 Video Streaming Over Ethernet Application Note | 08 Oct 2024 | Link | Application Notes |
| AN4723: PolarFire SoC FPGA Video Kit Picture-in-Picture Application Note | 23 Mar 2023 | Link | Application Notes |
Additional Resources
Please find links below for PolarFire SoC Video kit.
| FPGA: | Polarfire SoC FPGA |
| Solution: | Smart Embedded Vision |
| Software: | The development tools, for PolarFire SoC Video kit. PolarFire SoC MSS configurator Libero SoC development suite 2022.3 or later Eclipse-based Integrated Development Environment |
| Git Hub Links: | GitHub Repository H.264 Reference Design Pre-built Jobfile Yocto Pre-built Yocto(WIC) Image H.264 Demo Guide User Guide Hart Software Services (HSS) code |
| Licensing: | A Libero Silver license is required with the PolarFire SoC Video kit to evaluate your designs. It is free and valid for 1 year. It supports single language simulation with programming and debugging features. Generate your FREE Silver License. |
This Kit is ROHS Compliant!
Package Carrier Box
