Part Number: EV88N31A

AVR16EB32-CNANO MPPB-Adapter

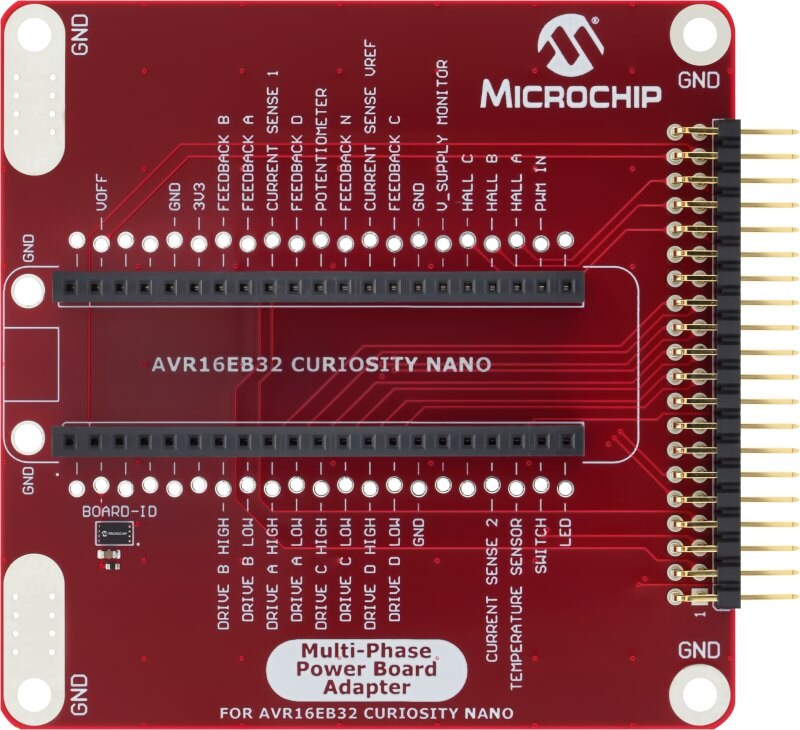

  • Breakout board for AVR16EB32 Curiosity Nano
    • Curiosity Nano Socket
    • Pinout Compatible with AVR16EB32 Curiosity Nano
  • Board to board connector compatible with the Multi-Phase Power Board
  • Board identification in MPLAB X IDE
Buy Now
Contact Us
Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart

Overview

The EV88N31A is an adapter board that allow an easy connection between the AVR16EB32 Curiority Nano and the Multi-Phase Power Board.

A full solution for the AVR16EB32 requires the following three development kits:

  • AVR16EB32 Curiosity Nano
  • AVR16EB32-CNANO MPPB-Adapter
  • Multi-Phase Power Board
Package Contents
  • AVR16EB32-CNANO MPPB-Adapter
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

EV73J36A

AVR16EB32 CURIOSITY NANO EVALUATION KIT

Take your next idea to market with a development board that you can keep in your pocket. With full programming and debugging capabilities, the AVR16EB32 Curiosity Nano Evaluation Kit offers complete support for your next design.

With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and Core Independent Peripherals on the AVR16EB32. MCC is a free, graphical programming tool to configure the rich set of peripherals and functions specific for your application.

EV35Z86A

Multi-Phase Power Board

The Multi-Phase Power Board is a driver board designed for 3-phase BLDC motors with or without Hall sensors. The board supports up to 4 individual phases making it well suited for stepper motors as well.

The Multi-Phase Power Board is fully supported by MCC Melody and MPLAB and software drivers for sinusoidal and trapezoidal BLDC with and without Hall Sensors are available for select microcontrollers.

The Multi-Phases Power Board needs a Curiosity Nano development board and an adapter board.

A full solution for the AVR16EB32 requires the following three development kits:

  • AVR16EB32 Curiosity Nano
  • AVR16EB32-CNANO MPPB-Adapter
  • Multi-Phase Power Board
EV88N31A

AVR16EB32-CNANO MPPB-Adapter

The EV88N31A is an adapter board that allow an easy connection between the AVR16EB32 Curiority Nano and the Multi-Phase Power Board.

A full solution for the AVR16EB32 requires the following three development kits:

  • AVR16EB32 Curiosity Nano
  • AVR16EB32-CNANO MPPB-Adapter
  • Multi-Phase Power Board
