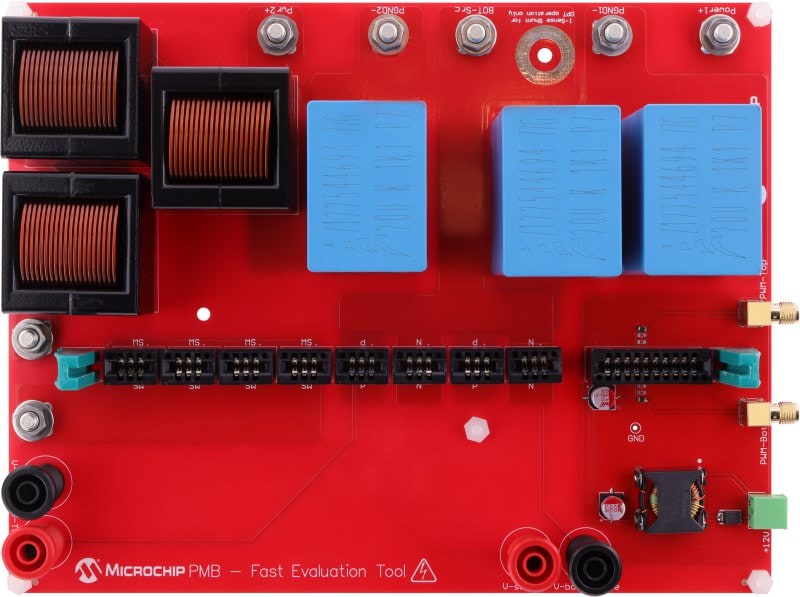

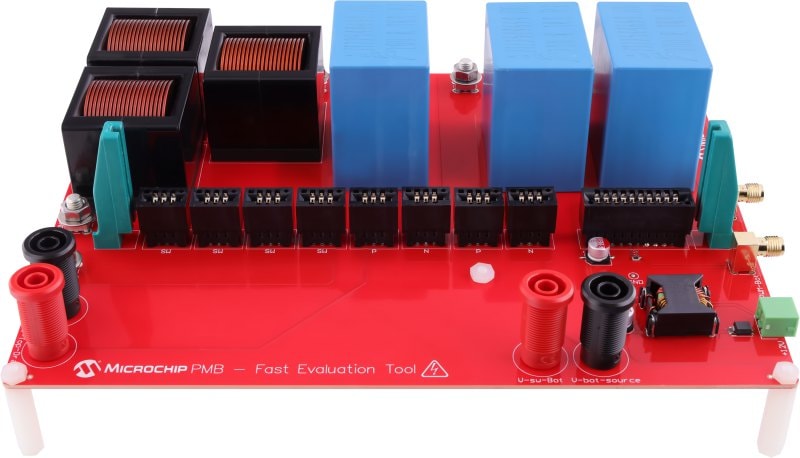

Part Number: EV67D28A

Power Motherboard Fast Evaluation Tool

This evaluation board operates as both a Buck and Boost converter, providing flexibility in evaluating different power electronics configurations
Supports Double Pulse Testing (DPT) for 700-1200V SiC power devices, enabling precise measurement of switching loss and reverse recovery
With an operating voltage of up to 800V and a current capacity of up to 20A, it accommodates a wide range of power devices
Engineers can optimize designs and enhance system efficiency by gaining critical insights into device behavior
This evaluation board simplifies the evaluation process, making it an essential tool for developing high-performance power electronics systems

Overview

This Power Motherboard (PMB) Fast Evaluation Tool (FET) is designed to give power electronics engineers a versatile and efficient SiC MOSFET testing platform. Whether you need to evaluate conduction and switching losses, perform Double Pulse Testing (DPT), or analyze Buck and Boost converter performance, the PMB-FET simplifies your design optimization process. Our platform supports SiC power devices ranging from 700V to 1200V, enabling engineers to gain precise insights into switching behavior, efficiency, and system-level performance. With an operating voltage of up to 800V and a current capacity of 20A, the PMB-FET is built for high-power applications in research, development, and education. By providing multiple test configurations in a single board, we help to streamline the evaluation process, reduce design iterations and optimize next-generation power electronics systems.

Key Features

All-in-one board utilizing versatile operating modes: Synchronous Buck Converter, Synchronous Boost Converter, DPT platform, and access to generic half bridge
Ideal for engineers looking to evaluate SiC MOSFET performance characteristics
Maximum voltage: 800V
Current rating: up to 20A
