Part Number: MSCDR-SP6LIEVB-001

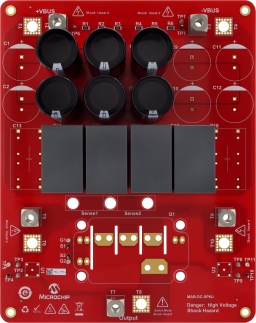

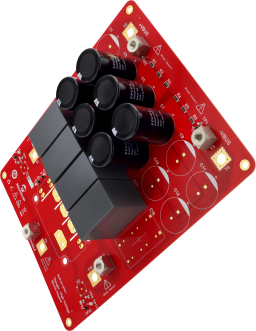

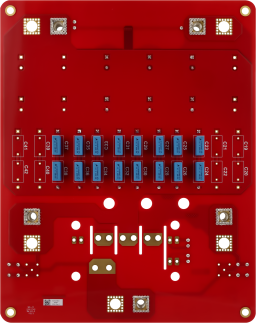

SP6LI mSiC™ MOSFET Module Evaluation Board
- Quickly evaluate and optimize the switching characteristics of our SP6LI Silicon Carbide (SiC) modules in your application
- Minimize development time to get to market quicker
- Create scalable, high-power density designs
Overview
The SP6LI mSiC MOSFET module evaluation board is a versatile and essential tool for developers looking to leverage the SP6LI SiC module in power electronics. It streamlines the design process, reduces development risks and paves the way for the creation of energy-efficient, high-performance power electronic systems.
For electrical engineers and power system developers eager to harness the full potential of the SP6LI SiC module that utilizes our mSiC technology, the evaluation board is an invaluable resource. It simplifies the design process, mitigates the risks associated with high-power module integration and offers a scalable platform for driving innovation in energy-efficient, high-performance power electronic systems.
This system enables users to:
- Measure switching loss (Eon, Eoff and Qrr) and high-side and low-side overcurrent protection (DSAT)
- Optimize gate driver switching behavior
- Evaluate up to 1200V SP6LI mSiC MOSFET modules
- Perform extensive thermal testing to assess performance in practical situations
Silicon Products
Product |
Title |
Product |
Title |
|---|---|---|---|
| MSCSM120AM03CT6LIAG-Module | 1200V, 2.5 mOhm, SP6LI, Phase Leg mSiC™ MOSFET Module | MSCSM120AM03CT6LIAG-Module | 1200V, 2.5 mOhm, SP6LI, Phase Leg mSiC™ MOSFET Module |
