Part Number: EV66Z56A

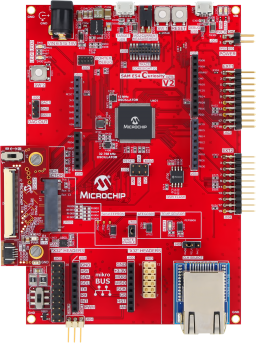

SAM E54 Curiosity Ultra Development Board v2

Download Primary User Guide

The following are features of the SAM E54 Curiosity Ultra Development Board v2:

  • ATSAME54P20A, 120 MHz, 1MB Flash, 256 KB RAM
  • On-Board Debugger (EDBG)
    • Real time Programming and Debugging
    • Virtual COM port (VCOM)
    • Data Gateway Interface (DGI)
  • One mikroBUS interfaces
  • One X32 audio interfaces supporting Bluetooth and audio
  • Ethernet interface
  • Graphics interface
  • Xplained Pro extension compatible interface
  • CAN interface
  • User buttons
  • User LEDs
  • 8-MB QSPI memory
  • Arduino Uno R3 compatible interface
View Purchasing Options
Contact Us

Overview

The SAM E54 Curiosity Ultra Development Board v2 (EV66Z56A) includes an integrated programmer and debugger, so no additional hardware is required to get started. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony.

Related Boards

Development boards with expanded options or features and that support the same set of applications as PIC32C and SAMD5x/E5x MCUs include:

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

AC320213

24-BIT PASS THROUGH GRAPHICS CARD

The 24-bit Graphics Pass Through Card is a daughter card for Xplained/Curiosity Ultra Development Boards that passes 24-bit display data directly from graphics-enabled MCUs like the PIC32MZ DA to external graphics panels at WVGA resolution or lower. This board also provides for optional MCU ADC-based Resistive Touch capability.
AC320007

MAXTOUCH® CURIOSITY PRO BOARD

The Microchip maXTouch Curiosity Pro is an extension board for the Xplained Pro platform with a 320x480 RGB LCD and a capacitive touch sensor with a maXTouch controller. The LCD can be controlled using different interfaces, including 3- and 4-wire SPI, Parallel and RGB Parallel interface mode using the DIP-switch to select the interface. The maXTouch Curiosity Pro kit connects to any Curiosity MCU board or Xplained Pro standard extension header, any curiosity Pro or Ultra kit as well as many other Microchip MCU boards using the 20-pin header, but is limited to 3and 4-wire SPI mode. The maXTouch Curiosity Pro also features a standard LCD connector (FFC), which enables use of the parallel interfaces. Both connections feature a SPI interface for the LCD and I2C for the maXTouch device.
ATMXT-XPRO

MAXTOUCH XPLAINED PRO EXTENSION KIT

maXTouch Xplained Pro is an extension board to the Xplained Pro evaluation platform.

AC320005-4

HIGH-PERFORMANCE 4.3" WQVGA DISPLAY MODULE WITH MAXTOUCH® TECHNOLOGY

The High-Performance 4.3" WQVGA Display Module with maXTouch® (AC320005-4) Technology is designed for evaluating the Microchip graphics display solution and graphics library for 32-bit microcontrollers.
AC320214

SSD1963 LCD CONTROLLER GRAPHICS CARD

This is a daughter card for Xplained/Curiosity Ultra Development Boards that passes 16-bit parallel graphics data directly from the parallel port of general purpose Microchip MCUs like the PIC32MZ EF and the SAME70 to the SSD1963 LCD Display Controller from Solomon Systec. The SSD1963 on this daughter card will connect to external display panels via a 50-pin LCD interface to a ribbon cable connected to the LCD. This board also provides for optional MCU ADC-based Resistive Touch capability.
AC320005-5

HIGH-PERFORMANCE WVGA LCD DISPLAY MODULE WITH MAXTOUCH ® TECHNOLOGY

The High-Performance WVGA LCD Display Module with maXTouch Technology (AC320005-5) is designed for evaluating the Microchip's graphics display solution and graphics library for 32-bit microcontrollers and microprocessors. This 5-inch display is compatible with both versions of the Multimedia Expansion Board II (DM320005-2 or DM320005-5), as well as with Xplained Pro and Xplained Ultra evaluation kits. This board has a TFT 800 x 480 display with a 24-bit parallel RGB interface with a maXTouch technology capacitive touch interface.

All Application Notes

Documentation

Title
Document Id
UK Declaration of Conformity_EV66Z56A Download 9a89ed71-d658-4167-93b7-ab8309c68c3f
EU Declaration of Conformity_EV66Z56A Download 754f70e7-2dea-4129-8d27-2445dd468ed4
China RoHS Certificate_EV66Z56A Download e9f3e260-24a0-43f9-bee3-ab781b23a58b
EU Reach Statement_EV66Z56A Download 9b53af20-f861-45ad-9199-f7f9430aa64c
SAM E54 Curiosity Ultra Users Guide PDF | HTML 201a68b9-ebc7-4813-8532-e62aed497feb
SAME54 Curiosity Ultra Development Board v2 Design Files Download 6e8e6f17-70d5-4faf-8599-7af07ac9c33e
KSZ8061 Phy Daughter Card R2.0 Design Documentation Download 3dfbf7a2-bc86-4d3c-8f93-846eb9181e58
24-Bit Pass Through Graphics Board Design Documentation Download bc4a0e82-6010-4918-a26e-938284732cc9
Create a new MPLAB Harmony v3 project using MCC Link 83f5777c-c1e2-4114-b254-b65c996db863
Update and Configure an Existing MHC-based MPLAB Harmony v3 Project to MCC-based Project Link 9bb2a830-5f93-4134-895c-d9e1da251dd1
Getting Started with Harmony v3 Peripheral Libraries on SAM D5x/E5x MCUs Link 1eb1f5e4-efb2-4c91-b4d5-5badb2694066
How to Build an Application by Adding a New PLIB, Driver, or Middleware to an Existing MPLAB Harmony v3 Project Download 6fe92746-332d-4689-bcbe-e4bc6bff1679
Clock System Configuration and Usage on SAM E5x (Cortex M4) Devices Download 00078875-08c0-472b-bf71-f3207e4c116a
How to Setup MPLAB Harmony v3 Software Development Framework PDF | HTML ccb6278b-6aab-4418-bca2-9da1a539ec15

Application Notes

Title
Date
Document Category
Dual-Bank Bootloader on SAM E54 Microcontroller (MCU) Using MPLAB Harmony v3 22 Sep 2022 Link Application Notes
Live Update Application on SAM E54 MCU Using MPLAB Harmony v3 05 Jun 2024 Link Application Notes
File Transfer Protocol Using MPLAB Harmony v3 TCP/IP Stack for SAM E54 MCU 07 Dec 2022 Link Application Notes
AN3466 - Using XDMAC with QSPI on Arm Cortex-M7 MCUs Using MPLAB Harmony v3 13 Aug 2024 Link Application Notes

Software

Title
Date
Motion Surveillance Application on SAM E54 Curiosity Ultra Development Board 19 Mar 2022 Link
Live Update Application on SAM E54 Curiosity Ultra Development Board 19 Mar 2022 Link
Getting Started Application with SAM E54 Curiosity Ultra Development Board 19 Mar 2022 Link
More application demos on SAM E54 Curiosity Ultra Development Board and other Development Boards/Kits having the same part number (ATSAME54P20A) 15 Jul 2024 Link
