Part Number: DM320210

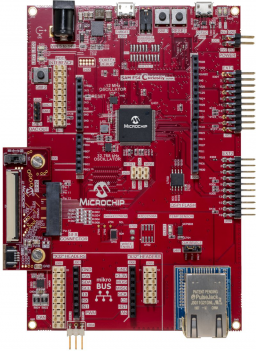

SAM E54 Curiosity Ultra Development Board

Download Primary User Guide
  • ATSAME54P20A, 120MHz, 1MB flash, 256KB RAM
  • Arm® Cortex®-M4F Processor
  • For high speed Ethernet application development, it is recommended to use the SAME54 Xplained Pro Development Kit (Part Number: ATSAME54-XPRO)
  •  On-Board Debugger (EDBG)
        – Real time Programming & Debugging
        – Virtual COM port (VCOM)
        – Data Gateway Interface (DGI)
    One mikroBUS™ interfaces
  • One X32 Audio interfaces supporting Bluetooth and Audio
  • Ethernet interface
  • Graphics interface
  •  Xplained pro extension compatible interface
  •  CAN interface
  •  User buttons
  •  User LEDs
  •  8MB QSPI memory
  •  Arduino Uno R3 compatible interface
Buy Now
Contact Us
Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart

Overview

The SAM E54 Curiosity Ultra Development Board (DM320210) includes an integrated programmer and debugger, so no additional hardware is required to get started. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony.

Related Boards

Development boards with expanded options or features and that support the same set of applications as PIC32C and SAMD5x/E5x MCUs include:

Getting Started with the SAM E54 Curiosity Ultra Development Board

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

AC320005-4

HIGH-PERFORMANCE 4.3" WQVGA DISPLAY MODULE WITH MAXTOUCH® TECHNOLOGY

The High-Performance 4.3" WQVGA Display Module with maXTouch® (AC320005-4) Technology is designed for evaluating the Microchip graphics display solution and graphics library for 32-bit microcontrollers.
ATMXT-XPRO

MAXTOUCH XPLAINED PRO EXTENSION KIT

maXTouch Xplained Pro is an extension board to the Xplained Pro evaluation platform.

AC320007

MAXTOUCH® CURIOSITY PRO BOARD

The Microchip maXTouch Curiosity Pro is an extension board for the Xplained Pro platform with a 320x480 RGB LCD and a capacitive touch sensor with a maXTouch controller. The LCD can be controlled using different interfaces, including 3- and 4-wire SPI, Parallel and RGB Parallel interface mode using the DIP-switch to select the interface. The maXTouch Curiosity Pro kit connects to any Curiosity MCU board or Xplained Pro standard extension header, any curiosity Pro or Ultra kit as well as many other Microchip MCU boards using the 20-pin header, but is limited to 3and 4-wire SPI mode. The maXTouch Curiosity Pro also features a standard LCD connector (FFC), which enables use of the parallel interfaces. Both connections feature a SPI interface for the LCD and I2C for the maXTouch device.
AC320214

SSD1963 LCD CONTROLLER GRAPHICS CARD

This is a daughter card for Xplained/Curiosity Ultra Development Boards that passes 16-bit parallel graphics data directly from the parallel port of general purpose Microchip MCUs like the PIC32MZ EF and the SAME70 to the SSD1963 LCD Display Controller from Solomon Systec. The SSD1963 on this daughter card will connect to external display panels via a 50-pin LCD interface to a ribbon cable connected to the LCD. This board also provides for optional MCU ADC-based Resistive Touch capability.
AC320005-5

HIGH-PERFORMANCE WVGA LCD DISPLAY MODULE WITH MAXTOUCH ® TECHNOLOGY

The High-Performance WVGA LCD Display Module with maXTouch Technology (AC320005-5) is designed for evaluating the Microchip's graphics display solution and graphics library for 32-bit microcontrollers and microprocessors. This 5-inch display is compatible with both versions of the Multimedia Expansion Board II (DM320005-2 or DM320005-5), as well as with Xplained Pro and Xplained Ultra evaluation kits. This board has a TFT 800 x 480 display with a 24-bit parallel RGB interface with a maXTouch technology capacitive touch interface.

AC320213

24-BIT PASS THROUGH GRAPHICS CARD

The 24-bit Graphics Pass Through Card is a daughter card for Xplained/Curiosity Ultra Development Boards that passes 24-bit display data directly from graphics-enabled MCUs like the PIC32MZ DA to external graphics panels at WVGA resolution or lower. This board also provides for optional MCU ADC-based Resistive Touch capability.

All Application Notes
