Part Number: DM320205

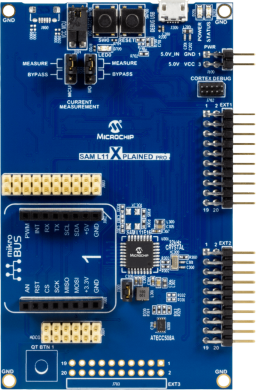

SAML11 XPLAINED PRO EVALUATION KIT
- SAM L11 32-bit MCU
- 32 MHz ARM® Cortex®-M23 Core
- 64 KB Flash and 16 KB SRAM
- Chip-level security
- Arm TrustZone
- Industry's lowest power MCU in its class
- Enhanced PTC
- Op Amps, ADC, AC, Analog Compare
- ISO7816
- Xplained Pro extension headers
- mikroBUS™ socket
- X32 header
- Embedded debugger
- XAM with Data Visualizer support for real-time power measurement
- ATECC508A Crypto Authentication IC
- USB powered
Overview
The SAML11 Xplained Pro evaluation kit is ideal for evaluating and prototyping with the ultra low power SAML11 ARM® Cortex® -M23 based microcontrollers integrating robust security which includes ARM® TrustZone®, secure boot, crypto acceleration, secure key storage and chip-level tamper detection. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony.
Related Boards
Development boards with expanded options or features and that support similar set of applications as PIC32CM Lx and SAML1x/L2x MCUs include:
Package Contents
SAM L11 Xplained Pro Development Board
Documentation
|
Title
|
|||
|---|---|---|---|
| SAML10L11 Xplained Pro Kit User Guide | Download | ||
| SAM L11 Xplained Pro Design Documentation | Download | ||
| Peripheral Power Consumption in Standby Mode for SAM L10/L11 Family of Devices Tech Brief | Download | ||
| SAM L10/L11 Xplained Pro Product Change Notice | Download | ||
| Arm® TrustZone® Getting Started Application on SAM L11 MCUs | Link | ||
| Getting Started with Harmony v3 Peripheral Libraries on SAM L10 MCUs | Link |
Application Notes
|
Title
|
Date
|
Document Category
|
|
|---|---|---|---|
| SAML11 Ultra Low-Power Secure LoRa Application Note | 18 Jun 2019 | Link | Application Notes |
| AN5365 - SAM L11 Security Reference Guide Application Note | 31 Mar 2019 | Link | Application Notes |
| AN_2698 - Secure Bootloader_SAML11 | 04 Mar 2019 | Link | Application Notes |
| UART Bootloader SAM L10 and L11 | 15 Feb 2019 | Link | Application Notes |
