SmartFusion^® FPGAs

Lowest-Power, Smallest-Packages, Low-Density FPGAs

SmartFusion^® System-on-Chip (SoC) FPGAs are the only devices that integrate an FPGA fabric, Arm® Cortex®-M3 processor, and programmable analog circuitry, Offering the benefits of full customization and IP protection while still being easy to use. Based on a proprietary Flash process, SmartFusion SoC FPGAs are excellent for hardware and embedded designers who need a true SoC solution that gives more flexibility than traditional fixed-function microcontrollers without the excessive cost of soft processor cores on traditional FPGAs.

Key Features

Microcontroller Subsystem (MSS)

Hardware industry-standard 100 MHz, 32-bit Arm^® Cortex^®-M3 CPU
Multi-layer AHB communication matrix with up to 16 Gbps throughput
10/100 Ethernet MAC with RMII interface
Two of each: SPI, I²C, UART, 32-bit timers
Up to 512 KB Flash and 64 KB of SRAM
External Memory Controller (EMC)
8-channel DMA controller
Up to 41 MSS I/Os with Schmitt trigger inputs
25 I/Os can be used as FPGA I/Os

FPGA Fabric

Based on our proven ProASIC® 3 FPGA architecture
200,000 to 500,000 system gates with 350 MHz system performance
Embedded SRAMs and FIFOs
Variable aspect ratio 4,608-bit SRAM blocks
x1, x2, x4, x9 and x18 organizations
True dual-port SRAM (including x18)
Up to 128 FPGA I/Os supporting LVDS, PCI, PCI-X and LVTTL/LVCMOS standards

Programmable Analog

High-performance analog signal conditioning blocks (SCB) with voltage, current and temperature monitors
Analog Compute Engine (ACE) offloads CPU from analog initialization and processing of Analog-to-Digital Conversion (ADC), Digital-to-Analog Conversion (DAC) and SCBs
Integrated ADCs and DACs with 1% accuracy
12-/10-/8-bit mode ADCs with 500/550/600 Ksps sampling rate
Up to ten 15 ns high-speed comparators
Up to 32 analog inputs and three outputs

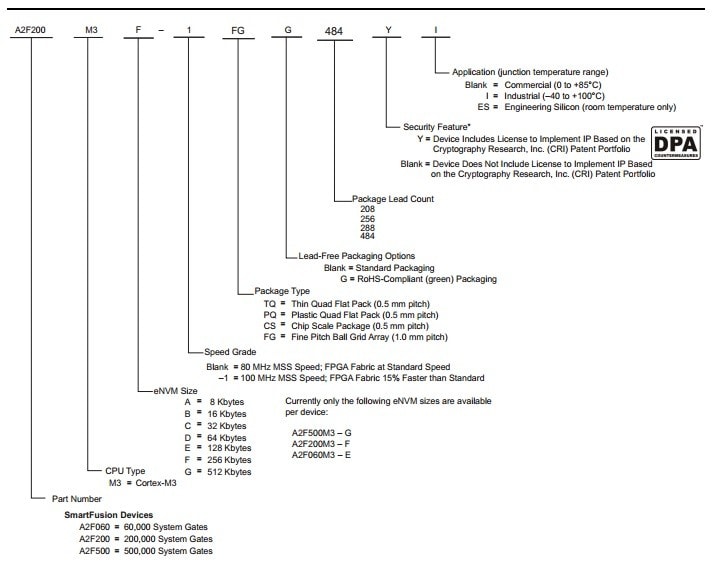

Product Table

Features	A2F200				A2F500
FPGA Fabric	PQ208	CS288	FG256	FG484	PQ208	CS288	FG256	FG484
System Gates	200,000				500,000
Equivalent LEs	2K				6K
Tiles (D-Flip-Flops)	4,608				11,520
RAM Blocks (4,608 bits)	8				24
	A2F200				A2F500
Microcontroller Subsystem (MSS)	PQ208	CS288	FG256	FG484	PQ208	CS288	FG256	FG484
Flash (Kbytes)	256				512
SRAM (Kbytes)	64				64
Arm^® Cortex^®-M3 Processor with MPU	Yes				Yes
10/100 Ethernet MAC	Yes				Yes
External Memory Controller (EMC)	26- bit address/16- bit data				—	26- bit address/16- bit data
DMA	8 Ch				8 Ch
I²C	2				2
SPI	1	2			1	2
16550 UART	2				2
32-Bit Timer	2				2
PLL	1				1	2	1	2
32 KHz Low-Power Oscillator	1				1
100 MHz On-Chip RC Oscillator	1				1
Main Oscillator (32 kHz to 20 MHz)	1				1
	A2F200				A2F500
Programmable Analog	PQ208	CS288	FG256	FG484	PQ208	CS288	FG256	FG484
ADCs (8-/10-/12-bit SAR)	2				2			3
DACs (8-/16-/24-bit sigma-delta)	2				2			3
Signal Conditioning Blocks (SCBs)	4				4			5
Comparators¹	8				8			10
Current Monitors¹	4				4			5
Temperature Monitors¹	4				4			5
Bipolar High Voltage Monitors¹	8				8			10
Temperature Grade	C, I				C, I, M

Notes:

These functions share I/O pins and may not all be available at the same time. See the "Analog Front-End Overview" section in the SmartFusion FPGA Analog UG for details.

Packaging and I/Os

Device	A2F200²				A2F500²
Package	PQ208	CS288	FG256	FG484	PQ208	CS288	FG256	FG484
Direct Analog Inputs	8	8	8	8	8	8	8	12
Shared Analog Inputs	16	16	16	16	16	16	16	20
Total Analog Inputs	24	24	24	24	24	24	24	32
Total Analog Outputs	1	2	2	2	1	2	2	3
MSS I/Os^3,4	22	31	25	41	22	31	25	41
FPGA I/Os	66	78	66	94	66⁶	78	66	128
Total I/Os	113	135	117	161	113	135	117	204

Notes:

There are no LVTTL-capable direct inputs available on A2F060 devices
These pins are shared between direct analog inputs to the ADCs and voltage/current/temperature monitors.
Sixteen MSS I/Os are multiplexed and can be used as FPGA I/Os, if not needed for MSS. These I/Os support Schmitt triggers and support only LVTTL and LVCMOS (1.5/1.8/2.5, 3.3V) standards.
Nine MSS I/Os are primarily for 10/100 Ethernet MAC and are also multiplexed and can be used as FPGA I/Os if Ethernet MAC is not used in a design. These I/Os support Schmitt triggers and support only LVTTL and LVCMOS (1.5/1.8/2.5, 3.3V standards.
10/100 Ethernet MAC is not available on A2F060.
EMC is not available on the A2F500 PQ208 and A2F060 TQ144 package
