Part Number: EVB-USB3813

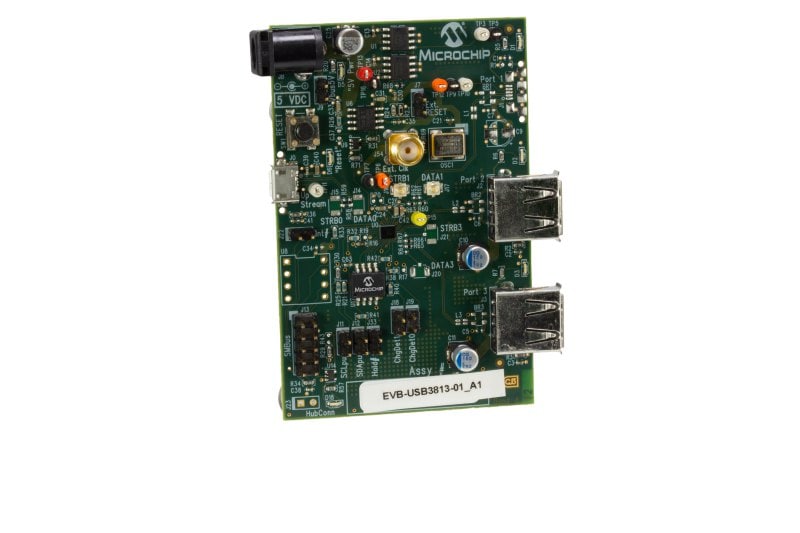

USB3813 3-PORT HSIC DOWN USB 2.0 HUB EVB

The 3 port hub is fully compliant with the USB 2.0 Specification, USB 2.0 Link Power Management LPM Addendum, High-Speed Inter-Chip HSIC USB Electrical Specification Revision 1.0 and attaches to a USB 2.0 upstream port as a high-speed hub.

View Purchasing Options
Contact Us

Overview

The EVB-USB3813 is a low-power, full-featured and OEM configurable Multi-Transaction Translator MTT USB 2.0 hub controller evaluation board with three downstream ports optimized for portable applications. The 3 port hub is fully compliant with the USB 2.0 Specification, USB 2.0 Link Power Management LPM Addendum, High-Speed Inter-Chip HSIC USB Electrical Specification Revision 1.0 and attaches to a USB 2.0 upstream port as a high-speed hub. The 3-port hub supports low-speed, full-speed and high-speed downstream devices on all of the enabled non-HSIC downstream ports. The one HSIC downstream port supports only high-speed operation. The USB3813 supports both upstream and downstream battery charging BC1.2 detection.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EVB-USB3813 Evaluation Board Gerber files Download 9f890f29-2d17-48ef-88f2-459cbfa2100d
EVB-USB3813-01 Evaluation Board Bill of Materials Download adc08795-533f-40ff-b6af-bbc04f89f5eb
EVB-USB3813-01 Evaluation Board Schematic - PDF Download 47658035-9467-46e5-aa97-693f4b342b4a
EVB-USB3813-01 Evaluation Board Schematic - OrCAD Download 89398f86-6cd4-4b8f-a11d-341d74573866
EVB-USB3813 Evaluation Board User's Guide Download d9ba7971-ee49-467c-97e1-e49715082575

Silicon Products

Product
Title
Product
Title
USB3813 3-Port USB 2.0 Hi-Speed Hub Controller for Portable Applications USB3813 3-Port USB 2.0 Hi-Speed Hub Controller for Portable Applications
