Part Number: EV83E85A

LAN9668 Ethernet Development System Base Board

  • Microchip LAN9668 8-Port TSN Gigabit Ethernet Switch with Integrated ARM Cortex A7, two RGMII/RMII, two QSGMII, and two 10/100/1000BASE-T PHYs
  • Microchip ZL30732 DPLL PTP & Sync-E Clock Synchronizer
  • Microchip SST26VF016B 16-Mbit Quad SPI Flash
  • 8-Gbit (512M x 16) DDR3L SDRAM, 64-Gbit eMMC NAND Flash
  • 2 SODIMM EDS2 260-pin PHY Daughter Cards sockets
  • USB2-C port for UART terminal console
  • USB2-A port for use with a USB flash drive
Buy Now
Contact Us
Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart

Overview

The EVB-LAN9668 EDS2 is a modular Ethernet PHY Development System based on the LAN9668 8 Port Ethernet switch. It is intended for evaluation of EDS2 compatible Daughter Cards that connect to one of the two available 260 pin SODIMM connectors. A SODIMM connector is used for the EDS2 Daughter Card connector interface due to its high performance, high pin count, and low cost.

Package Contents
  • EVB-LAN9668 EDS2 Platform
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

EV35H80A

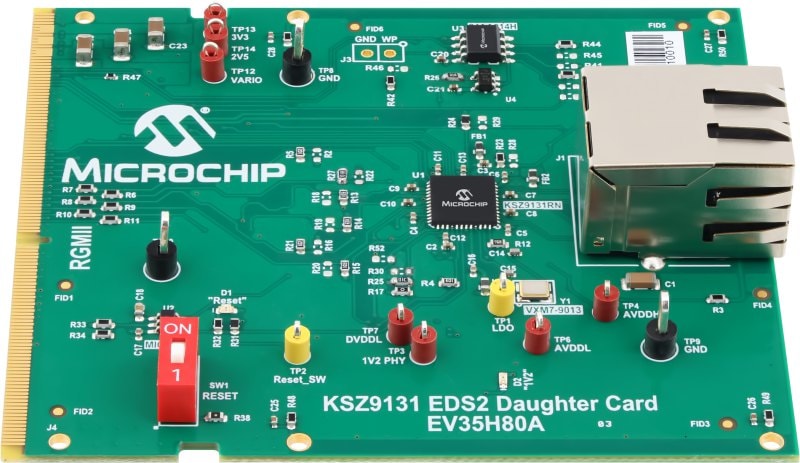

KSZ9131 EDS2 Daughter Card

The KSZ9131 EDS2 Daughter Card is designed for evaluation of the Microchip® KSZ9131 Gigabit Ethernet RGMII PHY when used with a Microchip EDS2 compatible host board.

EV12N54A

LAN8840 EDS2 Daughter Card

The EV12N54A LAN8840 EDS2 PHY Daughter Card enables copper Gigabit Ethernet connectivity for Microchip development platforms with the EDS2 interface.

All Application Notes

Documentation

Title
Document Id
EVB-LAN9668 EDS2 Schematic, PDF Download 6f0fefce-3e14-4243-812a-1eebdcb2f8f4
EV83E85A_LAN9668 EDS2 BOM Download 0ed644c6-651f-44e0-80d0-8d3d50308398
EVB-LAN9668 EDS2 Assembly Docs Download bb8e65cb-ad84-4844-84ab-aba3b76f8885
EVB-LAN9668 EDS2 Gerber Files Download 774802c5-6017-42b4-bd83-c07148a6f9a7
EVB-LAN9668 EDS2 PNP Download 32293e3e-edcf-42ed-ab1b-c85306e4731c
EVB-LAN9668 EDS2 BOM Download 5bdb228e-383c-4cc4-bf85-cbc21bb21ac5

Silicon Products

Product
Title
Product
Title
LAN9668 8-Port TSN Gigabit Ethernet Switch LAN9668 8-Port TSN Gigabit Ethernet Switch
