Part Number: EV12N54A

LAN8840 EDS2 Daughter Card

User Guide: PDF
LAN8840 Daughter Card User’s Guide
View Purchasing Option
Contact Us

Overview

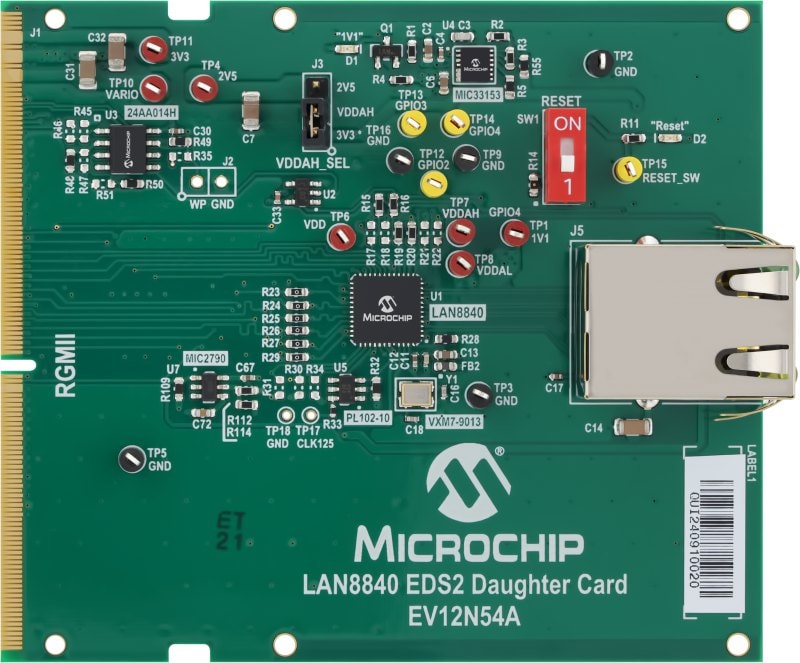

The EV12N54A LAN8840 EDS2 PHY Daughter Card enables copper Gigabit Ethernet connectivity for Microchip development platforms with the EDS2 interface. The LAN8840 is a completely integrated 10/100/1000 Ethernet physical layer transceiver with PTP Support for transmission and reception of data on standard CAT-5 as well as CAT-5e and CAT-6 unshielded twisted pair (UTP) cables. The LAN8840 provides reduced RGMII for direct connection to switches, microcontrollers, microprocessesers and FPGAs with an integrated Gigabit MAC in Gigabit Ethernet processors and switches for data transfer at 10/100/1000 Mbps. This board is intended to function as a daughter card only, which may be bundled with some systems and can be purchased individually to meet the application needs.

  • Small sized SODIMM-style form factor interface compatible with Microchip’s Networking, MCU and MPU platforms with EDS2 interface.
  • RGMII interface minimizes required pins for Ethernet Development System compatibility.
  • 10/100/1000 Mb RJ45 Integrated Connector and Magnetics with LEDs
  • MDC/MDIO management interface
  • PHY Reset DIP switch feature to keep the LAN8840 in Reset, useful for development
  • 1x3 header to select between 3.3V and 2.5V VDDAH transceiver voltage
  • Test points for GPIOs, Power rails, and GND
  • GPIOs can be used for IEEE1588 (Precision Time Protocol) timestamp capture and to clear event interrupts.

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
LAN8840 Daughter Card User’s Guide User Guides Download
LAN8840 EDS2 Daughter Card Design File Board Design Files Download
LAN8840 EDS2 Daughter Card Assembly Drawing Board Design Files Download
LAN8840 EDS2 Daughter Card FAB Drawing Board Design Files Download
LAN8840 EDS2 Daughter Card PNP Files Board Design Files Download
LAN8840 EDS2 Daughter Card Gerber Files Gerbers Download
LAN8840 EDS2 Daughter Card Schematic Schematics Download
