EPC's DC-DC Evaluation Boards

The EPC9137 evaluation power module is designed for 48V to/from 12V DC-DC applications. It features the EPC2206 eGaN FETs with AEC-Q101 qualification.

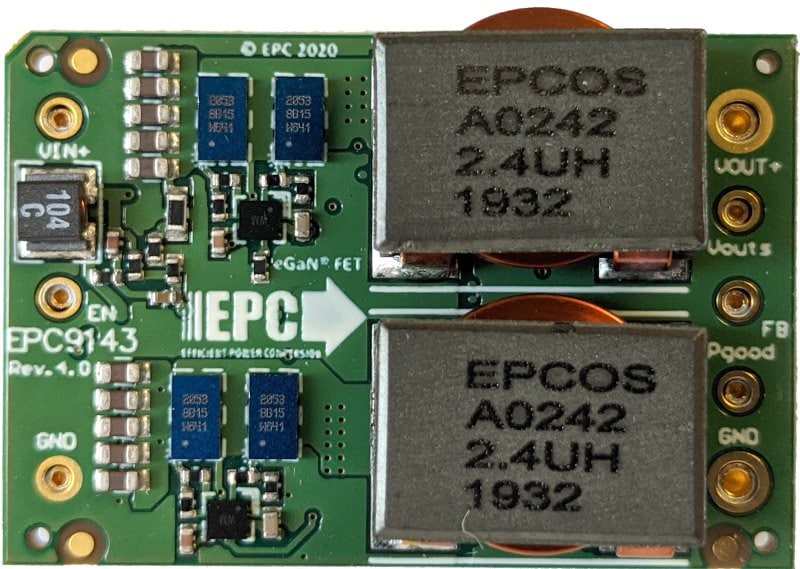

Brick DC-DC converters are widely used in data center, telecommunication and automotive applications, converting a nominal 48 V to different output nominal voltages such as 5 V, 9 V or 12 V. The standard dimension of the 1/16th brick converter is 33 x 22.9 mm (1.3 x 0.9 inch). The EPC9143 1/16th brick power module reference design, developed in collaboration with Efficient Power Conversion Corp. EPC, is designed for 48 V to 12 V DC/DC applications. It features the EPC2053 enhancement mode (eGaN®) field effect transistors (FETs), as well as a Microchip dsPIC33CK32MP102 16-bit digital signal controller (DSC). The height limit for this design is set to 10 mm (0.4 inch)

For more information on hardware related documentation, design files and purchasing information, please visit EPC’s product website:

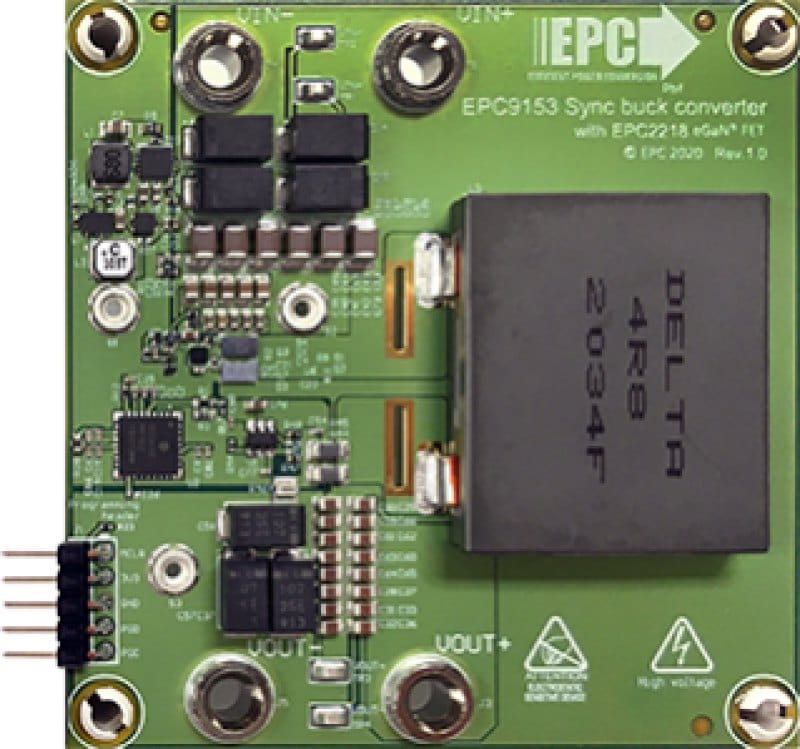

EPC9153 – 250 W High Efficiency, Thin Power Module
