Part Number: ATAVRFEB-SAFETY

AVR FUNCTIONAL SAFETY

  • Core independent operation using Configurable Custom Logic (CCL) and 16-Bit Timer/Counter Type A to create heartbeat signal
  • Core independent Cyclic Redundancy Check Memory Scan (CRCSCAN)
  • Core independent operation using 12-Bit Timer/Counter Type D (TCD) to drive a fan motor
  • Core independent TCD fault handling using Event System (EVSYS), Analog Comparator (AC) and Digital-to-Analog Converter (DAC)
  • Using Charlieplexing technique to drive a large number of LEDs with a low number of pins, using 16-Bit Timer/Counter Type B (TCB) and priority interrupt
  • Demonstrating core independent Watchdog Timer (WDT) in window mode
  • Demonstrating Real Time Counter Periodic Interrupt (RTC) (PIT)
  • Board controller with (PTC) touch slider to adjust voltage to ATtiny3217, demonstrating Voltage Level Monitor (VLM) interrupt, Brown-out Detector (BOD) and Power-on Reset (POR)
  • On-board Mini Embedded Debugger (mEDBG) for programming and debugging
View Purchasing Options
Contact Us

Overview

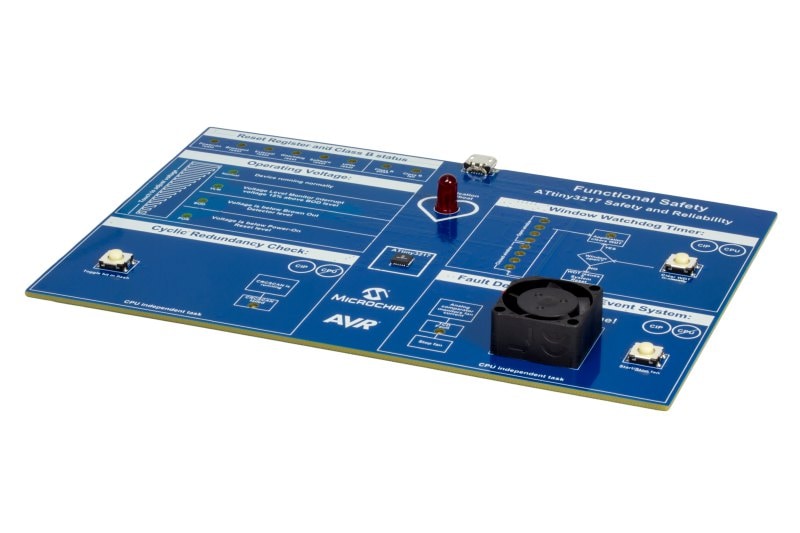

The Functional Safety Field Engagement Board is based on the ATtiny3217 microcontroller demonstrating the various built-in safety features of the AVR® microcontroller, such as:

  • Power-on Reset (POR), Brown-out Detection (BOR), Voltage Level Monitoring (VLM) to ensure sufficient supply voltage.
  • Cyclic Redundancy Check (CRC) to ensure no code corruption.
  • Windowed Watchdog Timer (WDT) monitoring correct program operation.
  • Timer/Counter type D (TCD) fault detection.
  • Class B self tests designed to detect various faults on start-up or during program execution, and shut down the application safely in case of fault.

If you are interested in the kit, please contact your local distributor or Microchip representative.

Related Devices: ATtiny3217, ATtiny3216

Related Design Centers: Functional Safety for AVR and PIC

Package Contents

The package contains the ATAVRFEB-SAFETY board.
