Overview
- Program Memory Size (KB):32
- RAM:4096
- Data EEPROM (bytes):512
- Pin Count:28
- Operation Voltage Max.(V):5.5
- Operation Voltage Min.(V):1.8
- ADC Resolution Max:12
- ADC Channels:10
- Zero Cross Detect:True
- Number of Comparators:3
- SPI:2
- I2C:1
- Stand alone PWM:8
- Low Power:Yes
- Numerically Controlled Oscillator (NCO):0
- Data Signal Modulator (DSM):0
- Functional Safety
- IEC 60730 Class B library (UL certified)
- ISO 26262 FMEDA (ASIL B Ready certified by SGS TÜV)
- ISO 26262 Safety Manual (ASIL B Ready certified by SGS TÜV)
- ISO 26262 software diagnostics (certification pending)
- IEC 61508 FMEDA
- IEC 61508 Safety Manual (ultimo 2021)
- MPLAB XC8 Functional Safety Pro compiler
- High-Performance AVR RISC CPU with Hardware Multiplier
- Running up to 24 MHz
- Single Cycle I/O Access
- Two-level Interrupt Controller
- Sleep Modes: Idle, Standby, Power-down
- Event System (EVSYS)
- Configurable Custom Logic (CCL)
- Single pin programming and debugging interface (UPDI)
- Analog Features
- 12-bit Differential Analog-to-Digital Converter (ADC)
- 10-bit Digital-to-Analog Converter (DAC) with Output Buffer
- Zero-Cross Detector (ZCD)
- Analog Comparator
- Timer/Counters
- Timer/Counter type A (TCA)
- Timer/Counter type B (TCB)
- Timer/Counter type D (TCD) for control applications
- User Interfaces - Peripharal Touch Controller (PTC)
- 1D Capactive Touch with MCU (Buttons, Sliders, Wheels, Proximity)
- 2D Capactive Touch Surface/Pads with MCU
- Communication
- Serial communication interfaces: USART, SPI, I2C
AVR® DA Product Family
The AVR® DA family of microcontrollers feature the well-known AVR® CPU, now running at up to 24 MHz across the full supply voltage range of 1.8V to 5.5V. The family includes 32 KB, 64 KB, and 128 KB Flash variants in 28- to 64-pin package options. The AVR® DA family is designed to bring capacitive touch sensing and real-time control functions to applications including industrial control, home appliance products, automotive, and Internet of Things (IoT).
The family uses the latest Core Independent Peripherals with low-power features and 5V operation for increased noise immunity. The Event System, Configurable Custom Logic (CCL), along with intelligent analog peripherals like 12-bit differential ADC, Zero-Cross Detect (ZCD), DAC, and the latest generation Peripheral Touch Controller (PTC) with driven shield technology make the AVR® DA family perfect for low-latency control applications and capacitive touch user interfaces. The high memory density of the AVR® DA family is well suited for communications stack-intensive applications, both wired and wireless.

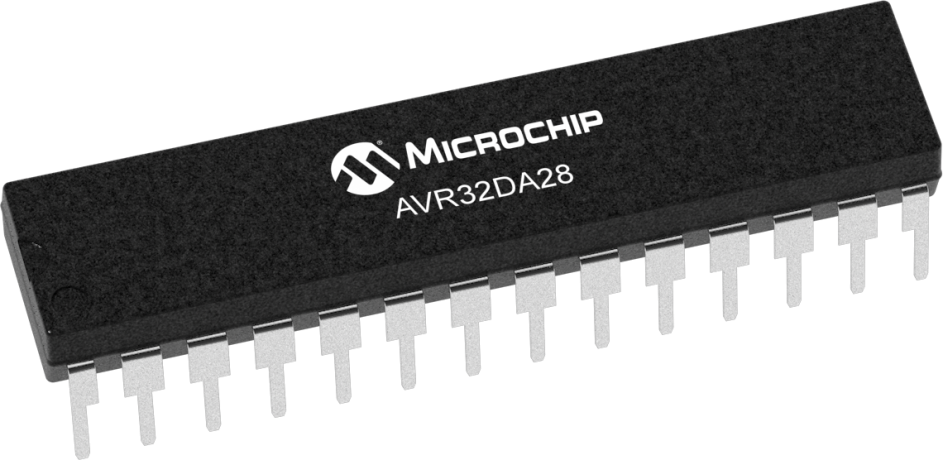

AVR32DA28
The AVR32DA28 microcontroller is part of the AVR® DA family featuring the AVR® processor with hardware multiplier, running at up to 24 MHz and with 32 KB Flash, 4 KB SRAM and 512 bytes of EEPROM in 28-pin packages. The AVR32DA28 will be available in SSOP and SOIC package options.
The AVR32DA28 product supports as many as 18 self-capacitance and 81 mutual capacitance touch channels, which makes the AVR® DA the perfect choice for human interface applications where multiple capacitive touch keys, sliders, wheels, or 2D surface are required.
Functional Safety:
This product is recommended for safety-critical applications targeting industrial and automotive products (IEC 61508 and ISO 26262). Necessary documentation, such as the FMEDA report and a Safety Manual, can be provided on request. Certified development tools are also available for this product. Contact your local Microchip sales office or your distributor for more information.
