Overview
- Program Memory Size (KB):16
- RAM:2048
- Data EEPROM (bytes):256
- Pin Count:48
- Operation Voltage Max.(V):5.5
- Operation Voltage Min.(V):1.8
- ADC Resolution Max:10
- ADC Channels:16
- Zero Cross Detect:False
- Number of Comparators:1
- SPI:1
- I2C:1
- Stand alone PWM:11
- Low Power:Yes
- Numerically Controlled Oscillator (NCO):0
- Data Signal Modulator (DSM):0

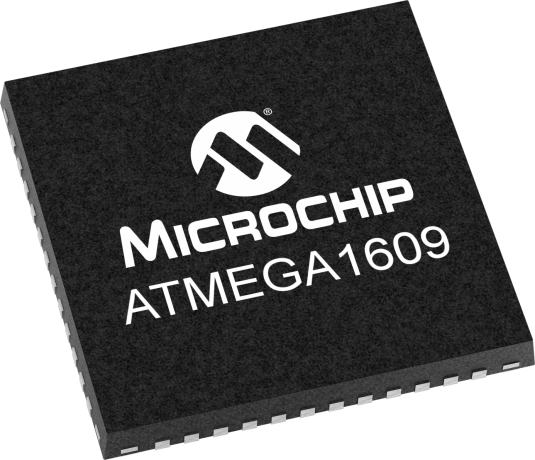

ATmega1609 is a microcontroller featuring the 8-bit AVR® processor with hardware multiplier - running at up to 20 MHz and with up to 16 KB Flash, 2 KB SRAM and 256 bytes of EEPROM in 48-pin packages. The series uses the latest Core Independent Peripherals with low-power features, including Event System, intelligent analog, and advanced peripherals.
