Design, Synthesize and Debug the CLB
The Configurable Logic Block (CLB) Synthesizer is the simplest entry into programmable logic for microcontroller engineers, while still delivering the advanced features experienced FPGA designers require. This CLB Synthesizer supports the PIC16F13145 MCU family.
Features That Make Development Easier
User-Friendly Design

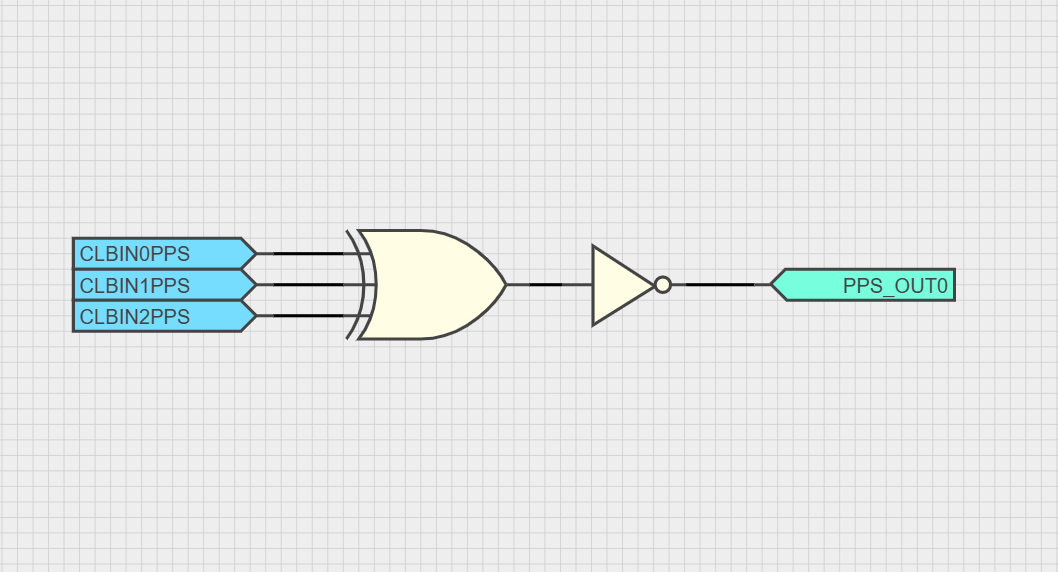

- Drag-and-drop interface
- Quickly assemble designs visually

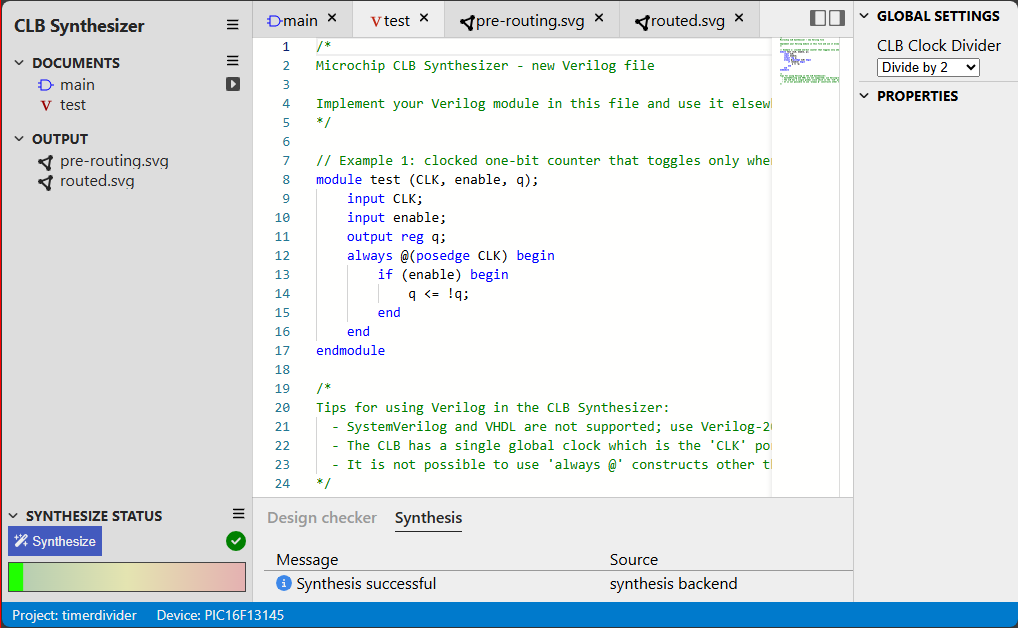

- Verilog support
- Code your designs directly for advanced control
- Configurable I/O
- Tailor input and output to your needs
Powerful Functionality
- Hierarchical design
- Group multiple logic elements into reusable components
- Error checking
- Focus on creating rather than troubleshooting
- Pre-built design libraries
- Access resources, templates and examples from within the tool
Flexible Access
- Stand-alone online access
- Enjoy features such as instant access, convenient and ready to use from your browser
- IDE integrated
- Use the CLB Synthesizer directly in MPLAB® X Integrated Development Environment (IDE)
