dsPIC33 DSCs for Motor Control Applications
Our dsPIC® Digital Signal Controllers (DSCs) combine the performance of a Digital Signal Processor (DSP) engine and the versatile peripherals of a microcontroller (MCU). This combination enables you to implement advanced motor control solutions. dsPIC33 motor control DSCs offer specialized peripherals to meet the needs of a variety of high-performance motor control applications. For example, our sensorless Field-Oriented Control (FOC) algorithm makes use of a single-cycle MAC with data saturation, zero overhead looping and barrel shifting for exceptional performance and precision speed, position and torque control.
Discover how dsPIC DSCs with our ecosystem of development tools, software and other design resources make it easy to develop your next Brushed DC (BDC) motor, Brushless DC (BLDC) motor, Stepper Motor, Permanent Magnet Synchronous Motor (PMSM) or AC Induction Motor (ACIM) application.
Featured Products
dsPIC33AK128MC106
This DSC offers a 200 MHz, 32-bit CPU with a dual-precision Floating-Point Unit to support model-based designs and complex math operations. Its peripherals include high-speed PWMs, incremental and BiSS encoder interfaces, 12-bit, up to 40 Msps ADCs, 100 MHz op amps, 5 ns comparators and many safety features. This real-time control DSC is optimized for implementing high-efficiency FOC algorithms providing precise control for variable speed or constant torque output applications.
dsPIC33CK64MC105
The cost-optimized dsPIC33CK DSC family is designed for Field-Oriented Control (FOC) motor control. The dsPIC33CK64MC105 offers up to 64KB Flash and 8KB RAM, a comprehensive set of motor control peripherals and high analog integration for applications requiring a single motor control, PFC, functional safety and robust operation.

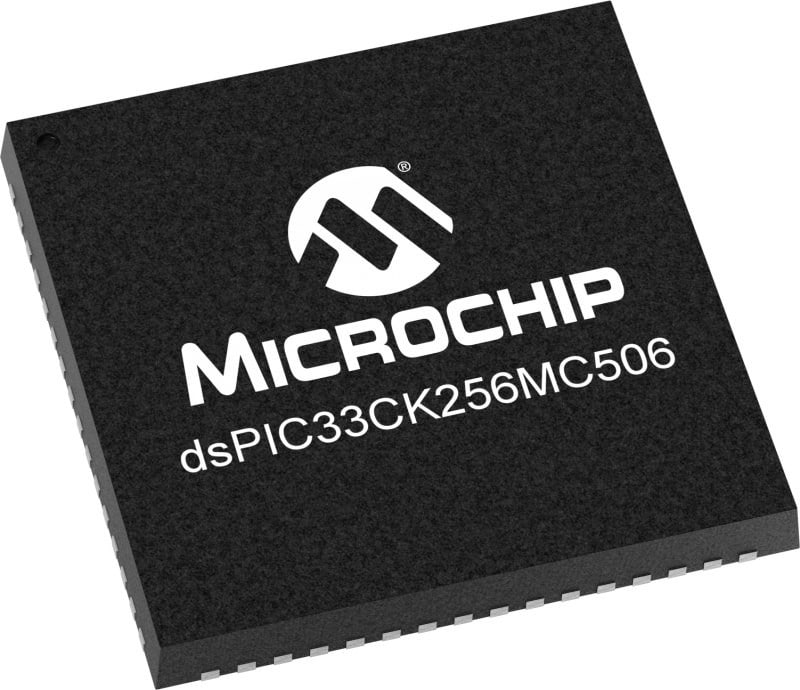

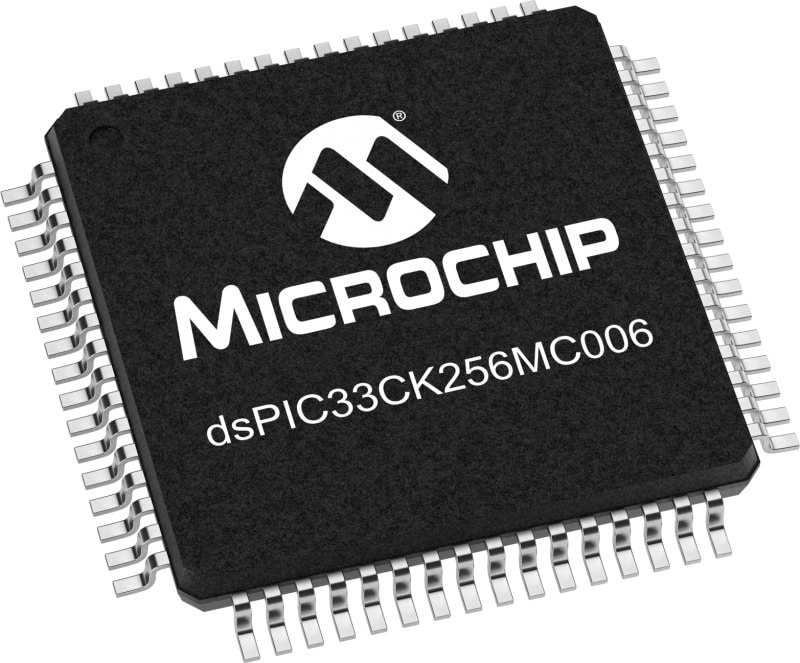

dsPIC33CK256MC506
The cost-optimized dsPIC33CK DSC family is designed for Field-Oriented Control (FOC) motor control. The dsPIC33CK256MC506 offers up to 256 KB Flash and 32KB RAM, a comprehensive set of motor control peripherals and high analog integration for applications requiring a single motor control, PFC, functional safety, robust operation and CAN FD connectivity.

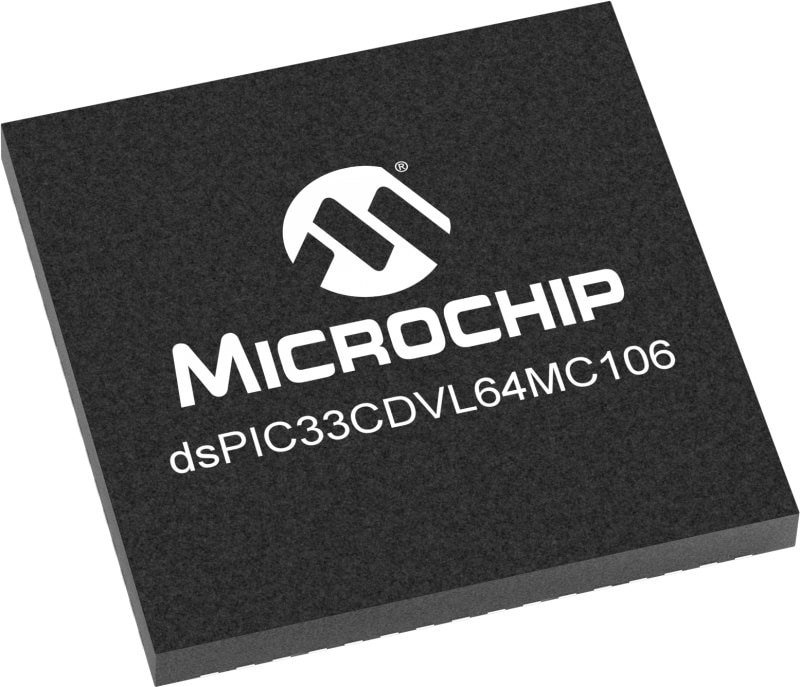

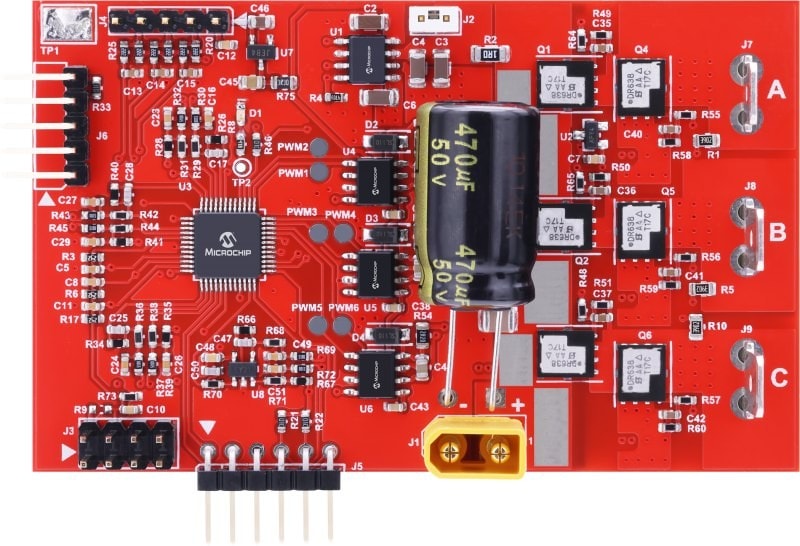

dsPIC33CDVL64MC106
Our dsPIC33CDVL64MC106 integrated motor driver combines a DSC, with a full-bridge MOSFET gate driver that is designed for three-phase BLDC motor control, and a LIN transceiver for automotive communications.
dsPIC33CDVC256MP506
Our dsPIC33CDVC256MP506 integrated motor driver combines a DSC, with a full-bridge MOSFET gate driver that is designed for three-phase BLDC motor control and a CAN/CAN-FD transceiver for automotive communications
High-Performance dsPIC33 DSC Core
- The high-performance 200 MHz, 32-bit dsPIC33A DSCs with a single-/dual-precision FPU coprocessor eliminate the need to scale variables, reducing user software errors, and the sine and cosine instructions in the FPU decrease motor control loop execution time
- The single- and dual-core dsPIC33C DSCs operate at up to 100 MHz/core with a DSP instruction set and a modified Harvard architecture for implementing fast control loops
- The dual-core architecture provides a secondary core dedicated for executing time-critical motor control algorithms and a primary core dedicated for implementing system monitoring, user interface and communication functions or to control a second motor
- Rich instruction set and addressing modes designed for real-time control where most instructions are single cycle
- Dual 40-bit (dsPIC33C)/72-bit (dsPIC33A) accumulators to implement single-cycle MAC instructions
- Full-speed operation from Flash without added wait states
- Multiple context registers and accumulators for fast interrupt switching
Motor Control Peripherals and High Analog Integration
- High-speed center/edge-aligned complementary PWM outputs with dead-time insertion and compensation
- Up to 16 channels of high-speed PWMs enable dual-motor control
- High-speed, 12-bit ADCs with oversampling, filters, digital comparators and multiple sample-and-hold circuits
- Differential high-speed analog comparators with 12-bit DACs, high-bandwidth differential op amps and PGAs
- The high-speed analog peripherals of dsPIC33A DSCs include:
- Up to 40 Msps ADCs that reduce control loop execution time, resulting in less phase lag
- Faster 100 MHz bandwidth op amps with 1 mV typical voltage offsets that improve control loop effectiveness
- 5 ns analog comparator operation that disables PWM outputs faster in an overcurrent situation
- Real-time control peripherals such as PWMs, ADCs, op amps, PGAs and comparators that are tightly coupled for fast and predictable control loops without CPU intervention
- High level of integration for lower Bill of Materials (BOM) cost
Functional Safety Ready
- Designed to operate in harsh environments and enable standard certification requirements, both UL and VDE
- Support for IEC 60730 Class B, IEC 61508 (Up to SIL 2) and ISO 26262 (Up to ASIL B) requirements
- Certified ISO 26262 and IEC 61508 libraries available
- Dedicated peripherals and functions to help increase the reliability in safety-critical applications
- System monitoring features include dual-windowed Watchdog Timer (WDT), Deadman Timer (DMT), Power-on Reset (POR), Brown-out Reset (BOR) and Fail-Safe Clock Monitor (FSCM) with a backup oscillator
- Memory integrity verification includes Flash Error Detection and Correction (ECC), fault injection on Flash and Memory Built-in Self-Test (MBIST) on SRAM
Automotive Ready
- Many devices are AEC Q-100 qualified with support for temperatures up to 150°C and 3V/5V operation
- Integrated CAN, CAN FD, LIN and SENT peripherals to support robust communication
- Rich set of high-performance peripherals for automotive motor control applications
- Core Independent Peripherals such as Configurable Logic Cell (CLC) and Peripheral Trigger Generator (PTG) enable higher levels of integration and flexibility
Scalable Products
- Devices ranging from 32 KB up to 1 MB of Flash memory
- TQFP, SSOP, QFN and uQFN packages in 28-, 36-, 48-, 64-, 80- 100- and 144-pin options and vQFN packages in 48-, 52- and 64-pin options
- Scalable core performance up to 200 MHz
motorBench® Development Suite
Use this Graphical User Interface (GUI) tool for Field-Oriented Control (FOC) to accurately measure motor parameters, tune feedback control gains and generate code for your project.
Motor Control Application Algorithm and Application Software
Use our motor control libraries and examples for FOC, windmilling, DC-Link compensation, Field Weakening (FW) and many other control algorithms.

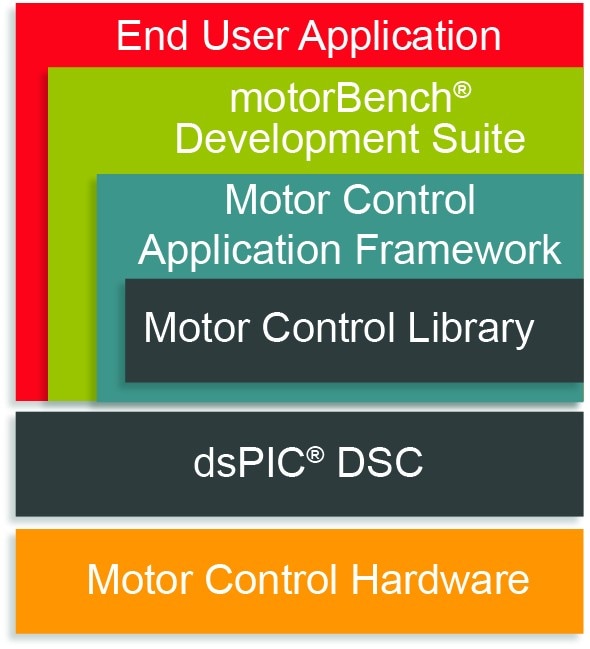

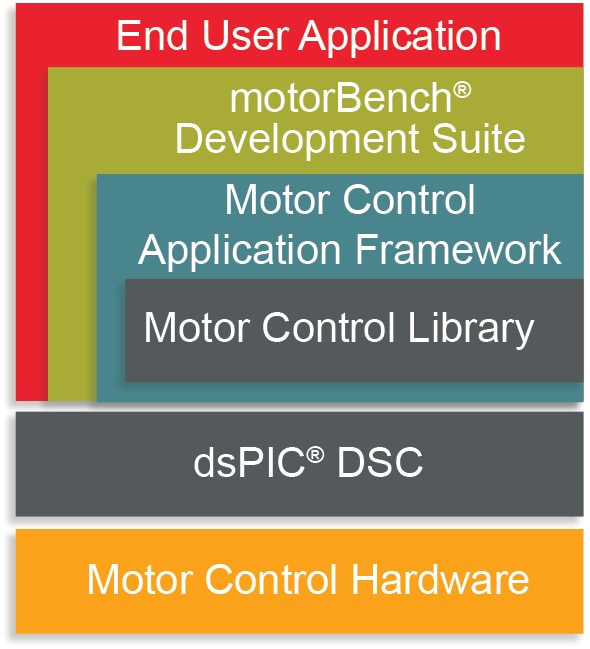

Motor Control Library
FOC function blocks optimized for the dsPIC33 DSC family. This library is designed to be efficient, flexible and used in any application framework.
Motor Control Simulation
Our simulation package for the dsPIC33 DSC allows you to rapidly prototype using simulation and generate code for your motor control application.
MPLAB® X Integrated Development Environment (IDE)
Use the expandable and highly configurable IDE to create, debug and qualify your embedded designs.
MPLAB Code Configurator (MCC)
Configure your MCU's rich set of peripherals and functions and customize your application with this graphical programming plug-in for MPLAB® X IDE

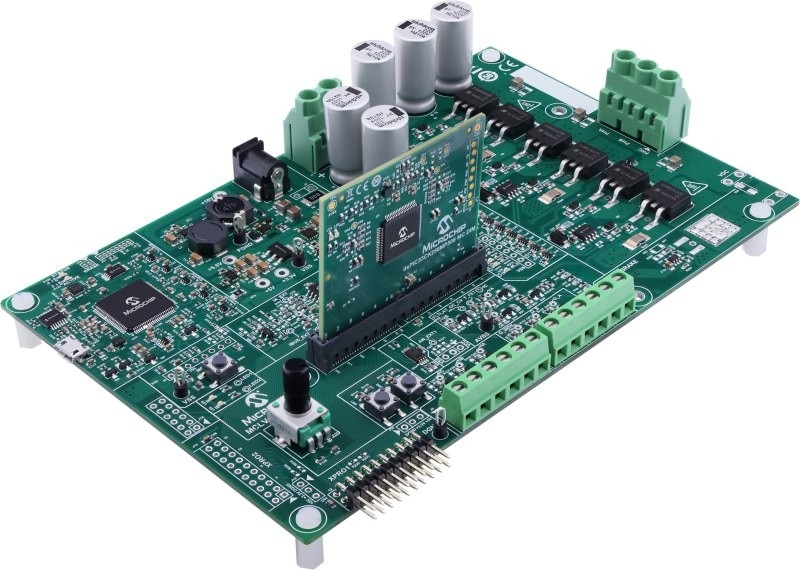

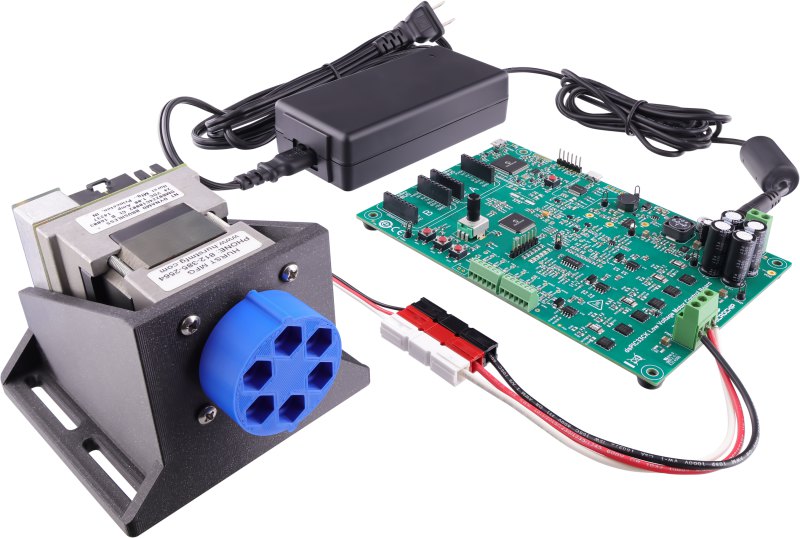

MCS MCLV-48V-300W Development Board
This development board supports BLDC, PMSM and IPM motors with a 12V–24V input

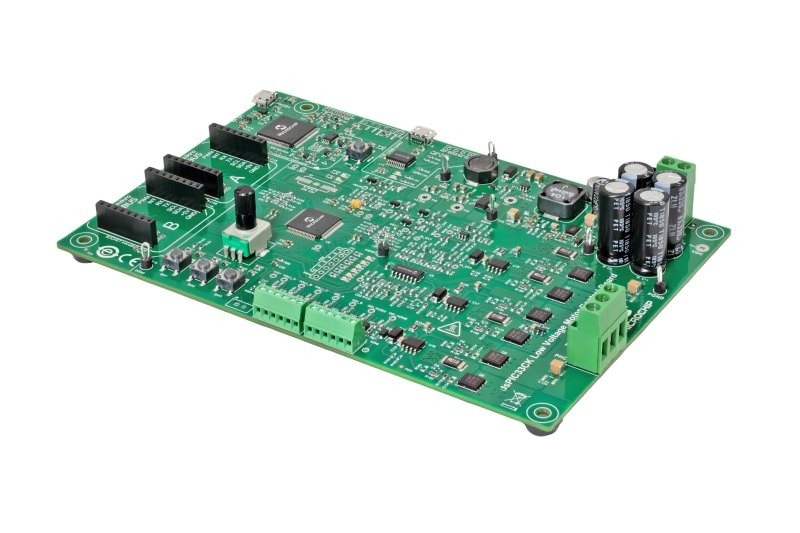

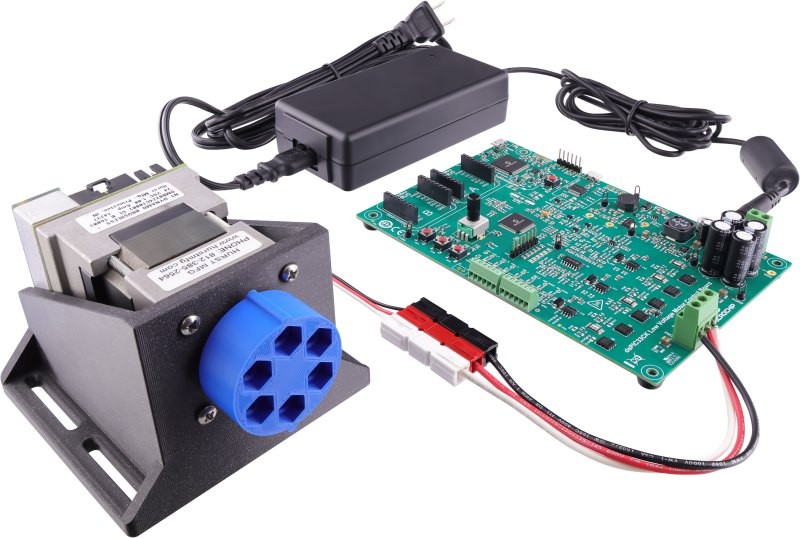

dsPIC33CK Low-Voltage Motor Control Development Board
This is a cost-effective, rapid development platform for 12V–48V BLDC, PMSM and Internal Permanent Magnet (IPM) motors
Motor Control Reference Designs
Our expertly engineered and thoroughly tested reference designs will help you accelerate your product’s time to market
Featured Application Notes
- dsPIC33 Motor Control Products
- All Motor Control MCUs
- 32-bit Motor Control Products
- Three-Phase Motor Drivers
- Stepper and Brushed DC Motor Drivers
Similar Devices
Loading
Similar Devices
Loading
Similar Devices
Loading
Similar Devices
Loading
Similar Devices
- Application Notes
- Brochures
- Code Examples
- Software
- User Guides
- White Papers
|
Title
|
|
|---|---|
| Sensorless Field Oriented Control (FOC) of an AC Induction Motor (ACIM) Using Field Weakening | Download |
| Sensorless Field Oriented Control of a PMSM using a Sliding Mode Observer (SMO) | Download |
| Stepper Motor Control with dsPIC® DSCs | Download |
| Sensored BLDC Motor Control Using dsPIC Digital Signal Controllers (DSCs) | Download |
| Using the dsPIC30F / dsPIC33F for Vector Control of an ACIM | Download |
| Sinusoidal Control of PMSM Motors with dsPIC30F / dsPIC33F/ dsPIC33E DSC | Download |
| Sensorless Field Oriented Control (FOC) for a Permanent Magnet Synchronous Motor (PMSM) Using a PLL Estimator and Field Weakening (FW) | Download |
| Sensored (Hall Effect Sensor-Based) Field Oriented Control of Three-Phase BLDC Motor Using dsPIC33CK | Download |
| Sensorless BLDC Control with Back-EMF Filtering Using a Majority Function | Download |
| Single-Shunt Three-Phase Current Reconstruction Algorithm for Sensorless FOC of a PMSM | Download |
| Field Oriented Control of a Three-Phase BLDC Motor using a Rotary Inductive Position Sensor | Download |
|
Title
|
|
|---|---|
| CE002 Configuring 10-Bit dsPIC DSC A/D Converters for 1 Msps Conversion Rate | Download |
| CE019 - Proportional Integral Derivative (PID) controllers & closed-loop control | Download |
| Sensorless FOC PLL Estimator MCLV | Download |
| PFC Sensorless FOC PLL Estimator MCHV | Download |
| CE155 - Real-Time Data Monitoring (RTDM) Example | Download |
|
Title
|
|
|---|---|
| dsPIC33 Motor Control Library for FOC | Download |
|
Title
|
|
|---|---|
| dsPICDEM MCLV-2 (DM330021-2) Development Board User's Guide | Download |

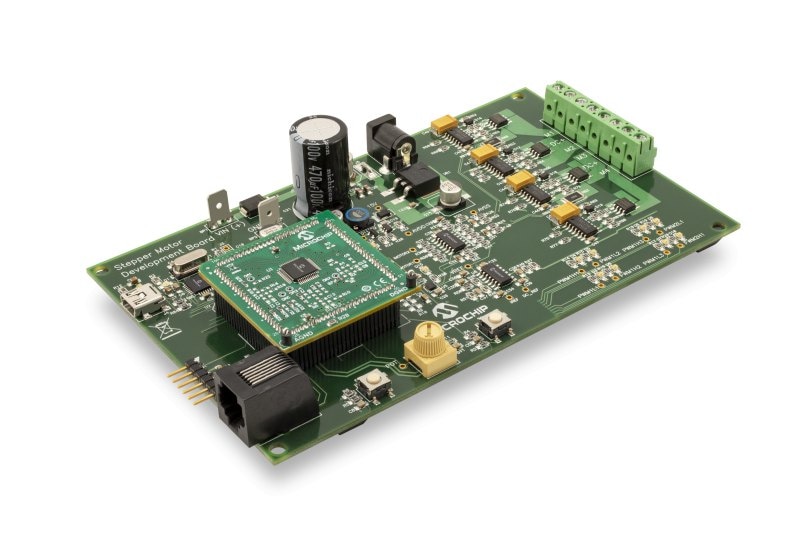

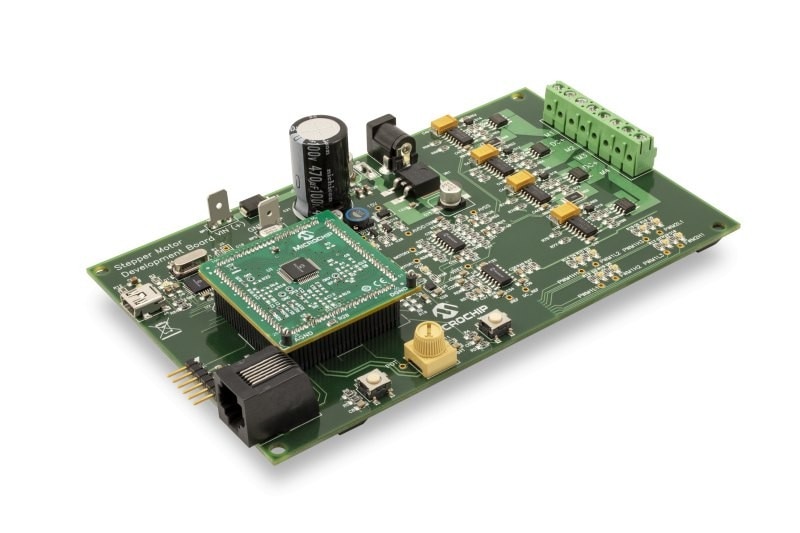

| dsPICDEM MCSM Development Board Users Guide | Download |
