Driving BLDC Motors With Efficiency and Precision
Integration and Compatibility
- Provide required voltage and current ratings
- Offer compatible communication interface and control methods
Ease of Design and Implementation
- Include a well-documented and supported motor driver IC to simplify the design process
- Reduce development time and effort
- Facilitate easier troubleshooting and maintenance
Reliability
- Are built for harsh industrial environments, with exposure to dust, moisture, and extreme temperatures
- Include built-in protection features that enhance the system's reliability and longevity
Explore Our Motor Driver Solutions for Industrial BLDC Applications
ATA6847
Three-Phase 42V Brushless DC (BLDC) Motor Gate Driver with Power Module and Sleep Mode
Applications:
- Power tools, home appliances and Remote Control (RC) vehicles
Design Benefits:
- Wide power supply voltage range of 3–42V
- Reduced footprint size
- Functional Safety Ready
MCP8027
Three-Phase BLDC Motor Driver with Buck Regulator and Sleep Mode
Applications:

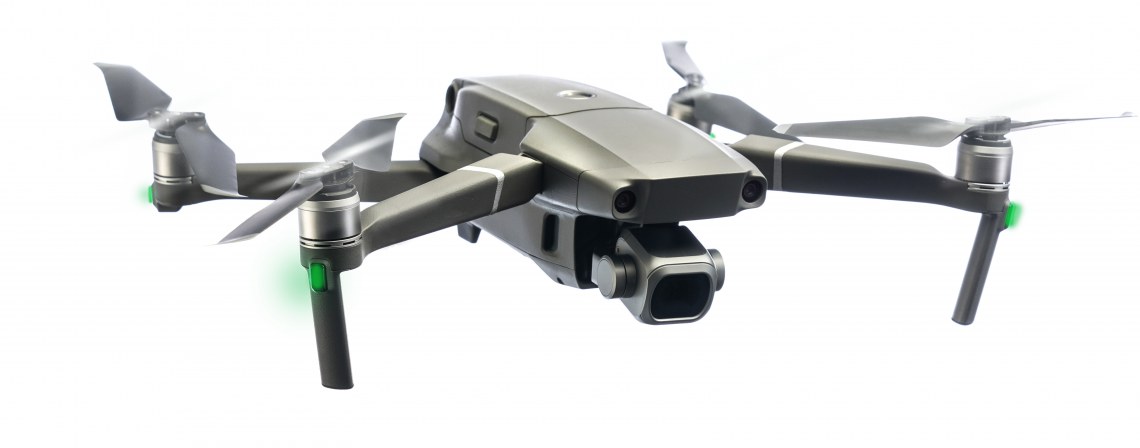

- Compact designs such as drones and RC vehicles
Design Benefits:
- Reduced footprint size
- Reduced design complexity
- Pairs well with our dsPIC33CK128MP503
Digital Signal Controller (DSC)
MCP8021/MCP8022
Three-Phase BLDC Motor Gate Driver with Power Module, Sleep Mode and Op Amps
Applications:
- Automotive and industrial motors that require safety features
Design Benefits:
- Wide input voltage range of 4–40V
- Highly integrated BLDC motor gate driver for use in industrial and harsh automotive (Grade 0) environment
- Functional Safety Ready
MIC4607A
85V, Three-Phase MOSFET Driver with Adaptive Dead-Time, Anti-Shoot-Through and Overcurrent Protection
Applications:
- Three-phase and BLDC motor drives
- Three-phase inverters
- Industrial/automotive BLDC motor applications
Design Benefits:
- Gate drive supply voltage up to 16V
- Enhanced circuit protection features
- Automotive recommended
