Radio Frequency (RF) Power Transistors

These transistors can provide significant signal amplification, which means a small input signal can be amplified to a much larger output signal without the need for multiple stages of amplification.

RF power transistors are capable of operating over a wide range of frequencies, from a few MHz to several GHz, making them suitable for various applications across different frequency bands.

Good linearity is essential for amplification without significant distortion, especially in communication systems where signal integrity is crucial. RF power transistors are designed to maintain linearity over a wide range of output power levels.

They are built to withstand harsh conditions, including high Voltage Standing Wave Ratios (VSWRs), which can occur due to impedance mismatches in the RF path. This ruggedness contributes to the reliability and longevity of the device.

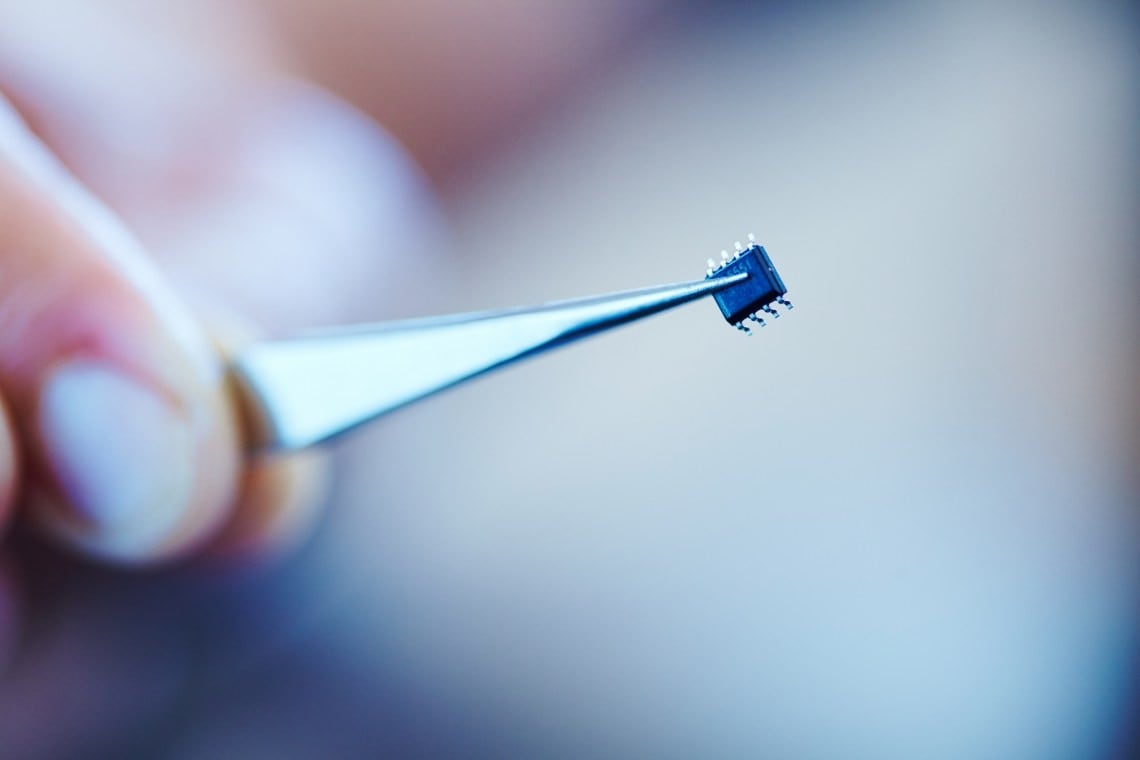

RF power transistors are available in small form factors, which is beneficial for applications where space is at a premium, such as in mobile devices, portable radio equipment or even space-constrained environments like AESA radars.

These transistors are designed with thermal performance in mind, often incorporating features that help to dissipate heat effectively, which is critical for maintaining performance and reliability.

Some RF power transistors come with additional integrated features, such as matching networks or multiple amplification stages, which can simplify circuit design and reduce the overall component count.

The output power of RF power transistors can be scaled by combining multiple devices in parallel or in a push-pull configuration, allowing designers to achieve the desired power levels for their specific applications.
