Silicon Carbide (SiC) Hardware Resources to Adopt SiC With Ease, Speed and Confidence

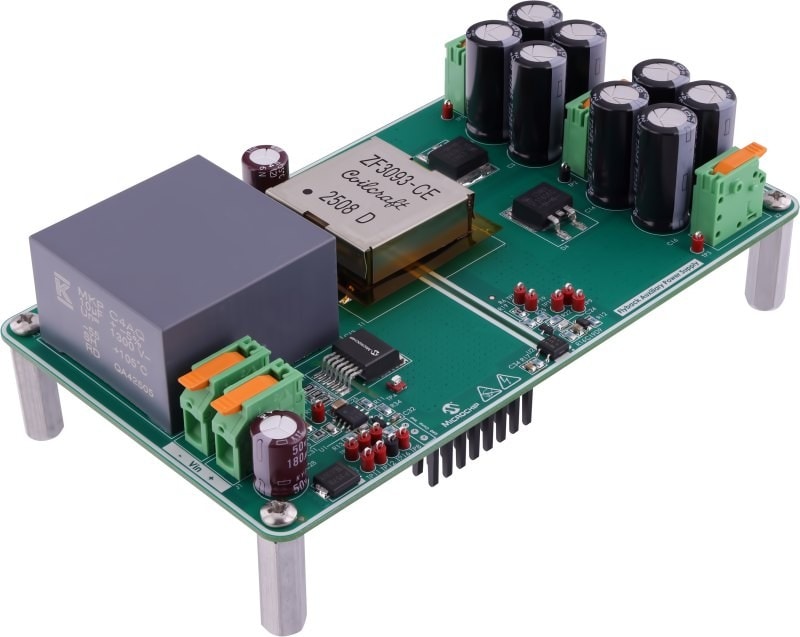

45W Auxiliary Power Supply for 800V Traction Inverters
- AEC-Q101 qualified 1400V mSiC MOSFETs reduce switching losses and eliminate the need for a gate driver, improving efficiency and thermal performance
- Supports 40V to 1000V input, making it adaptable for various EV architectures and scalable for higher power levels
- Automotive-grade transformer with reinforced isolation and active start-up ensures safety, reduces standby power and supports regenerative braking

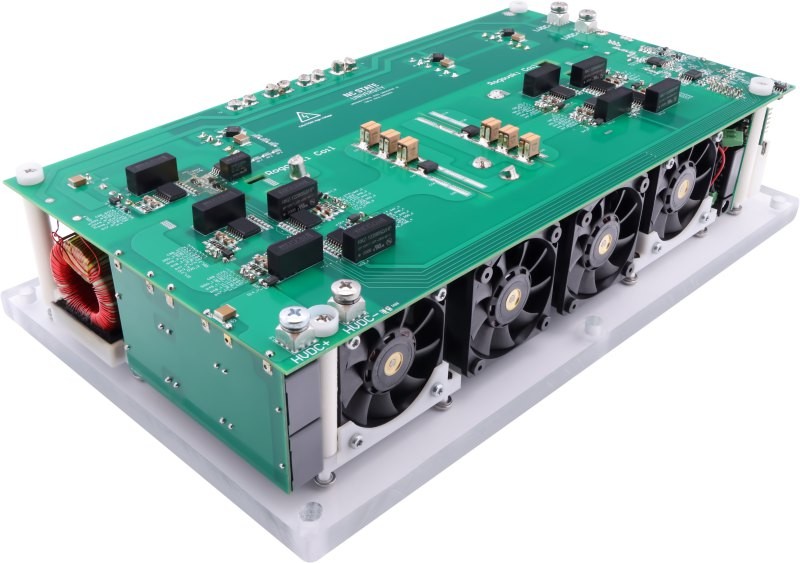

30 kW Polymorphic DC-DC Converter Reference Design
- Designed for 30 kW applications with isolation asymmetrical dual full-bridge topology
- Supports 400V Electric Vehicle (EV) systems as well as high-voltage power sources
- Power density of 7.2 kW/L at 30 kW output with peak efficiencies of over 98.5%

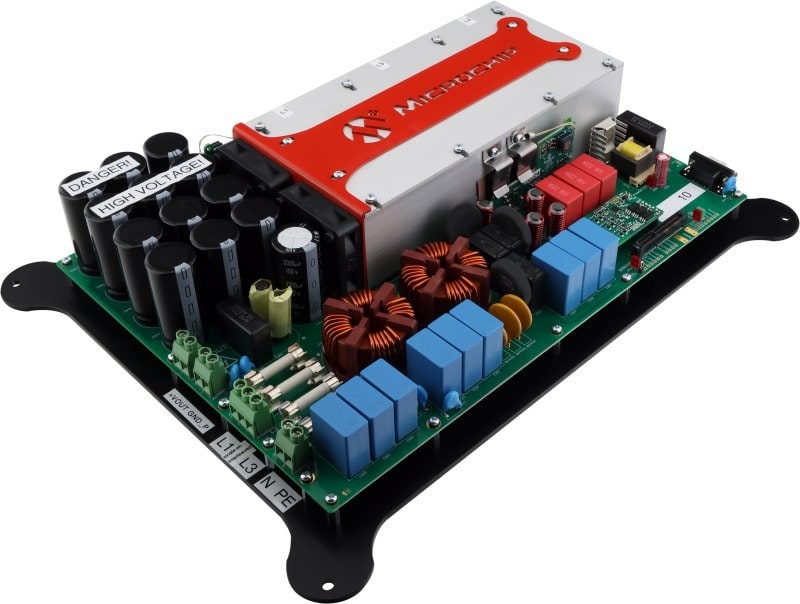

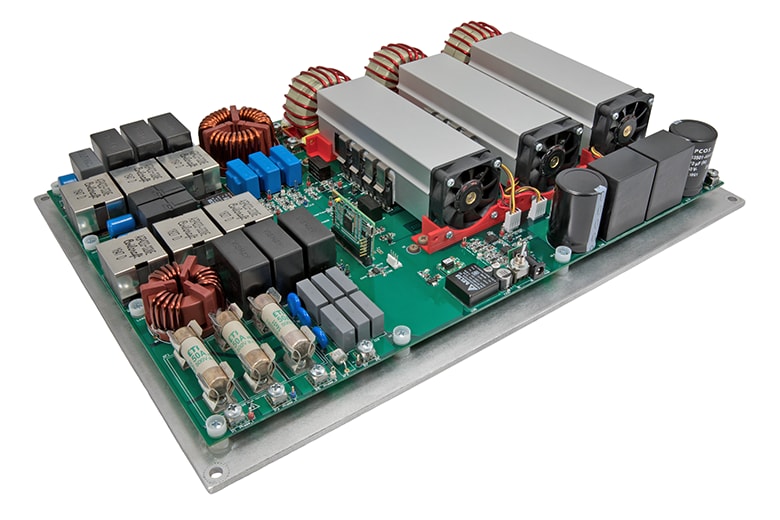

30 kW Vienna 3-Phase Power Factor Correction (PFC) Reference Design
- Designed for Hybrid Electric Vehicle (HEV) and Electric Vehicle (EV) chargers and high-power switch mode power supply applications
- PCB layout optimized for safety, current stress, mechanical stress and noise immunity
- Achieves 98.6% efficiency at 30 kW output power

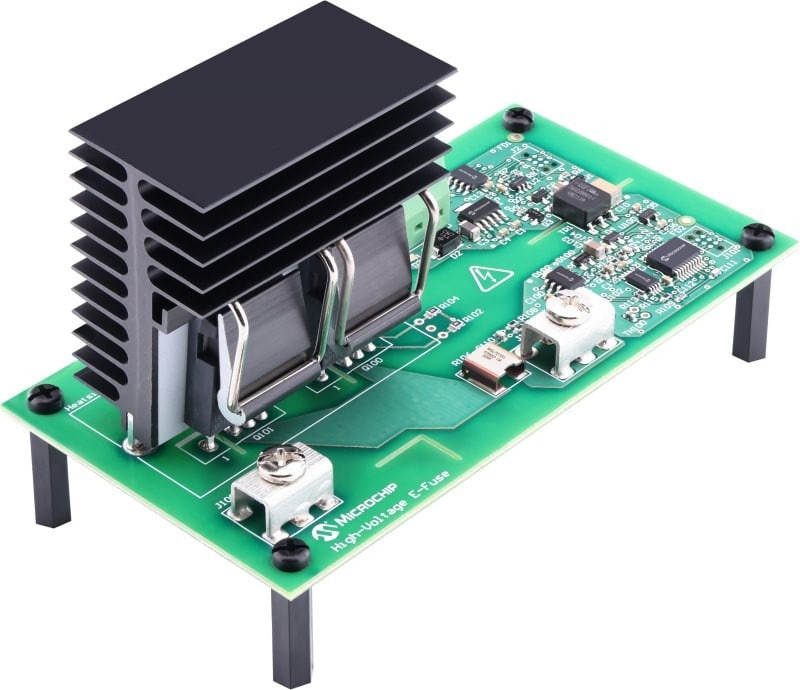

High-Voltage Auxiliary Electronic Fuse (E-Fuse) Demonstrator
- High-voltage solid-state relay with over-current protection for HEV, EV and other non-automotive DC solid-state circuit breaker applications
- Available 400V and 800V bus voltages and continuous current ratings of 10A, 20A and 30A
- Automotive hardware design that uses AEC-qualified components

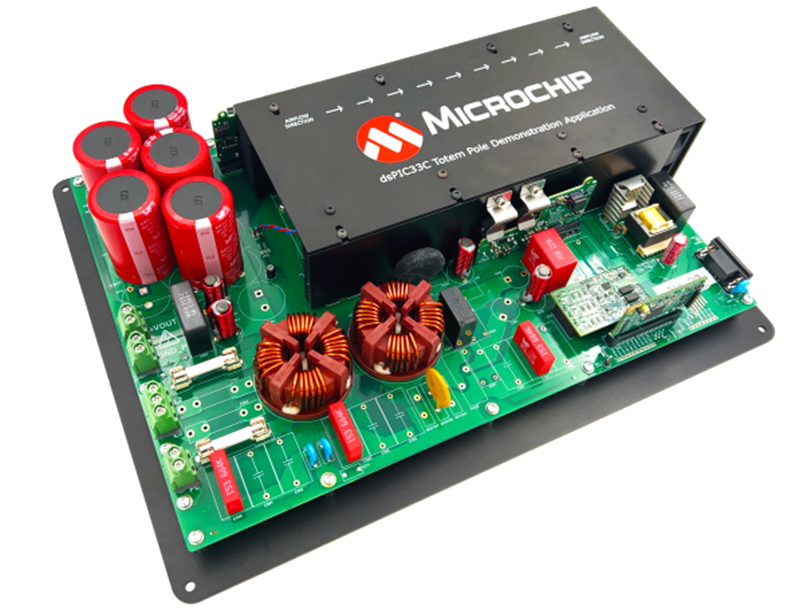

3.8 kW/7.6 kW Totem Pole Demonstration Application
- Enables bidirectional power conversion for an Electric Vehicle (EV) On-Board Charger (OBC)
- Highly modular hardware and firmware that allows operation in different modes
- Supported by code generation tools to accelerate your development
- Forced-air cooled solution with AEC-Q100-qualified components
11 kW Totem Pole Demonstration Application
- Enables bidirectional power conversion for an Electric Vehicle (EV) on-board charger (OBC)
- Highly modular hardware and firmware that allows operation in different modes
- Supported by code generation tools to accelerate your development
- Forced-air cooled solution with AEC-Q100-qualified components

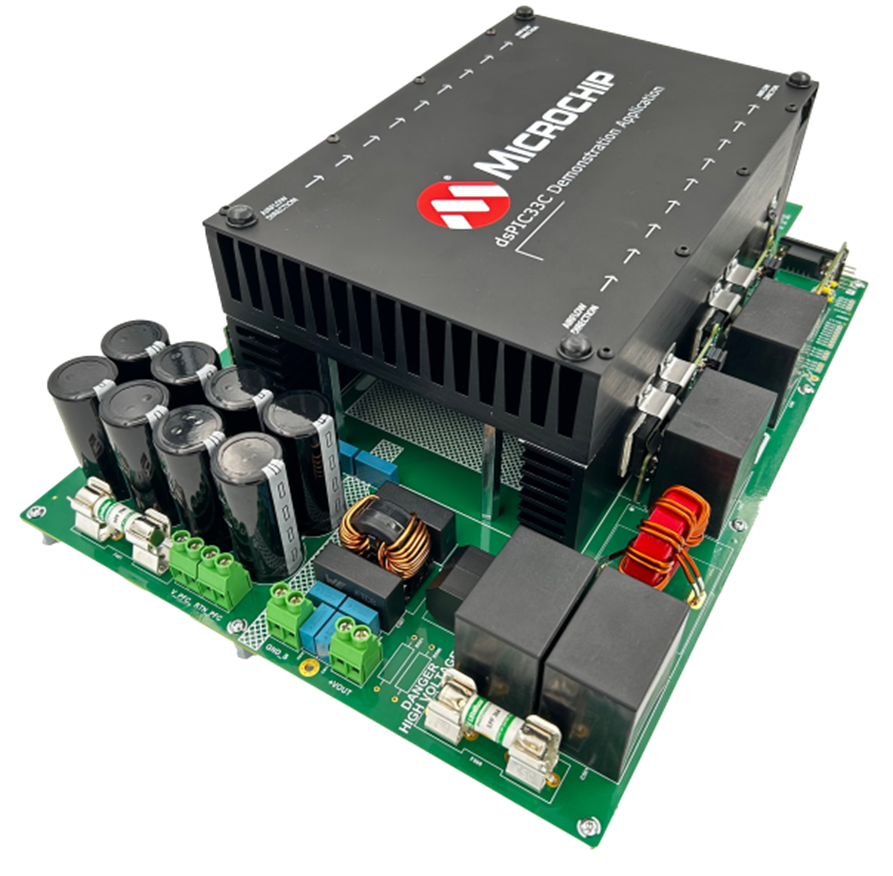

11 kW Dual Active Bridge DC-DC Demonstration Application
- 700–900 VDC input and output with bi-directional operation
- Non-linear/adaptive control algorithms for improved performance
- Forced-air cooled solution with AEC-Q100-qualified components
Mersen 150 kVA 3-Phase SiC Power Stack Evaluation Kit
- Designed for EVs, commercial transportation, renewable energy and energy storage systems
- Optimally designed solution to answer electrical, mechanical, and thermal challenges
- Power density of 16 kW/L and achieves 98% peak efficiency

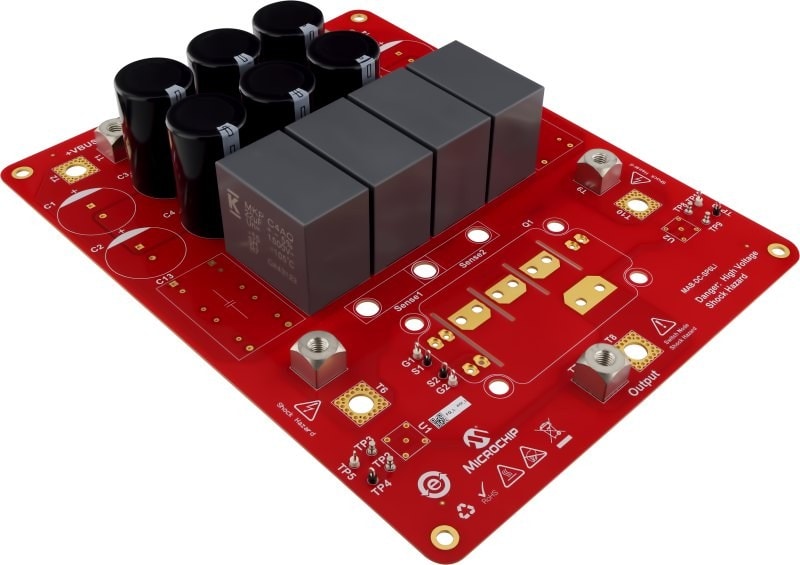

SP6LI mSiC MOSFET Module Evaluation Board
- Quickly evaluate and optimize the switching characteristics of our SP6LI Silicon Carbide mSiC modules in your application
- Minimize development time to get to market quicker
- Create scalable, high-power density designs
- The 2W isolated power supply enables driving larger MOSFETs at higher frequencies
- Designed to drive 700V and 1200V Si, IGBT and mSiC MOSFETs modules with a 10A peak source and sink output current
- Separate gate turn-on and turn-off resistors allow users to optimize switching turn-on and turn-off slopes
