DC-DC Buck-Boost Converters

Wide-Voltage Range With I2C-Configurable Output and Circuit Protection

We offer flexible and programmable synchronous DC/DC buck-boost (step-up/step-down) converters that provide buck mode operation when Vout is less than Vin, boost mode operation when Vout is greater than Vin and buck-boost mode operation when Vout is approximately equal to Vin. The buck-boost switching converter power analog front-end provides a simple, scalable power solution with custom configurations to enable clients to design configurable power supplies in small packages for the targeted end application. Our buck-boost controllers can be used in applications that require efficiency and the ability to generate a regulated output voltage including automotive, USB-C® Power Delivery (PD), battery-powered and industrial applications.

MCP19061 Synchronous Four-Switch Buck-Boost Architecture

  • Input voltage: +4.5V to +42V
  • Adjustable output range: 3V to 36V
  • Fully configurable:
    • Configurable protections: input and output over current, input over/under voltage, output over/under voltage, load dump, overtemperature and internal regulator fault
    • Configurable output: constant current operation and constant voltage operation
    • Adjustable frequency
    • Dynamically configurable by I2C
  • AEC-Q100 automotive qualified
  • 100W USB PD/180W EPR with PPS support
  • Reference design available for USB Power Delivery (PD) dual-charging port
Explore MCP19061
Download Data Sheet

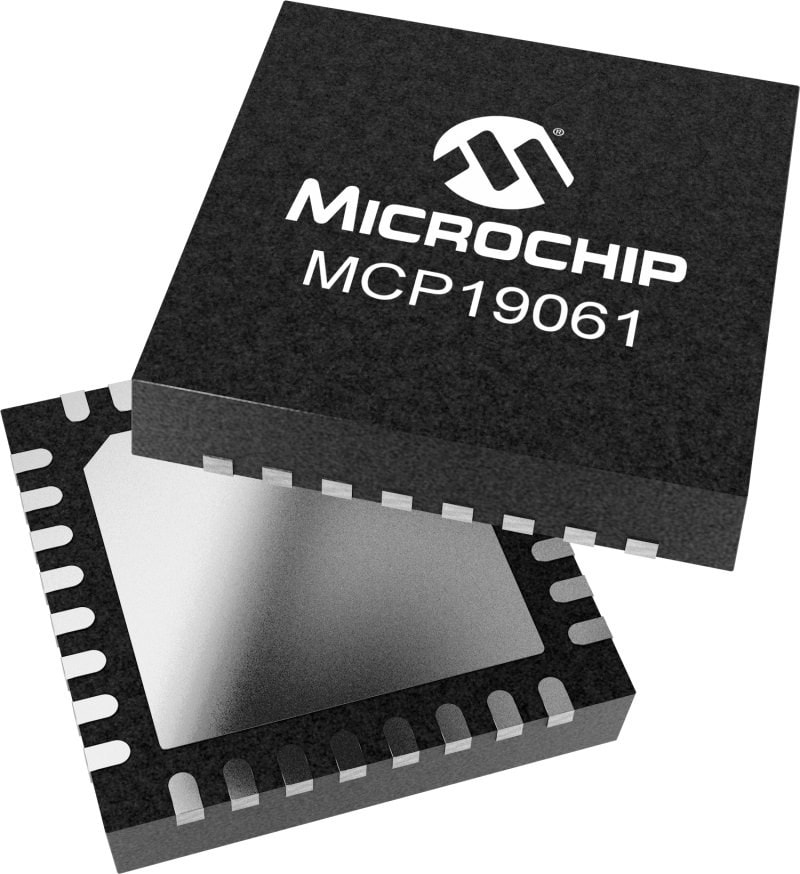

MCP19061, four switch bulk-boost DC/DC controller with I2C interface
Industrial power conversion, buck-boost

Applications

Automotive

  • Head unit and infotainment systems
  • Media hubs
  • Dedicated chargers

Consumer and Portable Electronics

  • Docking stations, LCD monitors and printers
  • HDTVs and media players
  • Headsets and gaming consoles

Industrial

  • Industrial automation
  • IoT/Industrial IoT
  • GPS navigation
  • Point-of-Sale (POS) systems
Automotive, buck-boost

Key Features

  • Highly integrated, mixed-signal four switch bulk-boost DC-DC controller with I2C interface
  • +4.5V to +36V input voltage operation
  • Ability to withstand up to +42V nonoperating
  • Digital PWM controller with a serial communication bus for external programmability and reporting
  • USB PD compatibility enhancement included to increase accuracy with greater flexibility and minimal external components required
  • Complete customization of device operating parameters, start-up or shutdown profiles, protection levels and fault handling procedures are accomplished by internal digital registers
  • Ability to configure application-specific features to save on costly board real estate and additional component costs
