SAMA5D4 Series

The SAMA5D4 microprocessor (MPU) is ideal for any high-performance, secure and cost-sensitive industrial application. High-speed computing needs are supported by Arm^® Neon™ technology and a 128 KB L2 cache that increases the overall system performance. The SAMA5D4 is an ideal fit for low-cost user interface applications that require video playback. The high-grade security features allow you to protect any system against counterfeiting and software theft, while also enabling you to securely store and transfer data.

Download 32-bit MPU Brochure

Learn About Linux® Software

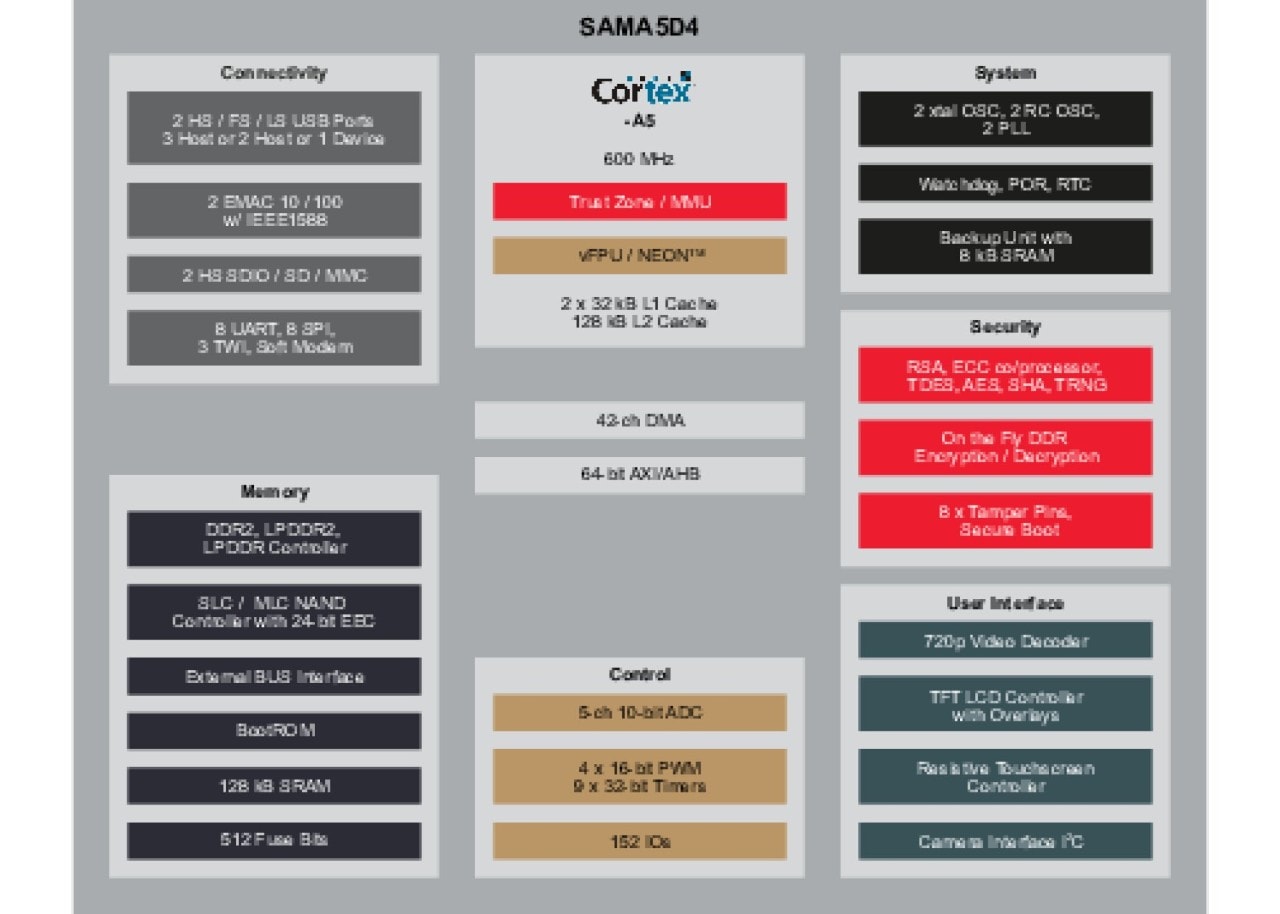

Key Features

Arm Cortex^®-A5 processor running at 600 MHz (945 DMIPS)
Arm Neon technology for high-precision computing and acceleration of complex algorithms including multimedia
128 KB of L2 cache for system performance
720p hardware video decoder supporting H264/263, VP8, JPEG
Graphic LCD TFT controller with overlays for image composition
CMOS image sensor interface
Three High-Speed USB ports (configurable as three hosts or two hosts and one device port)
Dual EMAC 10/100 with IEEE^® 1588 support

Advanced security features to prevent counterfeiting, secure external communication and authenticate the system:
- On-the-fly encryption/decryption of code from external DDR
- Encryption engines supporting AES/3DES, RSA, ECC - TRNG, SHA
- Tamper detection pins
- Memory content protection (secure key storage)
289 and 361 BGA packages in 0.8 mm pitch

SAMA5D4 Products

View All Parametrics

Please visit the full parametric chart. If you still cannot find the chart you are looking for, please complete our Website Feedback Form to notify us of this issue.

Similar Devices

View All Family Devices

No similar devices found.

Development Tools

To make your design process easier and reduce your time to market, we provide a full range of hardware and software tools for our 32-bit MPUs. We also work with a worldwide network of partners to deliver additional hardware and software solutions for these devices.

Design Files
To shorten time to market and facilitate PCB design, we provide design, layout and Gerber files for download. Multiple partners are also offering System-on-Modules (SOMs).

Evaluation Kits and Development Boards

Products	Description
SAMA5D4-XULT	Evaluation kit for SAMA5D4

SAMA5 Third-Party Partners

To ease your design process and reduce your time to market, we collaborate with a global network of partners that deliver hardware and software solutions for SAMA5 Arm Cortex-A5 based MPUs. As our worldwide partner ecosystem continues to grow, we will feature new partners here.
