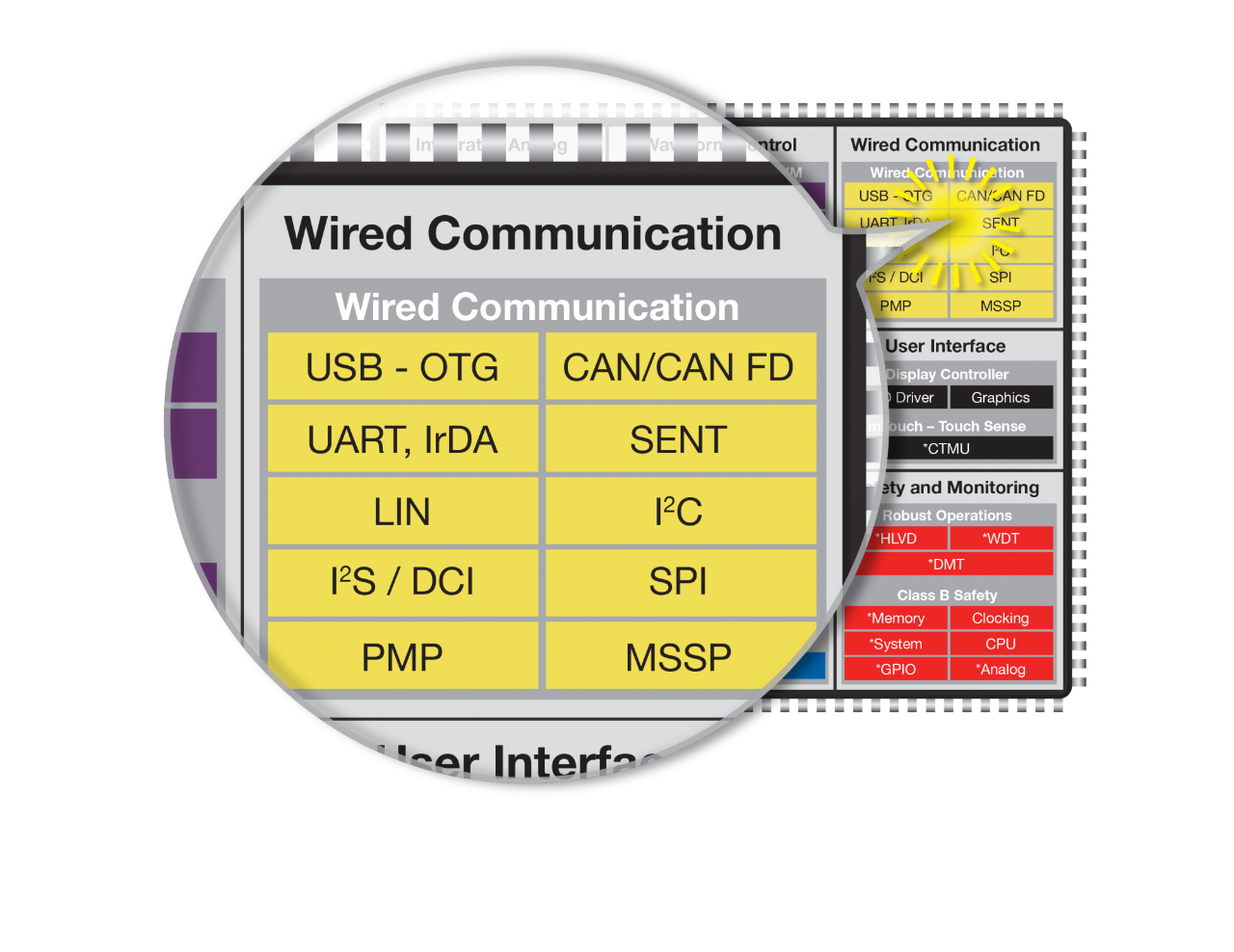

Advanced Connectivity Solutions With dsPIC33 DSCs
Achieve reliable communication in your application by using our dsPIC33 DSCs that support CAN, CAN FD, LIN, 10BASE-T1S, USB, I2C, SPI, UART and SENT-based connectivity in your design. These integrated DSC peripherals are supported within MPLAB® Code Configurator to simplify adding wired connectivity in your designs.
Controller Area Network 2.0 (CAN 2.0) and CAN Flexible Data Rate (CAN FD)
The CAN/CAN FD industrial- and automotive-centric asynchronous serial data communication protocol provides reliable communications in an electrically noisy environment
Universal Asynchronous Receiver Transmitter (UART) / LIN
This is a simple, cost-effective, two-wire asynchronous serial communication protocol.
Inter-Integrated Circuit (I2C)
The Inter-Integrated Circuit (I2C) module is a two-wire serial interface that is useful for communicating with other peripheral or microcontroller (MCU) devices.
Single Edge Nibble Transmission (SENT)
SENT is a protocol designed for point-to-point transmission of signal values and is widely adopted in automotive and industrial applications.
Inter-IC Sound (I2S™)
I2S is a data converter that implements a three-wire, half-duplex, synchronous serial interface to handle stereo data. It is one of the interfaces supported by the Data Converter Interface (DCI).
Serial Peripheral Interface (SPI)
The SPI is a general-purpose four-wire, synchronous serial interface for communicating with other peripherals or MCUs.
Universal Serial Bus (USB)
The USB module contains analog and digital components to provide a USB 2.0 full-speed and low-speed embedded host, full-speed device or On-the-Go (OTG) implementation with a minimum of external components.
10BASE-T1S Single Pair Ethernet (SPE)
The latest Ethernet technology that eliminates the need for gateways and facilitates high-bandwidth communication with multi-drop network topology. dsPIC33 DSCs together with LAN8651 enable adding 10BASE-T1S SPE communication to your designs
Quickly prototype your designs using MPLAB® Code Configurator.
Explore MPLAB Discover for complete source code and project examples to jumpstart your application.
Technical Resources
- Family Reference Manuals
- Application Notes
|
Title
|
|
|---|---|
| dsPIC33E/PIC24E FRM, Enhanced Controller Area Network (CAN) | Download |
| dsPIC33/PIC24 FRM, CAN Flexible Data-Rate (FD) Protocol Module | Download |
| dsPIC33/PIC24 FRM, UART | Download |
| dsPIC33/PIC24 FRM, I2C | Download |
| dsPIC33E/PIC24E FRM, Timers | Download |
| dsPIC33E/PIC24E FRM, Data Converter Interface (DCI) Module | Download |
| dsPIC33/PIC24 FRM, Serial Peripheral Interface (SPI) | Download |
| dsPIC33/PIC24 FRM, Single-Edge Nibble Transmission (SENT) | Download |
| dsPIC33E/PIC24E FRM, USB On-The-Go (OTG) | Download |
Wireless Connectivity
Key Attributes
- USB 2.0 full-speed support for host and device
- Point-to-point transmission of signal values
- Control and monitor operation
- Communicate with a wide variety of devices and peripherals
Target Applications
- Automotive Applications
- ECU
- Brake and fuel management
- Sensor interface
- Serial communication and data bridge
- Data loggers and communication bridge
- Smart card reader
- IC interface
- Interface with external modules
- LCD controller
- Memory
- External microcontrollers
- Parallel communication
- Communication bridge
- dsPIC33C DSCs—100 MHz
- dsPIC33E DSCs—70 MHz
