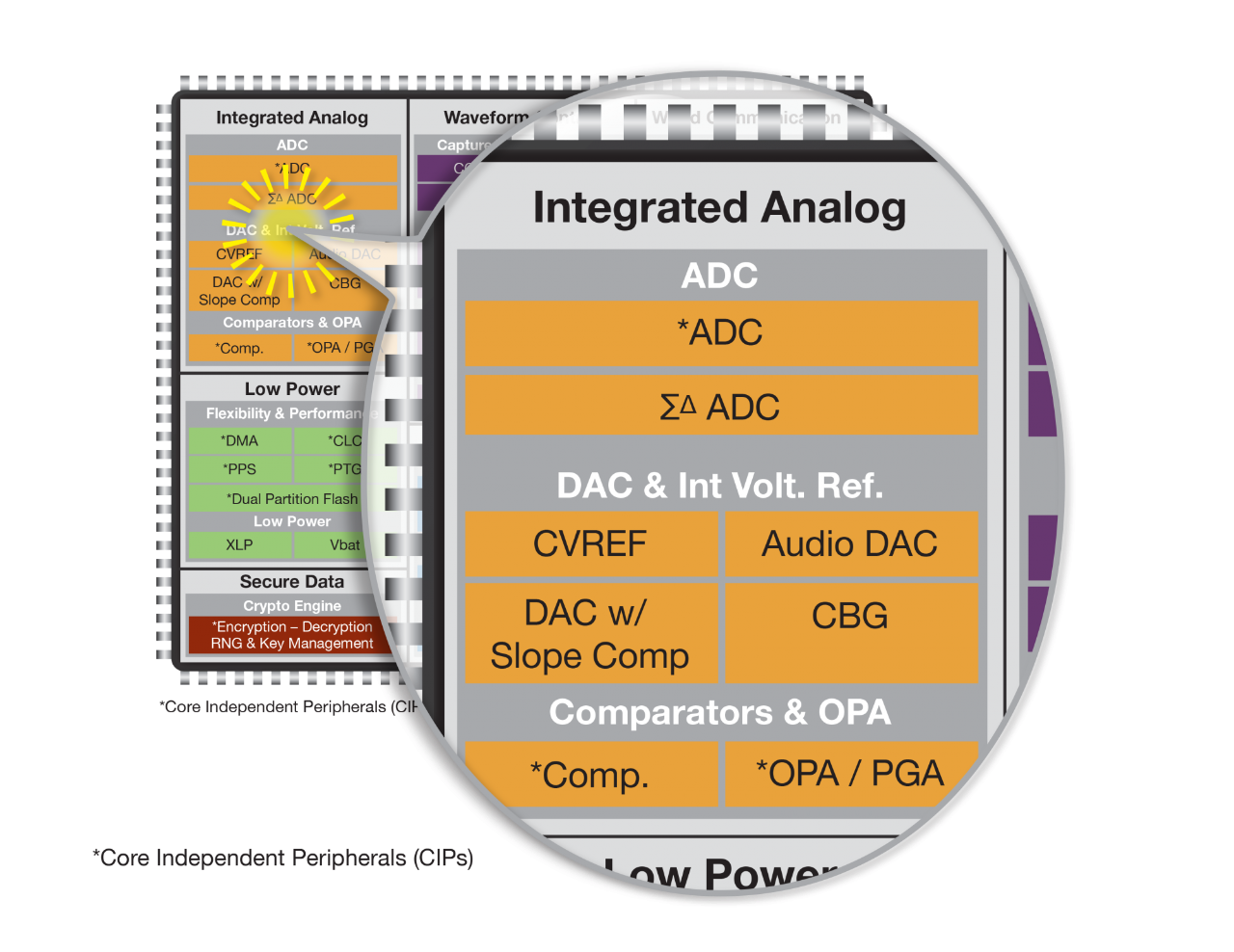

Integrated Analog With Signal Conditioning and Processing
Our dsPIC33 DSCs with integrated analog capability for signal conditioning and processing remove the complexity of connecting external analog devices. dsPIC33 DSCs are loaded with advanced analog peripherals such as high-speed Analog-to-Digital Converters (ADCs), Digital-to-Analog Converters (DACs), comparators and operational amplifiers (op amps) to enable processing analog signals and reduce overall design cost.
Choose the Right Peripheral for Your Design
Analog-to-Digital Converters (ADCs)
Our high-speed Successive-Approximation-Register (SAR) ADC offers core-independent features such as integrated digital comparators and oversampling filters. dsPIC33 DSCs are integrated with 12-bit (SAR) ADCs for achieving higher sample rate of up to 3.5 Msps.
Digital-to-Analog Converters (DACs)
High-precision DACs provide accurate conversions of digital streams to analog outputs. The DAC with slope compensation unit provides a user-defined slope that can be used to alter the DAC output. This feature is useful in applications such as peak current mode control, where slope compensation is required to maintain the stability of the power supply
Comparators, Operational Amplifiers and Programmable Gain Amplifiers (PGAs)
The high-speed comparators, op amps and PGAs available on dsPIC33 DSCs enable a high level of integration and reduce BoM cost by eliminating the need for external stand-alone analog components for signal conditioning and sensing. These peripherals are tightly coupled with ADCs and high-resolution Switched-Mode Power Supply (SMPS)/Motor Control (MC) Pulse-Width Modulators (PWMs) to enable efficient motor control and digital power conversion.
Internal Voltage Reference and Current Bias Generator
- Constant current source for bias, off-set generation and calibration
- Selectable current sourcing or sinking
- Selectable current mirroring for sourcing and sinking
Software Libraries
Quickly prototype your designs using MPLAB® Code Configurator.
Explore MPLAB Discover for complete source code and project examples to jumpstart your application.
Technical Resources
- Family Reference Manuals
- Application Notes
|
Title
|
|
|---|---|
| dsPIC33E/PIC24E FRM, Analog-to-Digital Converter (ADC) | Download |
| dsPIC33/PIC24 FRM, 12-Bit High-Speed, Multiple SARs A/D Converter (ADC) | Download |
| dsPIC33/PIC24 FRM, High-Speed Analog Comparator | Download |
| dsPIC33E/PIC24E FRM, Op Amp/Comparator | Download |
| dsPIC33C/PIC24 FRM, High-Speed Analog Comparator with Slope Compensation DAC | Download |
| dsPIC33/PIC24 FRM, Programmable Gain Amplifier (PGA) | Download |
| dsPIC33/PIC24 FRM, Current Bias Generator (CBG) | Download |
Key Attributes
- Higher reliability
- Lower costs
- Reduced footprint size
- Improved signal integrity
- Alleviates board noise
- Accelerates time to market
Target Applications
- Lighting
- Motor control
- Sensor interface applications
- Filtering for signal conditioning
- System monitoring
- High-precision measurement equipment
- Speech coding and processing
dsPIC33 Digital Signal Controllers
- dsPIC33C DSCs—100 MHz
- dsPIC33E DSCs—70 MHz
Similar Devices
Loading
Similar Devices
dsPIC33C DSC Peripheral Deep Dive
This class presents deep-dive information on the architecture, set up and demonstration of the dsPIC33C DSC Peripherals
