dsPIC33E MC Family of Digital Signal Controllers

Motor Control, Real-Time Control, Dual CAN, Functional Safety, Scalable

Electric motors are everywhere, spanning industrial, automotive, consumer and medical applications. Since these electric motors are an integral part of many electrical devices and consume significant power, minimizing power consumption is an essential design consideration. Our dsPIC33E MC family offers 70 MIPS performance, a Digital Signal Processing (DSP) engine and specialized peripherals for implementing high-efficiency, high-precision, variable-speed, constant-torque Proportional Integral (PI) control and Field-Oriented Control (FOC) of motors.

The dsPIC33E MC family is ideal for controlling Permanent Magnet Synchronous Motors (PMSMs), Interior Permanent Magnet (IPM) motors, AC Induction Motors (ACIMs) and Brushless DC (BLDC) motors. Combining the performance of a DSP engine and the simplicity of a microcontroller, dsPIC33EP MC DSCs feature three pairs of motor control Pulse-Width Modulators (PWMs), a high-speed Analog-to-Digital Converter (ADC), op amps and comparators for an optimized design. The high-level of analog integration shrinks form factor and reduces your Bill of Materials (BoM) cost. Offering up to 150°C operation, dsPIC33E MC DSCs facilitate a robust motor control design that withstands harsh environments.

These robust DSCs also feature dedicated peripherals and hardware features to help increase reliability in safety-critical applications, ensuring that your end applications operate as intended, with safe shut down if any exception or issue arises. These AEC Q100 Grade 0 qualified DSCs are also excellent options for automotive applications.

Key Features of the dsPIC33E MC Family of DSCs

Key Features Description
Up to 150°C Operation Robust operation in extreme operating conditions and AEC Q100 Grade 0 qualified
High Analog Integration Features 1.1 Msps 12-bit Analog-to-Digital Converter (ADC), high-bandwidth op amps and high-speed comparators that reduce external component requirements and BoM cost
Motor Control Peripherals

Ideal for high-speed, high-precision motor control applications

  • Independent or complementary mode
  • Programmable dead time settings
  • Edge- or center-aligned Pulse-Width Modulators (PWMs)
  • Manual output override control with 10 fault inputs
  • ADC samples triggered by PWM module
  • Up to two Quadrature Encoder Interfaces (QEIs)
Robust Connectivity Features up to two CAN modules, LIN and other serial communication peripherals like UART, SPI and I2C
Safety Features Dedicated hardware features such as Fail-Safe Clock Monitor (FSCM), Windowed Watchdog Timer (WDT), Power-on Reset (POR), Brown-out Reset (BOR), High/Low Voltage Detect (HLVD) and more
Flexible Peripherals Specialized Core Independent Peripherals (CIPs), such as the Peripheral Trigger Generator (PTG), that are designed to take the load off the Central Processing Unit (CPU)
DMA Dedicated Direct Memory Access (DMA) controller supports both memory and peripheral data transfers to reduce CPU workload
Scalable Flash memory densities range from 32 KB to 512 KB, RAM ranges from 4 to 52 KB and packages range from 28 to 64 pins
Integrated MOSFET Gate Driver System in Package (SiP) integrates a full-bridge (3-phase) MOSFET gate driver with a LDO voltage regulator to power the digital circuits from a single 6.5 to 29-volt supply

Automotive

  • Under-the-hood
  • Camera control
  • Home link systems

dsPIC33E MC DSC Selection Guide

For more information on each of the dsPIC33E MC products, click the “Sub Family” name in the table below.

Sub Family

 Performance(MHz)

Pin Count

Program Flash (KB)

RAM (KB)

ADC

 Analog Comparators

Op Amps/PGAs

Motor Control PWMs

QEI

PTG

AEC Q100

 Functional Safety Ready

dsPIC33EP512MC806

 70

64

512

52

2x 10-bit or
10-bit + 12-bit,
Up to 8 S&H

 3

-

4 pair, 8.32 nS

✔

✔

✔

 ✔

dsPIC33EP512MC506

 70

28–64

32–512

4–48

10-bit/12-bit,
Up to 4 S&H

 3

✔

3 pair, 7.14 nS

✔

✔



 ✔

dsPIC33EP512MC206

 70

28–64

32–512

4–48

10-bit/12-bit,
Up to 4 S&H

 3

✔

3 pair, 7.14 nS

✔

✔

✔

 ✔

dsPIC33EDV64MC205

 70

64

64

8

10-bit/12-bit,
Up to 4 S&H

 3

✔

3 pair, 7.14 nS

✔

✔

✔

 ✔

motorBench® Development Suite

The motorBench Development Suite is a Graphical User Interface (GUI)-based software development tool for Field Oriented Control (FOC) of motors. It performs accurate measurement of critical motor parameters and automatic tuning of feedback control gains and generates source code for an MPLAB® X IDE project using the Motor Control Application Framework (MCAF).

Learn More

Motor Control Design Center

Explore a range of hardware and software motor control solutions for different types of motors by visiting our Motor Control Design Center. You can shorten your development cycle by using our free motor control software with simulation blocksets and models, application notes and tuning guides. Our scalable motor control development tools promote rapid prototyping for low-voltage and high-voltage systems including dual motor control options.

Learn More

Featured Development Tools

MPLAB® Development Ecosystem and Software Tools

The MPLAB development ecosystem is a single tool chain supporting all PIC® microcontrollers and dsPIC® Digital Signal Controllers.

MPLAB® X Integrated Development Environment

A free graphical programming environment that generates seamless, easy-to-understand C code



MPLAB® Code Configurator

A free graphical programming environment that generates seamless, easy-to-understand C code



MPLAB® XC Compiler

A comprehensive solution for your software development that integrates with MPLAB X IDE to provide a full graphical front end



Explore MPLAB Development Ecosystem and Software Tools

Featured Hardware Tools

Our most popular hardware development boards available for dsPIC33 products are shown below. To learn more about various development boards, please visit the Hardware Development Board page.

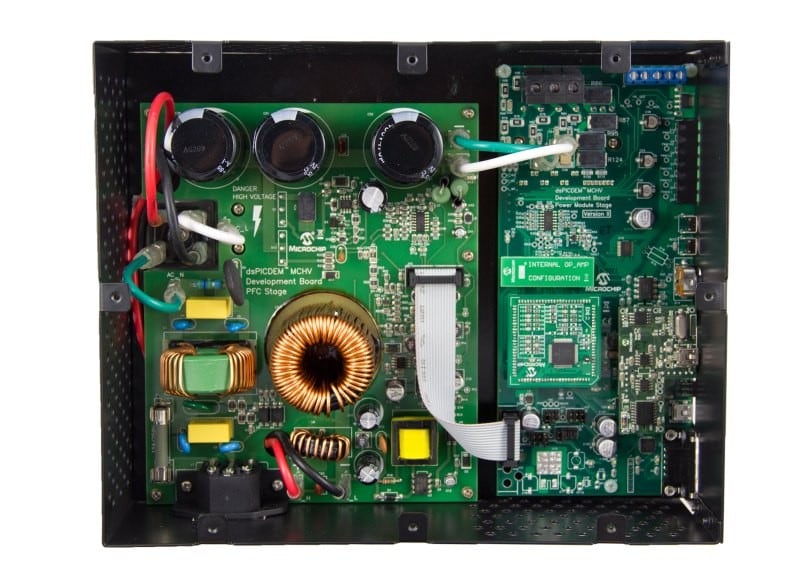

dsPICDEM™ MCHV-3 Development Board (High Voltage)

Part Number: DM330017-3

This development board targets the control of Brushless DC (BLDC) motors, Permanent Magnet Synchronous Motors (PMSMs), and AC Induction Motors (ACIMs) in sensor or sensorless operation

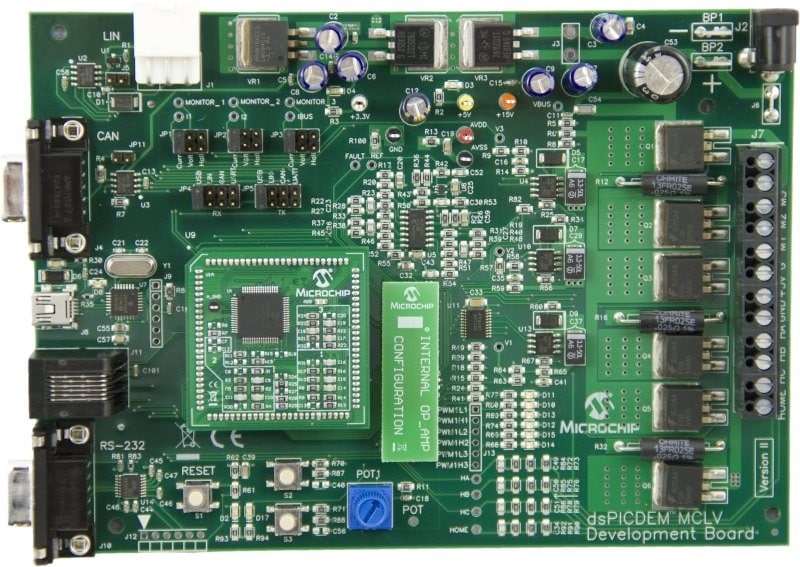

dsPICDEM™ MCLV-2 Development Board

Part Number: DM330021-2

This is a cost-effective board for developing sensored or sensorless Brushless DC (BLDC) and Permanent Magnet Synchronous Motor (PMSM) control applications

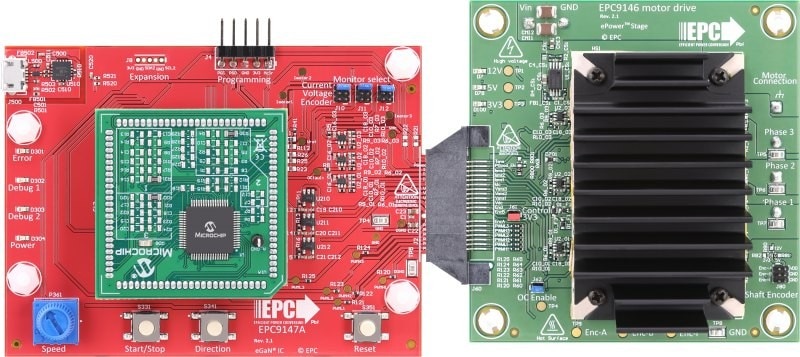

400W Motor Drive Evaluation Kit

Part Number: EPC9146KITA

This evaluation kit includes an EPC2152 monolithic ePower™ Stage for implementing GANFET-based motor drive in BLDC/PMSM applications.

dsPIC33EDV64MC205 Motor Control Development Board

Part Number: DM330027

This development board is designed to demonstrate the features of the dsPIC33EDV64MC205 System in Package (SiP). It can drive low-voltage, three-phase BLDC/PMSM motors and comes programmed to run dual-shunt FOC with PLL estimator using the Hurst BLDC motor as the out-of-the-box demo

See All Hardware Development Tools

Parametric Charts

View All Parametrics
X

Similar Devices

View All Family Devices
View All Parametrics
X

Similar Devices

View All Family Devices

dsPIC33E MC Digital Signal Controllers

PIC24 MCUs and dsPIC33 DSCs: Easy Migration in a Platform Design

This video introduces you to the common development ecosystem that allows for easy migration across device families and enables you to use low-power PIC24F MCUs and robust dsPIC33 DSCs in a complete platform design.

motorBench® Development Suite Demo

motorBench® Development Suite Demo

This video will demonstrate how motorBench Development Suite and dsPIC33 DSCs simplify spinning a BLDC or PMSM motor.

Learn more about motorBench Development Suite

dsPIC® DSCs Perform Under Pressure

dsPIC® DSCs Perform Under Pressure

This video will demonstrate how the dsPIC DSCs can help you get your design done on schedule to avoid deadline pressure.

https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/dspic-dscs

Setup CAN in Minutes using MPLAB® Code Configurator

Set Up CAN in Minutes Using MPLAB® Code Configurator

This video will demonstrate the basic setup of CAN peripherals available on PIC24 MCUs and dsPIC33 DSCs using MPLAB® Code Configurator.

Event Sequencing using Peripheral Trigger Generator (PTG)

Event Sequencing using Peripheral Trigger Generator (PTG)

This video will introduce you to the Peripheral Trigger Generator(PTG) available on 16-bit dsPIC33 digital signal controllers. The video will give a glimpse into the capabilities of PTG peripheral, which can help you in addressing the challenges of sequencing asynchronous tasks and event triggers.
