Designed from the ground up to enable you to go to market quickly, this family is powered by an Arm Cortex-M4F processor and is packed with features including:
- RF-ready, global regulatory certified modules with PCB or U.FL antennas
- Advanced on-board security engine and secure boot
- AEC-Q100 Grade 1 (125 °C) qualification and functional safety ready
The PIC32CX-BZ and WBZ family supports multiple wireless protocols and includes hardware arbitration for seamless operation.

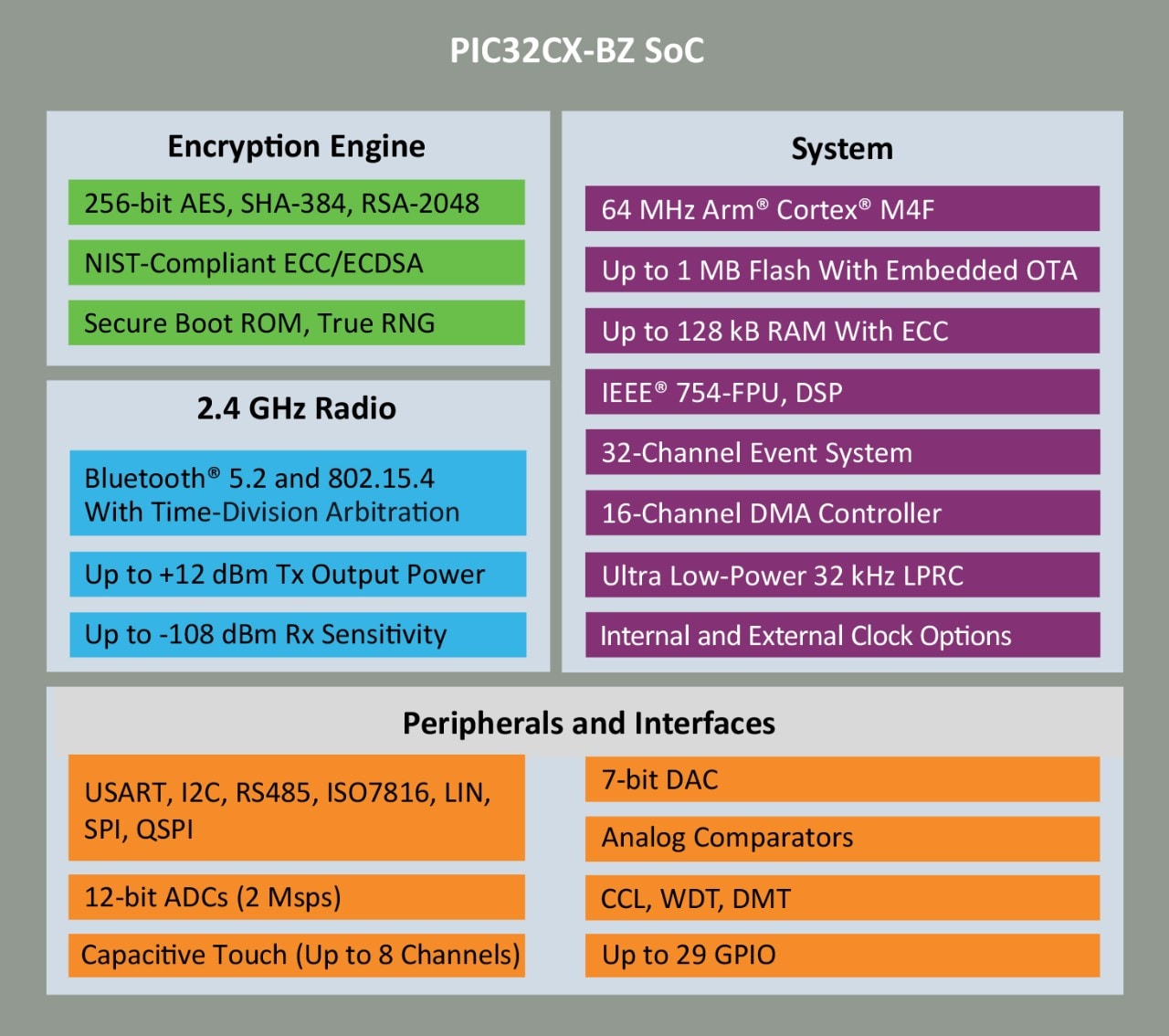

- General-purpose Arm Cortex-M4F MCU with integrated wireless including:
- Bluetooth® Low Energy (LE) 5.2
- Zigbee® 3.0
- Thread 1.3.0
- Proprietary and other IEEE® 802.15.4 protocols including MiWi™
- Up to 1 MB Flash and 128 KB RAM
- A rich set of peripherals including ADC, DAC and touch inputs
- Advanced on-board security engine with TRNG, SHA and ECC
- Automotive AEC-Q100 Grade 1-qualified (125°C) SoCs
- Functional safety-ready classification (automotive ISO 26262 ASIL B and industrial IEC 61508 SIL 2 compliance)
- Globally pre-certified modules that shorten time to market by eliminating RF design and reducing regulatory requirements
Why Design With the PIC32CX-BZ and WBZ Family?
Robust Performance
Our PIC32CX-BZ and WBZ family is built to thrive in tough environments. These devices are temperature tolerant and provide stable RF performance regardless of the conditions.
Advanced Peripherals
With up to 29 GPIOs, it is easy to add features that set your application apart. This MCU family supports a rich set of peripherals including capacitive touch, ADC and DAC.
Layered Security
We keep your designs secure through multiple layers of protection including secure boot, which prevents your device from being taken over by unauthorized software.
Product Selection
In addition to SoCs, we design and build our own RF-ready modules. If you want more customization, we provide chip-down reference design packages for building your own module.
Simple Prototyping
Use drag-and-drop auto code generation, virtual sniffers and a large library of application examples to prototype your wireless application in seconds.
Getting Started
We Have All the Tools Needed to Jumpstart Your Project
Our comprehensive selection of tools and accessible support makes Bluetooth MCU product development easy. Our resources include:
- Modules, SoCs and other devices
- Development boards
- Detailed documentation
- Demo applications
- Design check service
- Technical support
- Hardware
- Software
- Code Examples
- Additional Resources
Development Tools
PIC32CX-BZ2 and WBZ451H Curiosity Development Board

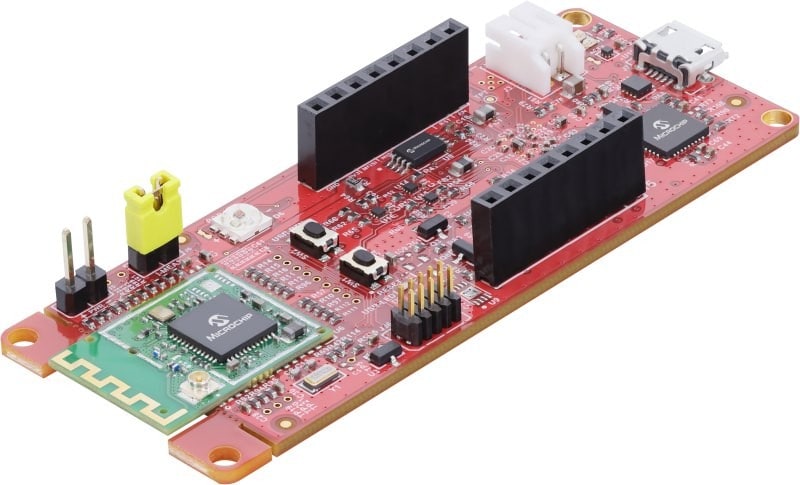

PIC32CX-BZ2 and WBZ451 Curiosity Development Board

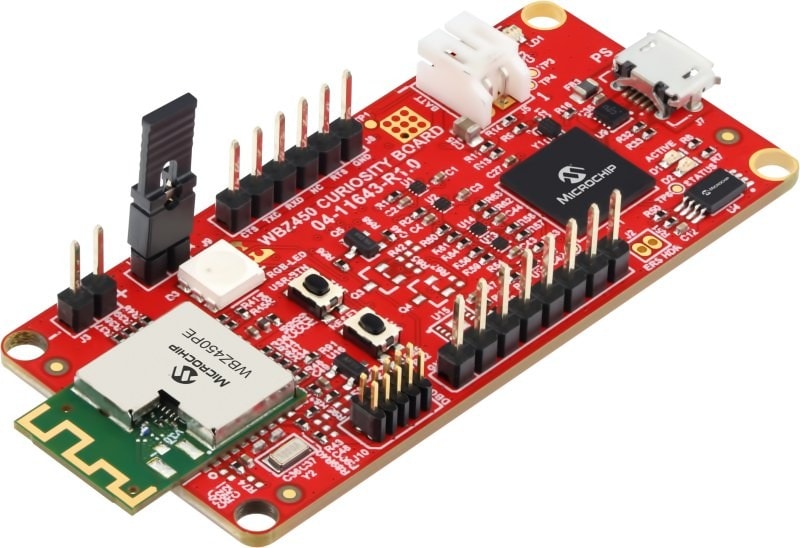

PIC32CX-BZ2 and WBZ450 Curiosity Development Board

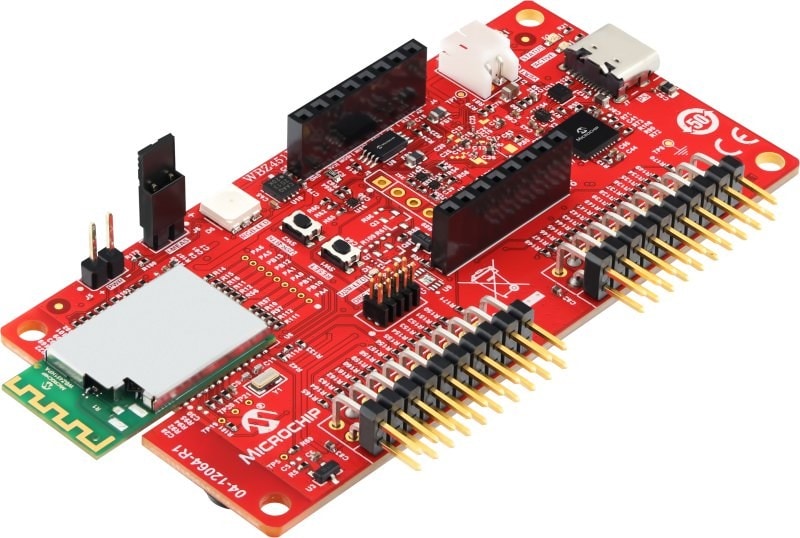

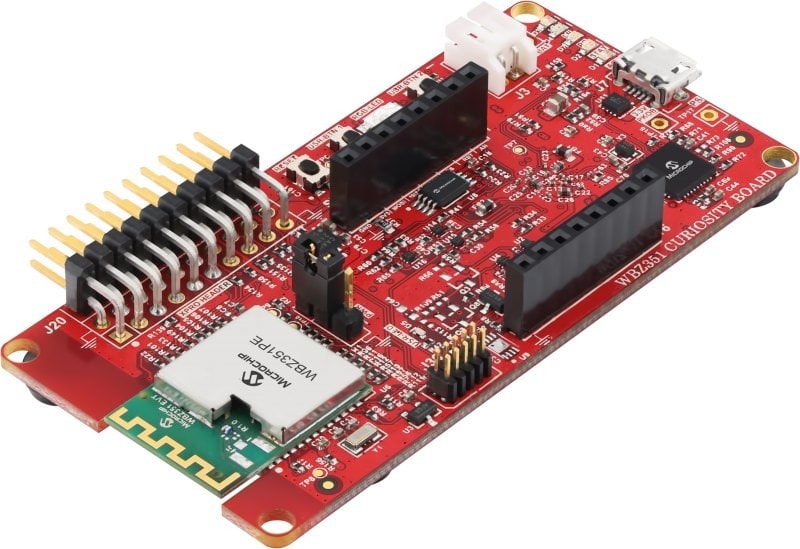

PIC32CX-BZ3 and WBZ351 Curiosity Development Board
Development Environments
MPLAB® X Integrated Development Environment (IDE)
MPLAB X IDE provides a host of features to help you quickly debug your projects and minimize your development time while workng seamlessly with the other tools in the MPLAB ecosystem.
MPLAB® Harmony v3
This integrated software development framework for our SAM and PIC32 MCUs provides flexible and interoperable modules that simplify product development and reduce time to market.
MPLAB® Code Configurator (MCC)
MCC is a free graphical programming environment that generates seamless, easy-to-understand C code to insert into your project. It is available in the downloadable MPLAB X IDE and the cloud-based MPLAB Harmony v3.
Demos and Code Examples
Smart Warehouse
This project showcases the potential of smart environments. Follow this example to build an end-to-end solution including a Thread gateway that connects various IoT devices to the cloud.
AIoT Solutions for Industry 4.0
Harness the power of AI and IoT for industrial environments. The demo collects data via a mesh-based sensor network while controlling a robot arm and reporting data to the cloud.
And Many More
Explore our growing library of application examples, documentation and videos available through MPLAB® Discover.
Development Resources
Mobile App Source Code
We provide the Microchip Bluetooth Data (MBD) application and source code for iOS® and Android™ to use for prototyping or as a starting point for developing your mobile app.
MCHPRT3 Radio Test Tool
Use this Windows®-based software to test your RF configuration during development, certification and production.
Design Check Service
Our online design review is available at no charge to customers who have selected our wireless devices for their applications.
Microchip Bootloaders
Bootloaders are used to upgrade firmware on a target device without using an external programmer or debugger. Commonly used with microcontrollers (MCUs), a bootloader contains code that loads and executes an application program. Bootloaders can also perform additional tasks such as validating the code integrity and authenticity.
