Arm® Cortex®-M33 Based MCUs Provide Wide Options for Connectivity and Advanced Security Hardware
Start Your New Design With Improved, Enhanced and Lower-Cost PIC32C MCUs
Key Features
Connectivity
MCU
- 120 MHz Arm Cortex-M33 core
- 1.54 DMIPS/MHz
- FPU/DPU
- 2 MB dual-panel Flash with ECC and 512 KB SRAM
- Peripheral Touch Controller with up to 32 channels
- 12-bit ADC with 3 Msps sampling rate
Connectivity
- 10/100 Ethernet with IEEE® 1588
- Up to eight SERCOM
- Two CAN FD ports with dedicated Direct Memory Access (DMA)
- Up to two USB 2.0 ports (one Hi-Speed and one Full-Speed)
- Serial Quad Interface (SQI)
- Interfaces including USART, I2C, SPI and LIN
- I2S™ module with Time Division Multiplexing (TDM)
Security
Fully Isolated HSM Subsystem
- Secure root of trust and certificate authority
- Key management and secure key storage
- Secure boot and secure update
- Cryptographic acceleration for
- RSA, DSA and ECC public key cryptography with up to 4096-bit key length
- AES encryption that is fully compliant with NIST FIPS 197 (256-bit key length)
- Hash/MAC with MD-5, SHA-1, SHA-256, SHA-224, SHA-384, SHA-512 and SHA3 capability
TrustZone Secure Partitioning
- Creation of trusted execution environment
- IP protection
- Hardware access control to code, memory and I/O
Secure factory provisioning is available.
Safety
Hardware Safety Features
- ECC with fault injection on Flash
- Global mBIST
- Memory Protection Unit (MPU)
- Write protection on key peripherals
- Clock failure detection with fail-safe internal RC oscillator
- Loopback on communications interfaces
To accelerate your design cycle, we offer a complete ecosystem of development resources that includes evaluation boards, easy-to-use software and ready-to-use application examples developed in the MPLAB® Harmony v3 embedded software framework.
- Hardware
- Software

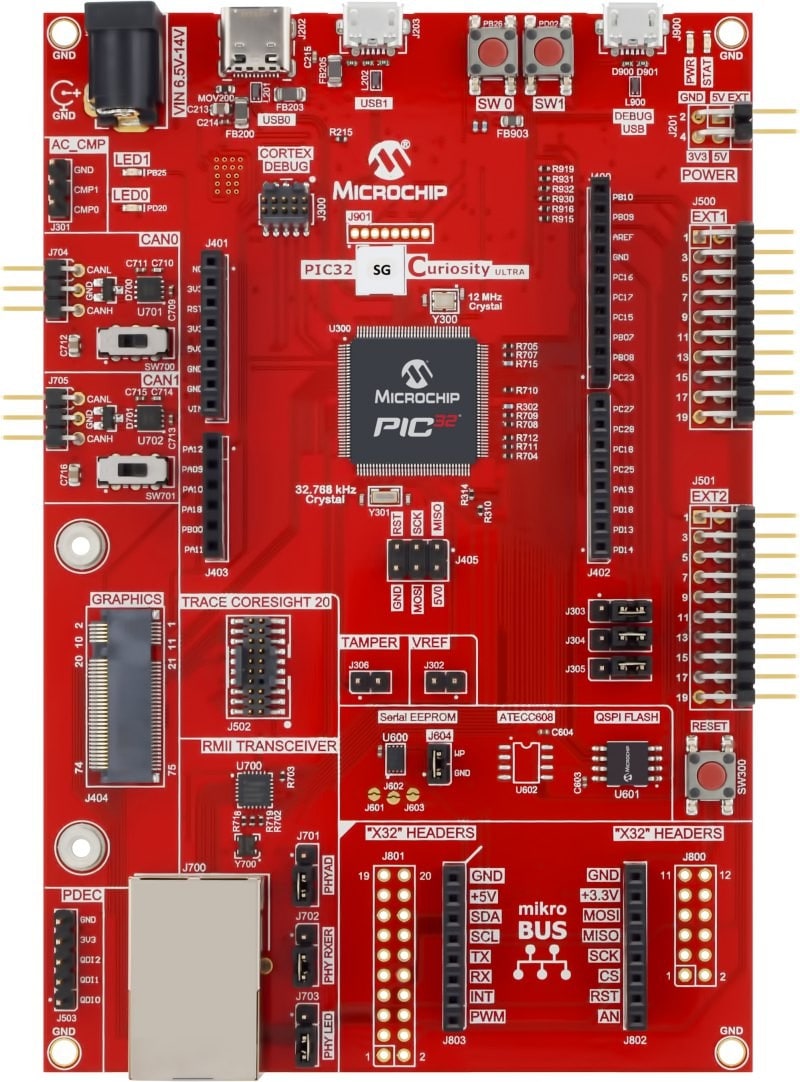

PIC32CK SG Evaluation Board
Product Number: EV33A17A
The PIC32CK SG Curiosity Ultra Development Board is the hardware platform for evaluating PIC32CK SG MCUs, which offer advanced security features with an integrated HSM and TrustZone technology. It is supported by MPLAB Integrated Development Environment (IDE) and MPLAB Harmony and includes an embedded programmer/debugger. It provides connectors to easily add Arduino® Uno R3, MikroElektronika Click boards™ or Xplained Pro expansion boards for developing Bluetooth® audio, Internet of Things (IoT), robotics and other proof-of-concept designs.
PIC32CK GC Evaluation Board
Part Number: EV44P93A
The PIC32CK GC Curiosity Ultra Development Board is the hardware platform for evaluating PIC32CK GC01 MCUs. It is supported by MPLAB Integrated Development Environment (IDE) and MPLAB Harmony and includes an embedded programmer/debugger. It provides connectors to easily add Arduino Uno R3, MikroElektronika Click boards or Xplained Pro expansion boards for developing Bluetooth audio, IoT, robotics and other proof-of-concept designs.
MPLAB Discover
Explore this catalog of fully configured and complete source code, projects, examples and software applications to help jump-start your next project.
MPLAB X IDE
Organize, write, test and debug your embedded software applications in MPLAB X IDE.
MPLAB XC Compiler
Build your embedded software with the TÜV SÜD-certified MPLAB XC32 Pro Functional Safety Compiler.
MPLAB Code Coverage
Verify and document your software test coverage with the MPLAB Code Coverage tool.
MPLAB Code Configurator
Use this free graphical programming environment to generate seamless, easy-to-understand C code to insert into your project.
MPLAB Harmony V3
The fully integrated embedded software development framework provides flexible and interoperable software modules.
Similar Devices
Search Documentation
| Document Category | Title | Date | |||
|---|---|---|---|---|---|
| Brochures | 32-bit MCU Brochure | 28 Feb 2023 |
|
||
| Brochures | 32-bit Quick Reference Guide | 02 May 2023 |
|
||
| Brochures | 32-bit Microcontroller Collateral and Solutions Reference Guide | 23 Jun 2023 |
|
||
| Tech Brief | How to Setup MPLAB Harmony v3 Software Development Framework | 06 Jan 2023 |
|
||
| Tech Brief | ADC Sequencing Using DMA and EVENT System on PIC32C and SAM MCUs Using MPLAB Harmony v3 and MCC | 19 Dec 2024 |
|
|
Document Category
Title
Date
|
Brochures
28 Feb 2023
|
|
Document Category
Title
Date
|
Brochures
02 May 2023
|
|
Document Category
Title
Date
|
Brochures
23 Jun 2023
|
|
Document Category
Title
Date
|
Tech Brief
06 Jan 2023
|
|
Document Category
Title
Date
|
Tech Brief
19 Dec 2024
|
- Data Sheet
- Supporting Collateral
- Troubleshooting Checklist
- Errata
- Brochures/Quick Reference Guide
- Technical Briefs
|
Title
|
|
|---|---|
| PIC32CK SG01/SG00/GC01/GC00 Family Data Sheet | Download |
|
Title
|
|
|---|---|
| PIC32CK SG01/GC01 Curiosity Ultra User's Guide | Download |
| PIC32CK GC-SG Curiosity Ultra Development Kit Design Files | Download |
| QTouch Modular Library Peripheral Touch Controller User Guide | Download |
| Creating the First Application on PIC32CK GC Microcontrollers Using MPLAB Harmony v3 with MPLAB Code Configurator (MCC) | Download |
|
Title
|
|
|---|---|
| Basic 32-Bit MCU Design and Troubleshooting Checklist | Download |
|
Title
|
|
|---|---|
| PIC32CK SG01/SG00/GC01/GC00 Family Silicon Errata and Data Sheet Clarifications | Download |
Microchip Bootloaders
Bootloaders are used to upgrade firmware on a target device without using an external programmer or debugger. Commonly used with microcontrollers (MCUs), a bootloader contains code that loads and executes an application program. Bootloaders can also perform additional tasks such as validating the code integrity and authenticity.
Microchip University: Safety and Security
These classes cover the fundamentals of functional safety and security, including terminology, standards, requirements and tools offered by Microchip.
PIC32 CK Videos Playlist
The PIC32CK GC family, powered by a 120 MHz Arm® Cortex®-M33 processor, offers up to 2 MB Flash and 512 KB SRAM, with connectivity options such as Ethernet, USB and CAN FD. Enhanced by Arm TrustZone® technology, the security-focused PIC32CK SG versions integrate a Hardware Security Module (HSM) for cryptographic tasks, secure boot and updates. Analog support includes a peripheral touch controller with 32 channels and a 12-bit ADC with a 3 Msps sampling rate. Development is streamlined with MPLAB® Harmony and MPLAB Code Configurator (MCC) and packages are available in 144-, 100-, and 64-lead TQFP.
