Motion surveillance can be used in day-to-day life to detect unsual physical or kinetic movements. It is used in a wide variety of applications such as residence/home security systems, lighting control systems, physical security systems and fare collection systems.
Most smart devices nowadays come with built-in motion detection capabilities. These systems send an alert message when they sense an intruder, and they can connect with smartphones, wearables and tablets to notify users in the event of a security breach.
The interactive block diagram below illustrates how you can integrate our products to create a motion surveillance application. Click on each product to learn more about it.

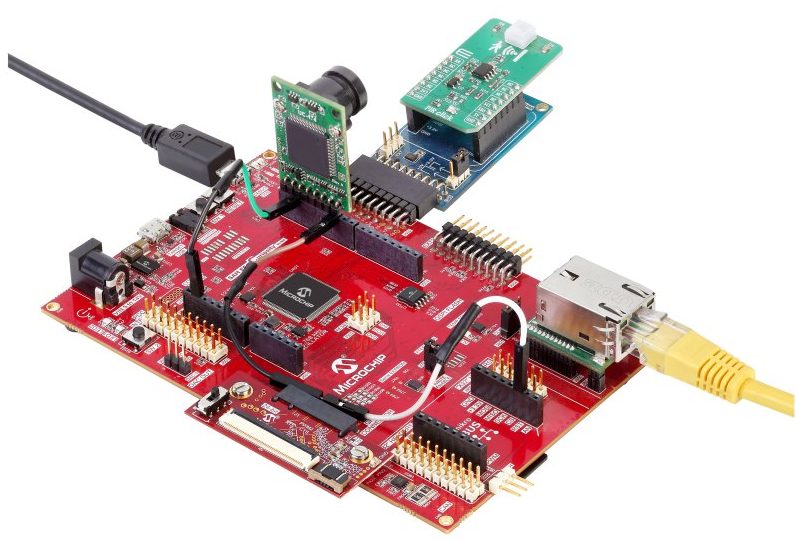

Our motion surveillance demo application detects motion in front of an Arducam camera module using the motion-sensing PIR Click. The Arducam module captures an image with a resolution of 320 × 240 pixels and stores the image in an external storage device (microSD™ card).

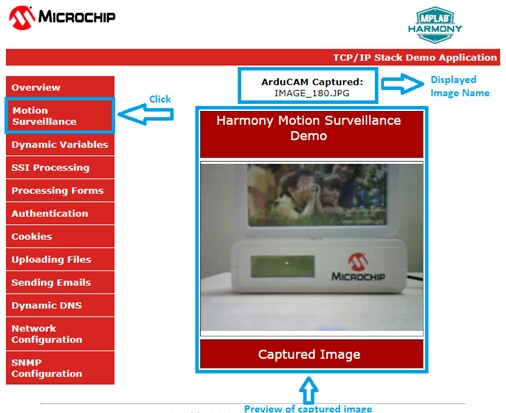

The live preview of captured images is demonstrated by running an HTTP web server on the main MCU board (SAM E54 Curiosity Ultra Development Board). TYou can connect to the web server through an Internet browser and view the live preview of the captured images.
