USB Switches and Transceivers

Mobile devices, with their reduced size and minimal number of connectors, enable a single port of connectivity for transferring USB data and USB charging. Designed for use in portable devices, our Hi-Speed USB switches and port protection products offer a compelling USB solution for battery-powered mobile applications. They provide an ultra-small footprint, data multiplexing on a common connector and proven ESD protection, all at speeds of up to double the industry-required USB 2.0 bandwidth. Leveraging our RapidCharge Anywhere functionality, the USB3750 can also be used to seamlessly provide USB Battery Charging detection and detect industry-standard SE1-type chargers.

Key Features

• Hi-Speed USB 2.0 switch with port protection
• Single port of connectivity for transferring USB data
• Very small footprint with minimal number of connectors
• Primary and secondary USB charge detection for USB IF BC 1.2 and legacy devices

Our fifth generation of highly integrated and full-featured Hi-Speed USB 2.0 transceivers based on our proven ULPI interface support a wide variety of different reference clock frequencies and also accept clocking from crystal/resonators and the ULPI 60 MHz clock-in mode. Available in traditional QFN as well as very small form-factor Wafer-Level Chip-Scale Package (WLCSP) options, this family of transceivers includes support for battery charging. They eliminate the need for external VBUS over-voltage protection ICs, USB switches, Electrostatic Discharge (ESD) protection devices and reference oscillators, minimizing your Bill of Materials and conserving valuable board space.

Key Features

• Hi-Speed ULPI interface
• Supports USB 2.0 OTG 2.0 specification
• Link Power Management (LPM) capable
• High level of integration for small-footprint and lower part count applications
• PHYBoost technology restores USB signal integrity that has been compromised by system-level variables such as PCB layout or long cables
• VariSense technology provides flexibility to enable late design-in compliance certification
• Flexible clocking support for all major frequencies including ULPI Clock 60 MHz in, crystal resonator and multi frequency

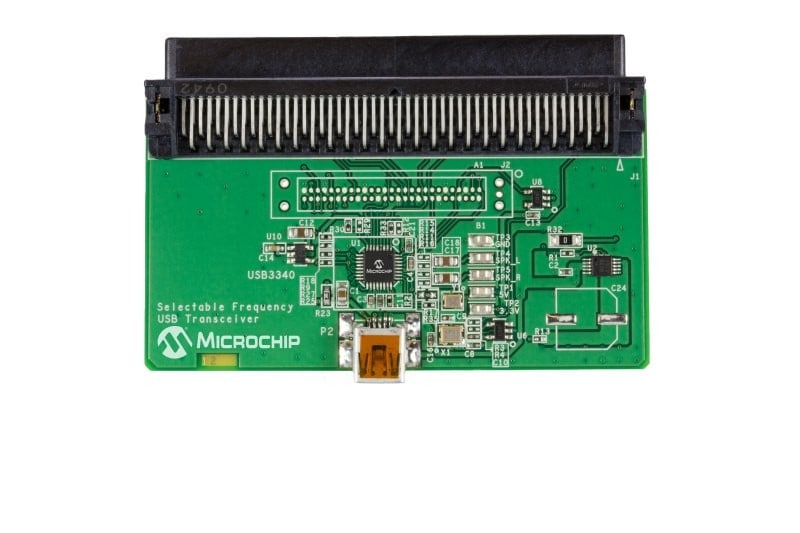

This evaluation board, which features a USB3340 USB 2.0 ULPI transceiver, attaches to a USB link layer to create a USB host, device or On-the-Go system.

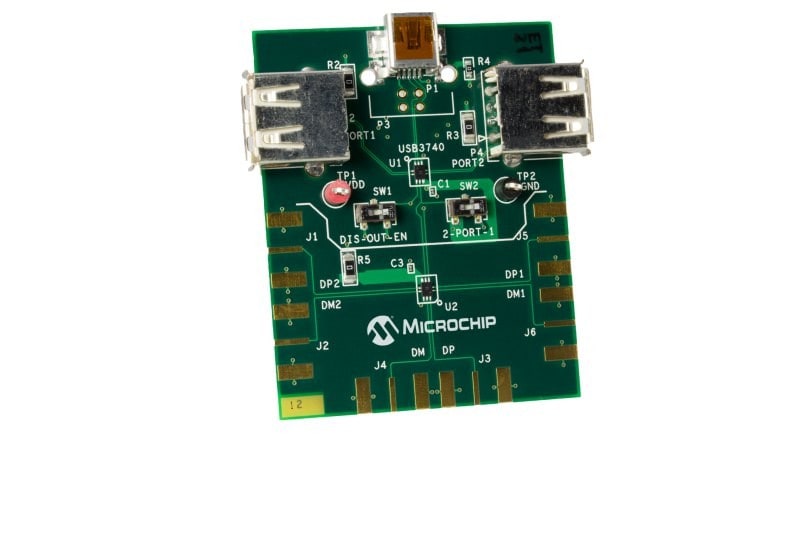

This board can be used to evaluate the capabilities of the USB3740 family of high-speed USB switches.

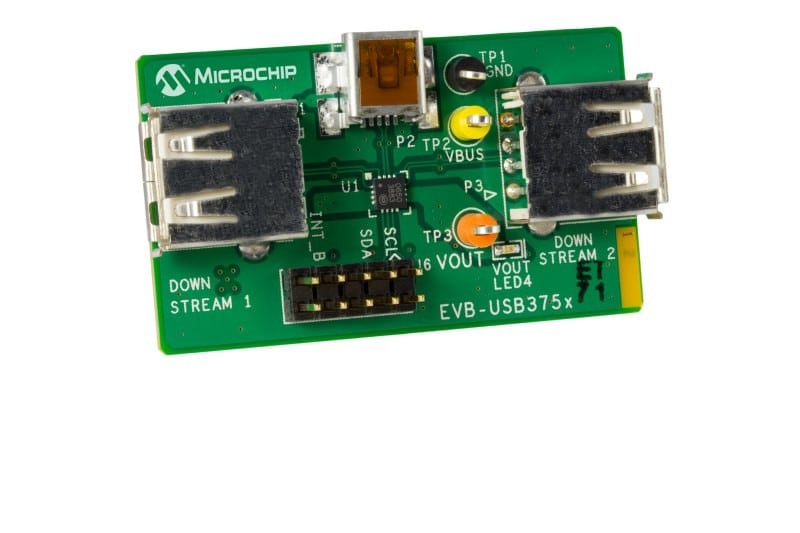

This board can be used to evaluate the capabilities of the USB375x family of high-speed USB switches.
