High-Performance SBCs as a Gateway for CAN FD and LIN Transceivers
Applications
Automotive
|
Industrial
|
|---|
Key Features
- Highly integrated, compact SBCs
- Reduction in Bill of Materials (BoM) cost and in the risk of EMC
- Single chip ensures there are fewer devices to procure
- Lower system power consumption, with optional low power consumption
- CAN Partial Networking (PN) capability
- Microcontroller supply voltage can be disabled by switching off LDOs during sleep mode
ATA6580
- CAN FD transceivers
- 5V LDO1
- 3.3V/5V LDO2
- Wake-up input

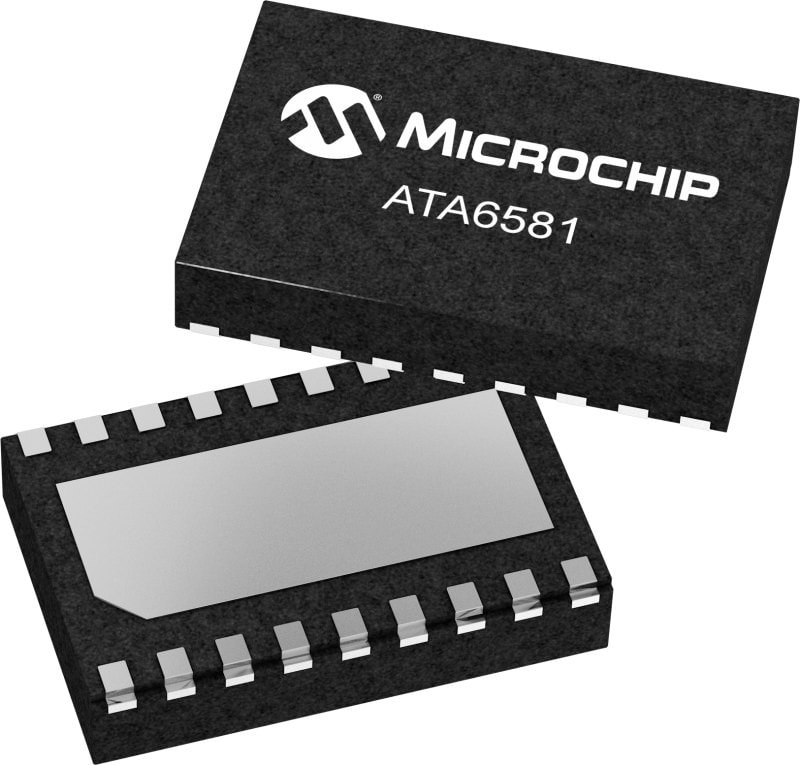

ATA6581
- CAN FD transceivers
- 5V LDO1
- 3.3V/5V LDO2
- LIN transceiver
- Wake-up input

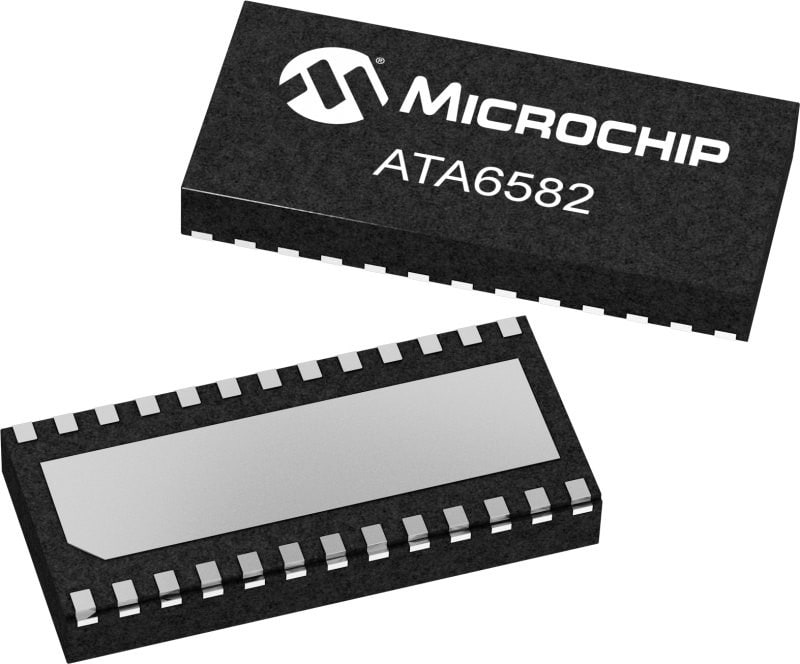

ATA6582
- CAN FD transceivers
- 5V LDO1
- 3.3V/5V LDO2
- Two LIN transceivers
- 5V LDO3
- Wake-up input

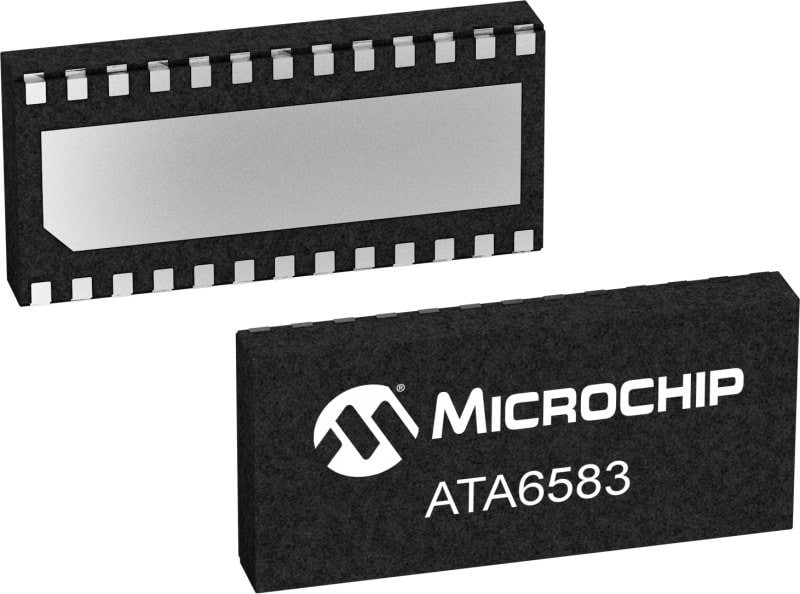

ATA6583
- CAN FD transceivers
- 5V LDO1
- 3.3V/5V LDO2
- Two LIN transceivers
- 3.3V LDO3
- Wake-up input
ATA6585
- CAN PN transceivers
- 5V LDO1
- 3.3V/5V LDO2
- Wake-up input

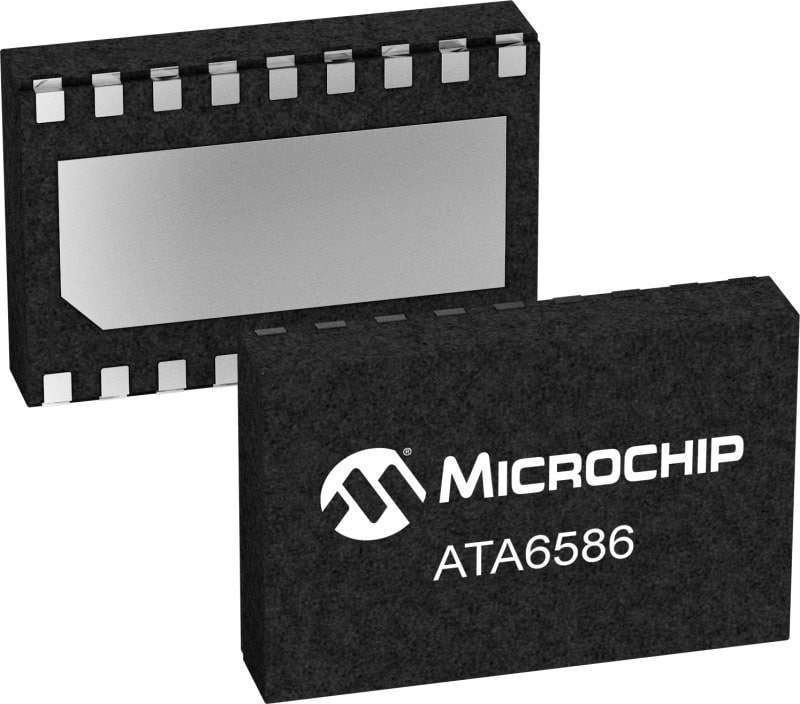

ATA6586
- CAN PN transceivers
- 5V LDO1
- 3.3V/5V LDO2
- LIN transceiver
- Wake-up input
ATA6587
- CAN PN transceivers
- 5V LDO1
- 3.3V/5V LDO2
- Two LIN transceivers
- 5V LDO3
- Wake-up input
ATA6588
- CAN PN transceivers
- 5V LDO1
- 3.3V/5V LDO2
- Two LIN transceivers
- 3.3V LDO3
- Wake-up input
*Package images are shown for representation purposes only. See data sheet for all package options for each product.
CAN System Basis Chips (SBCs)
Compact SBCs integrate CAN FD and a Low-Dropout (LDO) regulator on a single chip. Our SBCs are robust, scalable AEC-Q100 temperature Grade 0 qualified. We offer different variants to suit your requirements.
