Radiation-Tolerant PolarFire^® SoC FPGAs

First RISC-V^® Based, Radiation-Tolerant System-on-Chip (SoC) FPGA

Our radiation-tolerant PolarFire^® SoC FPGA is the industry’s first embedded, real-time, Linux^®-capable, RISC-V-based Microprocessor Subsystem (MSS) on the flight-proven, radiation-tolerant PolarFire FPGA fabric. Unlike SRAM-based alternatives, these devices bring low power consumption and zero configuration upsets to embedded systems. These devices are supported by our extensive Mi-V ecosystem for RISC-V-based solution stack development.

Key Benefits

Low Power Consumption

40% to 50% lower total FPGA power consumption than competing SRAM FPGAs
Low-power MSS, consuming 55% lower power than competing SoC FPGAs at a CoreMark^® score of 8,000

Radiation Tolerance

100 Krad Total Ionizing Dose (TID)
Complete absence of configuration upsets
Single-Event Latch-Up (SEL) threshold that exceeds 75 MeV.cm²/mg with 2.5V I/Os

Qualification for Space Flight

Hermetically sealed ceramic package with 1.0 mm column pitch and Six Sigma columns designed to support QML class Q and QML class V qualification
Organic ball-grid-array plastic package with a path to JEDEC and QML class Y qualification

Product Table

	Features	RTPFS160ZT	RTPFS460ZT
FPGA Fabric	K Logic Elements (4LUT + DFF)	161	461
	Math Blocks (18 × 18 MACC)	498	1420
	LSRAM Blocks (20 kbits)	520	1460
	uSRAM Blocks (64 × 12)	1494	4260
	Total RAM Mbits	11.3	31.6
	uPROM Kbits	415	553
	User DLLs/PLLs	8 each	8 each

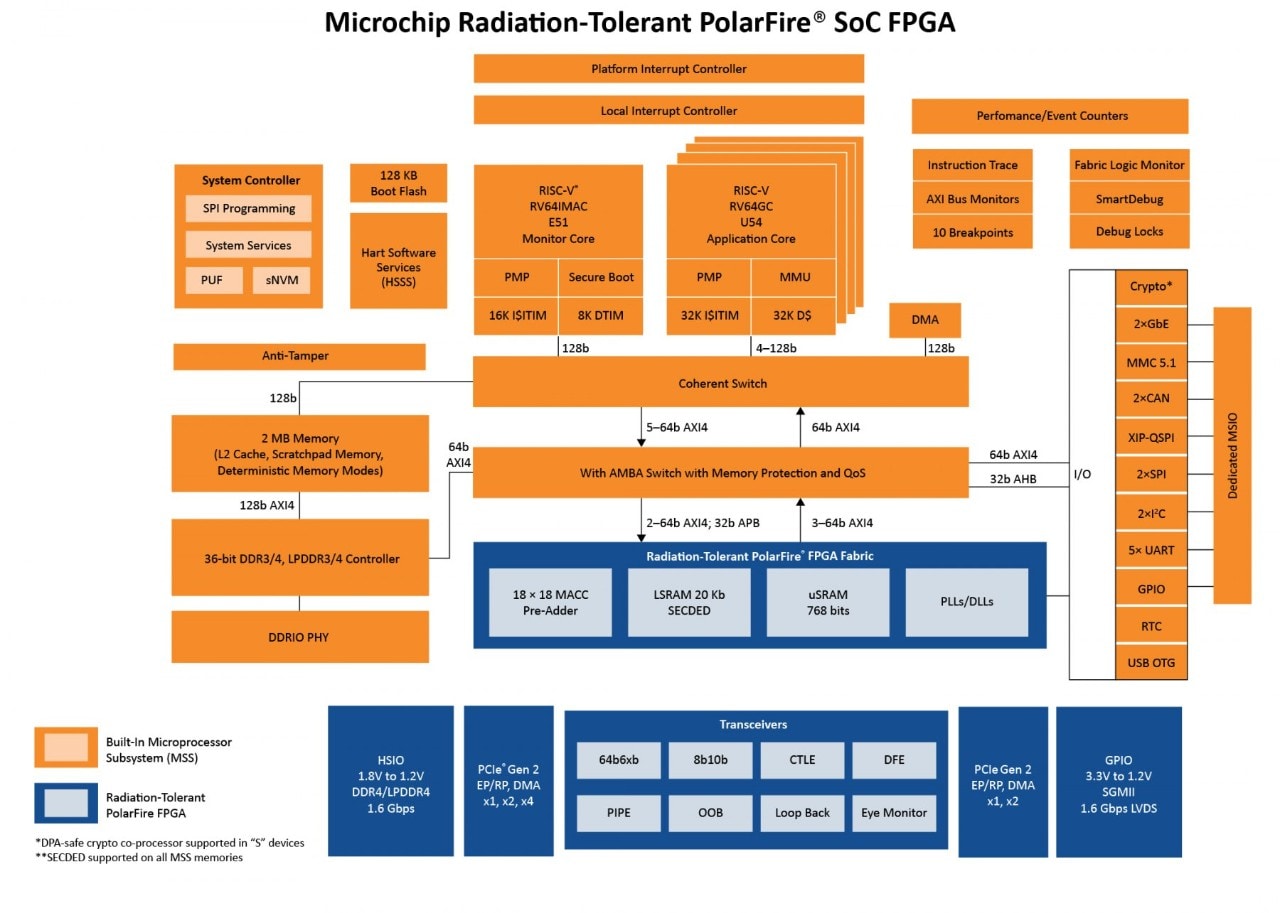

Microprocessor Subsystem (MSS)	Boot/Monitor Core	1 × E51 core: RISC-V^® RV64IMAC, 625 MHz
	Application Cores	4 × U54 cores; RISC-V RV64GC, 625 MHz
	L2 Cache¹	2 MB; configurable as cache, Loosely Integrated Memory (LIM) or Scratchpad
	Data Security	DPA-resistant Athena TeraFire^® crypto coprocessor available in devices with the suffix "S"
	Ethernet	Yes; 2 × Gigabit Ethernet MAC
	MMC	Yes; MMC 5.1
	CAN	Yes; 2 × CAN
	QSPI	Yes; 1 × QSPI
	SPI	Yes; 2 × SPI
	I²C	Yes; 2 × I²C
	UART	Yes; 5 x UART
	USB	Yes; 1 x USB 2.0 OTG
High-Speed I/O	250 Mbps to 12.7 Gbps SerDes Lanes	8	20
High-Speed I/O	PCIe^® Gen 2 End Points/Root Ports	2	2
Total FPGA I/O	HSIO + GPIO	312	516
Total MSS I/O	MSS I/O	136	136
MSS DDR DB	MSS DDR Data Bus	32	32
		RTPFS160ZT	RTPFS460ZT
Packaging	Type/Size/Pitch	Total User I/O: MSS-IO/HSIO/GPIO/XCVRs
	FCV(G)784 (23 × 23, 0.8 mm)	136, 144, 168, 8
	FC(G)1509 (40 × 40, 1.0 mm)		136, 180, 336, 20
	CG1509 (40 × 40, 1.0 mm)		136, 180, 336, 20

Notes:

L2 can be configured as cache or RAM. The minimum cache size is 128 KB and the maximum RAM size is 1920 KB. This can be allocated in blocks of 128 KB.

Documentation

Search Documentation

All

Showing for

Document Category	Title	Date
Application Notes	AC492: Running BareMetal User Applications on PolarFire SoC FPGA Application Note	07 Oct 2020	Design Files
Application Notes	AN4723: PolarFire SoC FPGA Video Kit Picture-in-Picture Application Note	23 Mar 2023	Design Files
Application Notes	AN4737: Migrating Software to PolarFire SoC from Zynq-7000 SoC Application Note	13 Feb 2025	Design Files
Application Notes	AN4529: PolarFire SoC FPGA H.264 Video Streaming Over Ethernet Application Note	08 Oct 2024	Design Files
Application Notes	AN4977: OPC UA Industrial Edge Demo	03 Apr 2024	Design Files
Application Notes	AN5165: PolarFire SoC FPGA DSP FIR Filter Application Note	21 Oct 2024	Design Files
Application Notes	AN5282: PolarFire SoC Design Flow Application Note	24 Jul 2024	Design Files
Cross Reference	DMA Performance Benchmark	07 Mar 2024
Brochures	PolarFire® FPGAs and SoC FPGAs	05 Jun 2024
Brochures	Mi-V RISC-V Ecosystem Brochure	14 Feb 2024
Supporting Collateral	Radiation-Tolerant PolarFire® SoC FPGA Product Overview	11 Apr 2024
Product Brief	PolarFire® SoC Product Overview	20 Jun 2024
White Paper	PolarFire_SoC_CPU_Performance_Benchmarking_Whitepaper	30 Mar 2022
White Paper	PolarFire SoC Linux Boot Time White Paper	30 Mar 2022
White Paper	PolarFire SoC FPGA: Application Waypointing	30 Mar 2022
White Paper	PolarFire® SoC FPGA: Opus Codec Benchmarking	30 Mar 2022
White Paper	PolarFire SoC FPGA: Interrupt Latency and Data Transfer Throughput Measurements	30 Mar 2022
White Paper	Measurement of Worst Case Execution Time on PolarFire® SoC FPGA	13 Feb 2025
White Paper	FPGA Programmed Content Integrity Checking and Programming File Tracking using Cryptographic Digests	24 Jan 2025
Other Board Design Files	PolarFire SoC Icicle Kit Mechanical Drawing	30 Mar 2022
Reference Manual	PolarFire SoC Icicle Kit Schematics	19 Aug 2020
Reference Manual	PolarFire SoC Icicle Kit Board Files	19 Aug 2020
User Guide	PolarFire SoC FPGA Board Design Guidelines User Guide	22 Aug 2024
User Guide	PolarFire SoC Icicle Kit User Guide	17 Dec 2024
User Guide	PolarFire FPGA and PolarFire SoC FPGA Power Estimator User Guide	09 Dec 2019
User Guide	PolarFire Family Memory Controller User Guide	03 Oct 2024
Supporting Collateral	Memory Log Analyzer GUI Installer	20 Feb 2025
Board Design Files	PolarFire , PolarFire SoC and RT PolarFire FPGA Power Estimator	20 Feb 2025
User Guide	PolarFire FPGA and PolarFire SoC FPGA User I/O User Guide	05 Feb 2025
User Guide	PolarFire SoC Software Development and Tool Flow User Guide	21 Sep 2020
User Guide	UG0851: FlashPro Express User Guide	15 Apr 2020
User Guide	UG0758 User Guide PolarFire FPGA Design Flow Libero SoC v12.5	10 Dec 2020
User Guide	PolarFire Family Transceiver User Guide	18 Jul 2024
User Guide	PolarFire SoC FPGA Packaging and Pin Description User Guide	02 Oct 2023
User Guide	PolarFire FPGA and PolarFire SoC FPGA Programming User Guide	22 Oct 2024
User Guide	UG0851: FlashPro Express v12.3 and later User Guide for All FPGA Families	03 Sep 2020
User Guide	PolarFire Family DRI SgCore User Guide	04 Oct 2024
User Guide	PolarFire Family Clocking Resources	22 Nov 2024
User Guide	PolarFire Family Fabric User Guide	03 Oct 2023
User Guide	PolarFire Family System Services User Guide	12 Jul 2023
User Guide	PolarFire Family PCI Express User Guide	08 May 2024
User Guide	PolarFire Family Power-Up and Resets User Guide	24 Apr 2024
User Guide	PolarFire Family FPGA Security User Guide	25 Sep 2024
User Guide	PolarFire SoC MSS Configurator User Guide	09 Aug 2021
Supporting Collateral	PolarFire SoC FPGA Engineering Samples (ES) Devices Errata	16 Jul 2020
Errata	PolarFire® SoC FPGA Production Devices Errata	26 Jun 2024
Errata	PolarFire SoC FPGA Production Devices Errata	30 Aug 2024
Thermal Models	PolarFire SoC Delphi Compact Thermal Model	30 Jan 2025
Reference Manual	PolarFire SoC MSS Technical Reference Manual	09 Jul 2024
Information Sheet	PolarFire SoC FPGA Register Map	31 May 2024
Information Sheet	PolarFire SoC Material Declaration Data Sheet	13 Feb 2025
Data Sheets	PolarFire® SoC Datasheet	03 May 2024
Data Sheets	PD3068: Package Mechanical Drawings Datasheet	30 Jan 2025
Packaging Specifications	MPFS250T_MPFS250TS-FCVG484 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS250T_MPFS250TS-FCG1152 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS460T_MPFS460TS-FCG1152 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS160T_MPFS160TS-FCVG484 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS250T_MPFS250TS-FCVG784 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS095T_MPFS095TS-FCVG484 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS025T_MPFS025TS-FCVG484 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS250T_MPFS250TS-FCSG536 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS095T_MPFS095TS-FCSG536 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS095T_MPFS095TS-FCVG784 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS160T_MPFS160TS-FCSG536 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS160T_MPFS160TS-FCVG784 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS095T_MPFS095TS-FCSG325 Package Pin Assignment Table	28 Oct 2024
Packaging Specifications	MPFS025T_MPFS025TS-FCSG325 Package Pin Assignment Table	28 Oct 2024
Packaging Specs	RTPFS460T_RTPFS460TS-CG1509_Package_Pin_Assignment_Table_Public	18 Sep 2024
BSDL Files	MPFS250T-FCVG784E BSDL File	27 Jan 2025
BSDL Files	MPFS250TLS-FCG1152I BSDL File	03 Jun 2022
BSDL Files	MPFS025TS-FCVG484I BSDL File	03 Jun 2022
BSDL Files	MPFS250TL-FCVG784E BSDL File	03 Jun 2022
BSDL Files	MPFS250TL-FCVG484E BSDL File	03 Jun 2022
BSDL Files	MPFS025TLS-FCSG325I BSDL File	03 Jun 2022
BSDL Files	MPFS250TS-FCVG784I BSDL File	03 Jun 2022
BSDL Files	MPFS250TLS-FCSG536I BSDL File	03 Jun 2022
BSDL Files	MPFS250T-FCVG484EES BSDL File	03 Jun 2022
BSDL Files	MPFS025TL-FCSG325E BSDL File	03 Jun 2022
BSDL Files	MPFS250T-FCG1152E BSDL File	03 Jun 2022
BSDL Files	MPFS250TL-FCSG536E BSDL File	03 Jun 2022
BSDL Files	MPFS250TS-FCVG484EES BSDL File	03 Jun 2022
BSDL Files	MPFS250TS-FCSG536I BSDL File	03 Jun 2022
BSDL Files	MPFS025TLS-FCVG484I BSDL File	03 Jun 2022
BSDL Files	MPFS025TS-FCSG325I BSDL File	03 Jun 2022
BSDL Files	MPFS250TLS-FCVG484I BSDL File	03 Jun 2022
BSDL Files	MPFS250T-FCSG536E BSDL File	03 Jun 2022
BSDL Files	MPFS250TS-FCVG484I BSDL File	03 Jun 2022
BSDL Files	MPFS250T-FCVG484E BSDL File	03 Jun 2022
BSDL Files	MPFS025T-FCVG484E BSDL FIle	03 Jun 2022
BSDL Files	MPFS250TS-FCG1152EES BSDL File	03 Jun 2022
BSDL Files	MPFS250TL-FCG1152E BSDL File	03 Jun 2022
BSDL Files	MPFS025T-FCSG325E BSDL File	03 Jun 2022
BSDL Files	MPFS250T-FCG1152EES BSDL File	03 Jun 2022
BSDL Files	MPFS250TLS-FCVG784I BSDL File	03 Jun 2022
BSDL Files	MPFS025TL-FCVG484E BSDL File	03 Jun 2022
BSDL Files	MPFS250TS-FCG1152I BSDL file	03 Jun 2022
BSDL Files	MPFS160TL-FCVG484E BSDL File	23 Jan 2023
BSDL Files	MPFS095TS-FCVG784I BSDL File	23 Jan 2023
BSDL Files	MPFS160T-FCVG484E BSDL File	23 Jan 2023
BSDL Files	MPFS095TS-FCVG484I BSDL File	23 Jan 2023
BSDL Files	MPFS095TS-FCSG536I BSDL File	23 Jan 2023
BSDL Files	MPFS095TS-FCSG325I BSDL File	23 Jan 2023
BSDL Files	MPFS160TLS-FCVG484I BSDL File	23 Jan 2023
BSDL Files	MPFS160TS-FCVG484I BSDL File	23 Jan 2023
BSDL Files	MPFS095TL-FCVG784E BSDL File	23 Jan 2023
BSDL Files	MPFS095TL-FCVG484E BSDL File	23 Jan 2023
BSDL Files	MPFS095TL-FCSG536E BSDL File	23 Jan 2023
BSDL Files	MPFS095TL-FCSG325E BSDL File	23 Jan 2023
BSDL Files	MPFS095T-FCVG784E BSDL File	23 Jan 2023
BSDL Files	MPFS095TLS-FCVG784I BSDL File	23 Jan 2023
BSDL Files	MPFS095TLS-FCVG484I BSDL File	23 Jan 2023
BSDL Files	MPFS095TLS-FCSG536I BSDL File	23 Jan 2023
BSDL Files	MPFS095TLS-FCSG325I BSDL File	23 Jan 2023
BSDL Files	MPFS095T-FCVG484E BSDL File	23 Jan 2023
BSDL Files	MPFS095T-FCSG536E BSDL File	23 Jan 2023
BSDL Files	MPFS095T-FCSG325E BSDL File	23 Jan 2023
BSDL Files	MPFS160TLS-FCVG784I BSDL File	16 Aug 2023
BSDL Files	MPFS160TLS-FCSG536I BSDL File	16 Aug 2023
BSDL Files	MPFS160TS-FCVG784I BSDL File	16 Aug 2023
BSDL Files	MPFS160TS-FCSG536I BSDL File	16 Aug 2023
BSDL Files	MPFS160TL-FCVG784E BSDL File	16 Aug 2023
BSDL Files	MPFS160TL-FCSG536E BSDL File	16 Aug 2023
BSDL Files	MPFS160T-FCVG784T2 BSDL File	16 Aug 2023
BSDL Files	MPFS160T-FCVG784E BSDL File	16 Aug 2023
BSDL Files	MPFS160T-FCSG536E BSDL File	16 Aug 2023
BSDL Files	MPFS460TLS-FCG1152I BSDL File	09 Feb 2024
BSDL Files	MPFS095T-FCSG536T2 BSDL File	09 Feb 2024
BSDL Files	MPFS460TS-FCG1152I BSDL File	09 Feb 2024
BSDL Files	MPFS460TL-FCG1152E BSDL File	09 Feb 2024
BSDL Files	MPFS250T-FCSG536T2 BSDL File	09 Feb 2024
BSDL Files	MPFS250T-FCG1152T2 BSDL File	09 Feb 2024
BSDL Files	MPFS160T-FCSG536T2 BSDL File	09 Feb 2024
BSDL Files	MPFS460T-FCG1152E BSDL File	09 Feb 2024
Brochures	PolarFIre SoC Dedicated IO IBIS Model (AUTO)	30 Mar 2022
IBIS	PolarFire SoC Dedicated IO IBIS Model (Industrial)	30 Mar 2022
IBIS	PolarFire SoC MSSIO IBIS Model (Industrial)	14 Dec 2023
IBIS	PolarFire SoC HSIO IBIS Model (Industrial)	14 Dec 2023
IBIS	PolarFire SoC HSIO IBIS Model (Military)	14 Dec 2023
IBIS	PolarFire SoC GPIO IBIS Model (Industrial)	14 Dec 2023
IBIS	PolarFire SoC Dedicated IO IBIS Model (Military)	30 Mar 2022
IBIS	PolarFire SoC GPIO IBIS Model (Military)	14 Dec 2023
IBIS	PolarFire SoC HSIO IBIS Model (Auto)	14 Dec 2023
IBIS	PolarFire SoC GPIO IBIS Model (Auto)	14 Dec 2023
IBIS	PolarFire SoC MSSIO IBIS Model (Auto)	14 Dec 2023
IBIS	PolarFire SoC MSSIO IBIS Model (Military)	14 Dec 2023
IBIS	PolarFire SoC & PolarFire FPGA IBIS AMI Model	14 Feb 2025
	PolarFire SoC MPFS250 FCV484 TX S-parameter Model	07 Feb 2023
	PolarFire SoC MPFS250 FCV484 RX S-parameter Model	07 Feb 2023


Document Category Title Date	Application Notes AC492: Running BareMetal User Applications on PolarFire SoC FPGA Application Note 07 Oct 2020 Design Files
Document Category Title Date	Application Notes AN4723: PolarFire SoC FPGA Video Kit Picture-in-Picture Application Note 23 Mar 2023 Design Files
Document Category Title Date	Application Notes AN4737: Migrating Software to PolarFire SoC from Zynq-7000 SoC Application Note 13 Feb 2025 Design Files
Document Category Title Date	Application Notes AN4529: PolarFire SoC FPGA H.264 Video Streaming Over Ethernet Application Note 08 Oct 2024 Design Files
Document Category Title Date	Application Notes AN4977: OPC UA Industrial Edge Demo 03 Apr 2024 Design Files
Document Category Title Date	Application Notes AN5165: PolarFire SoC FPGA DSP FIR Filter Application Note 21 Oct 2024 Design Files
Document Category Title Date	Application Notes AN5282: PolarFire SoC Design Flow Application Note 24 Jul 2024 Design Files
Document Category Title Date	Cross Reference DMA Performance Benchmark 07 Mar 2024
Document Category Title Date	Brochures PolarFire® FPGAs and SoC FPGAs 05 Jun 2024
Document Category Title Date	Brochures Mi-V RISC-V Ecosystem Brochure 14 Feb 2024
Document Category Title Date	Supporting Collateral Radiation-Tolerant PolarFire® SoC FPGA Product Overview 11 Apr 2024
Document Category Title Date	Product Brief PolarFire® SoC Product Overview 20 Jun 2024
Document Category Title Date	White Paper PolarFire_SoC_CPU_Performance_Benchmarking_Whitepaper 30 Mar 2022
Document Category Title Date	White Paper PolarFire SoC Linux Boot Time White Paper 30 Mar 2022
Document Category Title Date	White Paper PolarFire SoC FPGA: Application Waypointing 30 Mar 2022
Document Category Title Date	White Paper PolarFire® SoC FPGA: Opus Codec Benchmarking 30 Mar 2022
Document Category Title Date	White Paper PolarFire SoC FPGA: Interrupt Latency and Data Transfer Throughput Measurements 30 Mar 2022
Document Category Title Date	White Paper Measurement of Worst Case Execution Time on PolarFire® SoC FPGA 13 Feb 2025
Document Category Title Date	White Paper FPGA Programmed Content Integrity Checking and Programming File Tracking using Cryptographic Digests 24 Jan 2025
Document Category Title Date	Other Board Design Files PolarFire SoC Icicle Kit Mechanical Drawing 30 Mar 2022
Document Category Title Date	Reference Manual PolarFire SoC Icicle Kit Schematics 19 Aug 2020
Document Category Title Date	Reference Manual PolarFire SoC Icicle Kit Board Files 19 Aug 2020
Document Category Title Date	User Guide PolarFire SoC FPGA Board Design Guidelines User Guide 22 Aug 2024
Document Category Title Date	User Guide PolarFire SoC Icicle Kit User Guide 17 Dec 2024
Document Category Title Date	User Guide PolarFire FPGA and PolarFire SoC FPGA Power Estimator User Guide 09 Dec 2019
Document Category Title Date	User Guide PolarFire Family Memory Controller User Guide 03 Oct 2024
Document Category Title Date	Supporting Collateral Memory Log Analyzer GUI Installer 20 Feb 2025
Document Category Title Date	Board Design Files PolarFire , PolarFire SoC and RT PolarFire FPGA Power Estimator 20 Feb 2025
Document Category Title Date	User Guide PolarFire FPGA and PolarFire SoC FPGA User I/O User Guide 05 Feb 2025
Document Category Title Date	User Guide PolarFire SoC Software Development and Tool Flow User Guide 21 Sep 2020
Document Category Title Date	User Guide UG0851: FlashPro Express User Guide 15 Apr 2020
Document Category Title Date	User Guide UG0758 User Guide PolarFire FPGA Design Flow Libero SoC v12.5 10 Dec 2020
Document Category Title Date	User Guide PolarFire Family Transceiver User Guide 18 Jul 2024
Document Category Title Date	User Guide PolarFire SoC FPGA Packaging and Pin Description User Guide 02 Oct 2023
Document Category Title Date	User Guide PolarFire FPGA and PolarFire SoC FPGA Programming User Guide 22 Oct 2024
Document Category Title Date	User Guide UG0851: FlashPro Express v12.3 and later User Guide for All FPGA Families 03 Sep 2020
Document Category Title Date	User Guide PolarFire Family DRI SgCore User Guide 04 Oct 2024
Document Category Title Date	User Guide PolarFire Family Clocking Resources 22 Nov 2024
Document Category Title Date	User Guide PolarFire Family Fabric User Guide 03 Oct 2023
Document Category Title Date	User Guide PolarFire Family System Services User Guide 12 Jul 2023
Document Category Title Date	User Guide PolarFire Family PCI Express User Guide 08 May 2024
Document Category Title Date	User Guide PolarFire Family Power-Up and Resets User Guide 24 Apr 2024
Document Category Title Date	User Guide PolarFire Family FPGA Security User Guide 25 Sep 2024
Document Category Title Date	User Guide PolarFire SoC MSS Configurator User Guide 09 Aug 2021
Document Category Title Date	Supporting Collateral PolarFire SoC FPGA Engineering Samples (ES) Devices Errata 16 Jul 2020
Document Category Title Date	Errata PolarFire® SoC FPGA Production Devices Errata 26 Jun 2024
Document Category Title Date	Errata PolarFire SoC FPGA Production Devices Errata 30 Aug 2024
Document Category Title Date	Thermal Models PolarFire SoC Delphi Compact Thermal Model 30 Jan 2025
Document Category Title Date	Reference Manual PolarFire SoC MSS Technical Reference Manual 09 Jul 2024
Document Category Title Date	Information Sheet PolarFire SoC FPGA Register Map 31 May 2024
Document Category Title Date	Information Sheet PolarFire SoC Material Declaration Data Sheet 13 Feb 2025
Document Category Title Date	Data Sheets PolarFire® SoC Datasheet 03 May 2024
Document Category Title Date	Data Sheets PD3068: Package Mechanical Drawings Datasheet 30 Jan 2025
Document Category Title Date	Packaging Specifications MPFS250T_MPFS250TS-FCVG484 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS250T_MPFS250TS-FCG1152 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS460T_MPFS460TS-FCG1152 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS160T_MPFS160TS-FCVG484 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS250T_MPFS250TS-FCVG784 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS095T_MPFS095TS-FCVG484 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS025T_MPFS025TS-FCVG484 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS250T_MPFS250TS-FCSG536 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS095T_MPFS095TS-FCSG536 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS095T_MPFS095TS-FCVG784 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS160T_MPFS160TS-FCSG536 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS160T_MPFS160TS-FCVG784 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS095T_MPFS095TS-FCSG325 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specifications MPFS025T_MPFS025TS-FCSG325 Package Pin Assignment Table 28 Oct 2024
Document Category Title Date	Packaging Specs RTPFS460T_RTPFS460TS-CG1509_Package_Pin_Assignment_Table_Public 18 Sep 2024
Document Category Title Date	BSDL Files MPFS250T-FCVG784E BSDL File 27 Jan 2025
Document Category Title Date	BSDL Files MPFS250TLS-FCG1152I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TS-FCVG484I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TL-FCVG784E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TL-FCVG484E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TLS-FCSG325I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCVG784I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TLS-FCSG536I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250T-FCVG484EES BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TL-FCSG325E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250T-FCG1152E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TL-FCSG536E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCVG484EES BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCSG536I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TLS-FCVG484I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TS-FCSG325I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TLS-FCVG484I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250T-FCSG536E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCVG484I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250T-FCVG484E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025T-FCVG484E BSDL FIle 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCG1152EES BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TL-FCG1152E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025T-FCSG325E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250T-FCG1152EES BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TLS-FCVG784I BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS025TL-FCVG484E BSDL File 03 Jun 2022
Document Category Title Date	BSDL Files MPFS250TS-FCG1152I BSDL file 03 Jun 2022
Document Category Title Date	BSDL Files MPFS160TL-FCVG484E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TS-FCVG784I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS160T-FCVG484E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TS-FCVG484I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TS-FCSG536I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TS-FCSG325I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS160TLS-FCVG484I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS160TS-FCVG484I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TL-FCVG784E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TL-FCVG484E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TL-FCSG536E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TL-FCSG325E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095T-FCVG784E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TLS-FCVG784I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TLS-FCVG484I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TLS-FCSG536I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095TLS-FCSG325I BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095T-FCVG484E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095T-FCSG536E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS095T-FCSG325E BSDL File 23 Jan 2023
Document Category Title Date	BSDL Files MPFS160TLS-FCVG784I BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160TLS-FCSG536I BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160TS-FCVG784I BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160TS-FCSG536I BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160TL-FCVG784E BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160TL-FCSG536E BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160T-FCVG784T2 BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160T-FCVG784E BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS160T-FCSG536E BSDL File 16 Aug 2023
Document Category Title Date	BSDL Files MPFS460TLS-FCG1152I BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS095T-FCSG536T2 BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS460TS-FCG1152I BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS460TL-FCG1152E BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS250T-FCSG536T2 BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS250T-FCG1152T2 BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS160T-FCSG536T2 BSDL File 09 Feb 2024
Document Category Title Date	BSDL Files MPFS460T-FCG1152E BSDL File 09 Feb 2024
Document Category Title Date	Brochures PolarFIre SoC Dedicated IO IBIS Model (AUTO) 30 Mar 2022
Document Category Title Date	IBIS PolarFire SoC Dedicated IO IBIS Model (Industrial) 30 Mar 2022
Document Category Title Date	IBIS PolarFire SoC MSSIO IBIS Model (Industrial) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC HSIO IBIS Model (Industrial) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC HSIO IBIS Model (Military) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC GPIO IBIS Model (Industrial) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC Dedicated IO IBIS Model (Military) 30 Mar 2022
Document Category Title Date	IBIS PolarFire SoC GPIO IBIS Model (Military) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC HSIO IBIS Model (Auto) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC GPIO IBIS Model (Auto) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC MSSIO IBIS Model (Auto) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC MSSIO IBIS Model (Military) 14 Dec 2023
Document Category Title Date	IBIS PolarFire SoC & PolarFire FPGA IBIS AMI Model 14 Feb 2025
Document Category Title Date	PolarFire SoC MPFS250 FCV484 TX S-parameter Model 07 Feb 2023
Document Category Title Date	PolarFire SoC MPFS250 FCV484 RX S-parameter Model 07 Feb 2023

Title	Date
AN4977: OPC UA Industrial Edge Demo	03 Apr 2024	Link
AN5165: PolarFire SoC FPGA DSP FIR Filter Application Note	21 Oct 2024	Link
AN5282: PolarFire SoC Design Flow Application Note	24 Jul 2024	Link
AN4529: PolarFire SoC FPGA H.264 Video Streaming Over Ethernet Application Note	08 Oct 2024	Link
AN4723: PolarFire SoC FPGA Video Kit Picture-in-Picture Application Note	23 Mar 2023	Link
AC492: Running BareMetal User Applications on PolarFire SoC FPGA Application Note	07 Oct 2020	Link
DMA Performance Benchmark	07 Mar 2024
AN4737: Migrating Software to PolarFire SoC from Zynq-7000 SoC Application Note	13 Feb 2025	Link

Product Data Sheets

Errata

Packaging/PPAT

IBIS Models

S Parameter Model

BSDL Models

Product Data Sheets

Title	Date
PolarFire SoC Delphi Compact Thermal Model	30 Jan 2025
PolarFire SoC Material Declaration Data Sheet	13 Feb 2025
PolarFire® SoC Datasheet	03 May 2024
PD3068: Package Mechanical Drawings Datasheet	30 Jan 2025
PolarFire SoC MSS Technical Reference Manual	09 Jul 2024
PolarFire SoC FPGA Register Map	31 May 2024

Errata

Title	Date
PolarFire SoC FPGA Engineering Samples (ES) Devices Errata	16 Jul 2020
PolarFire® SoC FPGA Production Devices Errata	26 Jun 2024
PolarFire SoC FPGA Production Devices Errata	30 Aug 2024

Packaging/PPAT

Document Title	Date
RTPFS460T_RTPFS460TS-CG1509_Package_Pin_Assignment_Table_Public	18 Sep 2024
MPFS250T_MPFS250TS-FCVG484 Package Pin Assignment Table	28 Oct 2024
MPFS250T_MPFS250TS-FCG1152 Package Pin Assignment Table	28 Oct 2024
MPFS460T_MPFS460TS-FCG1152 Package Pin Assignment Table	28 Oct 2024
MPFS160T_MPFS160TS-FCVG484 Package Pin Assignment Table	28 Oct 2024
MPFS095T_MPFS095TS-FCVG484 Package Pin Assignment Table	28 Oct 2024
MPFS025T_MPFS025TS-FCVG484 Package Pin Assignment Table	28 Oct 2024
MPFS250T_MPFS250TS-FCSG536 Package Pin Assignment Table	28 Oct 2024
MPFS250T_MPFS250TS-FCVG784 Package Pin Assignment Table	28 Oct 2024
MPFS095T_MPFS095TS-FCSG536 Package Pin Assignment Table	28 Oct 2024
MPFS095T_MPFS095TS-FCVG784 Package Pin Assignment Table	28 Oct 2024
MPFS160T_MPFS160TS-FCSG536 Package Pin Assignment Table	28 Oct 2024
MPFS160T_MPFS160TS-FCVG784 Package Pin Assignment Table	28 Oct 2024
MPFS095T_MPFS095TS-FCSG325 Package Pin Assignment Table	28 Oct 2024
MPFS025T_MPFS025TS-FCSG325 Package Pin Assignment Table	28 Oct 2024

Click here to view package options

IBIS Models

Title	Date
PolarFIre SoC Dedicated IO IBIS Model (AUTO)	30 Mar 2022
PolarFire SoC Dedicated IO IBIS Model (Industrial)	30 Mar 2022
PolarFire SoC MSSIO IBIS Model (Industrial)	14 Dec 2023
PolarFire SoC HSIO IBIS Model (Industrial)	14 Dec 2023
PolarFire SoC HSIO IBIS Model (Military)	14 Dec 2023
PolarFire SoC GPIO IBIS Model (Industrial)	14 Dec 2023
PolarFire SoC Dedicated IO IBIS Model (Military)	30 Mar 2022
PolarFire SoC GPIO IBIS Model (Military)	14 Dec 2023
PolarFire SoC HSIO IBIS Model (Auto)	14 Dec 2023
PolarFire SoC GPIO IBIS Model (Auto)	14 Dec 2023
PolarFire SoC MSSIO IBIS Model (Auto)	14 Dec 2023
PolarFire SoC MSSIO IBIS Model (Military)	14 Dec 2023
PolarFire SoC & PolarFire FPGA IBIS AMI Model	14 Feb 2025

S-Parameter Models

Title	Date
PolarFire SoC MPFS250 FCV484 TX S-parameter Model	07 Feb 2023
PolarFire SoC MPFS250 FCV484 RX S-parameter Model	07 Feb 2023

BSDL Models

Title	Date
MPFS250T-FCVG784E BSDL File	27 Jan 2025
MPFS250TLS-FCG1152I BSDL File	03 Jun 2022
MPFS025TS-FCVG484I BSDL File	03 Jun 2022
MPFS250TL-FCVG784E BSDL File	03 Jun 2022
MPFS250TL-FCVG484E BSDL File	03 Jun 2022
MPFS025TLS-FCSG325I BSDL File	03 Jun 2022
MPFS250TS-FCVG784I BSDL File	03 Jun 2022
MPFS250TLS-FCSG536I BSDL File	03 Jun 2022
MPFS250T-FCVG484EES BSDL File	03 Jun 2022
MPFS025TL-FCSG325E BSDL File	03 Jun 2022
MPFS250T-FCG1152E BSDL File	03 Jun 2022
MPFS250TL-FCSG536E BSDL File	03 Jun 2022
MPFS250TS-FCVG484EES BSDL File	03 Jun 2022
MPFS250TS-FCSG536I BSDL File	03 Jun 2022
MPFS025TLS-FCVG484I BSDL File	03 Jun 2022
MPFS025TS-FCSG325I BSDL File	03 Jun 2022
MPFS250TLS-FCVG484I BSDL File	03 Jun 2022
MPFS250T-FCSG536E BSDL File	03 Jun 2022
MPFS250TS-FCVG484I BSDL File	03 Jun 2022
MPFS250T-FCVG484E BSDL File	03 Jun 2022
MPFS025T-FCVG484E BSDL FIle	03 Jun 2022
MPFS250TS-FCG1152EES BSDL File	03 Jun 2022
MPFS250TL-FCG1152E BSDL File	03 Jun 2022
MPFS025T-FCSG325E BSDL File	03 Jun 2022
MPFS250T-FCG1152EES BSDL File	03 Jun 2022
MPFS250TLS-FCVG784I BSDL File	03 Jun 2022
MPFS025TL-FCVG484E BSDL File	03 Jun 2022
MPFS250TS-FCG1152I BSDL file	03 Jun 2022
MPFS160TL-FCVG484E BSDL File	23 Jan 2023
MPFS095TS-FCVG784I BSDL File	23 Jan 2023
MPFS160T-FCVG484E BSDL File	23 Jan 2023
MPFS095TS-FCVG484I BSDL File	23 Jan 2023
MPFS095TS-FCSG536I BSDL File	23 Jan 2023
MPFS095TS-FCSG325I BSDL File	23 Jan 2023
MPFS160TLS-FCVG484I BSDL File	23 Jan 2023
MPFS160TS-FCVG484I BSDL File	23 Jan 2023
MPFS095TL-FCVG784E BSDL File	23 Jan 2023
MPFS095TL-FCVG484E BSDL File	23 Jan 2023
MPFS095TL-FCSG536E BSDL File	23 Jan 2023
MPFS095TL-FCSG325E BSDL File	23 Jan 2023
MPFS095T-FCVG784E BSDL File	23 Jan 2023
MPFS095TLS-FCVG784I BSDL File	23 Jan 2023
MPFS095TLS-FCVG484I BSDL File	23 Jan 2023
MPFS095TLS-FCSG536I BSDL File	23 Jan 2023
MPFS095TLS-FCSG325I BSDL File	23 Jan 2023
MPFS095T-FCVG484E BSDL File	23 Jan 2023
MPFS095T-FCSG536E BSDL File	23 Jan 2023
MPFS095T-FCSG325E BSDL File	23 Jan 2023
MPFS160TLS-FCVG784I BSDL File	16 Aug 2023
MPFS160TLS-FCSG536I BSDL File	16 Aug 2023
MPFS160TS-FCVG784I BSDL File	16 Aug 2023
MPFS160TS-FCSG536I BSDL File	16 Aug 2023
MPFS160TL-FCVG784E BSDL File	16 Aug 2023
MPFS160TL-FCSG536E BSDL File	16 Aug 2023
MPFS160T-FCVG784T2 BSDL File	16 Aug 2023
MPFS160T-FCVG784E BSDL File	16 Aug 2023
MPFS160T-FCSG536E BSDL File	16 Aug 2023
MPFS460TLS-FCG1152I BSDL File	09 Feb 2024
MPFS095T-FCSG536T2 BSDL File	09 Feb 2024
MPFS460TS-FCG1152I BSDL File	09 Feb 2024
MPFS460TL-FCG1152E BSDL File	09 Feb 2024
MPFS250T-FCSG536T2 BSDL File	09 Feb 2024
MPFS250T-FCG1152T2 BSDL File	09 Feb 2024
MPFS160T-FCSG536T2 BSDL File	09 Feb 2024
MPFS460T-FCG1152E BSDL File	09 Feb 2024

Title	Date
PolarFire FPGA and PolarFire SoC FPGA Power Estimator User Guide	09 Dec 2019
PolarFire Family Memory Controller User Guide	03 Oct 2024
Memory Log Analyzer GUI Installer	20 Feb 2025
PolarFire , PolarFire SoC and RT PolarFire FPGA Power Estimator	20 Feb 2025

Brochures

White Papers

Board Files

Brochures and Product Overviews

Title	Date
PolarFire® FPGAs and SoC FPGAs	05 Jun 2024
Radiation-Tolerant PolarFire® SoC FPGA Product Overview	11 Apr 2024
Mi-V RISC-V Ecosystem Brochure	14 Feb 2024
PolarFire® SoC Product Overview	20 Jun 2024

White Papers

Title	Date
PolarFire_SoC_CPU_Performance_Benchmarking_Whitepaper	30 Mar 2022
PolarFire SoC Linux Boot Time White Paper	30 Mar 2022
PolarFire SoC FPGA: Application Waypointing	30 Mar 2022
PolarFire® SoC FPGA: Opus Codec Benchmarking	30 Mar 2022
PolarFire SoC FPGA: Interrupt Latency and Data Transfer Throughput Measurements	30 Mar 2022
Measurement of Worst Case Execution Time on PolarFire® SoC FPGA	13 Feb 2025
FPGA Programmed Content Integrity Checking and Programming File Tracking using Cryptographic Digests	24 Jan 2025

Board Files

Title	Date
PolarFire SoC Icicle Kit Mechanical Drawing	30 Mar 2022
PolarFire SoC Icicle Kit Schematics	19 Aug 2020
PolarFire SoC Icicle Kit Board Files	19 Aug 2020
PolarFire SoC FPGA Board Design Guidelines User Guide	22 Aug 2024
PolarFire SoC Icicle Kit User Guide	17 Dec 2024

Title	Date
PolarFire Family Clocking Resources	22 Nov 2024
PolarFire Family FPGA Security User Guide	25 Sep 2024
PolarFire FPGA and PolarFire SoC FPGA User I/O User Guide	05 Feb 2025
PolarFire FPGA and PolarFire SoC FPGA Programming User Guide	22 Oct 2024
PolarFire Family Memory Controller User Guide	03 Oct 2024
PolarFire Family Transceiver User Guide	18 Jul 2024
PolarFire Family Fabric User Guide	03 Oct 2023
PolarFire FPGA and PolarFire SoC FPGA Power Estimator User Guide	09 Dec 2019
PolarFire Family Power-Up and Resets User Guide	24 Apr 2024
PolarFire SoC FPGA Board Design Guidelines User Guide	22 Aug 2024
PolarFire SoC MSS Configurator User Guide	09 Aug 2021
UG0851: FlashPro Express User Guide	15 Apr 2020
UG0758 User Guide PolarFire FPGA Design Flow Libero SoC v12.5	10 Dec 2020
PolarFire SoC Software Development and Tool Flow User Guide	21 Sep 2020
UG0851: FlashPro Express v12.3 and later User Guide for All FPGA Families	03 Sep 2020
PolarFire Family DRI SgCore User Guide	04 Oct 2024
PolarFire SoC FPGA Packaging and Pin Description User Guide	02 Oct 2023
PolarFire Family System Services User Guide	12 Jul 2023
PolarFire Family PCI Express User Guide	08 May 2024

Radiation Data

RT PolarFire^® SoC FPGAs are offered with multiple speed grades, temperatures, and package combinations. All temperatures are specified as junction temperatures.

Mi-V Ecosystem

The Mi-V RISC-V ecosystem is a continuously expanding, comprehensive suite of tools and design resources developed by Microchip and numerous third parties to fully support RISC-V designs. The Mi-V ecosystem aims to increase adoption of the RISC-V ISA and our PolarFire SoC FPGA and RISC-V soft CPU portfolio.

Learn More

Kits and Hardware

Microchip Evaluation Platforms
Mi-V Ecosystem Platforms

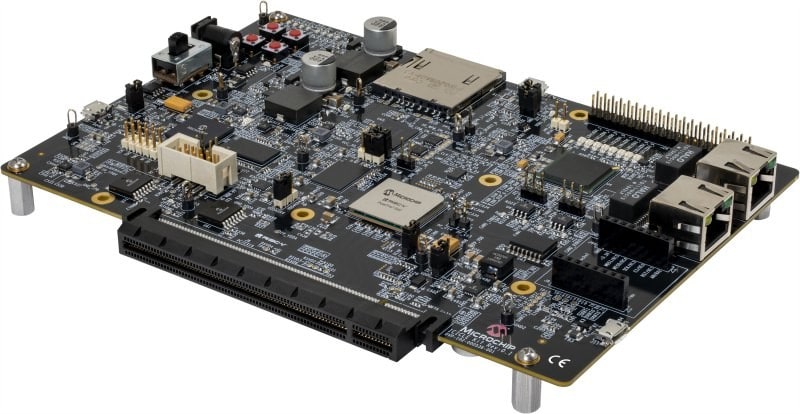

PolarFire^® SoC Icicle Kit

The PolarFire SoC Icicle Kit runs Linux^® out of the box and evaluates the microprocessor (MPU) subsystem, FPGA fabric, PCIe^®, Gigabit Ethernet, CAN, USB and more.

Buy PolarFire SoC Icicle Kit

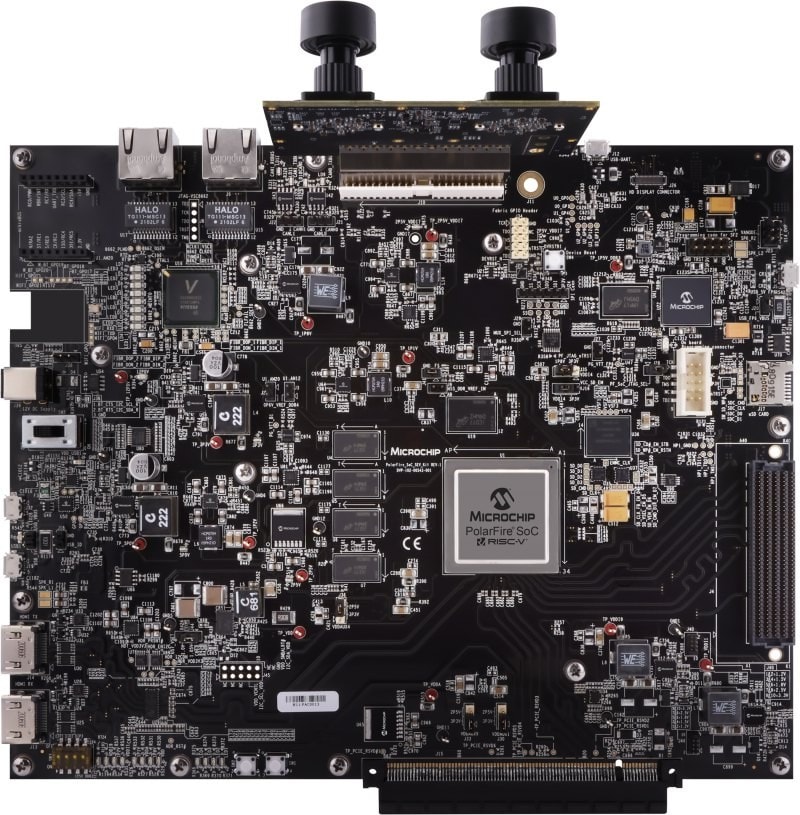

PolarFire^® SoC Video Kit

The PolarFire SoC Video Kit is a full-featured embedded vision development platform targeting secure, reliable and power-efficient vision applications at the edge, including our VectorBlox™ Accelerator SDK and Neural Network IP, and Industrial IoT (IIoT) and automation applications.

Buy PolarFire SoC Video Kit

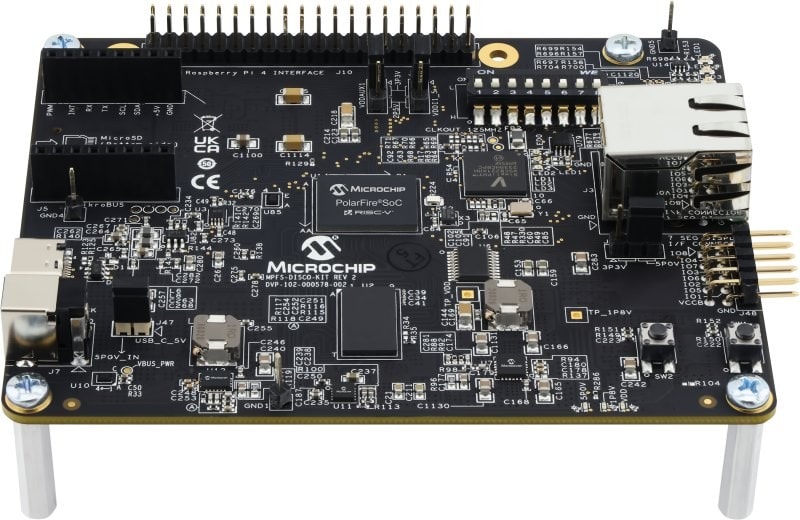

PolarFire^® SoC Discovery Kit

The PolarFire SoC Discovery Kit is a low-cost, open-source development kit powered by a quad-core, RISC-V application-class processor. This device supports Linux^® and real-time applications, a rich set of peripherals and 95K low-power, high-performance FPGA logic elements.

Buy PolarFire SoC Discovery Kit

Programmers and Adapters

FlashPro6

This latest-generation programmer supports the Windows® and Linux® operating systems in conjunction with Libero® SoC Design Suite, FlashPro Express and SmartDebug software.

Learn More

FlashPro5

This fifth-generation programmer supports Windows and Linux environments.

Learn More

FlashPro4

This fourth-generation hardware programmer supports only Windows environments.

Learn More

Silicon Sculptor 4

This is a CE-compliant production device programmer.

Learn More

Silicon Sculptor Adapter Module

Silicon sculptor adapter modules are package specific. They depend on the product family, but are independent of gate count.

Learn More

ChipPro Programmer Baseboard

ChipPro is a quick and easy device programming solution for our FPGA devices.

Learn More

In-House-Programming

An optional In-House Programming (IHP) service is available if you are purchasing our devices in large volumes.

Learn More

Explore Other FPGA Kits and Hardware

Learn More

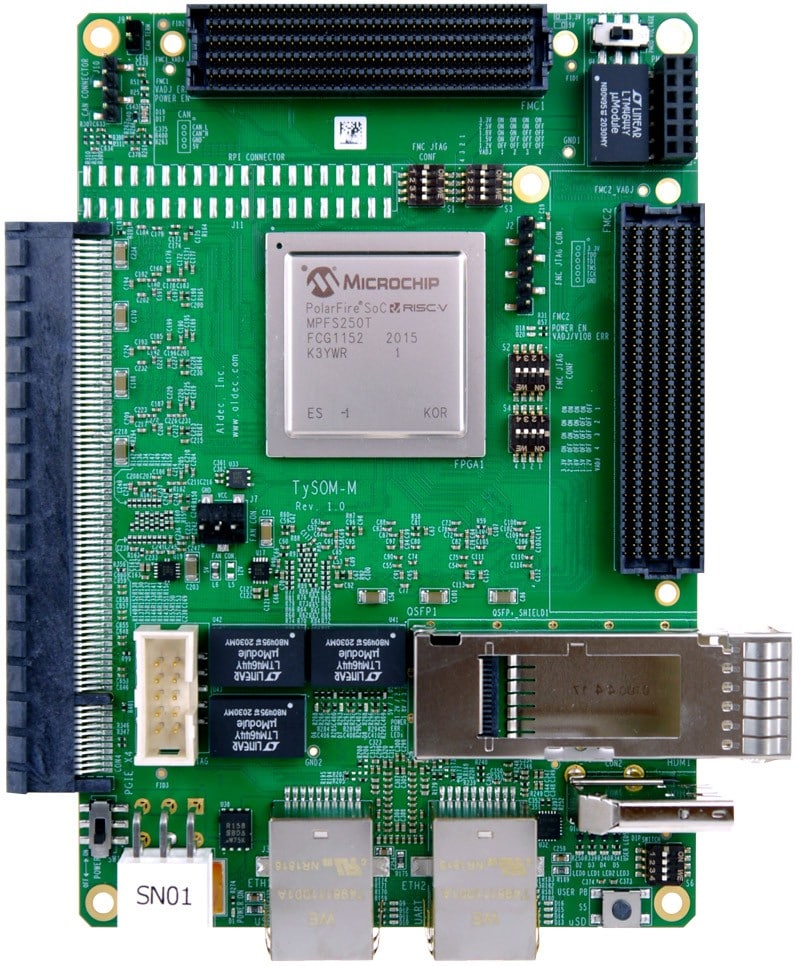

Aldec TySoM-M

Key features:

PolarFire SoC FPGA (MPFS250T-FCG1152E)
Memory: 16 Gb FPGA DDR4 ×32, 64 Kb EEPROM, microSD™, SPI Flash and eMMC
Interfaces: 2× FMC connector, 2× Ethernet, 1× USB 2.0, HDMI^®, PCIe^® ×4 Gen 2 root port and CAN

Learn More

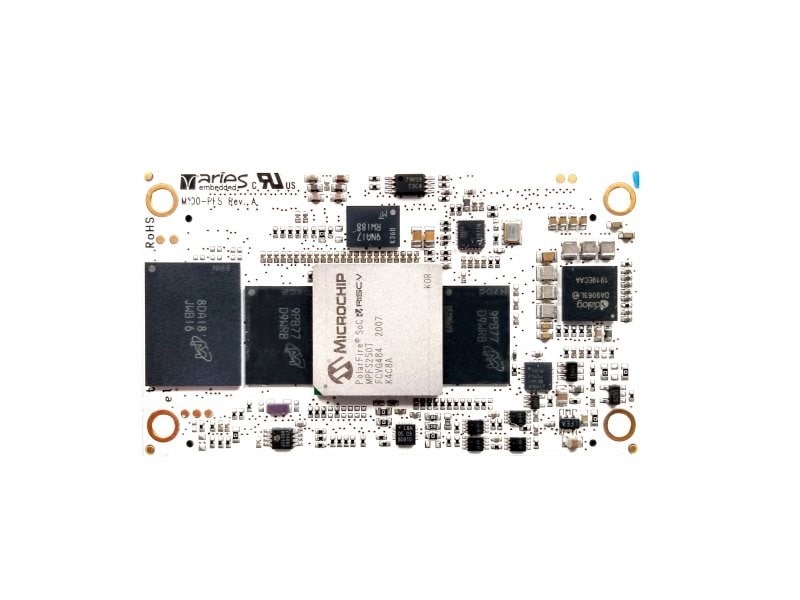

Aries Embedded SoM

Key features:

PolarFire SoC FPGA (MPFS250T-FCVG484E)
Memory: 4 GB LPDDR4 for MSS, 4 GB LPDDR4 for FPGA, 4 MB SPI Flash and 8 GB eMMC
Interfaces: 2 × Samtec QSH-090-01-F-D-A board-to-board interconnect
Dimensions: 74 mm × 42 mm

Learn More

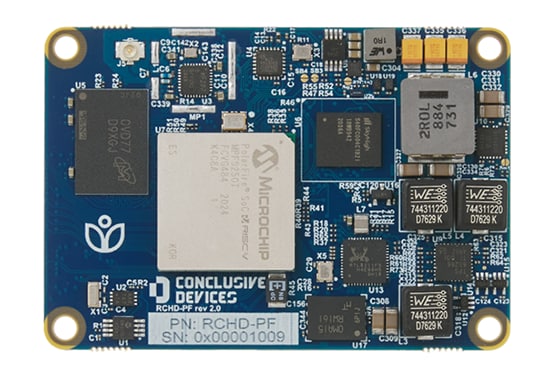

Conclusive Engineering SoM

Features PolarFire SoC FPGA (MPFS250T-FCVG484E)
Memory: LPDDR4 (1, 2, 4 or 8 GB), eMMC 5.0 (4–64 GB), 8 KB EEPROM
Interfaces: USB 2.0 OTG, ×4 PCIe 2.0, 1 × SGMII, 1 × JTAG, 1 × UART, 1 × I²C, 802.11/b/g/n Wi-Fi®
Dimensions 65 × 45 mm

Learn More

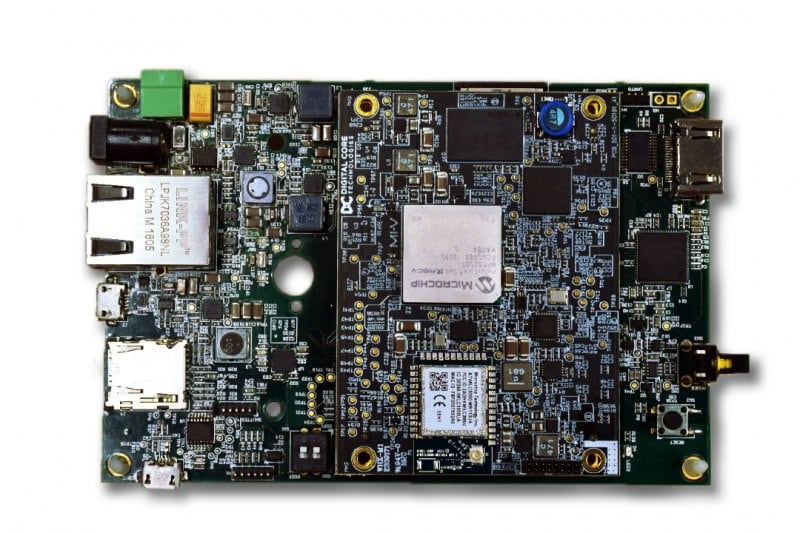

Digitalcore SoM

Key features:

PolarFire SoC FPGA (MPFS250T-FCVG484E)
Memory: 2 GB LPDDR4, 8 GB eMMC and 128 MB SPI Flash
Interfaces: Wi-Fi/BT, 1 × GbE, 1 × USB 2.0, ×4 PCIe Gen 2
Dimensions: 75 mm × 55 mm

Learn More

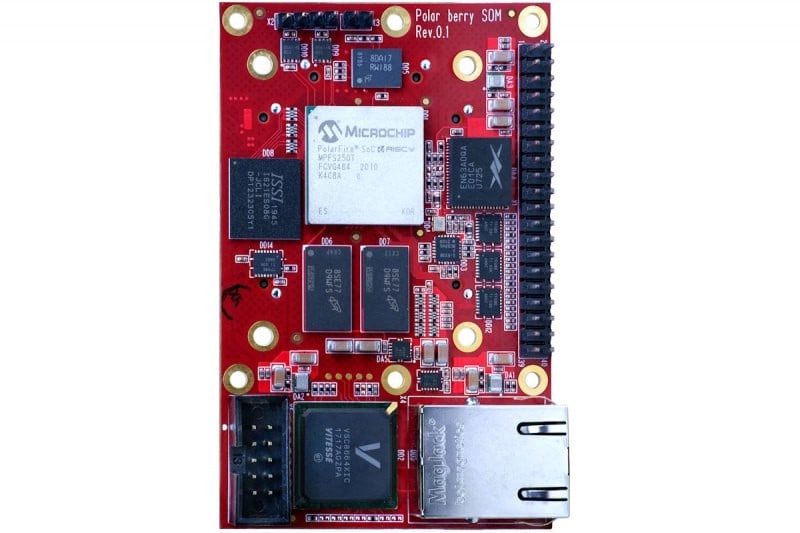

Sundance Polarberry SoM

Key features:

PolarFire SOC FPGA (MPFS250T-FCVG484E)
Memory: 4 GB DDR4, 128 MB SPI Flash and 4 GB eMMC
Interfaces: 4 × 12.7G transceivers, 40-pin Raspberry Pi interface and 1× RJ-45 connector
Dimensions: 55 mm × 85 mm

Learn More

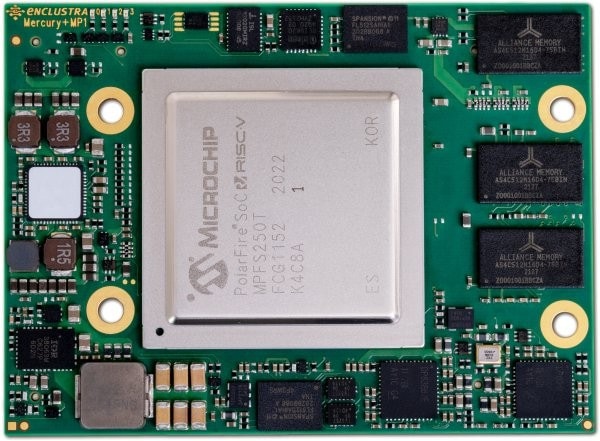

Enclustra Mercury SoM

Key features:

PolarFire SoC FPGA (MPFS250TS-FCG1152I)
Memory: DDR4 with ECC for MSS, DDR4 for FPGA, up to 19.2 GByte/sec memory bandwidth
Interfaces: PCIe Gen2 ×4, USB 2.0 and 2 × Gigabit Ethernet
Dimensions: 74 × 54 mm

Learn More

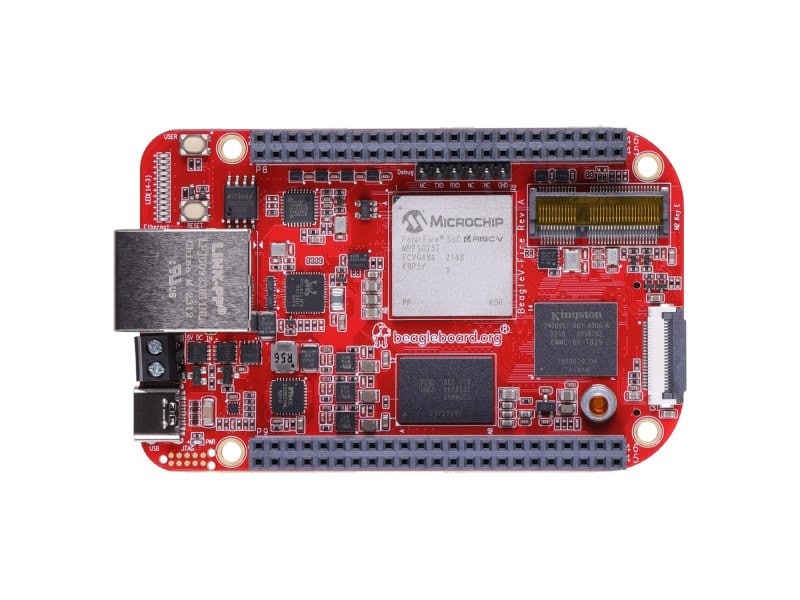

BeagleV^®-Fire

Key features:

PolarFire SoC FPGA (MPFS025T-FCVG484E)
Memory and storage: 2 GB LPDDR4, 16 GB e-MMC™ Flash, 128 Mbit SPI Flash, microSD™ card socket
Power: USB Type-C^®, screw terminals
Expansion and connectors: Gigabit Ethernet, M.2 E-key socket for Wi-Fi^® (PCIe^®/USB), SYZYGY high-speed expansion header, two 46-pin BeagleBone^®-compatible headers
55 mm × 88 mm

Learn More

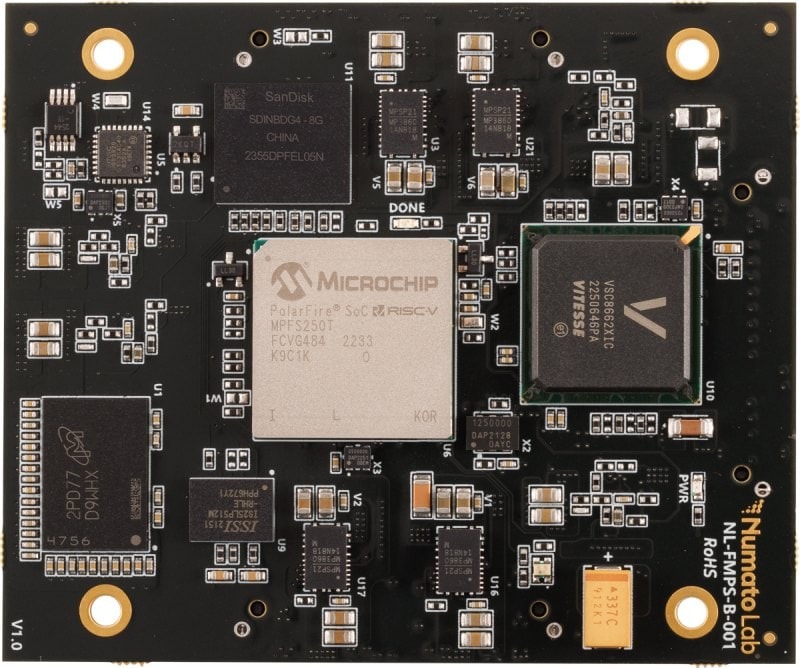

Numato Lab^® EagleCore™ SOM

Key features:

PolarFire SoC FPGA (MPFS250T-FCVG484)
Memory: e-MMC, 8 GB, Flash Memory: 1 Gb SPI
Two Gigabit Ethernet PHYs
OTG PHY
User-defined I/Os: (HSIO: 58 I/Os, GPIO: 50 I/Os, MSSIO: 10 I/Os, four SerDes)
72 mm × 54 mm

Learn More

Radiation-Tolerant PolarFire® SoC FPGAs

First RISC-V® Based, Radiation-Tolerant System-on-Chip (SoC) FPGA

Key Benefits

Low Power Consumption

Radiation Tolerance

Qualification for Space Flight

Product Table

Documentation

Product Data Sheets

Errata

Packaging/PPAT

IBIS Models

S-Parameter Models

BSDL Models

Brochures and Product Overviews

White Papers

Board Files

Mi-V Ecosystem

Kits and Hardware

PolarFire® SoC Icicle Kit

PolarFire® SoC Video Kit

PolarFire® SoC Discovery Kit

Programmers and Adapters

FlashPro6

FlashPro5

FlashPro4

Silicon Sculptor 4

Silicon Sculptor Adapter Module

ChipPro Programmer Baseboard

In-House-Programming

Explore Other FPGA Kits and Hardware

Aldec TySoM-M

Aries Embedded SoM

Conclusive Engineering SoM

Digitalcore SoM

Sundance Polarberry SoM

Enclustra Mercury SoM

BeagleV®-Fire

Numato Lab® EagleCore™ SOM

Radiation-Tolerant PolarFire^® SoC FPGAs

First RISC-V^® Based, Radiation-Tolerant System-on-Chip (SoC) FPGA

PolarFire^® SoC Icicle Kit

PolarFire^® SoC Video Kit

PolarFire^® SoC Discovery Kit

BeagleV^®-Fire

Numato Lab^® EagleCore™ SOM
