Higher Density, Higher Performance
- 481,000 LEs
- 33 Mb embedded SRAM
- 1,480 multipliers
- 24 10.3125 Gbps transceivers
Low Power Consumption
- 40% to 50% lower power consumption than competing SRAM FPGAs
- Low static current with low-power SONOS switches
- Power-optimized SerDes design
Radiation Tolerance
- 100 Krad Total Ionizing Dose (TID)
- Complete absence of configuration upsets
- Single-Event Latch-Up (SEL) threshold exceeds 60 MeV.cm2/mg with 1.8V I/O configuration
- Data upset rate better than 10-10 errors/bit-day (GEO solar minimum) with fault-tolerant design techniques
Qualification for Space Flight Applications
- Hermetically sealed ceramic package with 1.0 mm column pitch and Six Sigma columns
- Integrated Palladium Silver Electrode (PME) decoupling capacitors
- Designed to support QML class Q and QML class V qualification
Get Started Now
The Libero® SoC Design Suite supports commercial PolarFire FPGAs, which can be used today to start design activity for RT PolarFire FPGAs. Libero SoC software includes synthesis support for Triple Module Redundancy (TMR), which can be used for SEU mitigation. To run designs in hardware, you can use the RT PolarFire FPGA Development Kit(RTPF-DEV-KIT) or PolarFire FPGA Evaluation Kit (MPF300-EVAL-KIT).
|
Document Category
Title
Date
|
Application Notes
13 Jun 2024
|
|
Document Category
Title
Date
|
Application Notes
20 Dec 2020
|
|
Document Category
Title
Date
|
08 Mar 2022
|
|
Document Category
Title
Date
|
Application Notes
24 Sep 2024
|
|
Document Category
Title
Date
|
Application Notes
12 Sep 2023
|
|
Document Category
Title
Date
|
Application Notes
06 Dec 2024
|
|
Document Category
Title
Date
|
Application Notes
15 Sep 2023
|
|
Document Category
Title
Date
|
Application Notes
21 Oct 2024
|
|
Document Category
Title
Date
|
Application Notes
29 Jan 2025
|
|
Document Category
Title
Date
|
Application Notes
02 May 2024
|
|
Document Category
Title
Date
|
User Guide
03 Oct 2024
|
|
Document Category
Title
Date
|
User Guide
11 May 2004
|
|
Document Category
Title
Date
|
User Guide
06 Feb 2025
|
|
Document Category
Title
Date
|
User Guide
12 Apr 2023
|
|
Document Category
Title
Date
|
User Guide
18 Jul 2024
|
|
Document Category
Title
Date
|
User Guide
04 Oct 2024
|
|
Document Category
Title
Date
|
User Guide
22 Nov 2024
|
|
Document Category
Title
Date
|
User Guide
03 Oct 2023
|
|
Document Category
Title
Date
|
User Guide
12 Jul 2023
|
|
Document Category
Title
Date
|
User Guide
07 Oct 2024
|
|
Document Category
Title
Date
|
User Guide
08 May 2024
|
|
Document Category
Title
Date
|
User Guide
24 Apr 2024
|
|
Document Category
Title
Date
|
User Guide
25 Sep 2024
|
|
Document Category
Title
Date
|
User Guide
12 Sep 2024
|
|
Document Category
Title
Date
|
IBIS
17 Oct 2022
|
|
Document Category
Title
Date
|
IBIS
14 Dec 2023
|
|
Document Category
Title
Date
|
RT PolarFire FPGAs
14 Dec 2023
|
|
Document Category
Title
Date
|
15 Feb 2023
|
|
Document Category
Title
Date
|
Layout files
20 Sep 2022
|
|
Document Category
Title
Date
|
Layout files
20 Sep 2022
|
|
Document Category
Title
Date
|
Data Sheets
17 Dec 2024
|
|
Document Category
Title
Date
|
06 Jul 2022
|
|
Document Category
Title
Date
|
Product Brief
09 Jul 2024
|
|
Document Category
Title
Date
|
Information Sheets
10 Apr 2024
|
|
Document Category
Title
Date
|
Information Sheets
10 Apr 2024
|
|
Document Category
Title
Date
|
Data Sheets
30 Jan 2025
|
|
Document Category
Title
Date
|
User Guide
09 Dec 2019
|
|
Document Category
Title
Date
|
Supporting Collateral
20 Feb 2025
|
|
Document Category
Title
Date
|
Board Design Files
20 Feb 2025
|
|
Document Category
Title
Date
|
Board Design Files
06 Dec 2020
|
|
Document Category
Title
Date
|
Board Design Files
06 Dec 2020
|
|
Document Category
Title
Date
|
22 Nov 2022
|
|
Document Category
Title
Date
|
BSDL Files
09 Feb 2024
|
|
Document Category
Title
Date
|
BSDL Files
09 Feb 2024
|
|
Document Category
Title
Date
|
BSDL Files
09 Feb 2024
|
|
Document Category
Title
Date
|
BSDL Files
09 Feb 2024
|
|
Document Category
Title
Date
|
Packaging Specs
15 Jan 2025
|
|
Document Category
Title
Date
|
White Paper
27 Mar 2024
|
- Application Notes
- Data Sheets
- User Guides
- Power Estimator
- Radiation Reports

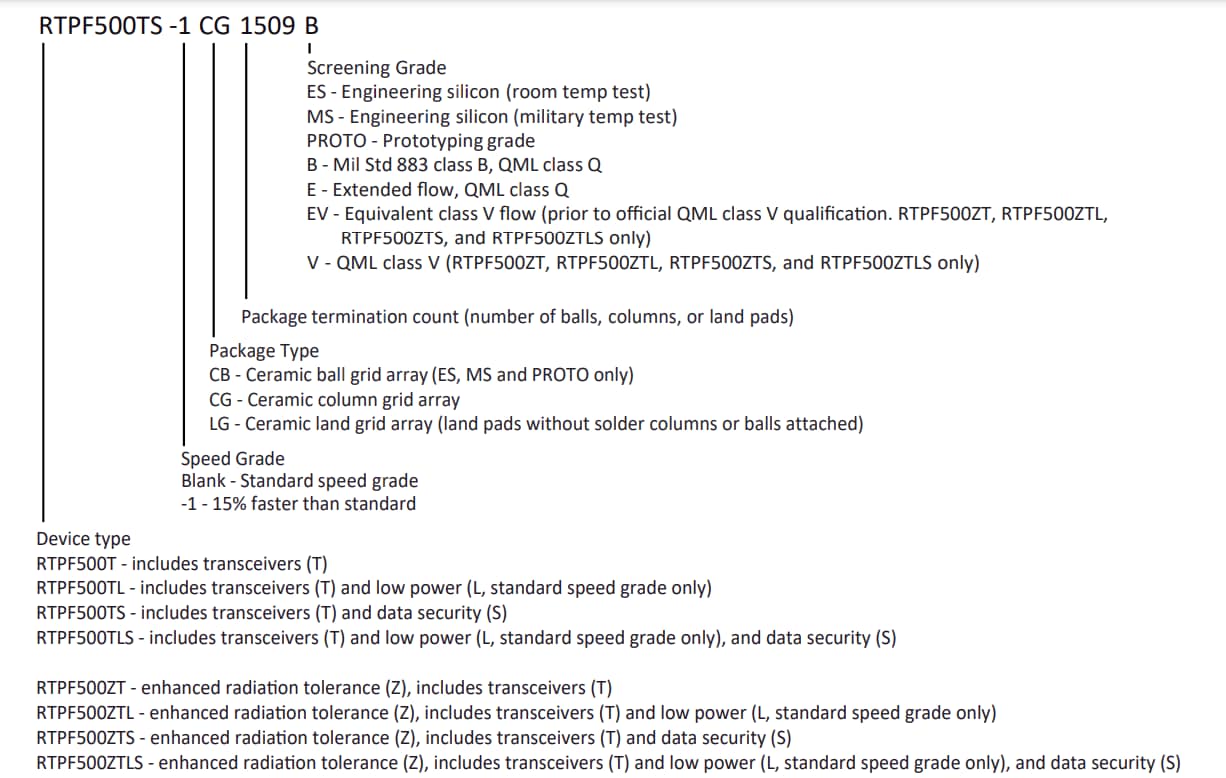

- Product Selector Guide
- White Papers
Data Sheets
|
Title
|
Date
|
|
|---|---|---|
| RT PolarFire RTPF500T FPGA Military Temperature Engineering Silicon (MS) Description | 10 Apr 2024 | |
| RT PolarFire RTPF500ZT MS Military Temperature Engineering Silicon Description | 10 Apr 2024 | |
| PD3068: Package Mechanical Drawings Datasheet | 30 Jan 2025 | |
| RT PolarFire® FPGA Datasheet | 17 Dec 2024 | |
| RT PolarFire FPGA Engineering Silicon | 06 Jul 2022 | |
| Radiation-Tolerant PolarFire® FPGA Product Overview | 09 Jul 2024 |
S-parameters Models
|
Title
|
Date
|
|
|---|---|---|
| S-parameters RTPF Model 1509 Package -RX | 20 Sep 2022 | |
| S-parameters RTPF Model 1509 Package -TX | 20 Sep 2022 |
IBIS Models
|
Title
|
Date
|
|
|---|---|---|
| RT PolarFire Dedicated IO IBIS Model | 17 Oct 2022 | |
| RT PolarFire GPIO IBIS Model | 14 Dec 2023 | |
| RT PolarFire HSIO IBIS Model | 14 Dec 2023 | |
| RT PolarFire IBIS-AMI Package | 15 Feb 2023 |
BSDL Models
|
Title
|
Date
|
|
|---|---|---|
| RTPF500TL-CG1509M BSDL File | 06 Dec 2020 | |
| RTPF500TLS-CG1509M BSDL File | 06 Dec 2020 | |
| RTPF500TLS-CG1509M BSDL File | 22 Nov 2022 | |
| RTPF500ZTLS-CG1509M BSDL File | 09 Feb 2024 | |
| RTPF500ZTL-CG1509M BSDL File | 09 Feb 2024 | |
| RTPF500ZTS-CG1509M BSDL File | 09 Feb 2024 | |
| RTPF500ZT-CG1509M BSDL File | 09 Feb 2024 |
Packaging/PPATS
|
Title
|
Date
|
|
|---|---|---|
| RTPF500T/RTPF500TS/RTPF500ZT-CG1509 Package Pin Assignment Table | 15 Jan 2025 |
|
Title
|
Date
|
|
|---|---|---|
| PolarFire Family Clocking Resources | 22 Nov 2024 | |
| PolarFire Family FPGA Security User Guide | 25 Sep 2024 | |
| RT PolarFire FPGA User I/O User Guide | 06 Feb 2025 | |
| RT PolarFire FPGA Board Design User Guide | 12 Sep 2024 | |
| RT PolarFire FPGA Programming User Guide | 12 Apr 2023 | |
| PolarFire Family Memory Controller User Guide | 03 Oct 2024 | |
| UG0019: DLA Cross Reference User Guide | 11 May 2004 | |
| RT PolarFire FPGA Packaging and Pin Descriptions User Guide | 07 Oct 2024 | |
| PolarFire Family Fabric User Guide | 03 Oct 2023 | |
| PolarFire Family DRI SgCore User Guide | 04 Oct 2024 | |
| PolarFire Family Transceiver User Guide | 18 Jul 2024 | |
| PolarFire Family System Services User Guide | 12 Jul 2023 | |
| PolarFire Family PCI Express User Guide | 08 May 2024 | |
| PolarFire Family Power-Up and Resets User Guide | 24 Apr 2024 |
|
Title
|
Date
|
|
|---|---|---|
| PolarFire FPGA and PolarFire SoC FPGA Power Estimator User Guide | 09 Dec 2019 | |
| PolarFire Family Memory Controller User Guide | 03 Oct 2024 | |
| Memory Log Analyzer GUI Installer | 20 Feb 2025 | |
| PolarFire , PolarFire SoC and RT PolarFire FPGA Power Estimator | 20 Feb 2025 |

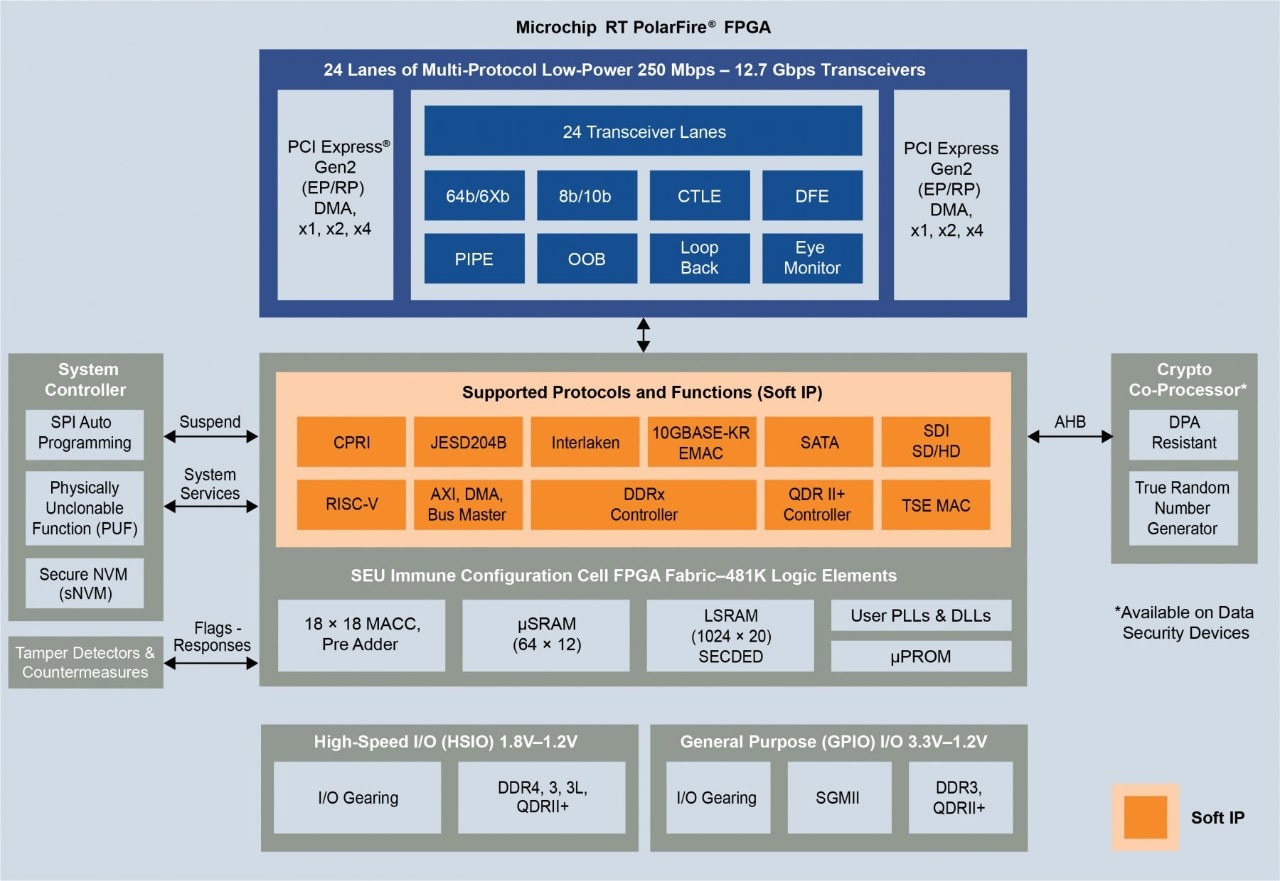

RT PolarFire FPGAs integrate our fifth-generation nonvolatile low-power FPGA fabric with the industry's lowest power high-performance Serializer/Deserializer (SerDes) transceivers on a single chip while maintaining resistance to radiation-induced configuration upsets in the harshest radiation environments, such as space flight (LEO, MEO, GEO, HEO, and deep space) and high-altitude aviation.
|
Title
|
Date
|
|---|---|
| Developing SEU Recoverable Transceiver Designs for RT PolarFire FPGAs | 27 Mar 2024 |
RT FPGA Kits
RT PolarFire Development Kit
The RT PolarFire development kit is a platform for developing and evaluating designs that use our RT PolarFire FPGAs. Take advantage of high-speed serial connectivity and bus interfaces to evaluate your control, DSP, AI/ML and image processing applications.
RTG4™ FPGA Development Kits
The RTG4 FPGA Development Kit provides an evaluation and development platform for space applications such as data transmission, serial connectivity, bus interface and high-speed designs using RTG4 radiation-tolerant, high-density and high-performance FPGAs.
Programmers and Adapters
FlashPro6
This latest-generation programmer supports the Windows® and Linux® operating systems in conjunction with Libero® SoC Design Suite, FlashPro Express and SmartDebug software.
FlashPro5
This fifth-generation programmer supports Windows and Linux environments.
FlashPro4
This fourth-generation hardware programmer supports only Windows environments.
Silicon Sculptor 4
This is a CE-compliant production device programmer.
Silicon Sculptor Adapter Module
Silicon sculptor adapter modules are package specific. They depend on the product family, but are independent of gate count.
In-House-Programming
An optional In-House Programming (IHP) service is available if you are purchasing our devices in large volumes.
