ProASIC Plus^® FPGAs

Ultra-Low-Density Flash FPGAs

ProASIC Plus^® devices belong to the second generation of Microchip FPGAs, which are based on a 0.22-um, Flash-based CMOS process. They are nonvolatile and reprogrammable FPGAs that combine the advantages of ASIC FPGAs with the benefits of programmable devices through nonvolatile Flash technology.

ProASIC Plus FPGAs are well suited for battery-operated and power-sensitive applications. They don’t contain power-on current surges or high-current transitions which exist on SRAM FPGAs. They have a significantly lower dynamic power consumption than SRAM FPGAs to further maximize power savings.

By simplifying your system design, these FPGAs make the device available to perform critical system setup tasks, reducing bill of materials costs and PCB area.

Features of ProASIC Plus FPGAs

Reprogrammable
Nonvolatile
Instant-on
Very low power

ProASIC Plus FPGAs contain PLLs and LVPECL I/O and an ASIC design flow. They are available in military and automotive temperature grades.

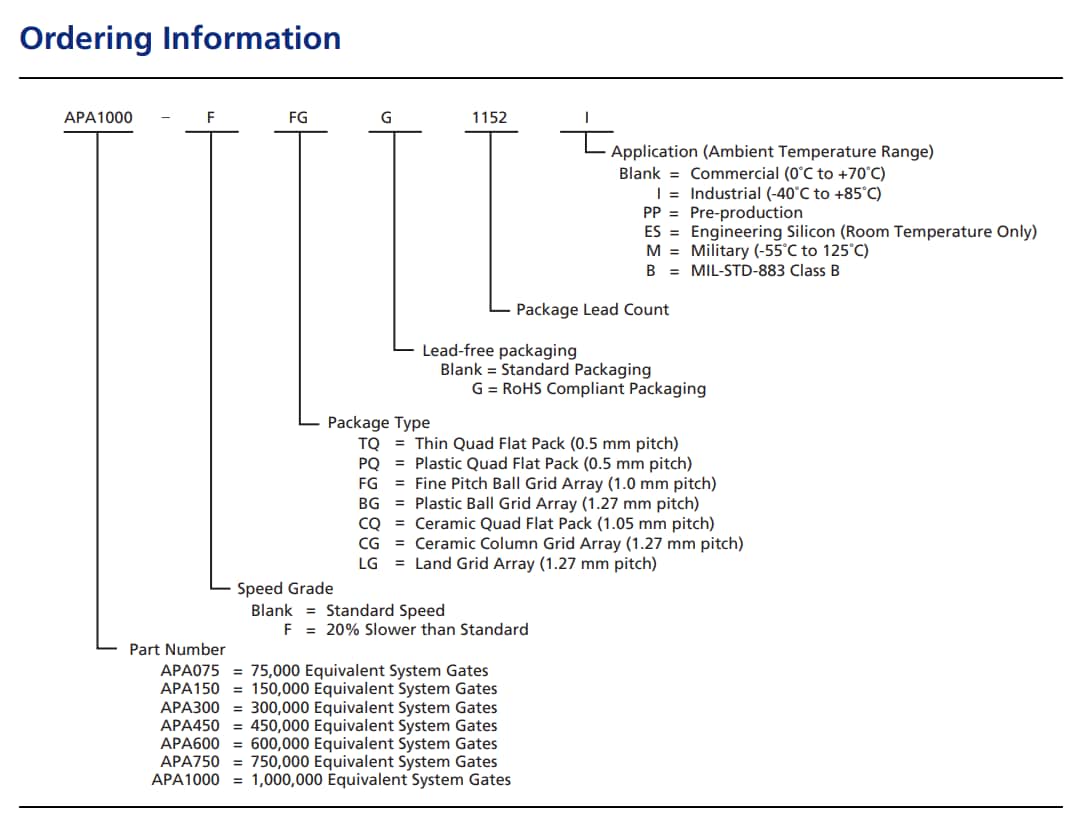

Products

Device	APA075	APA150	APA300¹	APA450	APA600¹	APA750	APA1000¹
Maximum System Gates	75,000	150,000	300,000	450,000	600,000	750,000	1,000,000
Tiles (Registers)	3,072	6,144	8,192	12,288	21,504	32,768	56,320
Embedded RAM Bits (k = 1,024 bits)	27k	36k	72k	108k	126k	144k	198k
Embedded RAM Blocks (256 × 9)	12	16	32	48	56	64	88
LVPECL	2	2	2	2	2	2	2
PLL	2	2	2	2	2	2	2
Global Networks	4	4	4	4	4	4	4
Maximum Clocks	24	32	32	48	56	64	88
Maximum User I/Os	158	242	290	344	454	562	712
JTAG ISP	Yes	Yes	Yes	Yes	Yes	Yes	Yes
PCI	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Package (by pin count)
TQFP	100, 144	100	–	–	–	–	–
PQFP	208	208	208	208	208	208	208
PBGA	–	456	456	456	456	456	456
FBGA	144	144, 256	144, 256	144, 256, 484	256, 484, 676	676, 896	896, 1152
CQFP²			208, 352		208, 352		208, 352
CCGA/LGA²					624		624

Notes:

1. Available as Commercial/Industrial and Military/MIL-STD-883B devices.
2. These packages are available only for Military/MIL-STD-883B devices.

Documentation

Search Documentation

All

Showing for

Document Category	Title	Date
Supporting Collateral	ProASIC PLUS® Package Pins	19 May 2013
Supporting Collateral	ProASIC PLUS® Product Brief	19 May 2013
Data Sheets	ProASIC PLUS® Flash Family FPGAs Datasheet (includes military/aerospace information)	09 Feb 2003
Data Sheets	Automotive-Grade ProASIC PLUS® Flash Family FPGAs	08 Feb 2004
Supporting Collateral	PD3068: Package Mechanical Drawings Datasheet	17 Feb 2023
Board Design Files	APA075-FG144 BSDL	08 Mar 2005
Board Design Files	APA075-PQ208 BSDL	08 Mar 2005
Board Design Files	APA075-TQ100 BSDL	08 Mar 2005
Board Design Files	APA075-TQ144 BSDL	08 Mar 2005
Board Design Files	APA150-BG456 BSDL	08 Mar 2005
Board Design Files	APA150-FG256 BSDL	08 Mar 2005
Board Design Files	APA150-PQ208 BSDL	08 Mar 2005
Board Design Files	APA150-TQ100 BSDL	08 Mar 2005
Board Design Files	APA300-BG456 BSDL	08 Mar 2005
Board Design Files	APA300-CQ208 BSDL	28 Nov 2005
Board Design Files	APA300-CQ352 BSDL	28 Nov 2005
Board Design Files	APA300-FG144 BSDL	08 Mar 2005
Board Design Files	APA300-FG256 BSDL	08 Mar 2005
Board Design Files	APA300-PQ208 BSDL	08 Mar 2005
Board Design Files	APA450-BG456 BSDL	08 Mar 2005
Board Design Files	APA450-FG144 BSDL	08 Mar 2005
Board Design Files	APA450-FG256 BSDL	08 Mar 2005
Board Design Files	APA450-FG484 BSDL	08 Mar 2005
Board Design Files	APA450-PQ208 BSDL	08 Mar 2005
Board Design Files	APA600-BG456 BSDL	08 Mar 2005
Board Design Files	APA600-CG624 BSDL	28 Nov 2005
Board Design Files	APA600-CQ208 BSDL	28 Nov 2005
Board Design Files	APA600-CQ352 BSDL	28 Nov 2005
Board Design Files	APA600-FG256 BSDL	08 Mar 2005
Board Design Files	APA1000-BG456 BSDL	08 Mar 2005
Board Design Files	APA1000-CG624 BSDL	28 Nov 2005
Board Design Files	APA600-FG484 BSDL	08 Mar 2005
Board Design Files	APA600-FG676 BSDL	08 Mar 2005
Board Design Files	APA600-PQ208 BSDL	08 Mar 2005
Board Design Files	APA750-BG456 BSDL	08 Mar 2005
Board Design Files	APA750-FG676 BSDL	08 Mar 2005
Board Design Files	APA750-FG896 BSDL	08 Mar 2005
Board Design Files	APA750-PQ208 BSDL	08 Mar 2005
Board Design Files	APA1000-FG1152 BSDL	08 Mar 2005
Board Design Files	APA1000-CQ208 BSDL	28 Nov 2005
Board Design Files	APA1000-CQ352 BSDL	28 Nov 2005
Board Design Files	APA1000-FG896 BSDL	08 Mar 2005
Board Design Files	APA1000-PQ208 BSDL	08 Mar 2005
IBIS	ProASIC Plus® Automotive IBIS Model	10 Oct 2019
IBIS	Pro ASICPLUS® Commercial IBIS Model	10 Oct 2019
IBIS	ProASIC PLUS® Industrial IBIS Model	10 Oct 2019
IBIS	ProASIC PLUS® Military IBIS Model	10 Oct 2019
Supporting Collateral	Microsemi Space Solutions Brochure	28 Jan 2009
Packaging Specifications	Package Thermal Characteristics and Weights	05 Jun 2003
Packaging Specifications	Hermetic Package MechanicalConfiguration	15 Jan 2003
Application Notes	AC204: Designing Clean Analog PLL Power Supply in a Mixed-Signal Environment Application Note	18 May 2004
Application Notes	AC162: RAM Initialization and ROM Emulation in ProASIC PLUS® Devices App Note	14 Jan 2003
Application Notes	AC176: Implementing Multi-Port Memories in ProASIC PLUS® Devices Application Note	08 Jul 2003	Design Files
Application Notes	AC178: Optimal Usage of Global Network Spines in ProASIC Plus® Devices Application Note	19 Jun 2003
Application Notes	AC185: Implementation of Security in ProASIC and ProASIC PLUS® Flash-Based FPGAs	24 May 2013
Application Notes	AC219: Using ProASIC Plus® RAM as Multipliers	23 Feb 2005
Application Notes	AC192: Floorplanning ProASIC/ProASIC PLUS® Devices for Increased Performance	20 Nov 2003
Application Notes	AC199: Interfacing ProASIC PLUS® FPGAs with 5V Input Signals	27 Mar 2003
Application Notes	AC263: Simultaneous Switching Noise and Signal Integrity	19 Feb 2003
Application Notes	AC276: Board Level Considerations for Microsemi FPGAs App Note	15 Jan 2003
Application Notes	AC256: Power-up Behavior of ProASIC PLUS® Devices Application Note	16 Apr 2003
Application Notes	AC247: Macro Constraint Usage in ProASIC PLUS® Design Flow	10 Jan 2006	Design Files
Application Notes	AC250: Preloading of ProASIC Plus® RAM Models in Simulation Using Libero IDE	17 Feb 2004
Application Notes	AC227: How To Use UJTAG App Note	17 Jul 2005	Design Files
Application Notes	AC281: ProASIC PLUS® RAM/FIFO Blocks	12 Jun 2003
Application Notes	AC230: Device Serialization for ProASIC PLUS® Devices	17 Aug 2005	Design Files
Application Notes	AC232: I/O Features in ProASIC Plus® Flash FPGAs	12 Jan 2003
Application Notes	AC283: Implementing Global Reset for ProASIC PLUS® In-System Programming Applications	31 Aug 2006
Application Notes	AC306: Using ProASIC PLUS® Clock Conditioning Circuits Application Note	14 Jan 2003
Application Notes	AC300: ProASIC to ProASIC Plus® Design Migration	14 Jan 2003
Application Notes	HB: Metastability Characterization Report for Microsemi Flash FPGAs	21 Oct 2003
Application Notes	AC309: In-System Programming ProASIC PLUS® Devices	08 May 2003
Application Notes	AC264: ProASIC Plus® SSO and Pin Placement Guidelines App Note	07 Jun 2006
Application Notes	HB: Programming Flash Devices	29 Sep 2005
Supporting Collateral	ProASIC Plus® Power Calculator	19 Mar 2003
