IGLOO^® FPGAs

Lowest-Power, Smallest-Package, Low-Density FPGAs

The IGLOO^® series of ultra-low density FPGAs includes the IGLOO/e, IGLOO nano and IGLOO PLUS families of devices. As the industry's lowest-power FPGAs, IGLOO FPGA families are designed to meet the low-power and small-footprint requirements of today's portable and power-conscious electronics.

The low-power IGLOO FPGA series supports up to 35K Logic Elements (LEs) with up to 504 Kb of true dual-port SRAM, up to six embedded PLLs and up to 620 user I/Os. If your low-power application requires 32-bit processing, you can use the Arm® Cortex®-M1 processor that is available with IGLOO M1 devices without license fees or royalties.

Flash*Freeze Technology

The Flash*Freeze technology used in IGLOO devices enables easy entry and exit from low-power mode in less than 1 µs. It consumes as little as 2 µW while retaining design information, SRAM content and register data. Flash*Freeze technology simplifies power management through I/O and clock management, without needing to turn off voltages, I/Os or clocks at the system level. I/Os can maintain their state during Flash*Freeze mode.

Small-Footprint Packages

IGLOO FPGAs are true single-chip devices that do not require configuration or other support components. They are available in a variety of small-footprint packages with high I/O pin count to match design needs. The IGLOO family is offered in small-form-factor (3 × 3, 4 × 4, 5 × 5, 6 × 6 and 8 × 8 mm), high-density chip-scale packages and quad flat no-lead packages.

Device Comparison

IGLOO^® Family	IGLOO /e FPGAs Low-Power Programmable Solutions	IGLOO nano FPGAs Industry's Lowest-Power, Smallest-Size Solutions	IGLOO PLUS FPGA Low-Power FPGAs with More I/O Per LE (Compared to IGLOO FPGAs)
Arm^® Cortex^®-M1 Processor	IGLOO/e M1
Equivalent LEs	330–35K	100–3K	330–1K
Maximum User I/Os	341	71	212
Power Consumption	5 µW	2 µW	5 µW

IGLOO /e FPGAs

The IGLOO /e family of low-power Flash FPGAs, which is based on a 130 nm Flash process, is a single-chip reprogrammable solution that offers an abundance of advanced features in small-footprint packages. IGLOO /e devices offer 1 Kb of on-chip, programmable, nonvolatile FlashROM storage as well as clock conditioning circuitry based on six integrated Phase-Locked Loops (PLLs). IGLOO /e devices have up to 35K LEs supported by up to 504 Kb of true dual-port SRAM and up to 620 user I/Os. IGLOO /e M1 devices support a high-performance, 32-bit Arm^® Cortex^®-M1 processor, which we provide for free for use in IGLOO /e M1 FPGAs.

Key Features

Low power consumption in Flash*Freeze mode
Best system performance of 250 MHz
Low-power active capability
Small-footprint packages
Reprogrammable Flash technology
1.2V to 1.5V operation
High-capacity, advanced I/Os
Clock Conditioning Circuits (CCCs) and PLLs
Embedded SRAM and Nonvolatile Memory (NVM)
In-System Programming (ISP) and security

IGLOO /e Series Products

IGLOO^® Devices	AGL030	AGL060	AGL125	AGL250	AGL400	AGL600	AGL1000	AGLE3000
Arm^® Cortex^®-M1-Based Devices				M1AGL250		M1AGL600	M1AGL1000	M1AGLE3000
System Gates	30,000	60,000	125,000	250,000	400,000	600,000	1,000,000	3,000,000
Equivalent LEs	330	700	1.5K	3K	5K	7K	11K	35K
Quiescent Current (typical) in Flash*Freeze Mode (µW)	5	10	16	24	32	36	53	137
RAM Kb (1,024 bits)		18	36	36	54	108	144	504
4,608-Bit Blocks		4	8	8	12	24	32	112
FlashROM Bits	1,024	1,024	1,024	1,024	1,024	1,024	1,024	1,024
Secure (AES) ISP¹		Yes	Yes	Yes	Yes	Yes	Yes	Yes
Integrated PLLs in CCCs²		1	1	1	1	1	1	6
I/O Standards	Std., Hot-Swap	Std.+	Std.+	Std.+/ LVDS	Std.+/ LVDS	Std.+/ LVDS	Std.+/ LVDS	Pro
I/O Banks (+JTAG)	2	2	2	4	4	4	4	8
Maximum User I/Os	77	71	133	143	178	215	300	341
Speed Grades	Std.	Std.	Std.	Std.	Std.	Std.	Std.	Std.
Temperature Grades	C, I	C, I	C, I	C, I	C, I	C, I	C, I	C, I
	Single-Ended I/Os/Differential I/O Pairs
IGLOO Devices	AGL030	AGL060	AGL125	AGL250	AGL400	AGL600	AGL1000	AGLE3000
Arm Cortex-M1-Based Devices				M1AGL250		M1AGL600	M1AGL1000	M1AGLE3000
QNG48	34
CSG81	66
VQG100	77	71	71	68/13
CSG196			133	143/35	143/35
FGG144			97	97/24		97/25	97/25
FGG256					178/38	177/43	177/44
CSG281						215/53	215/53
FGG484							300/74	341/168

Notes:

AES is not available for Arm processor-enabled IGLOO devices
AGL060 in CS121 does not support the PLL
For part availability please refer to PDN and EOL notifications

Documentation

Search Documentation

All

Showing for

Document Category	Title	Date
Supporting Collateral	TU0308: ARM Cortex-M1 Embedded Processor Tutorial	26 Mar 2012
Application Notes	Microsemi Libero IDE Quick Start Guide & Tutorial	09 Jun 2004	Design Files
User Guide	IGLOO FPGA Fabric User's Guide	15 Jul 2010
User Guide	IGLOO nano FPGA Fabric User’s Guide	08 Apr 2010
User Guide	IGLOO, ProASIC3, SmartFusion and Fusion Macro Library Guide for Software v10.1	30 Nov 2011
User Guide	IGLOOe FPGA Fabric User's Guide	15 Jul 2010
Application Notes	AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note	16 Jan 2005
Board Design Files	AGL015V2-QN68 BSDL	06 Apr 2008
Board Design Files	AGL015V5-QN68 BSDL	06 Apr 2008
Board Design Files	AGL030V2-QN132 BSDL	29 Nov 2007
Board Design Files	AGL030V2-VQ100 BSDL	29 Nov 2007
Board Design Files	AGL030V5-QN132 BSDL	29 Nov 2007
Board Design Files	AGL030V2-CS81 BSDL	29 Nov 2007
Board Design Files	AGL030V2-QN48 BSDL	18 Dec 2008
Board Design Files	AGL030V2-QN68 BSDL	18 Dec 2008
Board Design Files	AGL030V2-UC81 BSDL	29 Nov 2007
Board Design Files	AGL030V5-CS81 BSDL	29 Nov 2007
Board Design Files	AGL030V5-QN48 BSDL	18 Dec 2008
Board Design Files	M1AGLE3000V5-FG896 BSDL	06 Apr 2008
Board Design Files	M1AGLE3000V5-FG484 BSDL	06 Apr 2008
Board Design Files	M1AGLE3000V2-FG896 BSDL	06 Apr 2008
Board Design Files	M1AGLE3000V2-FG484 BSDL	06 Apr 2008
Board Design Files	M1AGL1000V5-FG484 BSDL	06 Apr 2008
Board Design Files	M1AGL1000V5-FG256 BSDL	06 Apr 2008
Board Design Files	M1AGL1000V5-FG144 BSDL	06 Apr 2008
Board Design Files	M1AGL1000V5-CS281 BSDL	20 May 2008
Board Design Files	AGL030V5-UC81 BSDL	29 Nov 2007
Board Design Files	M1AGL1000V2-FG484 BSDL	06 Apr 2008
Board Design Files	M1AGL1000V2-FG256 BSDL	06 Apr 2008
Board Design Files	M1AGL1000V2-FG144 BSDL	06 Apr 2008
Board Design Files	M1AGL1000V2-CS281 BSDL	02 Apr 2007
Board Design Files	M1AGL600V5-FG256 BSDL	06 Apr 2008
Board Design Files	M1AGL600V5-FG144 BSDL	06 Apr 2008
Board Design Files	M1AGL600V5-CS281 BSDL	29 Nov 2007
Board Design Files	M1AGL600V2-FG484 BSDL	06 Apr 2008
Board Design Files	M1AGL600V2-FG144 BSDL	06 Apr 2008
Board Design Files	M1AGL600V2-CS281 BSDL	29 Nov 2007
Board Design Files	M1AGL250V5-FG144 BSDL	06 Apr 2008
Board Design Files	M1AGL250V2-VQ100 BSDL	06 Apr 2008
Board Design Files	M1AGL250V2-FG144 BSDL	06 Apr 2008
Board Design Files	AGLE3000V5-FG896 BSDL	06 Apr 2008
Board Design Files	AGLE3000V5-FG484 BSDL	06 Apr 2008
Board Design Files	AGLE3000V2-FG896 BSDL	06 Apr 2008
Board Design Files	AGLE3000V2-FG484 BSDL	06 Apr 2008
Board Design Files	AGLE600V5-FG484 BSDL	29 Jul 2007
Board Design Files	AGLE600V5-FG256 BSDL	29 Jul 2007
Board Design Files	AGLE600V2-FG256 BSDL	29 Jul 2007
BSDL Files	AGLE600V2_FG484 BSDL	10 Oct 2019
Board Design Files	AGL1000V5-FG484 BSDL	06 Apr 2008
Board Design Files	AGL1000V5-FG256 BSDL	06 Apr 2008
Board Design Files	AGL1000V5-CS281 BSDL	02 Apr 2007
Board Design Files	AGL1000V2-FG484 BSDL	06 Apr 2008
Board Design Files	AGL1000V2-FG256 BSDL	06 Apr 2008
Board Design Files	AGL1000V2-FG144 BSDL	06 Apr 2008
Board Design Files	AGL1000V2-CS281 BSDL	05 Nov 2006
Board Design Files	AGL600V5-FG484 BSDL	29 Jul 2007
Board Design Files	AGL600V5-FG256 BSDL	29 Jul 2007
Board Design Files	AGL600V5-FG144 BSDL	29 Jul 2007
Board Design Files	AGL600V5-CS281 BSDL	29 Nov 2007
Board Design Files	AGL600V2-FG484 BSDL	29 Jul 2007
Board Design Files	AGL600V2-FG256 BSDL	29 Jul 2007
Board Design Files	AGL600V2-FG144 BSDL	29 Jul 2007
Board Design Files	AGL400V5-FG484 BSDL	16 Aug 2009
Board Design Files	AGL400V5-FG256 BSDL	16 Oct 2008
Board Design Files	AGL400V5-FG144 BSDL	16 Oct 2008
Board Design Files	AGL400V5-CS196 BSDL	16 Aug 2009
Board Design Files	AGL400V2-FG484 BSDL	16 Aug 2009
Board Design Files	AGL400V2-FG256 BSDL	16 Oct 2008
Board Design Files	AGL400V2-FG144 BSDL	16 Oct 2008
Board Design Files	AGL400V2-CS196 BSDL	16 Aug 2009
Board Design Files	AGL600V2-CS281 BSDL	29 Nov 2007
Board Design Files	AGL030V5-VQ100 BSDL	29 Nov 2007
Board Design Files	AGL060V2-QN132 BSDL	29 Jul 2007
Board Design Files	AGL060V2-CS121 BSDL	08 Jan 2008
Board Design Files	AGL060V2-VQ100 BSDL	29 Jul 2007
Board Design Files	AGL060V5-CS121 BSDL	08 Jan 2008
Board Design Files	AGL060V5-QN132 BSDL	29 Jul 2007
Board Design Files	AGL060V5-VQ100 BSDL	29 Jul 2007
Board Design Files	AGL125V2-CS196 BSDL	29 Nov 2007
Board Design Files	AGL125V2-FG144 BSDL	29 Jul 2007
Board Design Files	AGL125V2-QN132 BSDL	29 Jul 2007
Board Design Files	AGL125V2-VQ100 BSDL	29 Jul 2007
Board Design Files	AGL125V5-CS196 BSDL	29 Nov 2007
Board Design Files	AGL125V5-FG144 BSDL	29 Jul 2007
Board Design Files	AGL125V5-QN132 BSDL	29 Jul 2007
Board Design Files	AGL125V5-VQ100 BSDL	29 Jul 2007
Board Design Files	AGL250V2-CS196 BSDL	06 Apr 2008
Board Design Files	AGL250V2-CS284 BSDL	12 May 2010
Board Design Files	AGL250V2-VQ100 BSDL	04 Dec 2007
Board Design Files	AGL250V5-CS196 BSDL	06 Apr 2008
Board Design Files	AGL250V5-CS284 BSDL	12 May 2010
Board Design Files	AGL250V5-FG144 BSDL	04 Dec 2007
Board Design Files	M1AGL600V2-FG256 BSDL	06 Apr 2008
Board Design Files	AGL250V5-VQ100 BSDL	04 Dec 2007
Board Design Files	AGL400V5-CS284 BSDL	12 May 2010
Board Design Files	AGL1000V5-FG144 BSDL	06 Apr 2008
Board Design Files	M1AGL250V5-VQ100 BSDL	06 Apr 2008
Data Sheets	IGLOOe Low Power Flash FPGAs with Flash*Freeze Technology	20 Nov 2023
Data Sheets	IGLOO Low Power Flash FPGAs with FlashFreeze Datasheet	26 Dec 2022
Board Design Files	IGLOO IBIS models for AGL1000/AGL600/AGL400/AGL250 Packages and V2 Devices	28 Jun 2007
Board Design Files	IGLOO IBIS Model for for AGL125/AGL060 Packages and V5 Devices	28 Jun 2007
Board Design Files	IGLOO IBIS Model for for AGL125/AGL060 Packages and V2 Devices	28 Jun 2007
Board Design Files	IGLOO IBIS Models for AGL030/AGL015 Packages and V2 Devices	28 Jun 2007
Board Design Files	IGLOO IBIS Model for AGL1000/AGL600/AGL400/AGL250 Packages and V5 Devices	28 Jun 2007
Board Design Files	IGLOO IBIS Model for AGL030/AGL015 Packages and V5 Devices	28 Jun 2007
Board Design Files	IGLOOe Industrial IBIS Model for V2 Devices	27 Jun 2007
Board Design Files	IGLOOe Industrial IBIS Model for V5 Devices	27 Jun 2007
Supporting Collateral	Power FAQs	31 Mar 2003
Brochures	IGLOO Low-Power Flash FPGAs Brochure	26 Aug 2006
Supporting Collateral	Competitive Programmable Logic Power Comparison White Paper	18 Apr 2008
Supporting Collateral	Reducing System Power	26 Aug 2006
Supporting Collateral	The New Power-Smart Power Paradigm	01 Jul 2007
Supporting Collateral	Power-Aware FPGA Design White Paper	08 Feb 2009
Supporting Collateral	WP0089: Incredible Shrinking Medical Devices White Paper	20 Oct 2008
Supporting Collateral	Developing Embedded Applications with ARM Cortex-M1 Processors in Actel IGLOO and Fusion FPGAs White Paper	08 Mar 2009
Supporting Collateral	The Many Flavors of Low-Power, Low-Cost FPGAs White Paper	18 Apr 2008
Supporting Collateral	FPGA Reliability and the Sunspot Cycle White Paper	19 May 2013
	Power-Up/-Down Behavior of Low Power Flash Devices	13 Jan 2022
Application Notes	AC370: FPGA Solutions for 4D Imaging-based Therapy App Brief	25 Jul 2011
Application Notes	AC368: FPGA Solutions for Defibrillators App Brief	25 Jul 2011
Application Notes	AC369: FPGA Solutions for Ultrasound App Brief	25 Jul 2011
Application Notes	AC293: System Power Optimization Controller Using IGLOO FPGAs App Brief	12 Dec 2006
Application Notes	AC371: Personal Heart Monitor App Brief	25 Jul 2011
Application Notes	Low Power IDE Data Storage Solution	24 Oct 2006
Application Notes	AC242: Intelligent Mixed Signal FPGAs in Portable Medical Devices App Brief	09 Oct 2008
Application Notes	Designing for Performance on Flash-Based FPGAs	20 Mar 2008
Application Notes	HB: Low-Power Modes in Actel ProASIC3/E FPGAs	13 Jun 2006
Application Notes	AC330: Smart Card Interface Design Example App Note	22 Jun 2009	Design Files
Application Notes	AC327: UART-to-SPI Interface Design Example App Note	27 Apr 2009	Design Files
Application Notes	AC269: Implementing an OLED Controller Parallel Interface Design Example App Note	12 Apr 2009	Design Files
Application Notes	Internal Power-on Reset and Post Programming Reset Circuit for Flash-Based FPGAs App Note	26 Jan 2012	Design Files
Application Notes	AC222: Using Fusion, IGLOO, and ProASIC3 RAM as Multipliers App Note	04 Dec 2005
Application Notes	AC246: Level Shifter Design Example App Note	19 Jan 2009	Design Files
Application Notes	AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note	05 Sep 2011
Application Notes	AC323: Dynamic Power Reduction in Flash FPGAs App Note	03 Mar 2009
Application Notes	AC382: Zeroization App note	23 Aug 2022	Design Files
Application Notes	AC311: Physical Interface to QDRII Memories using Actel ProASIC3E FPGAs App Note	06 Jan 2008
Application Notes	AC326: GPIO Expansion Using UART Design Example App Note	27 Apr 2009	Design Files
Application Notes	AC332: Flash*Freeze Control Using an Internal Oscillator App Note	23 Jun 2009
Application Notes	AC290: Trainable Image Recognition System Using Low Power Flash FPGAs App Brief	06 Nov 2006
Application Notes	AC357: FlashPro4 Backward Compatibility with FlashPro3 App Brief	15 Sep 2010
Application Notes	NAND Flash Interface Design Example App Note	22 Jun 2009	Design Files
Application Notes	Mobile SDRAM Interface Design Example App Note	22 Jun 2009	Design Files
Application Notes	AC331: Flash*Freeze Control Using JTAG App Note	23 Jun 2009	Design Files
Application Notes	Bidirectional Level Shifter App Note	15 Sep 2010	Design Files
Application Notes	AC257 : Microcontroller I/O Expander Design Example App Note	23 Feb 2009	Design Files
Application Notes	AC265: Clock Generation and Distribution Design Example App Note	04 Mar 2009	Design Files
Application Notes	AC268:Using IGLOO and ProASIC3 FPGAs as a System Power Sequencer Design Example App Note	12 Mar 2009	Design Files
Application Notes	Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note	02 Aug 2011	Design Files
Application Notes	AC324: SPI-to-I2C Interface App Note	25 Mar 2009	Design Files
Packaging Specifications	IGLOO FG256 Pinouts	16 Jul 2014
Packaging Specifications	IGLOOe FG896 Pinouts	16 Jul 2014
Packaging Specifications	IGLOOe FG484 Pinouts	16 Jul 2014
Packaging Specifications	IGLOOe FG256 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO FG484 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO CS284 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO CQ208 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO CS196 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO FG144 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO CS121 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO CS81 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO QN68 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO QN48 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO VQ100 Pinouts	16 Apr 2024
Packaging Specifications	IGLOO CS281 Pinouts	16 Apr 2024
Board Design Files	IGLOO IBIS Model for AGL125/AGL060 Packages and V5 Devices	28 Jun 2007
Board Design Files	IGLOOe Commercial IBIS Model for V5 Devices	27 Jun 2007
Board Design Files	IGLOOe Commercial IBIS Model for V2 Devices	27 Jun 2007
Board Design Files	IGLOO IBIS Model for AGL125/AGL060 Packages and V2 Devices	28 Jun 2007
Board Design Files	IGLOO IBIS Model for AGL1000/AGL600/AGL400/AGL250 Packages and V5 Devices	28 Jun 2007
Board Design Files	IGLOO IBIS Model for AGL030/AGL015 Packages and V5 Devices	28 Jun 2007
IBIS	IGLOO IBIS Model for AGL1000/AGL600/AGL400/AGL250 Packages and V2 Devices	10 Oct 2019
Board Design Files	IGLOO IBIS Model for AGL030/AGL015 Packages and V2 Devices	28 Jun 2007
Errata	Functional Safety Package Errata	05 Oct 2023


Document Category Title Date	Supporting Collateral TU0308: ARM Cortex-M1 Embedded Processor Tutorial 26 Mar 2012
Document Category Title Date	Application Notes Microsemi Libero IDE Quick Start Guide & Tutorial 09 Jun 2004 Design Files
Document Category Title Date	User Guide IGLOO FPGA Fabric User's Guide 15 Jul 2010
Document Category Title Date	User Guide IGLOO nano FPGA Fabric User’s Guide 08 Apr 2010
Document Category Title Date	User Guide IGLOO, ProASIC3, SmartFusion and Fusion Macro Library Guide for Software v10.1 30 Nov 2011
Document Category Title Date	User Guide IGLOOe FPGA Fabric User's Guide 15 Jul 2010
Document Category Title Date	Application Notes AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note 16 Jan 2005
Document Category Title Date	Board Design Files AGL015V2-QN68 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGL015V5-QN68 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGL030V2-QN132 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files AGL030V2-VQ100 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files AGL030V5-QN132 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files AGL030V2-CS81 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files AGL030V2-QN48 BSDL 18 Dec 2008
Document Category Title Date	Board Design Files AGL030V2-QN68 BSDL 18 Dec 2008
Document Category Title Date	Board Design Files AGL030V2-UC81 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files AGL030V5-CS81 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files AGL030V5-QN48 BSDL 18 Dec 2008
Document Category Title Date	Board Design Files M1AGLE3000V5-FG896 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGLE3000V5-FG484 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGLE3000V2-FG896 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGLE3000V2-FG484 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL1000V5-FG484 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL1000V5-FG256 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL1000V5-FG144 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL1000V5-CS281 BSDL 20 May 2008
Document Category Title Date	Board Design Files AGL030V5-UC81 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files M1AGL1000V2-FG484 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL1000V2-FG256 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL1000V2-FG144 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL1000V2-CS281 BSDL 02 Apr 2007
Document Category Title Date	Board Design Files M1AGL600V5-FG256 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL600V5-FG144 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL600V5-CS281 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files M1AGL600V2-FG484 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL600V2-FG144 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL600V2-CS281 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files M1AGL250V5-FG144 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL250V2-VQ100 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL250V2-FG144 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGLE3000V5-FG896 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGLE3000V5-FG484 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGLE3000V2-FG896 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGLE3000V2-FG484 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGLE600V5-FG484 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGLE600V5-FG256 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGLE600V2-FG256 BSDL 29 Jul 2007
Document Category Title Date	BSDL Files AGLE600V2_FG484 BSDL 10 Oct 2019
Document Category Title Date	Board Design Files AGL1000V5-FG484 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGL1000V5-FG256 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGL1000V5-CS281 BSDL 02 Apr 2007
Document Category Title Date	Board Design Files AGL1000V2-FG484 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGL1000V2-FG256 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGL1000V2-FG144 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGL1000V2-CS281 BSDL 05 Nov 2006
Document Category Title Date	Board Design Files AGL600V5-FG484 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL600V5-FG256 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL600V5-FG144 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL600V5-CS281 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files AGL600V2-FG484 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL600V2-FG256 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL600V2-FG144 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL400V5-FG484 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGL400V5-FG256 BSDL 16 Oct 2008
Document Category Title Date	Board Design Files AGL400V5-FG144 BSDL 16 Oct 2008
Document Category Title Date	Board Design Files AGL400V5-CS196 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGL400V2-FG484 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGL400V2-FG256 BSDL 16 Oct 2008
Document Category Title Date	Board Design Files AGL400V2-FG144 BSDL 16 Oct 2008
Document Category Title Date	Board Design Files AGL400V2-CS196 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGL600V2-CS281 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files AGL030V5-VQ100 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files AGL060V2-QN132 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL060V2-CS121 BSDL 08 Jan 2008
Document Category Title Date	Board Design Files AGL060V2-VQ100 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL060V5-CS121 BSDL 08 Jan 2008
Document Category Title Date	Board Design Files AGL060V5-QN132 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL060V5-VQ100 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL125V2-CS196 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files AGL125V2-FG144 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL125V2-QN132 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL125V2-VQ100 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL125V5-CS196 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files AGL125V5-FG144 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL125V5-QN132 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL125V5-VQ100 BSDL 29 Jul 2007
Document Category Title Date	Board Design Files AGL250V2-CS196 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGL250V2-CS284 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGL250V2-VQ100 BSDL 04 Dec 2007
Document Category Title Date	Board Design Files AGL250V5-CS196 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGL250V5-CS284 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGL250V5-FG144 BSDL 04 Dec 2007
Document Category Title Date	Board Design Files M1AGL600V2-FG256 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGL250V5-VQ100 BSDL 04 Dec 2007
Document Category Title Date	Board Design Files AGL400V5-CS284 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGL1000V5-FG144 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files M1AGL250V5-VQ100 BSDL 06 Apr 2008
Document Category Title Date	Data Sheets IGLOOe Low Power Flash FPGAs with Flash*Freeze Technology 20 Nov 2023
Document Category Title Date	Data Sheets IGLOO Low Power Flash FPGAs with FlashFreeze Datasheet 26 Dec 2022
Document Category Title Date	Board Design Files IGLOO IBIS models for AGL1000/AGL600/AGL400/AGL250 Packages and V2 Devices 28 Jun 2007
Document Category Title Date	Board Design Files IGLOO IBIS Model for for AGL125/AGL060 Packages and V5 Devices 28 Jun 2007
Document Category Title Date	Board Design Files IGLOO IBIS Model for for AGL125/AGL060 Packages and V2 Devices 28 Jun 2007
Document Category Title Date	Board Design Files IGLOO IBIS Models for AGL030/AGL015 Packages and V2 Devices 28 Jun 2007
Document Category Title Date	Board Design Files IGLOO IBIS Model for AGL1000/AGL600/AGL400/AGL250 Packages and V5 Devices 28 Jun 2007
Document Category Title Date	Board Design Files IGLOO IBIS Model for AGL030/AGL015 Packages and V5 Devices 28 Jun 2007
Document Category Title Date	Board Design Files IGLOOe Industrial IBIS Model for V2 Devices 27 Jun 2007
Document Category Title Date	Board Design Files IGLOOe Industrial IBIS Model for V5 Devices 27 Jun 2007
Document Category Title Date	Supporting Collateral Power FAQs 31 Mar 2003
Document Category Title Date	Brochures IGLOO Low-Power Flash FPGAs Brochure 26 Aug 2006
Document Category Title Date	Supporting Collateral Competitive Programmable Logic Power Comparison White Paper 18 Apr 2008
Document Category Title Date	Supporting Collateral Reducing System Power 26 Aug 2006
Document Category Title Date	Supporting Collateral The New Power-Smart Power Paradigm 01 Jul 2007
Document Category Title Date	Supporting Collateral Power-Aware FPGA Design White Paper 08 Feb 2009
Document Category Title Date	Supporting Collateral WP0089: Incredible Shrinking Medical Devices White Paper 20 Oct 2008
Document Category Title Date	Supporting Collateral Developing Embedded Applications with ARM Cortex-M1 Processors in Actel IGLOO and Fusion FPGAs White Paper 08 Mar 2009
Document Category Title Date	Supporting Collateral The Many Flavors of Low-Power, Low-Cost FPGAs White Paper 18 Apr 2008
Document Category Title Date	Supporting Collateral FPGA Reliability and the Sunspot Cycle White Paper 19 May 2013
Document Category Title Date	Power-Up/-Down Behavior of Low Power Flash Devices 13 Jan 2022
Document Category Title Date	Application Notes AC370: FPGA Solutions for 4D Imaging-based Therapy App Brief 25 Jul 2011
Document Category Title Date	Application Notes AC368: FPGA Solutions for Defibrillators App Brief 25 Jul 2011
Document Category Title Date	Application Notes AC369: FPGA Solutions for Ultrasound App Brief 25 Jul 2011
Document Category Title Date	Application Notes AC293: System Power Optimization Controller Using IGLOO FPGAs App Brief 12 Dec 2006
Document Category Title Date	Application Notes AC371: Personal Heart Monitor App Brief 25 Jul 2011
Document Category Title Date	Application Notes Low Power IDE Data Storage Solution 24 Oct 2006
Document Category Title Date	Application Notes AC242: Intelligent Mixed Signal FPGAs in Portable Medical Devices App Brief 09 Oct 2008
Document Category Title Date	Application Notes Designing for Performance on Flash-Based FPGAs 20 Mar 2008
Document Category Title Date	Application Notes HB: Low-Power Modes in Actel ProASIC3/E FPGAs 13 Jun 2006
Document Category Title Date	Application Notes AC330: Smart Card Interface Design Example App Note 22 Jun 2009 Design Files
Document Category Title Date	Application Notes AC327: UART-to-SPI Interface Design Example App Note 27 Apr 2009 Design Files
Document Category Title Date	Application Notes AC269: Implementing an OLED Controller Parallel Interface Design Example App Note 12 Apr 2009 Design Files
Document Category Title Date	Application Notes Internal Power-on Reset and Post Programming Reset Circuit for Flash-Based FPGAs App Note 26 Jan 2012 Design Files
Document Category Title Date	Application Notes AC222: Using Fusion, IGLOO, and ProASIC3 RAM as Multipliers App Note 04 Dec 2005
Document Category Title Date	Application Notes AC246: Level Shifter Design Example App Note 19 Jan 2009 Design Files
Document Category Title Date	Application Notes AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note 05 Sep 2011
Document Category Title Date	Application Notes AC323: Dynamic Power Reduction in Flash FPGAs App Note 03 Mar 2009
Document Category Title Date	Application Notes AC382: Zeroization App note 23 Aug 2022 Design Files
Document Category Title Date	Application Notes AC311: Physical Interface to QDRII Memories using Actel ProASIC3E FPGAs App Note 06 Jan 2008
Document Category Title Date	Application Notes AC326: GPIO Expansion Using UART Design Example App Note 27 Apr 2009 Design Files
Document Category Title Date	Application Notes AC332: Flash*Freeze Control Using an Internal Oscillator App Note 23 Jun 2009
Document Category Title Date	Application Notes AC290: Trainable Image Recognition System Using Low Power Flash FPGAs App Brief 06 Nov 2006
Document Category Title Date	Application Notes AC357: FlashPro4 Backward Compatibility with FlashPro3 App Brief 15 Sep 2010
Document Category Title Date	Application Notes NAND Flash Interface Design Example App Note 22 Jun 2009 Design Files
Document Category Title Date	Application Notes Mobile SDRAM Interface Design Example App Note 22 Jun 2009 Design Files
Document Category Title Date	Application Notes AC331: Flash*Freeze Control Using JTAG App Note 23 Jun 2009 Design Files
Document Category Title Date	Application Notes Bidirectional Level Shifter App Note 15 Sep 2010 Design Files
Document Category Title Date	Application Notes AC257 : Microcontroller I/O Expander Design Example App Note 23 Feb 2009 Design Files
Document Category Title Date	Application Notes AC265: Clock Generation and Distribution Design Example App Note 04 Mar 2009 Design Files
Document Category Title Date	Application Notes AC268:Using IGLOO and ProASIC3 FPGAs as a System Power Sequencer Design Example App Note 12 Mar 2009 Design Files
Document Category Title Date	Application Notes Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note 02 Aug 2011 Design Files
Document Category Title Date	Application Notes AC324: SPI-to-I2C Interface App Note 25 Mar 2009 Design Files
Document Category Title Date	Packaging Specifications IGLOO FG256 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOOe FG896 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOOe FG484 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOOe FG256 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO FG484 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO CS284 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO CQ208 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO CS196 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO FG144 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO CS121 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO CS81 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO QN68 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO QN48 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO VQ100 Pinouts 16 Apr 2024
Document Category Title Date	Packaging Specifications IGLOO CS281 Pinouts 16 Apr 2024
Document Category Title Date	Board Design Files IGLOO IBIS Model for AGL125/AGL060 Packages and V5 Devices 28 Jun 2007
Document Category Title Date	Board Design Files IGLOOe Commercial IBIS Model for V5 Devices 27 Jun 2007
Document Category Title Date	Board Design Files IGLOOe Commercial IBIS Model for V2 Devices 27 Jun 2007
Document Category Title Date	Board Design Files IGLOO IBIS Model for AGL125/AGL060 Packages and V2 Devices 28 Jun 2007
Document Category Title Date	Board Design Files IGLOO IBIS Model for AGL1000/AGL600/AGL400/AGL250 Packages and V5 Devices 28 Jun 2007
Document Category Title Date	Board Design Files IGLOO IBIS Model for AGL030/AGL015 Packages and V5 Devices 28 Jun 2007
Document Category Title Date	IBIS IGLOO IBIS Model for AGL1000/AGL600/AGL400/AGL250 Packages and V2 Devices 10 Oct 2019
Document Category Title Date	Board Design Files IGLOO IBIS Model for AGL030/AGL015 Packages and V2 Devices 28 Jun 2007
Document Category Title Date	Errata Functional Safety Package Errata 05 Oct 2023

Title	Date
Internal Power-on Reset and Post Programming Reset Circuit for Flash-Based FPGAs App Note	26 Jan 2012	Link
NAND Flash Interface Design Example App Note	22 Jun 2009	Link
Mobile SDRAM Interface Design Example App Note	22 Jun 2009	Link
AC331: Flash*Freeze Control Using JTAG App Note	23 Jun 2009	Link
Bidirectional Level Shifter App Note	15 Sep 2010	Link
AC257 : Microcontroller I/O Expander Design Example App Note	23 Feb 2009	Link
AC268:Using IGLOO and ProASIC3 FPGAs as a System Power Sequencer Design Example App Note	12 Mar 2009	Link
Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note	02 Aug 2011	Link
AC242: Intelligent Mixed Signal FPGAs in Portable Medical Devices App Brief	09 Oct 2008
Power-Up/-Down Behavior of Low Power Flash Devices	13 Jan 2022
AC368: FPGA Solutions for Defibrillators App Brief	25 Jul 2011
AC371: Personal Heart Monitor App Brief	25 Jul 2011
Low Power IDE Data Storage Solution	24 Oct 2006
AC293: System Power Optimization Controller Using IGLOO FPGAs App Brief	12 Dec 2006
AC370: FPGA Solutions for 4D Imaging-based Therapy App Brief	25 Jul 2011
AC369: FPGA Solutions for Ultrasound App Brief	25 Jul 2011
Designing for Performance on Flash-Based FPGAs	20 Mar 2008
HB: Low-Power Modes in Actel ProASIC3/E FPGAs	13 Jun 2006
AC269: Implementing an OLED Controller Parallel Interface Design Example App Note	12 Apr 2009	Link
AC265: Clock Generation and Distribution Design Example App Note	04 Mar 2009	Link
AC246: Level Shifter Design Example App Note	19 Jan 2009	Link
AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note	05 Sep 2011
AC330: Smart Card Interface Design Example App Note	22 Jun 2009	Link
AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note	16 Jan 2005
AC382: Zeroization App note	23 Aug 2022	Link
AC326: GPIO Expansion Using UART Design Example App Note	27 Apr 2009	Link
AC290: Trainable Image Recognition System Using Low Power Flash FPGAs App Brief	06 Nov 2006
AC327: UART-to-SPI Interface Design Example App Note	27 Apr 2009	Link
AC332: Flash*Freeze Control Using an Internal Oscillator App Note	23 Jun 2009
AC222: Using Fusion, IGLOO, and ProASIC3 RAM as Multipliers App Note	04 Dec 2005
AC323: Dynamic Power Reduction in Flash FPGAs App Note	03 Mar 2009
AC324: SPI-to-I2C Interface App Note	25 Mar 2009	Link
AC311: Physical Interface to QDRII Memories using Actel ProASIC3E FPGAs App Note	06 Jan 2008
AC357: FlashPro4 Backward Compatibility with FlashPro3 App Brief	15 Sep 2010

Product Data Sheets

Packaging/PPATS

BSDL Models

IBIS Models

Errata

Product Data Sheets

Title	Date
IGLOOe Low Power Flash FPGAs with Flash*Freeze Technology	20 Nov 2023
IGLOO Low Power Flash FPGAs with FlashFreeze Datasheet	26 Dec 2022

Packaging/PPATS

Title	Date
IGLOO FG256 Pinouts	16 Jul 2014
IGLOOe FG896 Pinouts	16 Jul 2014
IGLOOe FG484 Pinouts	16 Jul 2014
IGLOOe FG256 Pinouts	16 Jul 2014
IGLOO FG484 Pinouts	16 Jul 2014
IGLOO CS284 Pinouts	16 Jul 2014
IGLOO CQ208 Pinouts	16 Jul 2014
IGLOO CS196 Pinouts	16 Jul 2014
IGLOO FG144 Pinouts	16 Jul 2014
IGLOO CS121 Pinouts	16 Jul 2014
IGLOO CS81 Pinouts	16 Jul 2014
IGLOO QN68 Pinouts	16 Jul 2014
IGLOO QN48 Pinouts	16 Jul 2014
IGLOO VQ100 Pinouts	16 Apr 2024
IGLOO CS281 Pinouts	16 Apr 2024

Click here to view package options

BSDL Models

Title	Date
AGL015V2-QN68 BSDL	06 Apr 2008
AGL015V5-QN68 BSDL	06 Apr 2008
AGL030V2-QN132 BSDL	29 Nov 2007
AGL030V2-VQ100 BSDL	29 Nov 2007
AGL030V5-QN132 BSDL	29 Nov 2007
AGL030V2-CS81 BSDL	29 Nov 2007
AGL030V2-QN48 BSDL	18 Dec 2008
AGL030V2-QN68 BSDL	18 Dec 2008
AGL030V2-UC81 BSDL	29 Nov 2007
AGL030V5-CS81 BSDL	29 Nov 2007
AGL030V5-QN48 BSDL	18 Dec 2008
M1AGLE3000V5-FG896 BSDL	06 Apr 2008
M1AGLE3000V5-FG484 BSDL	06 Apr 2008
M1AGLE3000V2-FG896 BSDL	06 Apr 2008
M1AGLE3000V2-FG484 BSDL	06 Apr 2008
M1AGL1000V5-FG484 BSDL	06 Apr 2008
M1AGL1000V5-FG256 BSDL	06 Apr 2008
M1AGL1000V5-FG144 BSDL	06 Apr 2008
M1AGL1000V5-CS281 BSDL	20 May 2008
AGL030V5-UC81 BSDL	29 Nov 2007
M1AGL1000V2-FG484 BSDL	06 Apr 2008
M1AGL1000V2-FG256 BSDL	06 Apr 2008
M1AGL1000V2-FG144 BSDL	06 Apr 2008
M1AGL1000V2-CS281 BSDL	02 Apr 2007
M1AGL600V5-FG256 BSDL	06 Apr 2008
M1AGL600V5-FG144 BSDL	06 Apr 2008
M1AGL600V5-CS281 BSDL	29 Nov 2007
M1AGL600V2-FG484 BSDL	06 Apr 2008
M1AGL600V2-FG144 BSDL	06 Apr 2008
M1AGL600V2-CS281 BSDL	29 Nov 2007
M1AGL250V5-FG144 BSDL	06 Apr 2008
M1AGL250V2-VQ100 BSDL	06 Apr 2008
M1AGL250V2-FG144 BSDL	06 Apr 2008
AGLE3000V5-FG896 BSDL	06 Apr 2008
AGLE3000V5-FG484 BSDL	06 Apr 2008
AGLE3000V2-FG896 BSDL	06 Apr 2008
AGLE3000V2-FG484 BSDL	06 Apr 2008
AGLE600V5-FG484 BSDL	29 Jul 2007
AGLE600V5-FG256 BSDL	29 Jul 2007
AGLE600V2-FG256 BSDL	29 Jul 2007
AGLE600V2_FG484 BSDL	10 Oct 2019
AGL1000V5-FG484 BSDL	06 Apr 2008
AGL1000V5-FG256 BSDL	06 Apr 2008
AGL1000V5-CS281 BSDL	02 Apr 2007
AGL1000V2-FG484 BSDL	06 Apr 2008
AGL1000V2-FG256 BSDL	06 Apr 2008
AGL1000V2-FG144 BSDL	06 Apr 2008
AGL1000V2-CS281 BSDL	05 Nov 2006
AGL600V5-FG484 BSDL	29 Jul 2007
AGL600V5-FG256 BSDL	29 Jul 2007
AGL600V5-FG144 BSDL	29 Jul 2007
AGL600V5-CS281 BSDL	29 Nov 2007
AGL600V2-FG484 BSDL	29 Jul 2007
AGL600V2-FG256 BSDL	29 Jul 2007
AGL600V2-FG144 BSDL	29 Jul 2007
AGL400V5-FG484 BSDL	16 Aug 2009
AGL400V5-FG256 BSDL	16 Oct 2008
AGL400V5-FG144 BSDL	16 Oct 2008
AGL400V5-CS196 BSDL	16 Aug 2009
AGL400V2-FG484 BSDL	16 Aug 2009
AGL400V2-FG256 BSDL	16 Oct 2008
AGL400V2-FG144 BSDL	16 Oct 2008
AGL400V2-CS196 BSDL	16 Aug 2009
AGL600V2-CS281 BSDL	29 Nov 2007
AGL030V5-VQ100 BSDL	29 Nov 2007
AGL060V2-QN132 BSDL	29 Jul 2007
AGL060V2-CS121 BSDL	08 Jan 2008
AGL060V2-VQ100 BSDL	29 Jul 2007
AGL060V5-CS121 BSDL	08 Jan 2008
AGL060V5-QN132 BSDL	29 Jul 2007
AGL060V5-VQ100 BSDL	29 Jul 2007
AGL125V2-CS196 BSDL	29 Nov 2007
AGL125V2-FG144 BSDL	29 Jul 2007
AGL125V2-QN132 BSDL	29 Jul 2007
AGL125V2-VQ100 BSDL	29 Jul 2007
AGL125V5-CS196 BSDL	29 Nov 2007
AGL125V5-FG144 BSDL	29 Jul 2007
AGL125V5-QN132 BSDL	29 Jul 2007
AGL125V5-VQ100 BSDL	29 Jul 2007
AGL250V2-CS196 BSDL	06 Apr 2008
AGL250V2-CS284 BSDL	12 May 2010
AGL250V2-VQ100 BSDL	04 Dec 2007
AGL250V5-CS196 BSDL	06 Apr 2008
AGL250V5-CS284 BSDL	12 May 2010
AGL250V5-FG144 BSDL	04 Dec 2007
M1AGL600V2-FG256 BSDL	06 Apr 2008
AGL250V5-VQ100 BSDL	04 Dec 2007
AGL400V5-CS284 BSDL	12 May 2010
AGL1000V5-FG144 BSDL	06 Apr 2008
M1AGL250V5-VQ100 BSDL	06 Apr 2008

IBIS Models

Commercial

Title	Date
IGLOO IBIS Model for AGL125/AGL060 Packages and V5 Devices	28 Jun 2007
IGLOOe Commercial IBIS Model for V5 Devices	27 Jun 2007
IGLOOe Commercial IBIS Model for V2 Devices	27 Jun 2007
IGLOO IBIS Model for AGL125/AGL060 Packages and V2 Devices	28 Jun 2007
IGLOO IBIS Model for AGL1000/AGL600/AGL400/AGL250 Packages and V5 Devices	28 Jun 2007
IGLOO IBIS Model for AGL030/AGL015 Packages and V5 Devices	28 Jun 2007
IGLOO IBIS Model for AGL1000/AGL600/AGL400/AGL250 Packages and V2 Devices	10 Oct 2019
IGLOO IBIS Model for AGL030/AGL015 Packages and V2 Devices	28 Jun 2007

Industrial

Title	Date
IGLOO IBIS models for AGL1000/AGL600/AGL400/AGL250 Packages and V2 Devices	28 Jun 2007
IGLOO IBIS Model for for AGL125/AGL060 Packages and V5 Devices	28 Jun 2007
IGLOO IBIS Model for for AGL125/AGL060 Packages and V2 Devices	28 Jun 2007
IGLOO IBIS Models for AGL030/AGL015 Packages and V2 Devices	28 Jun 2007
IGLOO IBIS Model for AGL1000/AGL600/AGL400/AGL250 Packages and V5 Devices	28 Jun 2007
IGLOO IBIS Model for AGL030/AGL015 Packages and V5 Devices	28 Jun 2007
IGLOOe Industrial IBIS Model for V2 Devices	27 Jun 2007
IGLOOe Industrial IBIS Model for V5 Devices	27 Jun 2007

Errata

Title	Date
Functional Safety Package Errata	05 Oct 2023

Note:

IBIS Model Usage provides instructions on obtaining max/min source/sink current.
IBIS Background and Usage Application Note provides signal integrity on PCBs.

Product Information Brochures

White Papers

Product Information Brochures

Title	Date
Power FAQs	31 Mar 2003
IGLOO Low-Power Flash FPGAs Brochure	26 Aug 2006

White Papers

Title	Date
Competitive Programmable Logic Power Comparison White Paper	18 Apr 2008
Reducing System Power	26 Aug 2006
The New Power-Smart Power Paradigm	01 Jul 2007
Power-Aware FPGA Design White Paper	08 Feb 2009
WP0089: Incredible Shrinking Medical Devices White Paper	20 Oct 2008
Developing Embedded Applications with ARM Cortex-M1 Processors in Actel IGLOO and Fusion FPGAs White Paper	08 Mar 2009
The Many Flavors of Low-Power, Low-Cost FPGAs White Paper	18 Apr 2008
FPGA Reliability and the Sunspot Cycle White Paper	19 May 2013

Title	Date
AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note	16 Jan 2005

User Guides

Tutorials

IGLOOe User Guides

Title	Date
IGLOO FPGA Fabric User's Guide	15 Jul 2010
IGLOO nano FPGA Fabric User’s Guide	08 Apr 2010
IGLOO, ProASIC3, SmartFusion and Fusion Macro Library Guide for Software v10.1	30 Nov 2011
IGLOOe FPGA Fabric User's Guide	15 Jul 2010

IGLOOe Tutorials

Title	Date
TU0308: ARM Cortex-M1 Embedded Processor Tutorial	26 Mar 2012	Link
Microsemi Libero IDE Quick Start Guide & Tutorial	09 Jun 2004	Link

The IGLOO family of reprogrammable and full-featured flash FPGAs is designed to meet the low-power and area requirements of today’s portable electronics. Based on nonvolatile flash technology, the 1.2 V to 1.5 V operating voltage family offers the industry’s lowest power consumption—as low as 5 μW. The IGLOO family supports up to 35K logic elements with up to 504 kbits of true dualport SRAM, up to six embedded PLLs, and up to 620 user I/Os. Low-power applications that require 32-bit processing can use the ARM Cortex-M1 processor without license fees or royalties in M1 IGLOO devices. Developed specifically for implementation in FPGAs, Cortex-M1 devices offer an optimal balance between performance and size to minimize power consumption.

IGLOO nano FPGAs

Our IGLOO nano series of low-power FPGAs offers groundbreaking possibilities in power, size and operating temperature. Available in logic densities from 100 LEs to 3K LEs, the 1.2V to 1.5V IGLOO nano devices have been designed for high-volume applications where power and size are key decision criteria.

Largest Selection of Small-Footprint Packages

The IGLOO nano series also offers the largest selection of small-footprint packages, including the industry's smallest 3 × 3 mm micro chip scale package and six distinctive packages at 8 × 8 mm or less. This small size, combined with the lowest-power FPGA available, starting at just 2 µW, opens new opportunities for designers of battery-powered handheld applications.

With the lowest power and smallest size in the industry, IGLOO nano devices are ideal for independent level shifting to enable support for varying voltage levels, I/O expansion or multiplexing, adapting to changing standards, and when embedded security is required to ensure fidelity of valuable intellectual property.

Key Features

Ultra-low power in Flash*Freeze mode, as low as 2 µW
Variety of small-footprint packages as small as 3 × 3 mm
Best system performance of 250 MHz
Enhanced commercial temperature
Reprogrammable Flash technology
1.2V to 1.5V single-voltage operation
Enhanced I/O features
Clock Conditioning Circuits (CCCs) and PLLs
Embedded SRAM and Nonvolatile Memory (NVM)
In-System Programming (ISP) and security

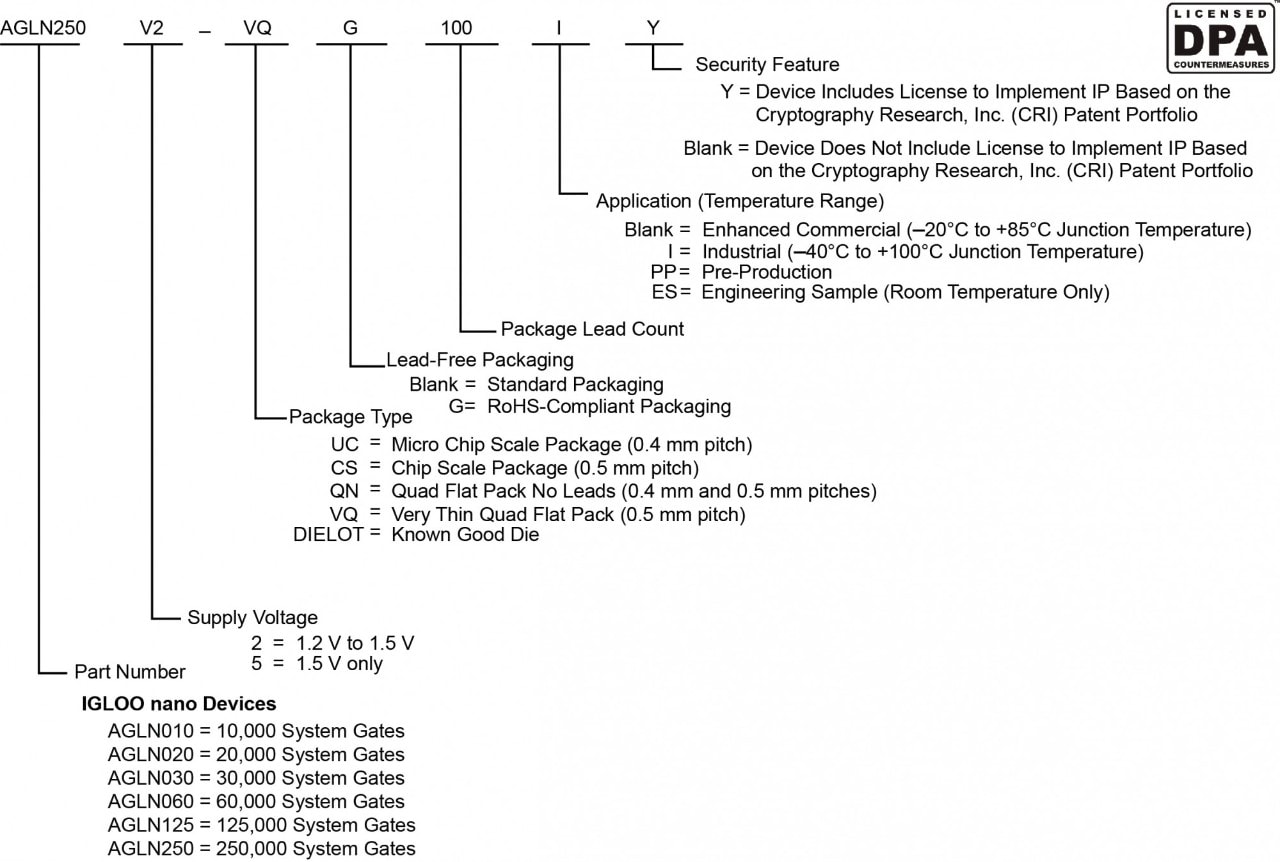

IGLOO nano Series Products

IGLOO^® nano Devices	AGLN010	AGLN015²	AGLN020	AGLN060	AGLN125	AGLN250
System Gates	10,000	15,000	20,000	60,000	125,000	250,000
Equivalent LEs	100	150	200	700	1.5K	3K
Flash*Freeze Mode (typical, µW)	2	4	4	10	16	24
RAM Kb (1,024 bits)				18	36	36
4,608-Bit Blocks				4	8	8
FlashROM Bits	1,024	1,024	1,024	1,024	1,024	1,024
Secure (AES) ISP				Yes	Yes	Yes
Integrated PLLs in CCCs				1	1	1
I/O Standards	Std., Hot-Swap	Std., Hot-Swap	Std., Hot-Swap	Std., Hot-Swap	Std., Hot-Swap	Std., Hot-Swap
I/O Banks	2	3	3	2	2	4
Maximum User I/Os	34	49	52	71	71	68
Speed Grades	Std.	Std.	Std	Std.	Std	Std.
Temperature Grades	C, I	C, I	C, I	C, I	C, I	C, I
Single-Ended I/Os
UCG36 (3 × 3 mm)	23
QNG48 (6 × 6 mm)	34
QNG68 (8 × 8 mm)		49	49
CSG81 (5 × 5 mm)			52	60	60	60
VQG100 (14 × 14 mm)				71	71	68

Notes:

For part availability please refer to PDN and EOL notifications
Not recommended for new designs.

Documentation

Search Documentation

All

Showing for

Document Category	Title	Date
Supporting Collateral	TU0308: ARM Cortex-M1 Embedded Processor Tutorial	26 Mar 2012
Application Notes	Microsemi Libero IDE Quick Start Guide & Tutorial	09 Jun 2004	Design Files
User Guide	IGLOO nano FPGA Fabric User’s Guide	08 Apr 2010
Data Sheets	DC-DC Regulator Guide for Microsemi FPGAs and SOC FPGAs	23 Sep 2022
Application Notes	AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note	16 Jan 2005
Supporting Collateral	Power FAQs	31 Mar 2003
Brochures	IGLOO Low-Power Flash FPGAs Brochure	26 Aug 2006
Supporting Collateral	Power-Aware FPGA Design White Paper	08 Feb 2009
Supporting Collateral	High-Volume nano FPGAs White Paper	10 Nov 2008
Application Notes	AC368: FPGA Solutions for Defibrillators App Brief	25 Jul 2011
Application Notes	AC369: FPGA Solutions for Ultrasound App Brief	25 Jul 2011
Application Notes	AC293: System Power Optimization Controller Using IGLOO FPGAs App Brief	12 Dec 2006
Application Notes	AC371: Personal Heart Monitor App Brief	25 Jul 2011
Application Notes	Low Power IDE Data Storage Solution	24 Oct 2006
Application Notes	AC242: Intelligent Mixed Signal FPGAs in Portable Medical Devices App Brief	09 Oct 2008
Application Notes	Designing for Performance on Flash-Based FPGAs	20 Mar 2008
Application Notes	AC330: Smart Card Interface Design Example App Note	22 Jun 2009	Design Files
Application Notes	AC327: UART-to-SPI Interface Design Example App Note	27 Apr 2009	Design Files
Application Notes	AC379: Advanced Static Timing Analysis Using SmartTime App Note	30 Oct 2011
Application Notes	AC269: Implementing an OLED Controller Parallel Interface Design Example App Note	12 Apr 2009	Design Files
Application Notes	Internal Power-on Reset and Post Programming Reset Circuit for Flash-Based FPGAs App Note	26 Jan 2012	Design Files
Application Notes	AC246: Level Shifter Design Example App Note	19 Jan 2009	Design Files
Application Notes	AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note	05 Sep 2011
Application Notes	AC214: Embedded SRAM Initialization Using External Serial EEPROM App Note	16 Jan 2005	Design Files
Application Notes	AC326: GPIO Expansion Using UART Design Example App Note	27 Apr 2009	Design Files
Application Notes	AC332: Flash*Freeze Control Using an Internal Oscillator App Note	23 Jun 2009
Application Notes	AC290: Trainable Image Recognition System Using Low Power Flash FPGAs App Brief	06 Nov 2006
Application Notes	AC357: FlashPro4 Backward Compatibility with FlashPro3 App Brief	15 Sep 2010
Application Notes	NAND Flash Interface Design Example App Note	22 Jun 2009	Design Files
Application Notes	Mobile SDRAM Interface Design Example App Note	22 Jun 2009	Design Files
Application Notes	AC331: Flash*Freeze Control Using JTAG App Note	23 Jun 2009	Design Files
Application Notes	Bidirectional Level Shifter App Note	15 Sep 2010	Design Files
Application Notes	AC257 : Microcontroller I/O Expander Design Example App Note	23 Feb 2009	Design Files
Application Notes	AC265: Clock Generation and Distribution Design Example App Note	04 Mar 2009	Design Files
Application Notes	AC268:Using IGLOO and ProASIC3 FPGAs as a System Power Sequencer Design Example App Note	12 Mar 2009	Design Files
Application Notes	Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note	02 Aug 2011	Design Files
Application Notes	AC324: SPI-to-I2C Interface App Note	25 Mar 2009	Design Files
Packaging Specifications	IGLOOn UC36 Pinouts	16 Jul 2014
Packaging Specifications	IGLOOn QN48 Pinouts	16 Jul 2014
Packaging Specifications	IGLOOn UC81 Pinouts	16 Jul 2014
Packaging Specifications	IGLOOn CS81 Pinouts	16 Jul 2014
Packaging Specifications	IGLOOn CQ208 Pinouts	16 Jul 2014
Packaging Specifications	IGLOOn QN68 Pinouts	16 Jul 2014
Packaging Specifications	IGLOOn VQ100 Pinouts	16 Jul 2014
Board Design Files	AGLN010V2-QN48 BSDL	16 Aug 2009
Board Design Files	AGLN010V2-UC36 BSDL	16 Aug 2009
Board Design Files	AGLN010V5-QN48 BSDL	16 Aug 2009
Board Design Files	AGLN010V5-UC36 BSDL	16 Aug 2009
Board Design Files	AGLN015V2-QN68 BSDL	16 Aug 2009
Board Design Files	AGLN015V5-QN68 BSDL	16 Aug 2009
Board Design Files	AGLN020V2-CS81 BSDL	16 Aug 2009
Board Design Files	AGLN020V2-QN68 BSDL	16 Aug 2009
Board Design Files	AGLN125V2 VQ100 BSDL	09 Jun 2013
Board Design Files	AGLN125V5-VQ100 BSDL	03 Aug 2010
Board Design Files	AGLN020V5-CS81 BSDL	16 Aug 2009
Board Design Files	AGLN020V5-UC81 BSDL	16 Aug 2009
Board Design Files	AGLN125V2-CS81 BSDL	03 Aug 2010
Board Design Files	AGLN125V5-CS81 BSDL	03 Aug 2010
Board Design Files	AGLN250V2-CS81 BSDL	16 Aug 2009
Board Design Files	AGLN250V2-VQ100 BSDL	16 Aug 2009
Board Design Files	AGLN250V5-VQ100 BSDL	16 Aug 2009
Board Design Files	AGLN030V2Z-CS81 BSDL	12 May 2010
Board Design Files	AGLN030V2Z-QN68 BSDL	12 May 2010
Board Design Files	AGLN030V2Z-UC81 BSDL	12 May 2010
Board Design Files	AGLN250V5-CS81 BSDL	16 Aug 2009
Board Design Files	AGLN030V2Z-VQ100 BSDL	12 May 2010
Board Design Files	AGLN030V5Z-VQ100 BSDL	12 May 2010
Board Design Files	AGLN060V2Z-VQ100 BSDL	18 Dec 2008
Board Design Files	AGLN030V5Z-QN48 BSDL	12 May 2010
Board Design Files	AGLN030V5Z-QN68 BSDL	12 May 2010
Board Design Files	AGLN030V5Z-UC81 BSDL	12 May 2010
Board Design Files	AGLN060V2Z-CS81 BSDL	27 Sep 2009
Board Design Files	AGLN060V5Z-CS81 BSDL	27 Sep 2009
Board Design Files	AGLN060V5Z-VQ100 BSDL	18 Dec 2008
Board Design Files	AGLN250V5Z-VQ100 BSDL	18 Dec 2008
Board Design Files	AGLP030V2-CS289 BSDL	06 Aug 2008
Board Design Files	AGLN030V5Z-CS81 BSDL	12 May 2010
Board Design Files	AGLN020V2-UC81 BSDL	16 Aug 2009
Board Design Files	AGLN020V5-QN68 BSDL	16 Aug 2009
Data Sheets	IGLOO nano Low Power Flash FPGAs Datasheet	08 Apr 2024
Board Design Files	IGLOO nano Industrial IBIS Model	23 Jul 2009
Board Design Files	IGLOO nano Commercial IBIS Model	23 Jul 2009
Errata	Functional Safety Package Errata	05 Oct 2023


Document Category Title Date	Supporting Collateral TU0308: ARM Cortex-M1 Embedded Processor Tutorial 26 Mar 2012
Document Category Title Date	Application Notes Microsemi Libero IDE Quick Start Guide & Tutorial 09 Jun 2004 Design Files
Document Category Title Date	User Guide IGLOO nano FPGA Fabric User’s Guide 08 Apr 2010
Document Category Title Date	Data Sheets DC-DC Regulator Guide for Microsemi FPGAs and SOC FPGAs 23 Sep 2022
Document Category Title Date	Application Notes AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note 16 Jan 2005
Document Category Title Date	Supporting Collateral Power FAQs 31 Mar 2003
Document Category Title Date	Brochures IGLOO Low-Power Flash FPGAs Brochure 26 Aug 2006
Document Category Title Date	Supporting Collateral Power-Aware FPGA Design White Paper 08 Feb 2009
Document Category Title Date	Supporting Collateral High-Volume nano FPGAs White Paper 10 Nov 2008
Document Category Title Date	Application Notes AC368: FPGA Solutions for Defibrillators App Brief 25 Jul 2011
Document Category Title Date	Application Notes AC369: FPGA Solutions for Ultrasound App Brief 25 Jul 2011
Document Category Title Date	Application Notes AC293: System Power Optimization Controller Using IGLOO FPGAs App Brief 12 Dec 2006
Document Category Title Date	Application Notes AC371: Personal Heart Monitor App Brief 25 Jul 2011
Document Category Title Date	Application Notes Low Power IDE Data Storage Solution 24 Oct 2006
Document Category Title Date	Application Notes AC242: Intelligent Mixed Signal FPGAs in Portable Medical Devices App Brief 09 Oct 2008
Document Category Title Date	Application Notes Designing for Performance on Flash-Based FPGAs 20 Mar 2008
Document Category Title Date	Application Notes AC330: Smart Card Interface Design Example App Note 22 Jun 2009 Design Files
Document Category Title Date	Application Notes AC327: UART-to-SPI Interface Design Example App Note 27 Apr 2009 Design Files
Document Category Title Date	Application Notes AC379: Advanced Static Timing Analysis Using SmartTime App Note 30 Oct 2011
Document Category Title Date	Application Notes AC269: Implementing an OLED Controller Parallel Interface Design Example App Note 12 Apr 2009 Design Files
Document Category Title Date	Application Notes Internal Power-on Reset and Post Programming Reset Circuit for Flash-Based FPGAs App Note 26 Jan 2012 Design Files
Document Category Title Date	Application Notes AC246: Level Shifter Design Example App Note 19 Jan 2009 Design Files
Document Category Title Date	Application Notes AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note 05 Sep 2011
Document Category Title Date	Application Notes AC214: Embedded SRAM Initialization Using External Serial EEPROM App Note 16 Jan 2005 Design Files
Document Category Title Date	Application Notes AC326: GPIO Expansion Using UART Design Example App Note 27 Apr 2009 Design Files
Document Category Title Date	Application Notes AC332: Flash*Freeze Control Using an Internal Oscillator App Note 23 Jun 2009
Document Category Title Date	Application Notes AC290: Trainable Image Recognition System Using Low Power Flash FPGAs App Brief 06 Nov 2006
Document Category Title Date	Application Notes AC357: FlashPro4 Backward Compatibility with FlashPro3 App Brief 15 Sep 2010
Document Category Title Date	Application Notes NAND Flash Interface Design Example App Note 22 Jun 2009 Design Files
Document Category Title Date	Application Notes Mobile SDRAM Interface Design Example App Note 22 Jun 2009 Design Files
Document Category Title Date	Application Notes AC331: Flash*Freeze Control Using JTAG App Note 23 Jun 2009 Design Files
Document Category Title Date	Application Notes Bidirectional Level Shifter App Note 15 Sep 2010 Design Files
Document Category Title Date	Application Notes AC257 : Microcontroller I/O Expander Design Example App Note 23 Feb 2009 Design Files
Document Category Title Date	Application Notes AC265: Clock Generation and Distribution Design Example App Note 04 Mar 2009 Design Files
Document Category Title Date	Application Notes AC268:Using IGLOO and ProASIC3 FPGAs as a System Power Sequencer Design Example App Note 12 Mar 2009 Design Files
Document Category Title Date	Application Notes Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note 02 Aug 2011 Design Files
Document Category Title Date	Application Notes AC324: SPI-to-I2C Interface App Note 25 Mar 2009 Design Files
Document Category Title Date	Packaging Specifications IGLOOn UC36 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOOn QN48 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOOn UC81 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOOn CS81 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOOn CQ208 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOOn QN68 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOOn VQ100 Pinouts 16 Jul 2014
Document Category Title Date	Board Design Files AGLN010V2-QN48 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN010V2-UC36 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN010V5-QN48 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN010V5-UC36 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN015V2-QN68 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN015V5-QN68 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN020V2-CS81 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN020V2-QN68 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN125V2 VQ100 BSDL 09 Jun 2013
Document Category Title Date	Board Design Files AGLN125V5-VQ100 BSDL 03 Aug 2010
Document Category Title Date	Board Design Files AGLN020V5-CS81 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN020V5-UC81 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN125V2-CS81 BSDL 03 Aug 2010
Document Category Title Date	Board Design Files AGLN125V5-CS81 BSDL 03 Aug 2010
Document Category Title Date	Board Design Files AGLN250V2-CS81 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN250V2-VQ100 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN250V5-VQ100 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN030V2Z-CS81 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGLN030V2Z-QN68 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGLN030V2Z-UC81 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGLN250V5-CS81 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN030V2Z-VQ100 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGLN030V5Z-VQ100 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGLN060V2Z-VQ100 BSDL 18 Dec 2008
Document Category Title Date	Board Design Files AGLN030V5Z-QN48 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGLN030V5Z-QN68 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGLN030V5Z-UC81 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGLN060V2Z-CS81 BSDL 27 Sep 2009
Document Category Title Date	Board Design Files AGLN060V5Z-CS81 BSDL 27 Sep 2009
Document Category Title Date	Board Design Files AGLN060V5Z-VQ100 BSDL 18 Dec 2008
Document Category Title Date	Board Design Files AGLN250V5Z-VQ100 BSDL 18 Dec 2008
Document Category Title Date	Board Design Files AGLP030V2-CS289 BSDL 06 Aug 2008
Document Category Title Date	Board Design Files AGLN030V5Z-CS81 BSDL 12 May 2010
Document Category Title Date	Board Design Files AGLN020V2-UC81 BSDL 16 Aug 2009
Document Category Title Date	Board Design Files AGLN020V5-QN68 BSDL 16 Aug 2009
Document Category Title Date	Data Sheets IGLOO nano Low Power Flash FPGAs Datasheet 08 Apr 2024
Document Category Title Date	Board Design Files IGLOO nano Industrial IBIS Model 23 Jul 2009
Document Category Title Date	Board Design Files IGLOO nano Commercial IBIS Model 23 Jul 2009
Document Category Title Date	Errata Functional Safety Package Errata 05 Oct 2023

Title	Date
AC368: FPGA Solutions for Defibrillators App Brief	25 Jul 2011
AC369: FPGA Solutions for Ultrasound App Brief	25 Jul 2011
AC293: System Power Optimization Controller Using IGLOO FPGAs App Brief	12 Dec 2006
AC371: Personal Heart Monitor App Brief	25 Jul 2011
Low Power IDE Data Storage Solution	24 Oct 2006
AC242: Intelligent Mixed Signal FPGAs in Portable Medical Devices App Brief	09 Oct 2008
Designing for Performance on Flash-Based FPGAs	20 Mar 2008
AC330: Smart Card Interface Design Example App Note	22 Jun 2009	Link
AC327: UART-to-SPI Interface Design Example App Note	27 Apr 2009	Link
AC379: Advanced Static Timing Analysis Using SmartTime App Note	30 Oct 2011
AC269: Implementing an OLED Controller Parallel Interface Design Example App Note	12 Apr 2009	Link
Internal Power-on Reset and Post Programming Reset Circuit for Flash-Based FPGAs App Note	26 Jan 2012	Link
AC246: Level Shifter Design Example App Note	19 Jan 2009	Link
AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note	05 Sep 2011
AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note	16 Jan 2005
AC214: Embedded SRAM Initialization Using External Serial EEPROM App Note	16 Jan 2005	Link
AC326: GPIO Expansion Using UART Design Example App Note	27 Apr 2009	Link
AC332: Flash*Freeze Control Using an Internal Oscillator App Note	23 Jun 2009
AC290: Trainable Image Recognition System Using Low Power Flash FPGAs App Brief	06 Nov 2006
AC357: FlashPro4 Backward Compatibility with FlashPro3 App Brief	15 Sep 2010
NAND Flash Interface Design Example App Note	22 Jun 2009	Link
Mobile SDRAM Interface Design Example App Note	22 Jun 2009	Link
AC331: Flash*Freeze Control Using JTAG App Note	23 Jun 2009	Link
Bidirectional Level Shifter App Note	15 Sep 2010	Link
AC257 : Microcontroller I/O Expander Design Example App Note	23 Feb 2009	Link
AC265: Clock Generation and Distribution Design Example App Note	04 Mar 2009	Link
AC268:Using IGLOO and ProASIC3 FPGAs as a System Power Sequencer Design Example App Note	12 Mar 2009	Link
Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note	02 Aug 2011	Link
AC324: SPI-to-I2C Interface App Note	25 Mar 2009	Link

Product Data Sheets

Packaging/PPATS

BSDL Models

IBIS Models

Errata

Product Data Sheets

Title	Date
IGLOO nano Low Power Flash FPGAs Datasheet	08 Apr 2024

Packaging/PPATS

Title	Date
IGLOOn UC36 Pinouts	16 Jul 2014
IGLOOn QN48 Pinouts	16 Jul 2014
IGLOOn UC81 Pinouts	16 Jul 2014
IGLOOn CS81 Pinouts	16 Jul 2014
IGLOOn CQ208 Pinouts	16 Jul 2014
IGLOOn QN68 Pinouts	16 Jul 2014
IGLOOn VQ100 Pinouts	16 Jul 2014

Click here to view package options

BSDL Models

Title	Date
AGLN010V2-QN48 BSDL	16 Aug 2009
AGLN010V2-UC36 BSDL	16 Aug 2009
AGLN010V5-QN48 BSDL	16 Aug 2009
AGLN010V5-UC36 BSDL	16 Aug 2009
AGLN015V2-QN68 BSDL	16 Aug 2009
AGLN015V5-QN68 BSDL	16 Aug 2009
AGLN020V2-CS81 BSDL	16 Aug 2009
AGLN020V2-QN68 BSDL	16 Aug 2009
AGLN125V2 VQ100 BSDL	09 Jun 2013
AGLN125V5-VQ100 BSDL	03 Aug 2010
AGLN020V5-CS81 BSDL	16 Aug 2009
AGLN020V5-UC81 BSDL	16 Aug 2009
AGLN125V2-CS81 BSDL	03 Aug 2010
AGLN125V5-CS81 BSDL	03 Aug 2010
AGLN250V2-CS81 BSDL	16 Aug 2009
AGLN250V2-VQ100 BSDL	16 Aug 2009
AGLN250V5-VQ100 BSDL	16 Aug 2009
AGLN030V2Z-CS81 BSDL	12 May 2010
AGLN030V2Z-QN68 BSDL	12 May 2010
AGLN030V2Z-UC81 BSDL	12 May 2010
AGLN250V5-CS81 BSDL	16 Aug 2009
AGLN030V2Z-VQ100 BSDL	12 May 2010
AGLN030V5Z-VQ100 BSDL	12 May 2010
AGLN060V2Z-VQ100 BSDL	18 Dec 2008
AGLN030V5Z-QN48 BSDL	12 May 2010
AGLN030V5Z-QN68 BSDL	12 May 2010
AGLN030V5Z-UC81 BSDL	12 May 2010
AGLN060V2Z-CS81 BSDL	27 Sep 2009
AGLN060V5Z-CS81 BSDL	27 Sep 2009
AGLN060V5Z-VQ100 BSDL	18 Dec 2008
AGLN250V5Z-VQ100 BSDL	18 Dec 2008
AGLP030V2-CS289 BSDL	06 Aug 2008
AGLN030V5Z-CS81 BSDL	12 May 2010
AGLN020V2-UC81 BSDL	16 Aug 2009
AGLN020V5-QN68 BSDL	16 Aug 2009

IBIS Models

Title	Date
IGLOO nano Industrial IBIS Model	23 Jul 2009
IGLOO nano Commercial IBIS Model	23 Jul 2009

Errata

Title	Date
Functional Safety Package Errata	05 Oct 2023

Note:

IBIS Model Usage provides instructions on obtaining max/min source/sink current.
IBIS Background and Usage Application Note provides signal integrity on PCBs.

Product Information Brochures

White Papers

Product Information Brochures

Title	Date
Power FAQs	31 Mar 2003
IGLOO Low-Power Flash FPGAs Brochure	26 Aug 2006

White Papers

Title	Date
Power-Aware FPGA Design White Paper	08 Feb 2009
High-Volume nano FPGAs White Paper	10 Nov 2008

Title	Date
AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note	16 Jan 2005

User Guides

Tutorials

User Guides

Title	Date
IGLOO nano FPGA Fabric User’s Guide	08 Apr 2010
DC-DC Regulator Guide for Microsemi FPGAs and SOC FPGAs	23 Sep 2022

Tutorials

Title	Date
TU0308: ARM Cortex-M1 Embedded Processor Tutorial	26 Mar 2012	Design Files
Microsemi Libero IDE Quick Start Guide & Tutorial	09 Jun 2004	Design Files

IGLOO nano products offer groundbreaking possibilities in power, size, lead-times, operating temperature ranges, and cost. Available in logic densities from 100–3K logic elements, 1.2 V to 1.5 V IGLOO nano devices have been designed for high-volume applications where power and size are the key decision criteria. IGLOO nano devices are perfect ASIC or ASSP replacements, yet retain the historical FPGA advantages of flexibility and quick time-to-market in low-power and small footprint profiles.

IGLOO PLUS FPGAs

The IGLOO PLUS family of low-power FPGAs delivers unrivaled low power and I/O features in a feature-rich programmable device, offering more I/Os per LEs than the IGLOO family and supporting independent Schmitt trigger inputs, hot-swapping, and Flash*Freeze bus hold.

Ranging from 330–1K LEs, and supporting 1.2V to 1.5V, IGLOO PLUS devices have been optimized to meet the needs of I/O-intensive, power-conscious applications that require exceptional features.

Key Features

I/O rich FPGA
Low power in Flash*Freeze mode, as low as 5 µW
Low-power active capability
Small-footprint packages
Reprogrammable Flash technology
1.2V to 1.5V single-voltage operation
Clock Conditioning Circuits (CCCs) and PLLs
Embedded SRAM and Nonvolatile Memory (NVM)
In-System Programming (ISP) and security

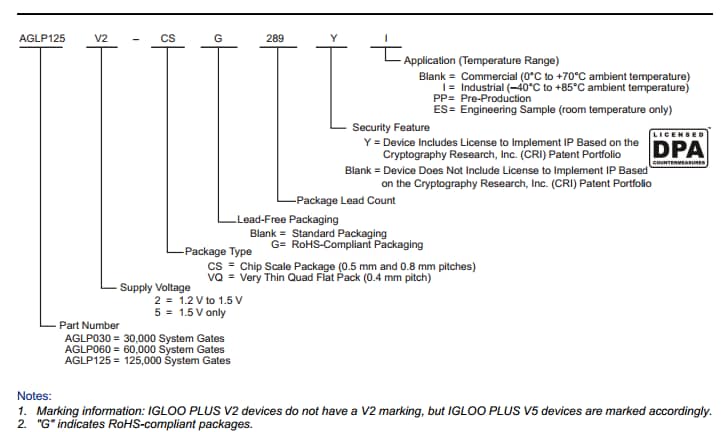

IGLOO PLUS Series Products

IGLOO^® PLUS Devices	AGLP030	AGLP060	AGLP125
System Gates	30,000	60,000	125,000
Equivalent LEs	330	700	1.5 K
Quiescent Current (typical) in Flash*Freeze Mode (µW)	5	10	16
RAM Kb (1,024 bits)		18	36
4,608-Bit Blocks		4	8
FlashROM Bits	1,024	1,024	1,024
Secure (AES) ISP		Yes	Yes
Integrated PLLs in CCCs		1	1
I/O Standards	IGLOO PLUS	IGLOO PLUS	IGLOO PLUS
I/O Banks (+JTAG)	4	4	4
Maximum User I/Os	120	157	212
Speed Grades	Std.	Std.	Std.
Temperature Grades	C, I	C, I	C, I
Packaging and I/Os
CSG201 (8 × 8 mm)	120²	157²
CSG281 (10 × 10 mm)			212²
CSG289 (14 × 14 mm)	120²	157²	212²
VQG128 (14 × 14 mm)	101
VQG176 (20 × 20 mm)		137²

Notes:

For part availability please refer to PDN and EOL notifications
Package discontinued

Documentation

Search Documentation

All

Showing for

Document Category	Title	Date
Supporting Collateral	TU0308: ARM Cortex-M1 Embedded Processor Tutorial	26 Mar 2012
Application Notes	Microsemi Libero IDE Quick Start Guide & Tutorial	09 Jun 2004	Design Files
User Guide	IGLOO PLUS FPGA Fabric User's Guide	15 Jul 2010
Application Notes	AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note	16 Jan 2005
Packaging Specifications	IGLOO PLUS VQ176 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO PLUS CS201 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO PLUS VQ100 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO PLUS CS281 Pinouts	16 Jul 2014
Packaging Specifications	IGLOO PLUS CS289 Pinouts	16 Jul 2014
Board Design Files	AGLP030V2-CS201 BSDL	06 Apr 2008
Board Design Files	AGLP030V2-VQ128 BSDL	16 Oct 2008
Board Design Files	AGLP030V5-CS201 BSDL	06 Apr 2008
Board Design Files	AGLP030V5-CS289 BSDL	06 Aug 2008
Board Design Files	AGLP125V5-CS289 BSDL	06 Aug 2008
BSDL Files	AGLP030V5_VQ128.bsd	10 Oct 2019
Board Design Files	AGLP125V5-CS281 BSDL	06 Apr 2008
Board Design Files	AGLP125V2-CS289 BSDL	06 Aug 2008
Board Design Files	AGLP125V2-CS281 BSDL	06 Apr 2008
Board Design Files	AGLP060V5-VQ176 BSDL	18 Dec 2008
Board Design Files	AGLP060V5-CS289 BSDL	06 Aug 2008
Board Design Files	AGLP060V5-CS201 BSDL	06 Apr 2008
Board Design Files	AGLP060V2-VQ176 BSDL	18 Dec 2008
Board Design Files	AGLP060V2-CS289 BSDL	06 Aug 2008
Board Design Files	AGLP060V2-CS201 BSDL	06 Apr 2008
Board Design Files	AGLP030V5-VQ128 BSDL	16 Oct 2008
	IGLOO Plus Low Power Flash FPGAs with FlashFreeze Datasheet	13 Feb 2024
Data Sheets	IGLOO Plus Low Power Flash FPGAs with FlashFreeze Datasheet	06 Jun 2024
Board Design Files	IGLOO PLUS Commercial IBIS Model for V2 Devices	24 Mar 2008
Board Design Files	IGLOO PLUS Industrial IBIS Model for V2 Devices	24 Mar 2008
Board Design Files	IGLOO PLUS Industrial IBIS Model for V5 Devices	24 Mar 2008
Board Design Files	IGLOO PLUS Commercial IBIS Model for V5 Devices	24 Mar 2008
Supporting Collateral	Power FAQs	31 Mar 2003
Brochures	IGLOO Low-Power Flash FPGAs Brochure	26 Aug 2006
Supporting Collateral	Power-Aware FPGA Design White Paper	08 Feb 2009
Supporting Collateral	High-Volume nano FPGAs White Paper	10 Nov 2008
Application Notes	AC242: Intelligent Mixed Signal FPGAs in Portable Medical Devices App Brief	09 Oct 2008
Application Notes	AC379: Advanced Static Timing Analysis Using SmartTime App Note	30 Oct 2011
Application Notes	AC269: Implementing an OLED Controller Parallel Interface Design Example App Note	12 Apr 2009	Design Files
Application Notes	AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note	05 Sep 2011
Application Notes	AC382: Zeroization App note	23 Aug 2022	Design Files
Application Notes	AC326: GPIO Expansion Using UART Design Example App Note	27 Apr 2009	Design Files
Application Notes	AC332: Flash*Freeze Control Using an Internal Oscillator App Note	23 Jun 2009
Application Notes	AC290: Trainable Image Recognition System Using Low Power Flash FPGAs App Brief	06 Nov 2006
Application Notes	AC331: Flash*Freeze Control Using JTAG App Note	23 Jun 2009	Design Files
Application Notes	Bidirectional Level Shifter App Note	15 Sep 2010	Design Files
Application Notes	Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note	02 Aug 2011	Design Files
Application Notes	AC324: SPI-to-I2C Interface App Note	25 Mar 2009	Design Files
Errata	Functional Safety Package Errata	05 Oct 2023


Document Category Title Date	Supporting Collateral TU0308: ARM Cortex-M1 Embedded Processor Tutorial 26 Mar 2012
Document Category Title Date	Application Notes Microsemi Libero IDE Quick Start Guide & Tutorial 09 Jun 2004 Design Files
Document Category Title Date	User Guide IGLOO PLUS FPGA Fabric User's Guide 15 Jul 2010
Document Category Title Date	Application Notes AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note 16 Jan 2005
Document Category Title Date	Packaging Specifications IGLOO PLUS VQ176 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO PLUS CS201 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO PLUS VQ100 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO PLUS CS281 Pinouts 16 Jul 2014
Document Category Title Date	Packaging Specifications IGLOO PLUS CS289 Pinouts 16 Jul 2014
Document Category Title Date	Board Design Files AGLP030V2-CS201 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGLP030V2-VQ128 BSDL 16 Oct 2008
Document Category Title Date	Board Design Files AGLP030V5-CS201 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGLP030V5-CS289 BSDL 06 Aug 2008
Document Category Title Date	Board Design Files AGLP125V5-CS289 BSDL 06 Aug 2008
Document Category Title Date	BSDL Files AGLP030V5_VQ128.bsd 10 Oct 2019
Document Category Title Date	Board Design Files AGLP125V5-CS281 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGLP125V2-CS289 BSDL 06 Aug 2008
Document Category Title Date	Board Design Files AGLP125V2-CS281 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGLP060V5-VQ176 BSDL 18 Dec 2008
Document Category Title Date	Board Design Files AGLP060V5-CS289 BSDL 06 Aug 2008
Document Category Title Date	Board Design Files AGLP060V5-CS201 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGLP060V2-VQ176 BSDL 18 Dec 2008
Document Category Title Date	Board Design Files AGLP060V2-CS289 BSDL 06 Aug 2008
Document Category Title Date	Board Design Files AGLP060V2-CS201 BSDL 06 Apr 2008
Document Category Title Date	Board Design Files AGLP030V5-VQ128 BSDL 16 Oct 2008
Document Category Title Date	IGLOO Plus Low Power Flash FPGAs with FlashFreeze Datasheet 13 Feb 2024
Document Category Title Date	Data Sheets IGLOO Plus Low Power Flash FPGAs with FlashFreeze Datasheet 06 Jun 2024
Document Category Title Date	Board Design Files IGLOO PLUS Commercial IBIS Model for V2 Devices 24 Mar 2008
Document Category Title Date	Board Design Files IGLOO PLUS Industrial IBIS Model for V2 Devices 24 Mar 2008
Document Category Title Date	Board Design Files IGLOO PLUS Industrial IBIS Model for V5 Devices 24 Mar 2008
Document Category Title Date	Board Design Files IGLOO PLUS Commercial IBIS Model for V5 Devices 24 Mar 2008
Document Category Title Date	Supporting Collateral Power FAQs 31 Mar 2003
Document Category Title Date	Brochures IGLOO Low-Power Flash FPGAs Brochure 26 Aug 2006
Document Category Title Date	Supporting Collateral Power-Aware FPGA Design White Paper 08 Feb 2009
Document Category Title Date	Supporting Collateral High-Volume nano FPGAs White Paper 10 Nov 2008
Document Category Title Date	Application Notes AC242: Intelligent Mixed Signal FPGAs in Portable Medical Devices App Brief 09 Oct 2008
Document Category Title Date	Application Notes AC379: Advanced Static Timing Analysis Using SmartTime App Note 30 Oct 2011
Document Category Title Date	Application Notes AC269: Implementing an OLED Controller Parallel Interface Design Example App Note 12 Apr 2009 Design Files
Document Category Title Date	Application Notes AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note 05 Sep 2011
Document Category Title Date	Application Notes AC382: Zeroization App note 23 Aug 2022 Design Files
Document Category Title Date	Application Notes AC326: GPIO Expansion Using UART Design Example App Note 27 Apr 2009 Design Files
Document Category Title Date	Application Notes AC332: Flash*Freeze Control Using an Internal Oscillator App Note 23 Jun 2009
Document Category Title Date	Application Notes AC290: Trainable Image Recognition System Using Low Power Flash FPGAs App Brief 06 Nov 2006
Document Category Title Date	Application Notes AC331: Flash*Freeze Control Using JTAG App Note 23 Jun 2009 Design Files
Document Category Title Date	Application Notes Bidirectional Level Shifter App Note 15 Sep 2010 Design Files
Document Category Title Date	Application Notes Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note 02 Aug 2011 Design Files
Document Category Title Date	Application Notes AC324: SPI-to-I2C Interface App Note 25 Mar 2009 Design Files
Document Category Title Date	Errata Functional Safety Package Errata 05 Oct 2023

Title	Date
AC242: Intelligent Mixed Signal FPGAs in Portable Medical Devices App Brief	09 Oct 2008
AC379: Advanced Static Timing Analysis Using SmartTime App Note	30 Oct 2011
AC269: Implementing an OLED Controller Parallel Interface Design Example App Note	12 Apr 2009	Link
AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note	05 Sep 2011
AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note	16 Jan 2005
AC382: Zeroization App note	23 Aug 2022	Link
AC326: GPIO Expansion Using UART Design Example App Note	27 Apr 2009	Link
AC332: Flash*Freeze Control Using an Internal Oscillator App Note	23 Jun 2009
AC290: Trainable Image Recognition System Using Low Power Flash FPGAs App Brief	06 Nov 2006
AC331: Flash*Freeze Control Using JTAG App Note	23 Jun 2009	Link
Bidirectional Level Shifter App Note	15 Sep 2010	Link
Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note	02 Aug 2011	Link
AC324: SPI-to-I2C Interface App Note	25 Mar 2009	Link

Product Data Sheets

Packaging/PPATS

BSDL Models

IBIS Models

Errata

Product Data Sheets

Title	Date
IGLOO Plus Low Power Flash FPGAs with FlashFreeze Datasheet	13 Feb 2024
IGLOO Plus Low Power Flash FPGAs with FlashFreeze Datasheet	06 Jun 2024

Packaging/PPATS

Title	Date
IGLOO PLUS VQ176 Pinouts	16 Jul 2014
IGLOO PLUS CS201 Pinouts	16 Jul 2014
IGLOO PLUS VQ100 Pinouts	16 Jul 2014
IGLOO PLUS CS281 Pinouts	16 Jul 2014
IGLOO PLUS CS289 Pinouts	16 Jul 2014

Click here to view package options

BSDL Models

Title	Date
AGLP030V2-CS201 BSDL	06 Apr 2008
AGLP030V2-VQ128 BSDL	16 Oct 2008
AGLP030V5-CS201 BSDL	06 Apr 2008
AGLP030V5-CS289 BSDL	06 Aug 2008
AGLP125V5-CS289 BSDL	06 Aug 2008
AGLP030V5_VQ128.bsd	10 Oct 2019
AGLP125V5-CS281 BSDL	06 Apr 2008
AGLP125V2-CS289 BSDL	06 Aug 2008
AGLP125V2-CS281 BSDL	06 Apr 2008
AGLP060V5-VQ176 BSDL	18 Dec 2008
AGLP060V5-CS289 BSDL	06 Aug 2008
AGLP060V5-CS201 BSDL	06 Apr 2008
AGLP060V2-VQ176 BSDL	18 Dec 2008
AGLP060V2-CS289 BSDL	06 Aug 2008
AGLP060V2-CS201 BSDL	06 Apr 2008
AGLP030V5-VQ128 BSDL	16 Oct 2008

IBIS Models

Title	Date
IGLOO PLUS Commercial IBIS Model for V2 Devices	24 Mar 2008
IGLOO PLUS Industrial IBIS Model for V2 Devices	24 Mar 2008
IGLOO PLUS Industrial IBIS Model for V5 Devices	24 Mar 2008
IGLOO PLUS Commercial IBIS Model for V5 Devices	24 Mar 2008

Errata

Title	Date
Functional Safety Package Errata	05 Oct 2023

Note:

IBIS Model Usage provides instructions on obtaining max/min source/sink current.
IBIS Background and Usage Application Note provides signal integrity on PCBs.

Product Information Brochures

White Papers

Product Information Brochures

Title	Date
Power FAQs	31 Mar 2003
IGLOO Low-Power Flash FPGAs Brochure	26 Aug 2006

White Papers

Title	Date
Power-Aware FPGA Design White Paper	08 Feb 2009
High-Volume nano FPGAs White Paper	10 Nov 2008

Title	Date
AC215: Using IGLOO and ProASIC3 FIFO for Generating Periodic Waveforms App Note	16 Jan 2005

User Guides

Tutorials

User Guides

Title	Date
IGLOO PLUS FPGA Fabric User's Guide	15 Jul 2010

Tutorials

Title	Date
TU0308: ARM Cortex-M1 Embedded Processor Tutorial	26 Mar 2012	Link
Microsemi Libero IDE Quick Start Guide & Tutorial	09 Jun 2004	Link

IGLOO PLUS products deliver low power consumption and enhanced I/Os in a feature-rich programmable device, offering more I/Os per logic element than IGLOO devices, and supporting independent Schmitt trigger inputs, hot-swapping, and Flash*Freeze bus hold. Ranging from 330–1.5K logic elements, 1.2V to 1.5V IGLOO PLUS devices have been optimized to meet the needs of I/O intensive, power-conscious applications that require exceptional features.

Kits and Hardware

Igloo FPGA Kits

IGLOO Nano Starter Kit

This simple and low-cost starter kit enables you to quickly evaluate and prototype your IGLOO FPGA design.

Learn More

Arm Cortex-M1 Enabled IGLOO Development Kit

This kit offers a comprehensive platform so you can quickly evaluate and prototype your design based on Arm Cortex-M1 core-enabled IGLOO devices.

Learn More

Programmers and Adapters

FlashPro5

This fifth-generation programmer supports Windows^® and Linux^® environments.

Learn More

FlashPro4

This fourth-generation hardware programmer supports only Windows environments.

Learn More

Silicon Sculptor 4

This is a CE-compliant production device programmer.

Learn More

Silicon Sculptor Adapter Module

Silicon sculptor adapter modules are package specific. They depend on the product family, but are independent of gate count.

Learn More

In-House-Programming

An optional In-House Programming (IHP) service is available if you are purchasing our devices in large volumes.

Learn More

Explore Other FPGA Kits and Hardware

Learn More

IGLOO® FPGAs

Lowest-Power, Smallest-Package, Low-Density FPGAs

Device Comparison

IGLOO /e FPGAs

Key Features

IGLOO /e Series Products

Documentation

Product Data Sheets

Packaging/PPATS

BSDL Models

IBIS Models

Commercial

Industrial

Errata

Product Information Brochures

White Papers

IGLOOe User Guides

IGLOOe Tutorials

IGLOO nano FPGAs

Key Features

IGLOO nano Series Products

Documentation

Product Data Sheets

Packaging/PPATS

BSDL Models

IBIS Models

Errata

Product Information Brochures

White Papers

User Guides

Tutorials

IGLOO PLUS FPGAs

Key Features

IGLOO PLUS Series Products

Documentation

Product Data Sheets

Packaging/PPATS

BSDL Models

IBIS Models

Errata

Product Information Brochures

White Papers

User Guides

Tutorials

Kits and Hardware

Igloo FPGA Kits

IGLOO Nano Starter Kit

Arm Cortex-M1 Enabled IGLOO Development Kit

Programmers and Adapters

FlashPro5

FlashPro4

Silicon Sculptor 4

Silicon Sculptor Adapter Module

In-House-Programming

Explore Other FPGA Kits and Hardware

IGLOO^® FPGAs
