Fusion FPGAs

Low-Density, Mixed-Signal FPGAs in the Smallest Packages

Fusion mixed-signal FPGAs integrate configurable analog, large flash memory blocks, comprehensive clock generation and management circuitry and high-performance, Flash-based programmable logic in a monolithic device. You can use the innovative Fusion FPGA architecture with our soft microcontroller (MCU) core and the performance-maximized 32-bit Arm^® Cortex^®-M1 processor. You can also use Pigeon Point devices (P1-prefixed devices) in conjunction with Pigeon Point ATCA IP cores and firmware. Fusion devices are the world's first mixed-signal FPGA platform. In addition to supporting commercial- and industrial-temperature devices, we offer Fusion FPGAs with specialized screening for extended temperature applications.

Key Benefits of Fusion FPGAs

In-system configurable analog to support a wide variety of applications
Up to 1 MB Flash memory
Extensive clocking resources
Analog PLLs
1% RC oscillator
Crystal oscillator circuit
Real-Time Counter (RTC)
Low power
Firm error immune
Secure

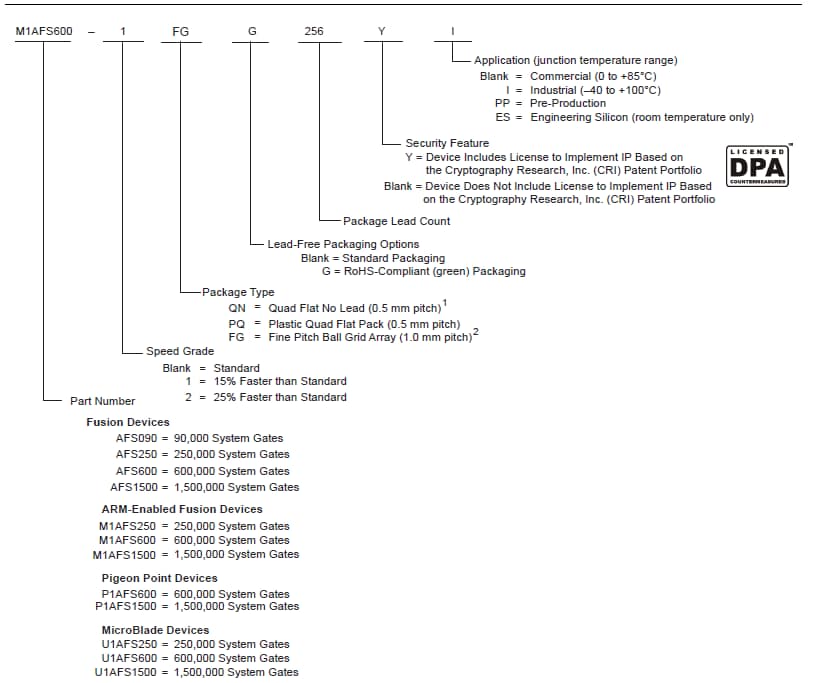

Product Table

Features	AFS250	AFS600³	AFS1500³
Arm^® Cortex^®-M1 Devices	M1AFS250	M1AFS600	M1AFS1500
Pigeon Point Devices¹		P1AFS600	P1AFS1500
MicroBlade^® Devices¹	U1AFS250	U1AFS600	U1AFS1500
General
System Gates	250,000	600,000	1,500,000
Equivalent LEs	3K	7K	16K
Tiles (D Flip-Flops)	6,144	13,824	38,400
Secure (AES) ISP	Yes	Yes	Yes
PLLs	1	2	2
Globals	18	18	18
Memory
Flash Memory Blocks (2 Mbits)	1	2	4
Total Flash Memory Bits	2M	4M	8M
FlashROM Bits	1,024	1,024	1,024
RAM Blocks (4,608 bits)	8	24	60
RAM (kbits)	36	108	270
Analog and I/O
Analog Quads	6	10	10
Analog Input Channels	18	30	30
Gate Driver Outputs	6	10	10
I/O Banks (+JTAG)	4	5	5
Maximum Digital I/Os	114	172	252/223 (K Temp)
Analog I/Os	24	40	40
Temperature Grades	C, I	C, I, K2	C, I, K2
I/Os: Single-/Double-Ended (Analog)
FG256	114/37 (24)	119/58 (40)	119/58 (40)
FG484		172/86 (40)	223/109 (40)
FG676			252/126 (40)

We do not offer MicroBlade^® or Pigeon Point devices for extended temperature ranges.
We support an extended military temperature range of −55°C to 100°C.
These products are extended temperature-supported devices (−55°C to 100°C).
For part availability please refer to PDN and EOL notifications.

Fusion FPGAs support an integrated Analog-to-Digital Converter (ADC), eliminating the need for external mixed-signal support Integrated Circuits (ICs). With resolutions of up to 12 bits and sampling up to 600 ksps, this configurable ADC supports a broad application space. When you choose to use the calibration option with the Fusion device, you can achieve better than 1 percent accuracy, making it ideal for system management applications where you require this level of accuracy.

Documentation

Search Documentation

All

Showing for

Document Category	Title	Date
Supporting Collateral	TU0308: ARM Cortex-M1 Embedded Processor Tutorial	26 Mar 2012
Data Sheets	SmartGen Cores Reference Guide For Libero SoC v11.7	23 Sep 2022
User Guide	Developing an Application on Core8051s IP-Based Embedded Processor System Using Firmware Catalog Drivers User	02 Aug 2012
User Guide	QG0204: SmartFusion Development Kit Quickstart Guide	01 Mar 2010
User Guide	UG0209: SmartFusion Evaluation Kit User Guide	01 Mar 2010
Data Sheets	DC-DC Regulator Guide for Microsemi FPGAs and SOC FPGAs	23 Sep 2022
Application Notes	Fusion and Extended Temperature Fusion FPGA Fabric User	15 Jul 2010	Design Files
Application Notes	Fusion Webserver Demo Using uIP and FreeRTOS	28 Oct 2010	Design Files
Board Design Files	AFS090-FG256 BSDL	12 Jul 2006
Board Design Files	AFS090-QN108 BSDL	12 Jul 2006
Board Design Files	AFS1500-FG256K BSDL	03 Aug 2010
Board Design Files	AFS1500-FG484K BSDL	03 Aug 2010
Board Design Files	AFS1500-FG484 BSDL	02 Apr 2007
Board Design Files	AFS1500-FG676 BSDL	02 Apr 2007
Board Design Files	AFS090-QN180 BSDL	12 Jul 2006
Board Design Files	AFS250-FG256 BSDL	12 Jul 2006
Board Design Files	AFS250-PQ208 BSDL	12 Jul 2006
Board Design Files	AFS250-QN180 BSDL	12 Jul 2006
Board Design Files	AFS600-FG256 BSDL	12 Jul 2006
Board Design Files	M1AFS600-FG256K BSDL	03 Aug 2010
Board Design Files	M1AFS600-FG484K BSDL	03 Aug 2010
Board Design Files	M1AFS1500-FG256 BSDL	08 Jan 2008
Board Design Files	M1AFS250-FG256 BSDL	08 Jan 2008
Board Design Files	M1AFS250-PQ208 BSDL	08 Jan 2008
Board Design Files	M1AFS250-QN180 BSDL	08 Jan 2008
Board Design Files	M1AFS600-FG256 BSDL	29 Nov 2007
Board Design Files	M1AFS600-FG484 BSDL	30 Jul 2007
Board Design Files	M1AFS600-PQ208 BSDL	30 Jul 2007
Board Design Files	M1AFS1500-FG484K BSDL	03 Aug 2010
Board Design Files	M1AFS1500-FG484 BSDL	08 Jan 2008
Board Design Files	M1AFS1500-FG676 BSDL	08 Jan 2008
Board Design Files	P1AFS1500-FG256 BSDL	12 May 2010
Board Design Files	P1AFS1500-FG484 BSDL	12 May 2010
Board Design Files	M7AFS600-FG256 BSDL	12 Jul 2006
Board Design Files	M7AFS600-FG484 BSDL	12 Jul 2006
Board Design Files	M7AFS600-PQ208 BSDL	12 Jul 2006
Board Design Files	P1AFS600-FG256 BSDL	12 May 2010
Board Design Files	P1AFS600-FG484 BSDL	12 May 2010
Board Design Files	U1AFS250-FG256 BSDL	12 May 2010
Board Design Files	M1AFS1500-FG256K BSDL	03 Aug 2010
Board Design Files	U1AFS600-FG256 BSDL	12 May 2010
Board Design Files	AFS600-FG484K BSDL	03 Aug 2010
Board Design Files	AFS600-FG256K BSDL	03 Aug 2010
Board Design Files	AFS1500-FG256 BSDL	12 Jul 2006
Board Design Files	AFS600-PQ208 BSDL	12 Jul 2006
Board Design Files	AFS600-FG484 BSDL	12 Jul 2006
Data Sheets	Extended Temperature Fusion Family Datasheet	07 Nov 2010
Data Sheets	DS0092: Fusion Mixed-Signal FPGAs Datasheet	04 Dec 2005
User Guide	Fusion Starter Kit Quick Start Guide	22 May 2011
Data Sheets	PD3068: Package Mechanical Drawings Datasheet	30 Jan 2025
Board Design Files	AFS250/AFS090 Commercial IBIS Model	03 Dec 2006
Board Design Files	AFS250/AFS090 Industrial IBIS Model	11 Jan 2007
Board Design Files	AFS600/AFS1500 Extended Temperature IBIS Model	07 Nov 2010
Board Design Files	AFS600/AFS1500 Industrial IBIS Model	06 Feb 2007
Board Design Files	AFS600/AFS1500 Commercial IBIS Model	12 Feb 2006
Supporting Collateral	Built-In Software-Based Calibration Option in Programmable System Chips White Paper	09 Mar 2008
Supporting Collateral	Fusion Technology White Paper	06 Dec 2005
Product Brief	Mixed Signal Power Manager (MPM) for Fusion Product Brief	08 Nov 2009
Supporting Collateral	The New Power-Smart Power Paradigm	01 Jul 2007
Supporting Collateral	Advantages of the 32-Bit Cortex-M1 Processor in Actel FPGAs White Paper	17 May 2007
Supporting Collateral	WP0089: Incredible Shrinking Medical Devices White Paper	20 Oct 2008
Supporting Collateral	Developing Embedded Applications with ARM Cortex-M1 Processors in Actel IGLOO and Fusion FPGAs White Paper	08 Mar 2009
Supporting Collateral	Improving ADC Results White Paper	08 Feb 2007
Supporting Collateral	System Management Using a Mixed-Signal FPGA White Paper	17 Dec 2006
Application Notes	AC253: Fusion Security Application Note	15 Mar 2016
Application Notes	AC236: Fusion FlashROM Application Note	14 Mar 2016
Application Notes	270: SPI Flash Emulation for Fusion Devices Design Example App Note	31 Mar 2009	Design Files
Application Notes	AC272: CoreAI and SmartGen Implementation in Fusion App Note	04 Jul 2006
Application Notes	AC285: Fusion Power Sequencing and Ramp-Rate Control App Note	16 Aug 2006	Design Files
Application Notes	AC245: Improving Fusion ADC Throughput App Note	16 Sep 2008	Design Files
Application Notes	AC271: Real-Time Calendar Applications in Microsemi Fusion Devices App Note	22 Jun 2006	Design Files
Application Notes	AC286: Fusion FPGAs Supporting IPMI Applications Application Note	12 Oct 2006
Application Notes	AC287: Fusion in MicroTCA App Note	12 Oct 2006
Application Notes	Using Fusion for Closed-Loop Power Supply Margining App Note	29 May 2008	Design Files
Application Notes	Multi-Channel Analog Voltage Comparator in Fusion FPGAs	18 Jan 2007	Design Files
Application Notes	AC307: Configuring SRAM FPGAs Using Microsemi Fusion App Note	27 Sep 2007	Design Files
Application Notes	AC299: Temperature Monitoring Techniques for Fusion App Note	16 Jan 2006
Application Notes	AC252: Configuring SRAM FPGAs Using Microsemi Fusion Application Brief	26 Mar 2006
Application Notes	AC248: Thermal Management with Fusion App Brief	16 Jan 2006
Application Notes	AC244: SmartFusion in Clinical Applications App Brief	09 Oct 2008
Application Notes	AC254: Microprocessor-Based Power Sequencing and Management Application Brief	02 Apr 2006
Application Notes	AC258: Context Save and Reload with Real-Timestamp Application Brief	04 Dec 2005
Application Notes	AC261: Real-Time Clock in Microsemi Fusion FPGAs Application Note	04 Dec 2005
Application Notes	AC280: Simple Digital to Analog Converter (DAC) Application Brief	13 Aug 2006
Application Notes	AC259: Lower Power Operation with the Fusion Device App Brief	08 Dec 2005
Application Notes	AC448: DC/DC Conversion Application Brief	15 Jan 2006
Application Notes	AC302: Power System Verification During Accelerated Life Testing App Brief	19 Jul 2007
Application Notes	AC457: Intelligent Data Acquisition System Application Brief	10 Dec 2005
Application Notes	AC449: LCD Backlight Control Application Brief	15 Jan 2006
Application Notes	Intelligent Display Control with Video System	10 Dec 2005
Application Notes	Intelligent Display Control System	10 Dec 2005
Application Notes	AC284: Configuring CorePWM Using RTL Blocks App Note	20 Jun 2006	Design Files
Application Notes	Accessing Serial Flash Memory Using SPI Interface App Note	03 Jun 2010	Design Files
Application Notes	AC267: Context Save and Reload App Note	22 Jun 2006	Design Files
Application Notes	AC303: Implementing a PID Controller in a Microsemi FPGA App Note	26 Jul 2007
	AC260: Power Sequencing and Management	17 Mar 2022
Application Notes	AC240: Using Fusion FIFO for Generating Periodic Waveforms Technical Brief	06 Dec 2005
Application Notes	AC262: Smart Battery Management Applications App Brief	05 Dec 2005
Application Notes	AC239: Using DDR for Fusion Devices App Note	04 Dec 2005
Application Notes	AC455: Digital Audio Solution Application Brief	20 Dec 2006
Application Notes	AC279: Interfacing an Microsemi Fusion Programmable System Chip to a Four-Wire Resistive Touchscreen App Brief	06 Aug 2006
Application Notes	AC330: Smart Card Interface Design Example App Note	22 Jun 2009	Design Files
	AC328: NAND Flash Interface Design Example	25 Aug 2022
Application Notes	AC379: Advanced Static Timing Analysis Using SmartTime App Note	30 Oct 2011
Application Notes	Internal Power-on Reset and Post Programming Reset Circuit for Flash-Based FPGAs App Note	26 Jan 2012	Design Files
Application Notes	AC222: Using Fusion, IGLOO, and ProASIC3 RAM as Multipliers App Note	04 Dec 2005
Application Notes	AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note	05 Sep 2011
Application Notes	AC382: Zeroization App note	23 Aug 2022	Design Files
Application Notes	NAND Flash Interface Design Example App Note	22 Jun 2009	Design Files
Application Notes	Mobile SDRAM Interface Design Example App Note	22 Jun 2009	Design Files
Application Notes	Bidirectional Level Shifter App Note	15 Sep 2010	Design Files
Application Notes	Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note	02 Aug 2011	Design Files


Document Category Title Date	Supporting Collateral TU0308: ARM Cortex-M1 Embedded Processor Tutorial 26 Mar 2012
Document Category Title Date	Data Sheets SmartGen Cores Reference Guide For Libero SoC v11.7 23 Sep 2022
Document Category Title Date	User Guide Developing an Application on Core8051s IP-Based Embedded Processor System Using Firmware Catalog Drivers User 02 Aug 2012
Document Category Title Date	User Guide QG0204: SmartFusion Development Kit Quickstart Guide 01 Mar 2010
Document Category Title Date	User Guide UG0209: SmartFusion Evaluation Kit User Guide 01 Mar 2010
Document Category Title Date	Data Sheets DC-DC Regulator Guide for Microsemi FPGAs and SOC FPGAs 23 Sep 2022
Document Category Title Date	Application Notes Fusion and Extended Temperature Fusion FPGA Fabric User 15 Jul 2010 Design Files
Document Category Title Date	Application Notes Fusion Webserver Demo Using uIP and FreeRTOS 28 Oct 2010 Design Files
Document Category Title Date	Board Design Files AFS090-FG256 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files AFS090-QN108 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files AFS1500-FG256K BSDL 03 Aug 2010
Document Category Title Date	Board Design Files AFS1500-FG484K BSDL 03 Aug 2010
Document Category Title Date	Board Design Files AFS1500-FG484 BSDL 02 Apr 2007
Document Category Title Date	Board Design Files AFS1500-FG676 BSDL 02 Apr 2007
Document Category Title Date	Board Design Files AFS090-QN180 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files AFS250-FG256 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files AFS250-PQ208 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files AFS250-QN180 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files AFS600-FG256 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files M1AFS600-FG256K BSDL 03 Aug 2010
Document Category Title Date	Board Design Files M1AFS600-FG484K BSDL 03 Aug 2010
Document Category Title Date	Board Design Files M1AFS1500-FG256 BSDL 08 Jan 2008
Document Category Title Date	Board Design Files M1AFS250-FG256 BSDL 08 Jan 2008
Document Category Title Date	Board Design Files M1AFS250-PQ208 BSDL 08 Jan 2008
Document Category Title Date	Board Design Files M1AFS250-QN180 BSDL 08 Jan 2008
Document Category Title Date	Board Design Files M1AFS600-FG256 BSDL 29 Nov 2007
Document Category Title Date	Board Design Files M1AFS600-FG484 BSDL 30 Jul 2007
Document Category Title Date	Board Design Files M1AFS600-PQ208 BSDL 30 Jul 2007
Document Category Title Date	Board Design Files M1AFS1500-FG484K BSDL 03 Aug 2010
Document Category Title Date	Board Design Files M1AFS1500-FG484 BSDL 08 Jan 2008
Document Category Title Date	Board Design Files M1AFS1500-FG676 BSDL 08 Jan 2008
Document Category Title Date	Board Design Files P1AFS1500-FG256 BSDL 12 May 2010
Document Category Title Date	Board Design Files P1AFS1500-FG484 BSDL 12 May 2010
Document Category Title Date	Board Design Files M7AFS600-FG256 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files M7AFS600-FG484 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files M7AFS600-PQ208 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files P1AFS600-FG256 BSDL 12 May 2010
Document Category Title Date	Board Design Files P1AFS600-FG484 BSDL 12 May 2010
Document Category Title Date	Board Design Files U1AFS250-FG256 BSDL 12 May 2010
Document Category Title Date	Board Design Files M1AFS1500-FG256K BSDL 03 Aug 2010
Document Category Title Date	Board Design Files U1AFS600-FG256 BSDL 12 May 2010
Document Category Title Date	Board Design Files AFS600-FG484K BSDL 03 Aug 2010
Document Category Title Date	Board Design Files AFS600-FG256K BSDL 03 Aug 2010
Document Category Title Date	Board Design Files AFS1500-FG256 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files AFS600-PQ208 BSDL 12 Jul 2006
Document Category Title Date	Board Design Files AFS600-FG484 BSDL 12 Jul 2006
Document Category Title Date	Data Sheets Extended Temperature Fusion Family Datasheet 07 Nov 2010
Document Category Title Date	Data Sheets DS0092: Fusion Mixed-Signal FPGAs Datasheet 04 Dec 2005
Document Category Title Date	User Guide Fusion Starter Kit Quick Start Guide 22 May 2011
Document Category Title Date	Data Sheets PD3068: Package Mechanical Drawings Datasheet 30 Jan 2025
Document Category Title Date	Board Design Files AFS250/AFS090 Commercial IBIS Model 03 Dec 2006
Document Category Title Date	Board Design Files AFS250/AFS090 Industrial IBIS Model 11 Jan 2007
Document Category Title Date	Board Design Files AFS600/AFS1500 Extended Temperature IBIS Model 07 Nov 2010
Document Category Title Date	Board Design Files AFS600/AFS1500 Industrial IBIS Model 06 Feb 2007
Document Category Title Date	Board Design Files AFS600/AFS1500 Commercial IBIS Model 12 Feb 2006
Document Category Title Date	Supporting Collateral Built-In Software-Based Calibration Option in Programmable System Chips White Paper 09 Mar 2008
Document Category Title Date	Supporting Collateral Fusion Technology White Paper 06 Dec 2005
Document Category Title Date	Product Brief Mixed Signal Power Manager (MPM) for Fusion Product Brief 08 Nov 2009
Document Category Title Date	Supporting Collateral The New Power-Smart Power Paradigm 01 Jul 2007
Document Category Title Date	Supporting Collateral Advantages of the 32-Bit Cortex-M1 Processor in Actel FPGAs White Paper 17 May 2007
Document Category Title Date	Supporting Collateral WP0089: Incredible Shrinking Medical Devices White Paper 20 Oct 2008
Document Category Title Date	Supporting Collateral Developing Embedded Applications with ARM Cortex-M1 Processors in Actel IGLOO and Fusion FPGAs White Paper 08 Mar 2009
Document Category Title Date	Supporting Collateral Improving ADC Results White Paper 08 Feb 2007
Document Category Title Date	Supporting Collateral System Management Using a Mixed-Signal FPGA White Paper 17 Dec 2006
Document Category Title Date	Application Notes AC253: Fusion Security Application Note 15 Mar 2016
Document Category Title Date	Application Notes AC236: Fusion FlashROM Application Note 14 Mar 2016
Document Category Title Date	Application Notes 270: SPI Flash Emulation for Fusion Devices Design Example App Note 31 Mar 2009 Design Files
Document Category Title Date	Application Notes AC272: CoreAI and SmartGen Implementation in Fusion App Note 04 Jul 2006
Document Category Title Date	Application Notes AC285: Fusion Power Sequencing and Ramp-Rate Control App Note 16 Aug 2006 Design Files
Document Category Title Date	Application Notes AC245: Improving Fusion ADC Throughput App Note 16 Sep 2008 Design Files
Document Category Title Date	Application Notes AC271: Real-Time Calendar Applications in Microsemi Fusion Devices App Note 22 Jun 2006 Design Files
Document Category Title Date	Application Notes AC286: Fusion FPGAs Supporting IPMI Applications Application Note 12 Oct 2006
Document Category Title Date	Application Notes AC287: Fusion in MicroTCA App Note 12 Oct 2006
Document Category Title Date	Application Notes Using Fusion for Closed-Loop Power Supply Margining App Note 29 May 2008 Design Files
Document Category Title Date	Application Notes Multi-Channel Analog Voltage Comparator in Fusion FPGAs 18 Jan 2007 Design Files
Document Category Title Date	Application Notes AC307: Configuring SRAM FPGAs Using Microsemi Fusion App Note 27 Sep 2007 Design Files
Document Category Title Date	Application Notes AC299: Temperature Monitoring Techniques for Fusion App Note 16 Jan 2006
Document Category Title Date	Application Notes AC252: Configuring SRAM FPGAs Using Microsemi Fusion Application Brief 26 Mar 2006
Document Category Title Date	Application Notes AC248: Thermal Management with Fusion App Brief 16 Jan 2006
Document Category Title Date	Application Notes AC244: SmartFusion in Clinical Applications App Brief 09 Oct 2008
Document Category Title Date	Application Notes AC254: Microprocessor-Based Power Sequencing and Management Application Brief 02 Apr 2006
Document Category Title Date	Application Notes AC258: Context Save and Reload with Real-Timestamp Application Brief 04 Dec 2005
Document Category Title Date	Application Notes AC261: Real-Time Clock in Microsemi Fusion FPGAs Application Note 04 Dec 2005
Document Category Title Date	Application Notes AC280: Simple Digital to Analog Converter (DAC) Application Brief 13 Aug 2006
Document Category Title Date	Application Notes AC259: Lower Power Operation with the Fusion Device App Brief 08 Dec 2005
Document Category Title Date	Application Notes AC448: DC/DC Conversion Application Brief 15 Jan 2006
Document Category Title Date	Application Notes AC302: Power System Verification During Accelerated Life Testing App Brief 19 Jul 2007
Document Category Title Date	Application Notes AC457: Intelligent Data Acquisition System Application Brief 10 Dec 2005
Document Category Title Date	Application Notes AC449: LCD Backlight Control Application Brief 15 Jan 2006
Document Category Title Date	Application Notes Intelligent Display Control with Video System 10 Dec 2005
Document Category Title Date	Application Notes Intelligent Display Control System 10 Dec 2005
Document Category Title Date	Application Notes AC284: Configuring CorePWM Using RTL Blocks App Note 20 Jun 2006 Design Files
Document Category Title Date	Application Notes Accessing Serial Flash Memory Using SPI Interface App Note 03 Jun 2010 Design Files
Document Category Title Date	Application Notes AC267: Context Save and Reload App Note 22 Jun 2006 Design Files
Document Category Title Date	Application Notes AC303: Implementing a PID Controller in a Microsemi FPGA App Note 26 Jul 2007
Document Category Title Date	AC260: Power Sequencing and Management 17 Mar 2022
Document Category Title Date	Application Notes AC240: Using Fusion FIFO for Generating Periodic Waveforms Technical Brief 06 Dec 2005
Document Category Title Date	Application Notes AC262: Smart Battery Management Applications App Brief 05 Dec 2005
Document Category Title Date	Application Notes AC239: Using DDR for Fusion Devices App Note 04 Dec 2005
Document Category Title Date	Application Notes AC455: Digital Audio Solution Application Brief 20 Dec 2006
Document Category Title Date	Application Notes AC279: Interfacing an Microsemi Fusion Programmable System Chip to a Four-Wire Resistive Touchscreen App Brief 06 Aug 2006
Document Category Title Date	Application Notes AC330: Smart Card Interface Design Example App Note 22 Jun 2009 Design Files
Document Category Title Date	AC328: NAND Flash Interface Design Example 25 Aug 2022
Document Category Title Date	Application Notes AC379: Advanced Static Timing Analysis Using SmartTime App Note 30 Oct 2011
Document Category Title Date	Application Notes Internal Power-on Reset and Post Programming Reset Circuit for Flash-Based FPGAs App Note 26 Jan 2012 Design Files
Document Category Title Date	Application Notes AC222: Using Fusion, IGLOO, and ProASIC3 RAM as Multipliers App Note 04 Dec 2005
Document Category Title Date	Application Notes AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note 05 Sep 2011
Document Category Title Date	Application Notes AC382: Zeroization App note 23 Aug 2022 Design Files
Document Category Title Date	Application Notes NAND Flash Interface Design Example App Note 22 Jun 2009 Design Files
Document Category Title Date	Application Notes Mobile SDRAM Interface Design Example App Note 22 Jun 2009 Design Files
Document Category Title Date	Application Notes Bidirectional Level Shifter App Note 15 Sep 2010 Design Files
Document Category Title Date	Application Notes Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note 02 Aug 2011 Design Files

Application Notes
Data Sheets
Overviews
User Guides
Product Selector Guide

Title	Date
AC253: Fusion Security Application Note	15 Mar 2016
AC236: Fusion FlashROM Application Note	14 Mar 2016
270: SPI Flash Emulation for Fusion Devices Design Example App Note	31 Mar 2009	Link
AC272: CoreAI and SmartGen Implementation in Fusion App Note	04 Jul 2006
AC285: Fusion Power Sequencing and Ramp-Rate Control App Note	16 Aug 2006	Link
AC245: Improving Fusion ADC Throughput App Note	16 Sep 2008	Link
AC271: Real-Time Calendar Applications in Microsemi Fusion Devices App Note	22 Jun 2006	Link
AC286: Fusion FPGAs Supporting IPMI Applications Application Note	12 Oct 2006
AC287: Fusion in MicroTCA App Note	12 Oct 2006
Using Fusion for Closed-Loop Power Supply Margining App Note	29 May 2008	Link
Multi-Channel Analog Voltage Comparator in Fusion FPGAs	18 Jan 2007	Link
AC307: Configuring SRAM FPGAs Using Microsemi Fusion App Note	27 Sep 2007	Link
AC299: Temperature Monitoring Techniques for Fusion App Note	16 Jan 2006
AC252: Configuring SRAM FPGAs Using Microsemi Fusion Application Brief	26 Mar 2006
AC248: Thermal Management with Fusion App Brief	16 Jan 2006
AC244: SmartFusion in Clinical Applications App Brief	09 Oct 2008
AC254: Microprocessor-Based Power Sequencing and Management Application Brief	02 Apr 2006
AC258: Context Save and Reload with Real-Timestamp Application Brief	04 Dec 2005
AC261: Real-Time Clock in Microsemi Fusion FPGAs Application Note	04 Dec 2005
AC280: Simple Digital to Analog Converter (DAC) Application Brief	13 Aug 2006
AC259: Lower Power Operation with the Fusion Device App Brief	08 Dec 2005
AC448: DC/DC Conversion Application Brief	15 Jan 2006
AC302: Power System Verification During Accelerated Life Testing App Brief	19 Jul 2007
AC457: Intelligent Data Acquisition System Application Brief	10 Dec 2005
AC449: LCD Backlight Control Application Brief	15 Jan 2006
Intelligent Display Control with Video System	10 Dec 2005
Intelligent Display Control System	10 Dec 2005
AC284: Configuring CorePWM Using RTL Blocks App Note	20 Jun 2006	Link
Accessing Serial Flash Memory Using SPI Interface App Note	03 Jun 2010	Link
AC267: Context Save and Reload App Note	22 Jun 2006	Link
AC303: Implementing a PID Controller in a Microsemi FPGA App Note	26 Jul 2007
AC260: Power Sequencing and Management	17 Mar 2022
AC240: Using Fusion FIFO for Generating Periodic Waveforms Technical Brief	06 Dec 2005
AC262: Smart Battery Management Applications App Brief	05 Dec 2005
AC239: Using DDR for Fusion Devices App Note	04 Dec 2005
AC455: Digital Audio Solution Application Brief	20 Dec 2006
AC279: Interfacing an Microsemi Fusion Programmable System Chip to a Four-Wire Resistive Touchscreen App Brief	06 Aug 2006
AC330: Smart Card Interface Design Example App Note	22 Jun 2009	Link
AC328: NAND Flash Interface Design Example	25 Aug 2022
AC379: Advanced Static Timing Analysis Using SmartTime App Note	30 Oct 2011
Internal Power-on Reset and Post Programming Reset Circuit for Flash-Based FPGAs App Note	26 Jan 2012	Link
AC222: Using Fusion, IGLOO, and ProASIC3 RAM as Multipliers App Note	04 Dec 2005
AC374: Simultaneous Read-Write Operations in Dual-Port SRAM for Flash-Based cSoCs and FPGAs App Note	05 Sep 2011
AC382: Zeroization App note	23 Aug 2022	Link
NAND Flash Interface Design Example App Note	22 Jun 2009	Link
Mobile SDRAM Interface Design Example App Note	22 Jun 2009	Link
Bidirectional Level Shifter App Note	15 Sep 2010	Link
Source-Synchronous Clock Designs: Timing Constraints and Analysis App Note	02 Aug 2011	Link

Product Data Sheets

BSDL Models

IBIS Models

Product Data Sheets

Title	Date
Extended Temperature Fusion Family Datasheet	07 Nov 2010
DS0092: Fusion Mixed-Signal FPGAs Datasheet	04 Dec 2005
Fusion Starter Kit Quick Start Guide	22 May 2011
PD3068: Package Mechanical Drawings Datasheet	30 Jan 2025

BSDL Models

Title	Date
AFS090-FG256 BSDL	12 Jul 2006
AFS090-QN108 BSDL	12 Jul 2006
AFS1500-FG256K BSDL	03 Aug 2010
AFS1500-FG484K BSDL	03 Aug 2010
AFS1500-FG484 BSDL	02 Apr 2007
AFS1500-FG676 BSDL	02 Apr 2007
AFS090-QN180 BSDL	12 Jul 2006
AFS250-FG256 BSDL	12 Jul 2006
AFS250-PQ208 BSDL	12 Jul 2006
AFS250-QN180 BSDL	12 Jul 2006
AFS600-FG256 BSDL	12 Jul 2006
M1AFS600-FG256K BSDL	03 Aug 2010
M1AFS600-FG484K BSDL	03 Aug 2010
M1AFS1500-FG256 BSDL	08 Jan 2008
M1AFS250-FG256 BSDL	08 Jan 2008
M1AFS250-PQ208 BSDL	08 Jan 2008
M1AFS250-QN180 BSDL	08 Jan 2008
M1AFS600-FG256 BSDL	29 Nov 2007
M1AFS600-FG484 BSDL	30 Jul 2007
M1AFS600-PQ208 BSDL	30 Jul 2007
M1AFS1500-FG484K BSDL	03 Aug 2010
M1AFS1500-FG484 BSDL	08 Jan 2008
M1AFS1500-FG676 BSDL	08 Jan 2008
P1AFS1500-FG256 BSDL	12 May 2010
P1AFS1500-FG484 BSDL	12 May 2010
M7AFS600-FG256 BSDL	12 Jul 2006
M7AFS600-FG484 BSDL	12 Jul 2006
M7AFS600-PQ208 BSDL	12 Jul 2006
P1AFS600-FG256 BSDL	12 May 2010
P1AFS600-FG484 BSDL	12 May 2010
U1AFS250-FG256 BSDL	12 May 2010
M1AFS1500-FG256K BSDL	03 Aug 2010
U1AFS600-FG256 BSDL	12 May 2010
AFS600-FG484K BSDL	03 Aug 2010
AFS600-FG256K BSDL	03 Aug 2010
AFS1500-FG256 BSDL	12 Jul 2006
AFS600-PQ208 BSDL	12 Jul 2006
AFS600-FG484 BSDL	12 Jul 2006

Note:

IBIS Model Usage provides instructions on obtaining max/min source/sink current.
IBIS Background and Usage Application Note provides signal integrity on PCBs.

IBIS Models

Title	Date
AFS250/AFS090 Commercial IBIS Model	03 Dec 2006
AFS250/AFS090 Industrial IBIS Model	11 Jan 2007
AFS600/AFS1500 Extended Temperature IBIS Model	07 Nov 2010
AFS600/AFS1500 Industrial IBIS Model	06 Feb 2007
AFS600/AFS1500 Commercial IBIS Model	12 Feb 2006

White Papers

Title	Date
Built-In Software-Based Calibration Option in Programmable System Chips White Paper	09 Mar 2008
Fusion Technology White Paper	06 Dec 2005
Mixed Signal Power Manager (MPM) for Fusion Product Brief	08 Nov 2009
The New Power-Smart Power Paradigm	01 Jul 2007
Advantages of the 32-Bit Cortex-M1 Processor in Actel FPGAs White Paper	17 May 2007
WP0089: Incredible Shrinking Medical Devices White Paper	20 Oct 2008
Developing Embedded Applications with ARM Cortex-M1 Processors in Actel IGLOO and Fusion FPGAs White Paper	08 Mar 2009
Improving ADC Results White Paper	08 Feb 2007
System Management Using a Mixed-Signal FPGA White Paper	17 Dec 2006

User Guides

Tutorials

User Guides

Title	Date
SmartGen Cores Reference Guide For Libero SoC v11.7	23 Sep 2022
Developing an Application on Core8051s IP-Based Embedded Processor System Using Firmware Catalog Drivers User	02 Aug 2012
QG0204: SmartFusion Development Kit Quickstart Guide	01 Mar 2010
UG0209: SmartFusion Evaluation Kit User Guide	01 Mar 2010
DC-DC Regulator Guide for Microsemi FPGAs and SOC FPGAs	23 Sep 2022
Fusion and Extended Temperature Fusion FPGA Fabric User	15 Jul 2010	Design File
Fusion Webserver Demo Using uIP and FreeRTOS	28 Oct 2010	Design File

Tutorials

Title	Date
TU0308: ARM Cortex-M1 Embedded Processor Tutorial	26 Mar 2012	Link

Fusion mixed signal FPGAs integrate configurable analog, large blocks of Flash memory, comprehensive clock generation and management circuitry and high-performance, Flash-based programmable logic in a monolithic device. Our innovative Fusion FPGA architecture can be used with ouri soft microcontroller (MCU) core as well as the performance-maximized 32-bit Arm Cortex-M1 processor. In addition to supporting commercial- and industrial-temperature devices, we offer Fusion FPGAs with specialized screening for extended-temperature applications.

Kits and Hardware

Fusion FPGA Kits

Fusion Advanced Development Kit

The Fusion Advanced Development Kit is fully RoHS-compliant and provides an excellent platform for developing microprocessor applications and other system management applications.

Learn More

Programmers and Adapters

FlashPro5

This fifth-generation programmer supports Windows^® and Linux^® environments.

Learn More

FlashPro4

This fourth-generation hardware programmer supports only Windows environments.

Learn More

Silicon Sculptor 4

This is a CE-compliant production device programmer.

Learn More

Silicon Sculptor Adapter Module

Silicon sculptor adapter modules are package specific. They depend on the product family, but are independent of gate count.

Learn More

In-House-Programming

An optional In-House Programming (IHP) service is available if you are purchasing our devices in large volumes.

Learn More

Explore Other FPGA Kits and Hardware

Learn More
