SX-A FPGAs

SX-A Family of Antifuse FPGAs

The SX-A family of FPGAs offers a cost-effective, single-chip solution for low-power, high-performance designs. SX-A devices can be used to generate system-wide savings by integrating multiple functions into a single-chip solution. Providing a combination of performance, security and low power, SX-A FPGAs decrease the premium for performance while providing a solution that is highly resistant to reverse engineering.

Key Benefits

350 MHz internal performance
2.5V, 3.3V and 5.0V mixed-voltage support
100% resource utilization with 100% pin locking
66 MHz, 64-bit 3.3V/5.0V PCI performance (supporting target, master and master/target)
Availability in military and automotive temperature grades

Buy Now

Products

Device	A54SX08A	A54SX16A	A54SX32A	A54SX72A
Capacity
Typical Gates	8,000	16,000	32,000	72,000
System Gates	12,000	24,000	48,000	108,000
Logic Modules	768	1,452	2,880	6,036
Combinatorial Cells	512	924	1,800	4,024
Dedicated Flip-Flops	256	528	1,080	2,012
Maximum Flip-Flops	512	990	1,980	4,024
Maximum User I/Os	130	180	249	360
Global Clocks	3	3	3	3
Quadrant Clocks	0	0	0	4
Boundary Scan Testing	Yes	Yes	Yes	Yes
3.3V/5V PCI	Yes	Yes	Yes	Yes
Input Set-Up (External)	0 ns	0 ns	0 ns	0 ns
Speed Grades	-F, Std.,	-F, Std.,	-F, Std.,	-F, Std.,
Speed Grades	-1, -2	-1, -2	-1, -2	-1, -2
Temperature Grades¹	C, I, A, M	C, I, A, M	C, I, A, M, B	C, I, A, M, B

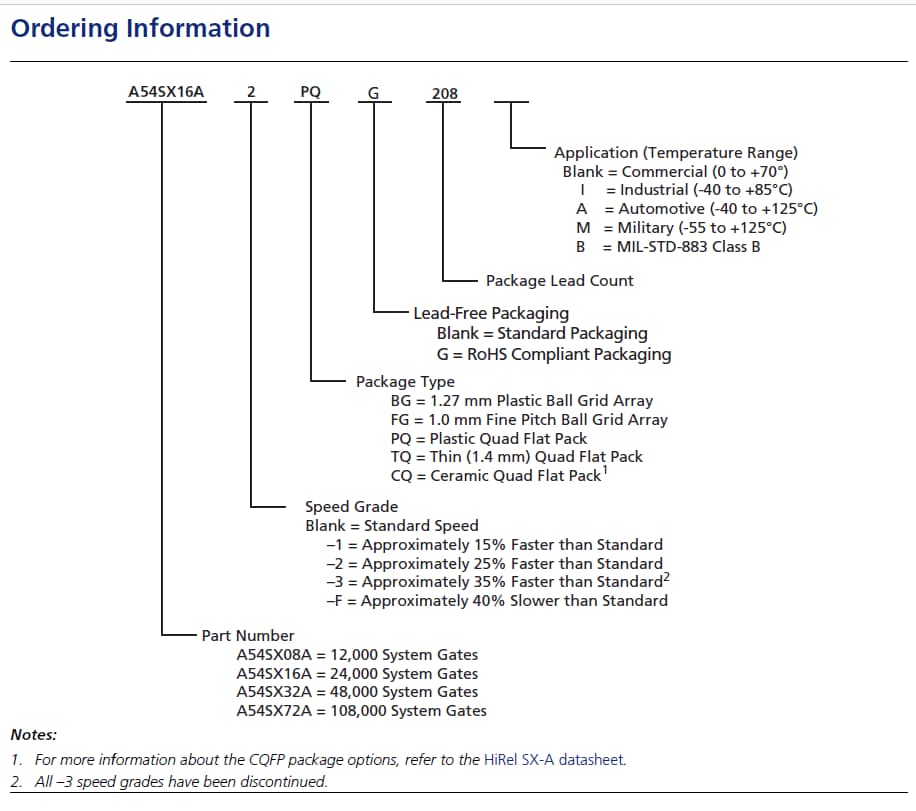

Package (By Pin Count)
PQFP		208	208	208
TQFP	100, 144	100, 144	100, 144
PBGA			329
FBGA			256, 329	256, 484
CQFP			84, 208, 256	208, 256

C = Commercial, I = Industrial, A = Automotive, M = Military, B = MIL-STD-883 Class B
