Learn More About Our Power Utility Timing Systems
The modern smart grid is a highly distributed architecture that is dependent on accurate timing for coordination, protection and control systems. Our portfolio of power utility timing systems (formerly the Tekron portfolio) provides a full selection of GNSS time servers for every substation timing application. Our products are designed to meet stringent environmental-hardening requirements for power utility substation deployment.

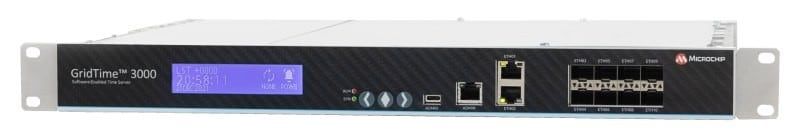

GridTime™ 3000 GNSS Time Server
- Next-generation digital substation clock
- Fully hardened design
- Support for legacy and digital substation timing interfaces
- Network Time Protocol (NTP) and Precision Time Protocol (PTP) support for power utility needs
- Future-proof platform
Explore Our Products

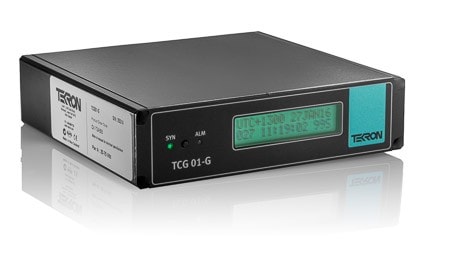

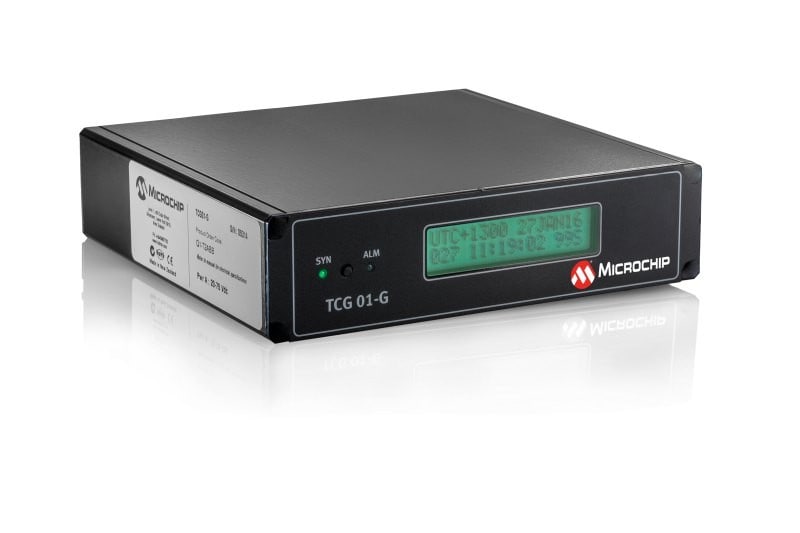

TCG 01-G
- GPS and GLONASS support
- Isolated power supply
- Independantly isolated legacy outputs

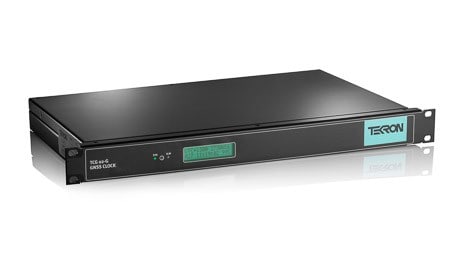

TCG 02-G
- GPS and GLONASS support
- Isolated dual-power supplies
- Independantly isolated legacy outputs
- Additional output expansion option
- Telecommunication expansion option
- TCXO, OCXO, or rubidium oscillator option

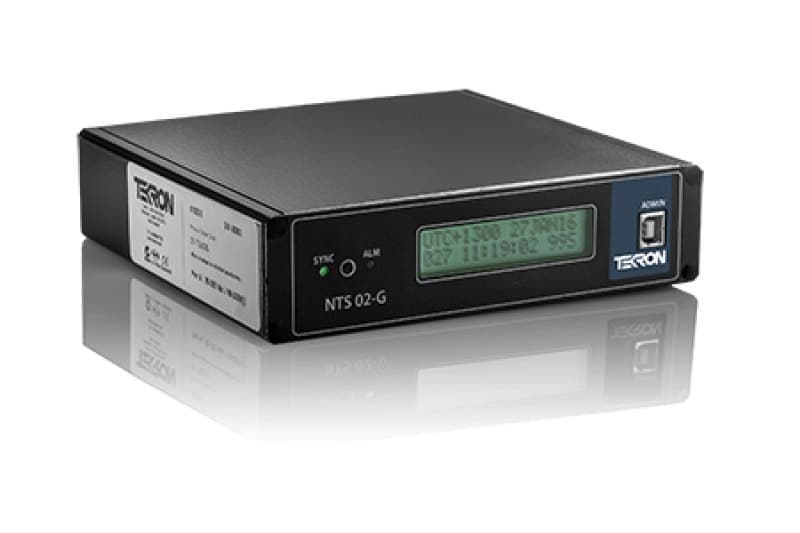

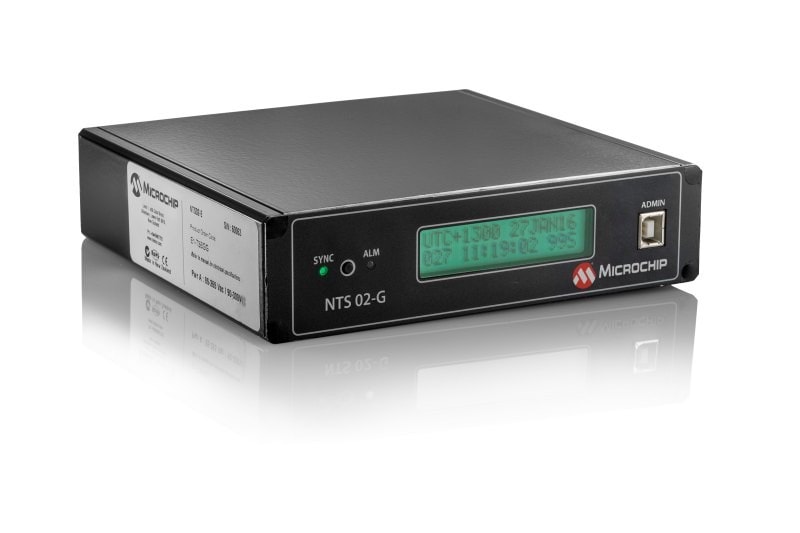

NTS 02-G
- GPS and GLONASS support
- Isolated power supply
- Three independant RJ45 Ethernet ports
- PTP (IEEE® 1588v2) server/client function

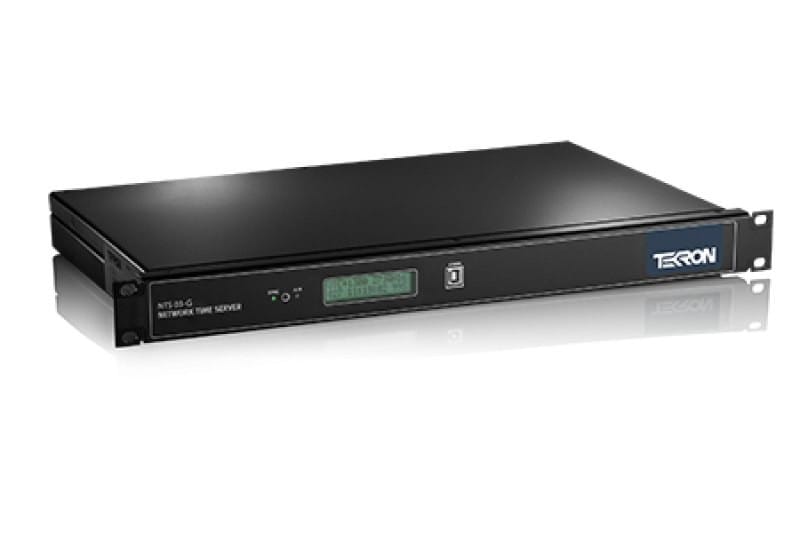

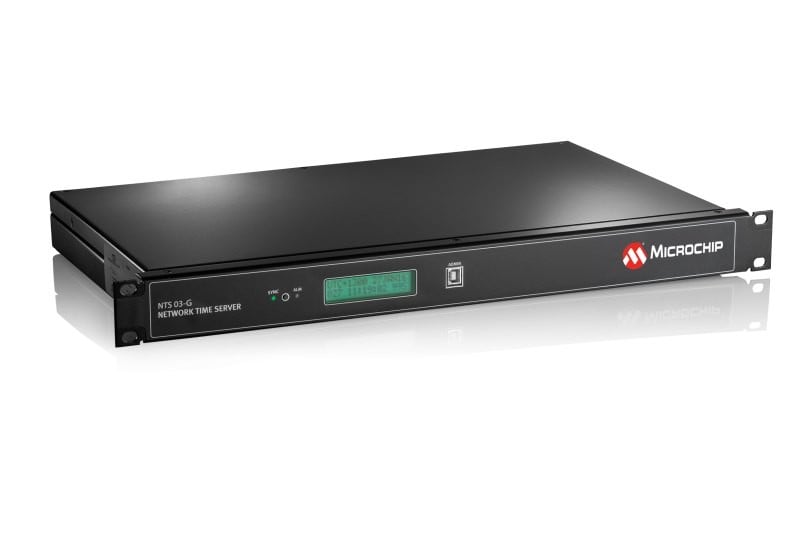

NTS 03-G+
- GPS and GLONASS support
- Isolated dual-power supplies
- Three, four or six independant RJ45 Ethernet ports
- PTP (IEEE 1588v2) server/client function
- TCXO, OCXO or rubidium oscillator option

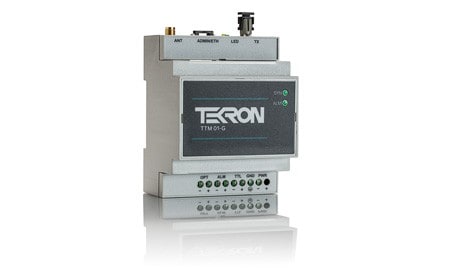

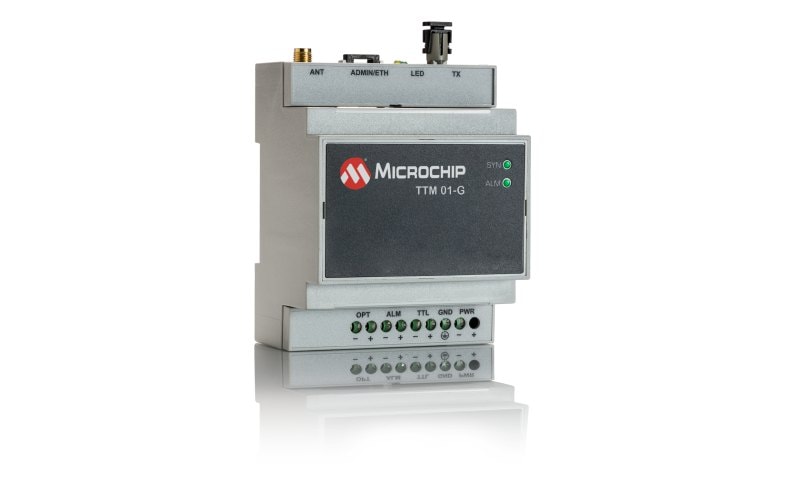

TTM 01-G
- Features a compact DIN rail design
- Supports legacy and digital substation timing interfaces
- Supports Network Time Protocol (NTP) and Precision Time Protocol (PTP) for power utility needs

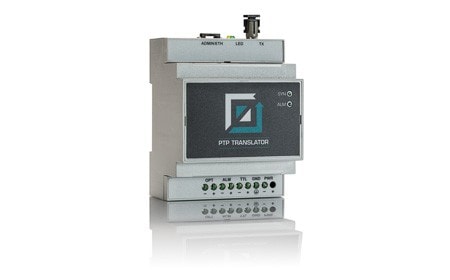

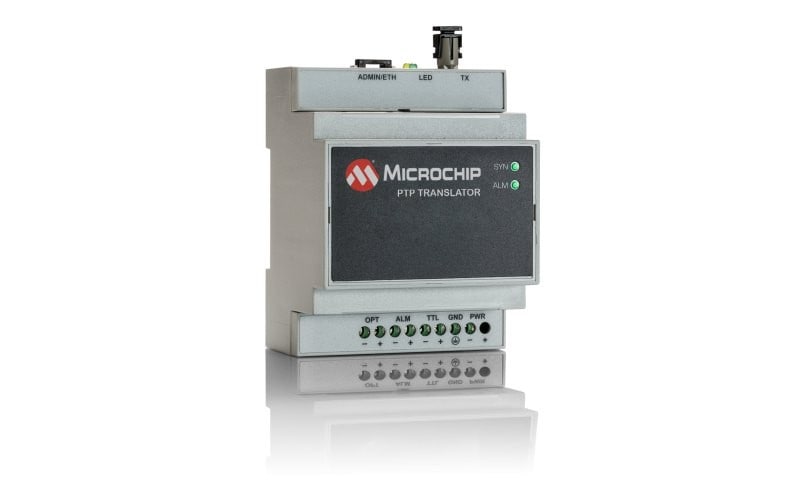

PTP Translator
- Features a compact DIN rail design
- Converts Precision Time Protocol (PTP) to IRIG-B
- Allows for provisioning of Ethernet networking

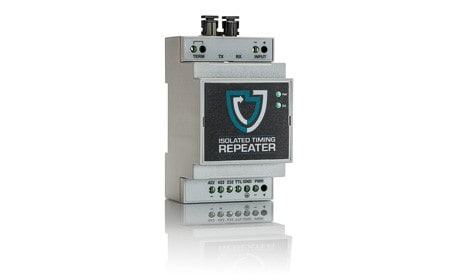

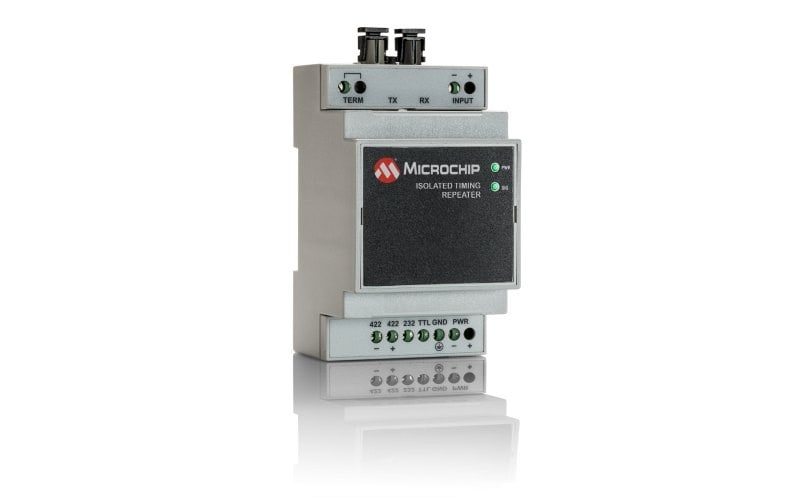

Isolated Timing Repeater (ITR)
- Extends the distance of an IRIG-B or pulse signal
- Provides ioslation between A and B protection systems or between intelligent electronics devices (IEDs)
- Converts a TTL signal from copper to fiber and vice versa
- Converts a TTL signal to a digital high voltage mosfet signal
- Reduces wiring to panels of equipment

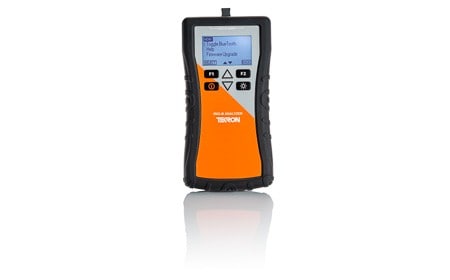

IRIG-B Analyzer
- Ruggedized, handheld device that decodes:
- Over 24 IRIG-B time codes with extension
- IRIG-B DCLS, AM and Modified Manchester
- Electrical and Optical signals
- Provides IRIG time, type and signal levels
Power Utility Timing Systems - White Papers and Publications
|
Date
|
Title
|
|
|---|---|---|
| 31 Oct 2014 | Best Practices in Substation Time Synchronization | Download |
| 01 Oct 2014 | Solving Electrical Substations Timing Problems - Thai | Download |
| 31 May 2020 | Full Digital Substation with Process Bus - Time Synchronization Best Practices | Download |
| 01 Oct 2014 | Solving Electrical Substations Timing Problems - Vietnamese | Download |
| 04 Sep 2017 | (Almost) Everything You Need to Know About IRIG-B Time Sync | Download |
| 10 Dec 2020 | Solving Electrical Substation Timing Problems | Download |
