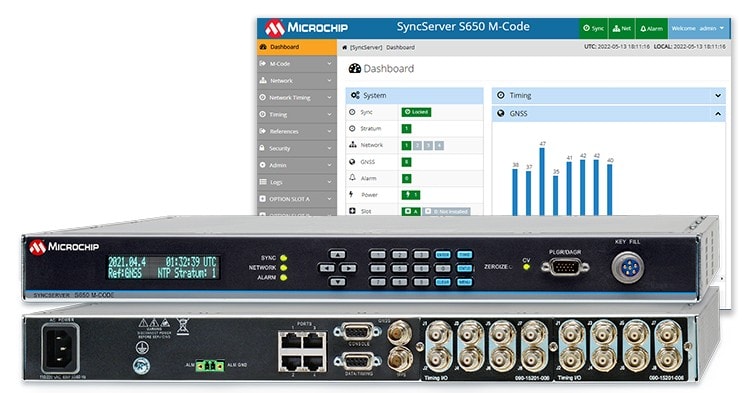

Accurate, Secure and Flexible M-Code Time and Frequency
The SyncServer® S650 M-Code uses our FlexPort technology to provide unmatched synchronization flexibility and performance. The GPS M-Code/SAASM-referenced S650 M-Code is easily adaptable for modern instrumentation systems and networks that require best-in-class synchronization performance for a wide range of applications.
This modular time server combines the best of time and frequency instrumentation with unique flexibility and powerful network-based and security-hardened features. The timing output flexibility provides easy replication of precise and coherent output signals, eliminating the need for a signal distribution chassis.
- < 50 ns RMS to UTC (USNO) via GPS, typical
- GPS M-Code MPE-M Type II PPS L1/ L2 receiver
- Simultaneous M-Code and SAASM operation capable
- < 1 × 10–12 frequency accuracy
- Modular timing architecture with unique and innovative FlexPort technology
- Most popular timing signal inputs/outputs are standard in the base timing I/O module (IRIG B, 10 MHz, 1PPS)
- Four standard GbE ports, all with patented NTP hardware timestamping, two additional 10 GbE ports optional
- Web-based management with high-security cipher suite
- Rubidium atomic clock or OCXO oscillator upgrades
- Dual power supply option
- Hot start ready using DAGR/PLGR
- Additional timecode I/O including IRIG A/B/C37/E/G/NASA/2137/XR3/HaveQuick/PTTI available
- Superior 10 MHz low phase noise options
- PTP multi-port/profile output option
- PTP input option

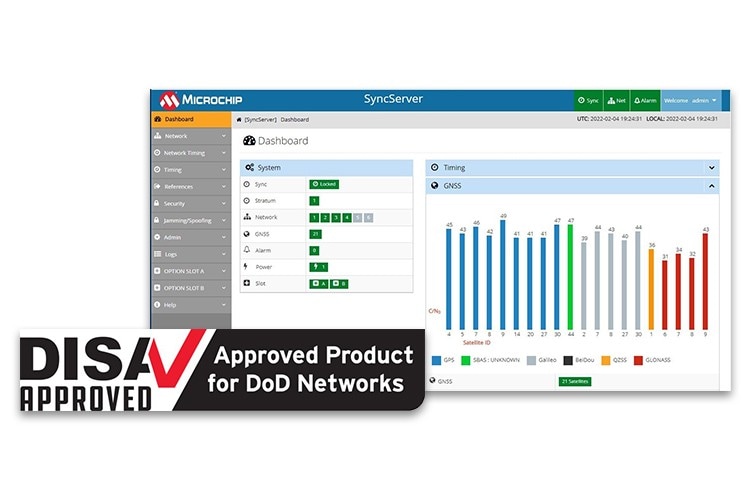

- DISA/DoDIN approved product

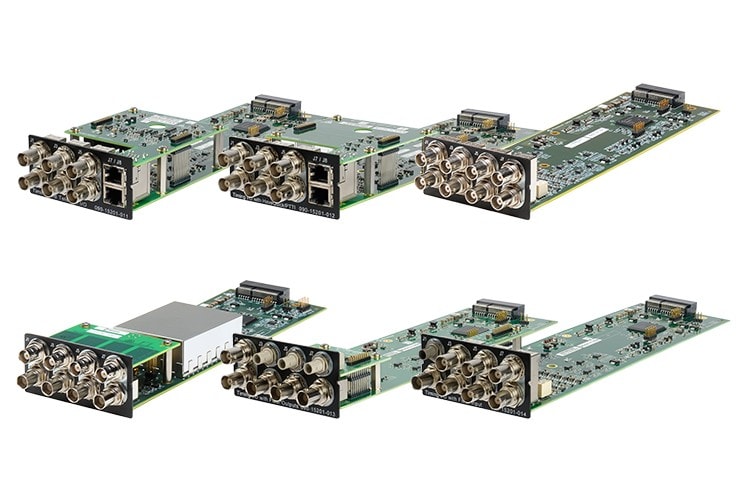

Timing I/O Modules
The timing I/O modules are exceedingly versatile time and frequency input and output options. They support the most popular input and output time codes, sine waves, and rates (IRIG A, IRIG B, IRIG E, IRIG G, 10 MHz, 1 PPS, T1/E1 and more).

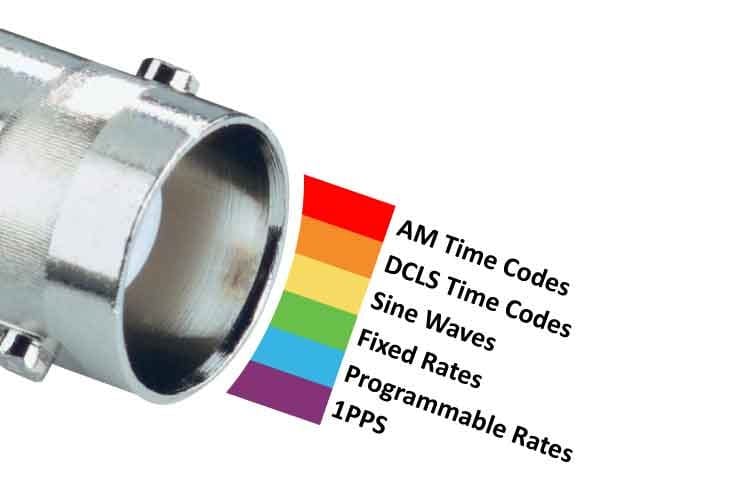

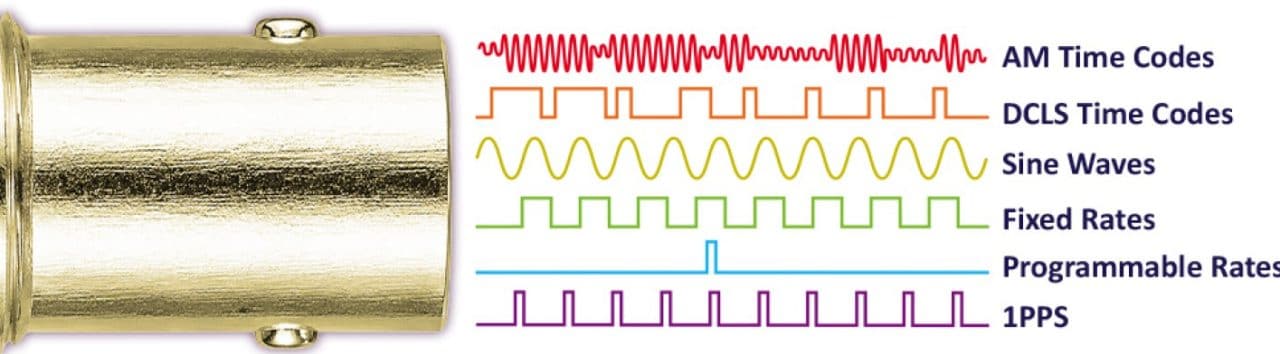

FlexPorts for Any Signal, Any Connector Flexibility
Our unique FlexPort technology efficiently and cost effectively adds innovative any signal, any connector technology to the timing I/O modules, eliminating the wasted space inherent with legacy-style, fixed-signal modules/BNCs.

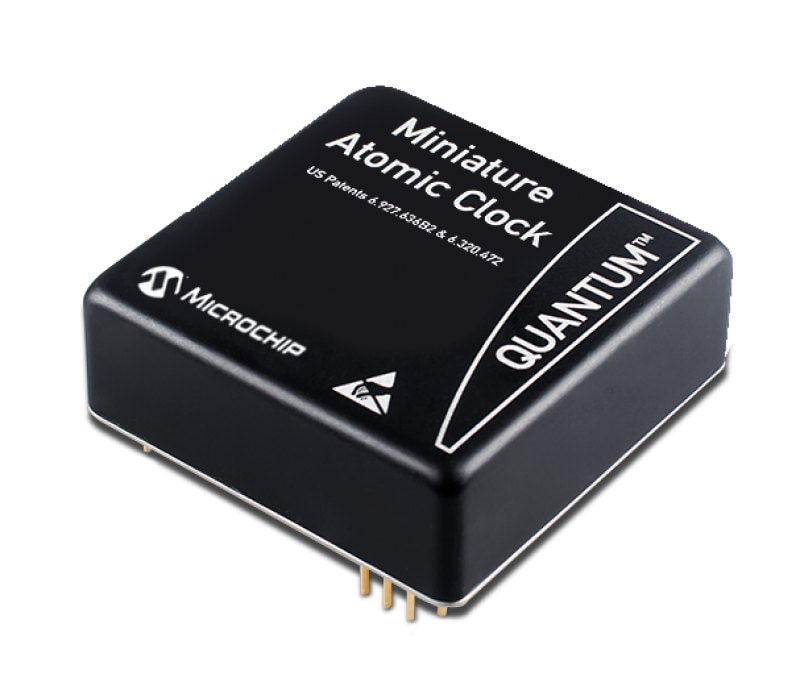

Rubidium Atomic Clock for Holdover
The rubidium atomic clock upgrade improves the stability and ongoing accuracy, as well as the holdover accuracy, of the SyncServer S650 M-Code time server to possibly save the user valuable time. If the GPS signal is lost, which places the unit in holdover, the rubidium atomic clock significantly improves the clock accuracy during the holdover period.

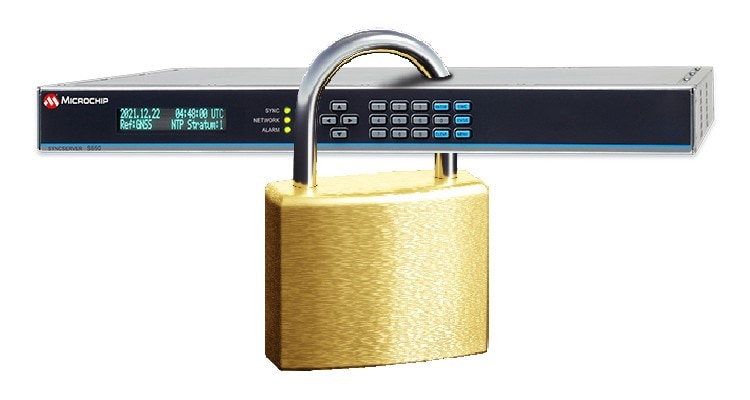

Security Hardening
Some applications require security enhancements above and beyond what might otherwise be acceptable. In addition to supporting the standard network security protocols, the SyncServer S650 M-Code time server can be configured to provide additional timing, operational and authentication security to create the most hardened NTP/PTP server. This makes the S650 M-Code an excellent choice for Zero Trust networks.

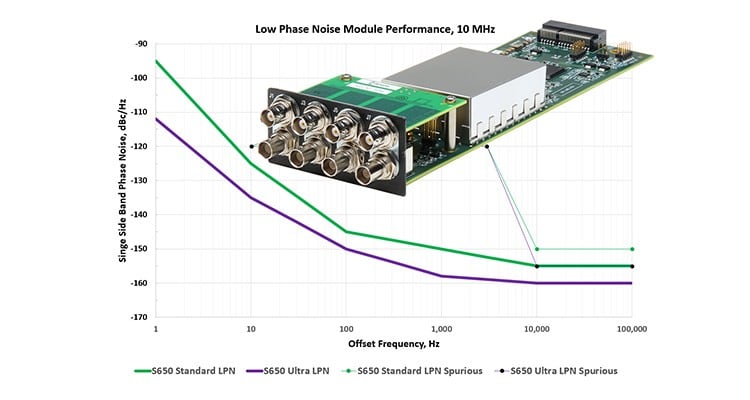

Low Phase Noise 10 MHz Signals
Two Low Phase Noise (LPN modules) are available for applications requiring superior LPN 10 MHz signals. Each module has eight extremely isolated, phase-coherent 10 MHz LPN outputs to offer excellent LPN or Ultra LPN performance with low spurious noise characteristics.

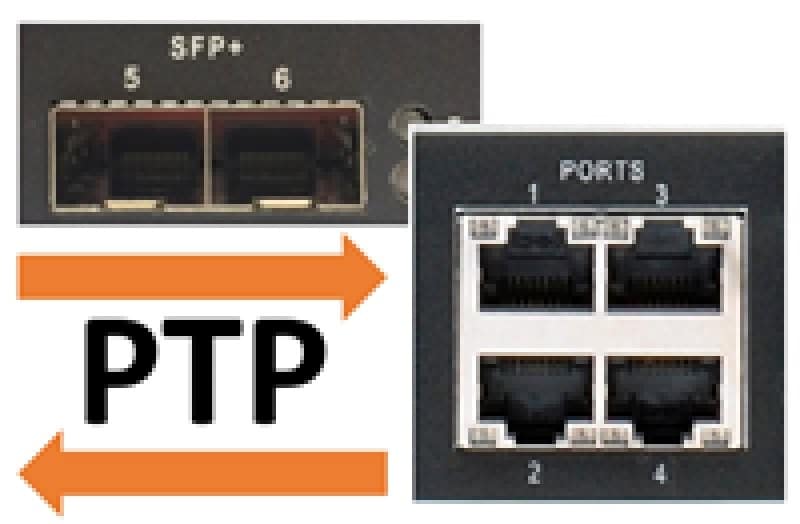

Multi-Port PTP Operations
The IEEE® 1588 PTP output license enables PTP grandmaster operations that leverage the built-in hardware timestamping available in all SyncServer time servers. This single-option license allows the LAN 2, 3 and 4 ports, as well as the optional 10 GbE LAN 5 and 6 ports, to be uniquely configured as PTP grandmasters. This is a very cost-effective solution for scaling PTP grandmaster operations and increasing configuration flexibility. PTP can also be configured as an input time reference.

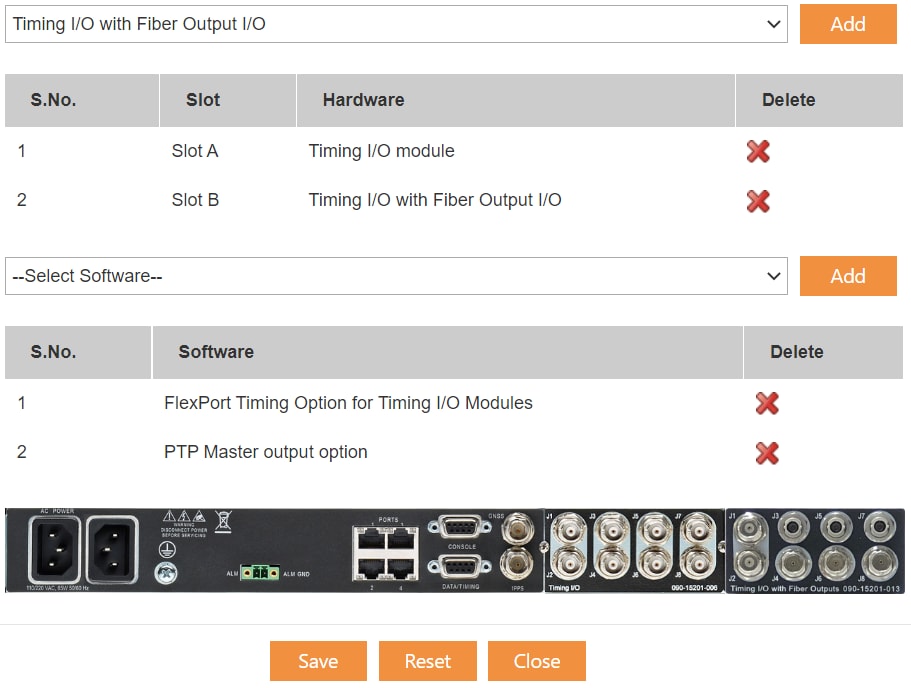

Custom Configure Your S650
- Visually configure your own S650 M-Code
- Request/manage configurations and quotes
- Store configurations
- And much more
The S650 M-Code configurator is available on the my.microsemi.com extranet portal. Simply register for immediate access or log in.
