Timing for NXP Processors

Ethernet Timing for NXP Processors

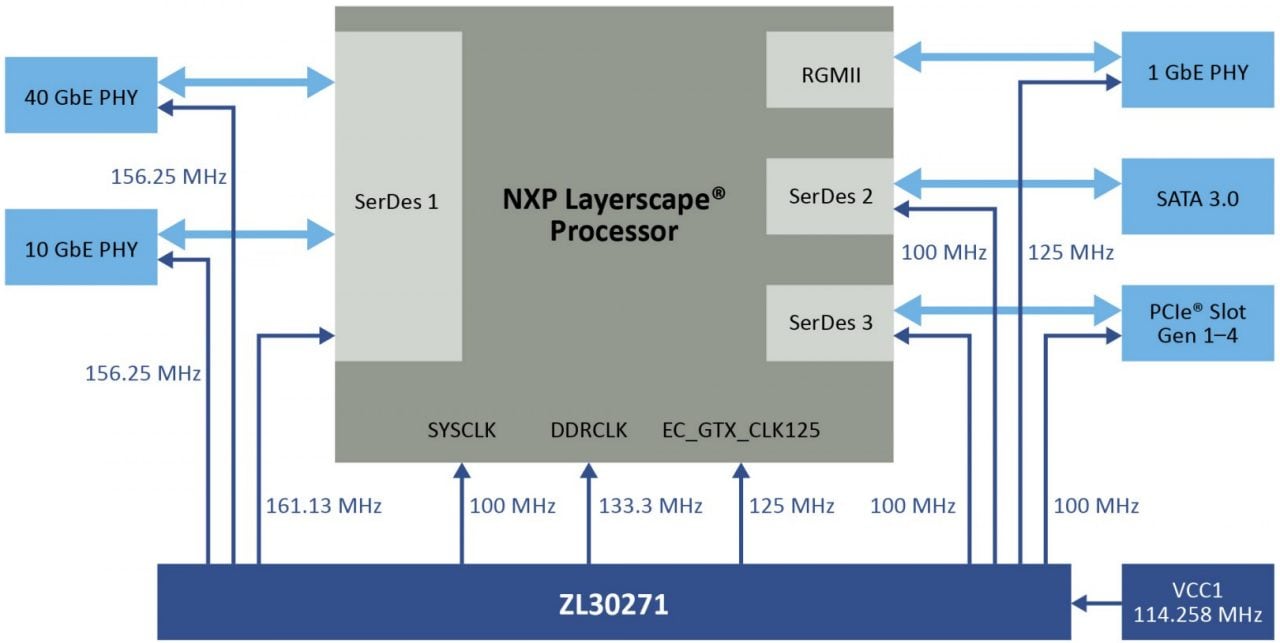

See how our clock generators, PLLs and Crystal Oscillators (XOs) deliver timing to Layerscape® processors. Using the VCC1 oscillator as a reference our ZL30271 clock generator provides multiple frequency outputs for Ethernet, PCIe and other system clocks. Jitter performance is excellent for 10 GbE and 40 GbE operation. You can customize our clock generators to provide the exact frequency plan you need in your design.

Explore Other Clock and Timing Components
Join Our Timing Mailing List
Download Our Quick Reference Guide for NXP Processors
Download NXP Application Processors Brochure

Featured Products

ZL30271

The ZL30271 is a feature-rich clock generator with five extremely low output jitter synthesizers. This device is well suited for frequency synthesis in a wide variety of equipment types that require low jitter (<150 fs) and multiple frequency families.

VCC1

The VCC1 Crystal Oscillator (XO) is a quartz-stabilized square wave generator with a CMOS output. The VCC1 uses fundamental or third overtone crystals, resulting in very low jitter performance and a monolithic IC that improves reliability and reduces cost.

Synchronous Ethernet Timing for NXP Processors

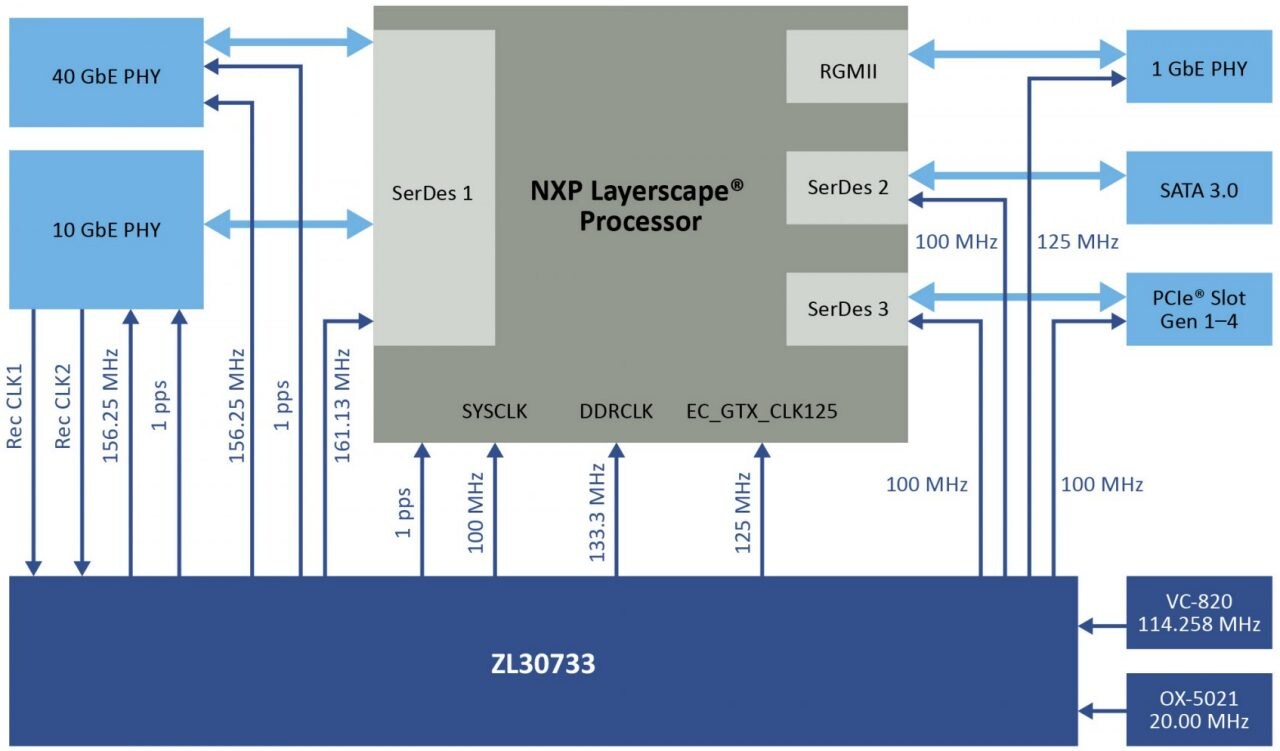

See how our clock generators, PLLs and XOs deliver timing to Layerscape® processors. Using the VC-820 and OX-5021 oscillators for reference, our ZL30733 synchronizer provides the precision clocks and 1-pps signal needed for synchronous Ethernet operation. These devices contain multiple frequency outputs with low jitter supply Ethernet, PCIe and other system clocks. You can customize these synchronizers to provide the exact frequency plan you need in your design.

Featured Products

ZL30733

The ZL30733 is a feature-rich network synchronization solution with up to six independent DPLLs and five extremely low output jitter synthesizers . The ZL30733 supports IEEE 1588-2008 Precision Time Protocol (PTP) stack and synchronization algorithm software modules, making the device well suited for applications such as 5G Distributed Units (DUs), Centralized Units (CUs) and Radio Units (RUs).

VC-820

The VC-820 XO is a quartz-stabilized square wave generator with a CMOS output. The VC-820 uses fundamental or a third overtone crystals, oscillating in a fundamental tone to result in very low jitter performance and a monolithic IC to improve reliability and reduce cost.
