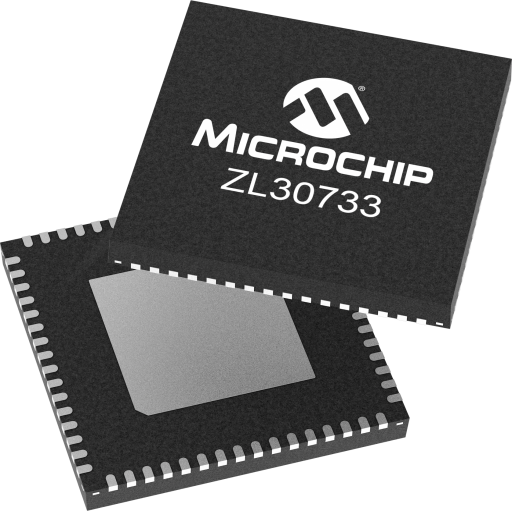

3-Channel SyncE&1588 Network Synchronizer
Overview
- 5G Product:Yes
- DataCenter:Yes
- FiveGRAN:Yes
- IEEE1588:Yes
- SmartGrids:Yes
- SyncE:Yes
- Wireline:Yes
- Highlights
- Combined with IEEE 1588-2008 Precision Time Protocol Stack and Synchronization Algorithm software modules
- Ultra Precise Timing for 5G Radio Access Networks
- Three independent DPLL clock channels plus three additional DPLLs for NCO Hybrid, Split XO and redundant oscillator modes
- Five output synthesizers
- Any-to-any frequency conversion per channel
- Inputs: up to 10, differential or single-ended
- Outputs: up to 10 differential, up to 20 CMOS
- Output jitter 100 fs RMS typical for 156.25 MHz 12 kHz to 20 MHz
- Core power consumption <0.9W
- Packet and/or physical-layer frequency, phase and time synchronization
- Physical-layer compliance with ITU-T G.8262, G.8262.1, G.813, G.812, Telcordia GR-1244, GR-253
- Packet-timing compliance with ITU-T G.8261, G.8263, G.8273.2 (class A,B,C,D), G.8273.4
- Enables 5G wireless applications with sub-100 ns time/phase alignment requirements
- Hitless reference switching
- General Features
- Automatic self-configuration at power-up from internal Flash memory, 7 configurations
- Input-to-output alignment <100 ps
- Numerically controlled oscillator behavior in each DPLL and each synthesizer
- Easy-to-configure design requires no external VCXO or loop filter components
- 5 GPIO pins with many possible behaviors, each REF can be GPI, each OUT can be GPO
- SPI or I2C processor Interface
- 1.8V and 3.3V core VDD voltages
- Easy-to-use evaluation/programming software
The ZL30733 is a feature-rich network synchronization solution with up to six independent DPLLs and five extremely low output jitter synthesizers combined with IEEE 1588-2008 Precision Time Protocol Stack and Synchronization Algorithm software packages. This is an ideal central Timing solution for applications such as routers, switches, optical transparent network and 4G/5G wireless base stations (CU/DU/RU).
We also have ZL3064x as line card jitter attenuators, such as ZL30642A, to form full SyncE&IEEE1588 Timing solution for any rack system.
Click here to know about our full IEEE1588 software solution and profiles we can support.
