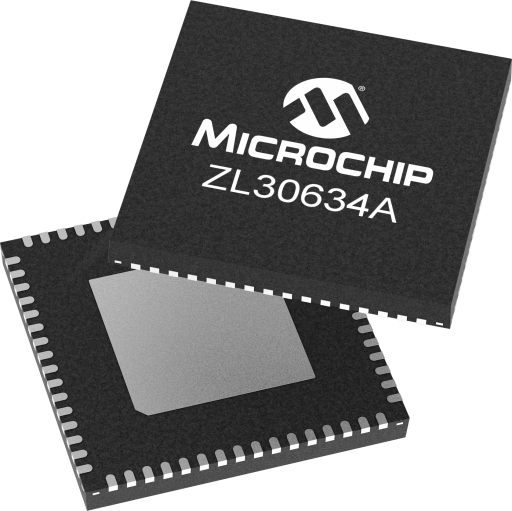

SyncE Network Synchronizer with 4-ch with eToD interface
Overview
- 5G Product:Yes
- DataCenter:Yes
- FiveGRAN:Yes
- IEEE1588:No
- SmartGrids:Yes
- SyncE:Yes
- Wireline:Yes
- Highlights
- Ultra Precise Timing for 5G Radio Access Networks
- Four independent DPLL clock channels plus three additional DPLLs for NCO Hybrid, Split XO and redundant oscillator modes
- Five output synthesizers
- Any-to-any frequency conversion per channel
- Inputs: up to 10, differential or single-ended
- Outputs: up to 10 differential, up to 20 CMOS
- Output jitter 100 fs RMS typical for 156.25 MHz 12 kHz to 20 MHz
- Core power consumption <0.9W
- Physical-layer frequency synchronization
- Physical-layer compliance with ITU-T G.8262, G.8262.1, G.813, G.812, Telcordia GR-1244, GR-253
- Enables 5G wireless applications with sub-100 ns time/phase alignment requirements
- Hitless reference switching
- General Features
- Automatic self-configuration at power-up from internal Flash memory, 7 configurations
- Input-to-output alignment <100 ps
- Numerically controlled oscillator behavior in each DPLL and each synthesizer
- Easy-to-configure design requires no external VCXO or loop filter components
- 5 GPIO pins with many possible behaviors, each REF can be GPI, each OUT can be GPO
- SPI or I2C processor Interface
- 1.8V and 3.3V core VDD voltages
- Easy-to-use evaluation/programming software
- MiToDSync 1-wire time-of-day interface in/out
- MiToDBasic 3-wire time-of-day interface out
The ZL30634A is a feature-rich network synchronization solution with up to seven independent DPLLs, five extremely low output jitter synthesizers and embedded time-of-day (eToD) features. The eToD features include a 3-wire MiToDBasic output interface and a 1-wire MiToDSync input/output interface. This solution is ideal for Synchronous Ethernet (SyncE) central timing applications such as routers, switches, optical transparent network and 4G/5G wireless base stations (CU/DU/RU).
We also have ZL3064x as line card jitter attenuators, such as ZL30642A, to form full SyncE&IEEE1588 Timing solution for any rack system.
