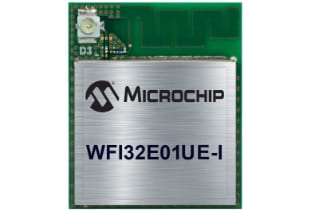

Global Regulatory Certified RF Ready Wi-Fi® MCU Module With U.FL Connector
Overview
- ADC Channels:12
- ADC Resolution (Bits):12
- Antenna Type:U.FL
- CPU:200 MHz, MIPS32 M-Class Microprocessor
- Flash (KB):1024
- I2C:1
- Operating Temp (°C) Min:-40
- Operating Temp (°C) Max:85
- Operating Voltage (V) Min:3
- Operating Voltage (V) Max:3.6
- Packages:54\MODULE
- Power Down Mode Current Consumption (uA):0.71
- RX Sensitivity (dBm):-93
- SPI:2
- SoftAP Client Count:8
- TX Output Power (dBm):20.5
- UART:3
- Wi-Fi Security:WPA, WPA2, WPA3, WEP, Enterprise
- Regulatory:CE, UKCA, FCC, ISED, MIC, KC, SRRC, NCC
- RX Current Consumption (mA):88
- TX Current Consumption (mA):208
- Sleep Mode Current Consumption (μA):1.21
- Encryption:TRNG, ECC, ECDH, ECDSA, Ed25519, AES, SHA
- MCU Features
- 200 MHz, MIPS32® M-Class Microprocessor Core
- 1MB Embedded Flash, 256KB SRAM (Program and Data), 64KB Data Buffer
- CVD Touch input
- 3xUART, I2C, 2xSPI
- High performance peripheral set including full-speed USB, CAN, CAN-FD, 10/100 MAC, and high accuracy 12-bit dual ADCs.
- Wi-Fi and Network Features
- Single-band 2.4GHz b/g/n
- Compatible with Wi-Fi 6/7 2.4 GHz band
- Wi-Fi Security protocols supported: WPA/WPA2/WPA3 Personal, TLS, SSL
- Support AP, STA, SoftAP
- Optional Full Featured Hardware Crypto Accelerator
- Antenna Type: uFL Connector
- Other Features
- 54-PIN SMD, 24.5 x 20.5 x 2.5 mm
- 3.0V to 3.6V, -40ºC to +85ºC
- Certifications:
- CE (EU)
- UKCA (UK)
- FCC (USA)
- ISEDC (Canada)
- MIC (Japan)
- KC (South Korea)
- SRRC (China)
- NCC (Taiwan)

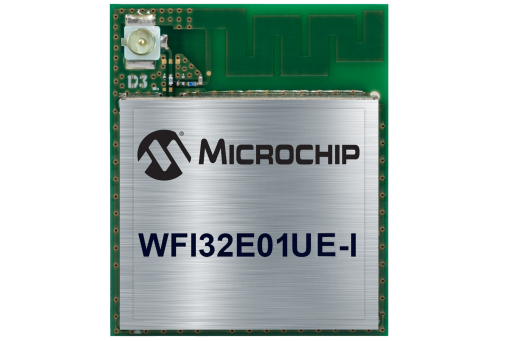

WFI32E01UE is a standalone and fully certified Wi-Fi module supporting 2.4 GHz 802.11 b/g/n radio modes. Specially designed for industrial IoT applications, WFI32E01UE contains the PIC32MZW1 series Wi-Fi SoC, which is a 200MHz high performance MCU with industrial leading Wi-Fi connectivity and rich peripheral options. PIC32MZW1 has 1MB embedded flash and 256KB SRAM, empowering embedded designers to rapidly build complex IoT software covering WLAN, TCP/IP stack, RTOS, Cloud connectivity, and application. Various types of peripherals, such as Ethernet, USB, ADC, CVD touch buttons, and CAN, make PIC32MZW1 a perfect system core to realize the most application features.
WFI32E01UE has best-in-class WLAN functions covering the latest Wi-Fi security standard, Wi-Fi Protected Access 3 (WPA3) and all the general Wi-Fi functions like AP, STA, SoftAP, TLS, WPA/WAP2, etc). The software development of WFI32E01 module is supported in Microchip MPLAB and Microchip Harmony v3.
WFI32E01UE module has the a u.FL connector. Microchip provides total 4 module variants under the same product family, visit the design center of PIC32MZ-W1 Wi-Fi® SoC and Module Family for more details.
As a total system solution provider, Microchip offers a broad portfolio that simplifies IoT and IIoT systems when pairing the WFI32E01 module with other Microchip market-leading components, such as KSZ8081 family of Ethernet PHYs, MCP2542WFD family of CAN transceivers, and other Wireless Technologies: Bluetooth Low Energy (BLE), Long Range (LoRa®) and IEEE® 802.15.4.
Visit www.Microchip.com/MCHPRT for Microchip's Radio Testing Tool - a Windows®-based software tool for RF evaluation and testing of wireless designs during development, certification and production.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
Library and Firmware
| Tools |
|---|
 The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® Microcontrollers (MCUs), Microprocessors (MPUs) and dsPIC® Digital Signal Controllers (DSCs).
|
| The PIC32 WFI32E Curiosity Board contains the WFI32E01PC, a highly integrated IoT system module offering smart Wi-Fi® functionalities and a premium MCU.
|
| The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC® and AVR flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE). The MPLAB Snap can be connected to a design engineer's computer using a High-Speed USB 2.0 interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). It has all the speed and features entry-level users need to quickly debug their prototype.
|
| The WFI32-IoT Development Board is a compact and easy-to-use development board to develop Internet-of-Things (IoT) applications with the WFI32E01PC module, a highly integrated Wi-Fi® MCU module supporting smart Wi-Fi functionalities and premium MCU features. The WFI32-IoT board provides the most simple and effective way to connect your embedded application to cloud IoT platforms such as AWS and Azure.
|
