160G Enterprise Switch
Overview
- Copper Support:No
- DownstreamPorts:64
- Port Speed:10/100/1000/2500Mbps 5/10/25Gbps
- Fiber Support:100FX 1000X SFI
- IEEE 1588:No
- InterfaceUpStream:SGMII QSGMII USGMII USXGMII XFI
- LinkMDCableDiag:No
- Managed:Yes
- OpVoltage:0.9
- Static MAC Address:32768
- Supply Voltages:0.9
- Temp Range Min (°C):0
- Temp Range Max (°C):105 (Junction)
- Digital I/O Voltage:0.9/1.0/1.5/1.8/3.3
- WakeonLAN:No

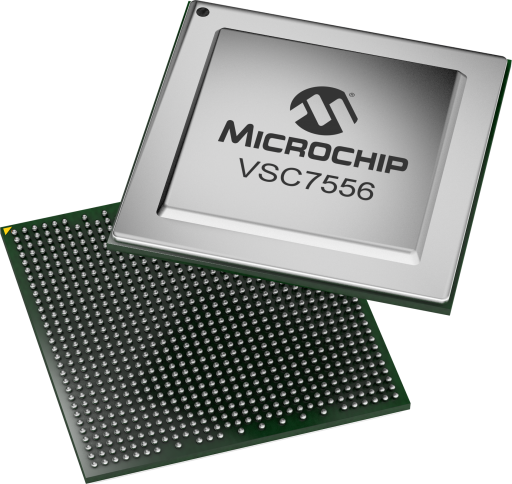

The VSC7556 SparX-5-160 is a 160 Gbps SMB/SME Ethernet Switch supporting a combination of 1G, 2.5G, 5G, 10G, and 25G Ethernet ports.
The device provides a rich set of enterprise Ethernet switching features. Using multistage versatile content aware processor (VCAP) technology, it delivers VLAN and QoS processing that enables delivery of differentiated services, security through intelligent frame processing and flexible frame manipulation.
A powerful 1 GHz dual-core CPU enables full management of a Layer 2 and Layer 3 Ethernet switch solution.
A comprehensive Application Programming Interface (API) and turnkey software development package accelerates time-to-market for managed Ethernet applications.
The software API package integrates easily with third-party software, preserving existing software investments.
To obtain the SparX-5 register file, click here.
Supported Ethernet Software Options
Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.
