Overview
Alternate products
Compare Products
(2)
No parametrics available.

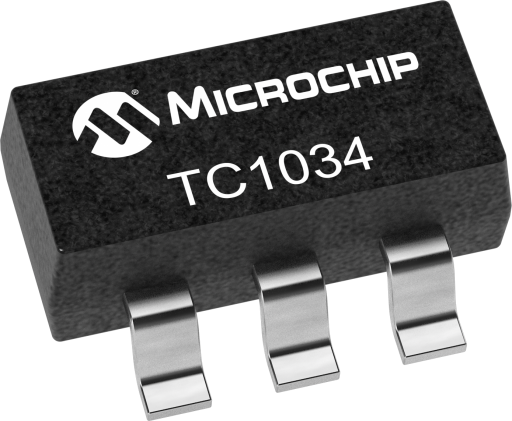

The TC1034 is a single CMOS operational amplifier (op amp) for low-power applications. It has a typical operating supply current of 6 µA, which is constant over the supply voltage range of 1.8 to 5.5 V. The op amp has a rail-to-rail input and output which allows operation at low supply voltages with large input and output signal swings. Packaged in a 5-pin SOT-23A, this single op amp is ideal for applications requiring high integration, small size and low power.
Use your up or down key to switch images.
Tools And Software
Demo & Evaluation Boards
| Tools |
|---|
 The MCP6SX2 PGA Thermistor PICtail Demo Board features the MCP6S22 and MCP6S92 Programmable Gain Amplifiers (PGA). |
| This board supports the capacitive humidity sensor application note AN1016. It measures the capacitance of a relative humidity sensor plugged into the board. |
| This Blank PCB allows the system designer to quickly evaluate the operation of Microchip Technology’s Voltage Supervisors and Voltage Detectors in the SOT-23-5 (5-pin) and SOT-23-6 (6-pin) packages.
|
