8Mb 2.7-3.6V SPI Serial Flash
Overview
- Density (Organization):8 Mbit
- Operating Voltage Min. (V):2.7
- Oper Voltage Max (V):3.6
- Max. Clock Freq.:50 MHz
- Page Size (bytes):0
- Write Protected:False
- Write Protect Scheme:Quarter, Half, Whole Array
- Endurance:100,000
- Data Retention (Years):100
- Bus Modes:SPI
- Battery Backup:False
- Single Voltage Read and Write Operations– 2.7-3.6V
- Supports 50 MHz SPI clock (80 MHz no longer available see EOL NOTIFICATION)
- Endurance: 100,000 Cycles (typical)
- Greater than 100 years Data Retention
- Program & Erase Current: 30mA (max)
- Active Read Current: 10 mA (typical)
- Standby Current: 5 µA (typical)
- Uniform 4 KByte sectors
- Uniform 32 KByte & 64 KByte overlay blocks
- Chip-Erase Time: 35 ms (typical)
- Sector-/Block-Erase Time: 18 ms (typical)
- Byte-Program Time: 7 µs (typical)
- Decrease total chip programming time over Byte-Program operations
- Software polling the BUSY bit in Status Register
- Busy Status readout on SO pin in AAI Mode
- Suspends a serial sequence to the memory without deselecting the device
- Enables/Disables the Lock-Down function of the status register
- Write protection through Block-Protection bits in the status register
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C

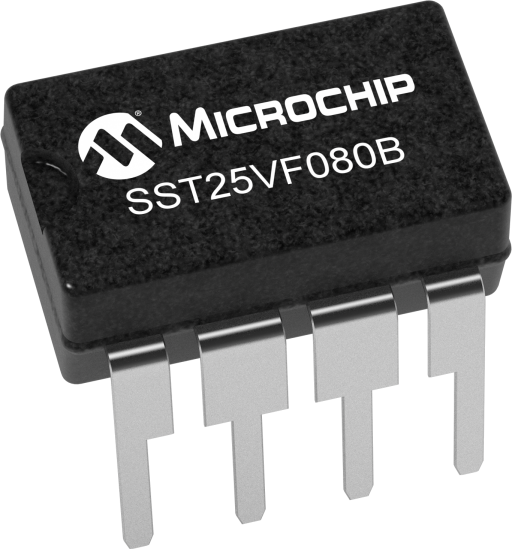

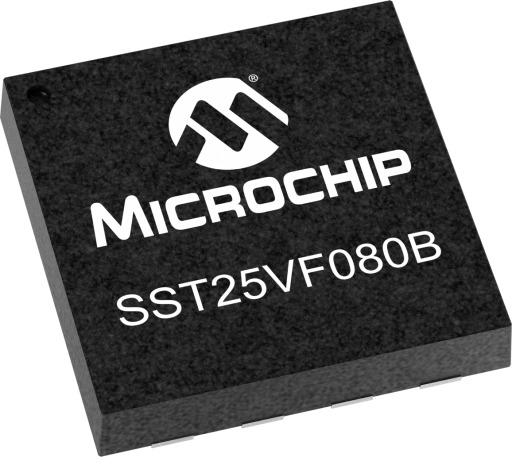

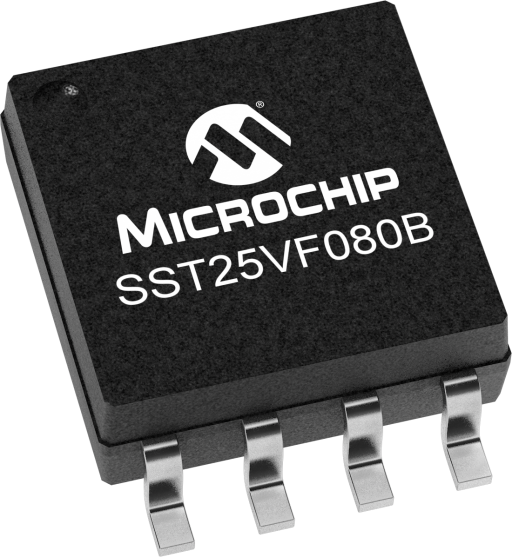

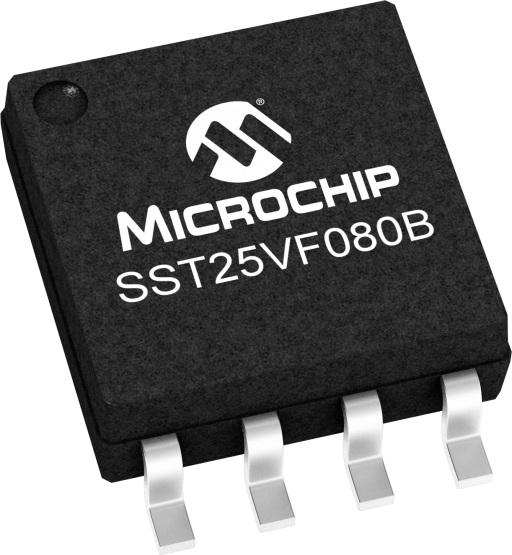

- Packages Available– 8-lead SOIC (200 mils)– 8-contact WSON (6mm x 5mm)– 8-lead PDIP (300 mils)– 8-bump CSP
- All devices are RoHS compliant
The SST25VF080B devices are enhanced with improved operating frequency for lower power consumption. SST25VF080B SPI serial flash memories are manufactured with SST's proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.
