4Mb 2.7-3.6V SPI Serial Flash
Overview
Alternate products
Compare Products
(2)
- Density (Organization):4 Mbit
- Operating Voltage Min. (V):2.7
- Oper Voltage Max (V):3.6
- Max. Clock Freq.:50 MHz
- Read Access Speed (Par Flash):0
- Page Size (bytes):0
- Write Protected:False
- Write Protect Scheme:Quarter, Half, Whole Array
- Endurance:100,000
- Data Retention (Years):100
- Bus Modes:SPI
- Battery Backup:False
- SPI Compatible: Mode 0 and Mode 3
- Supports 50 MHz SPI clock (80MHz no longer available see EOL NOTIFICATION)
- Active Read Current: 10 mA (typical)
- Program & Erase Current: 30mA (max)
- Standby Current: 5 µA (typical)
- Uniform 4 KByte sectors
- Uniform 32 KByte and 64 KByte overlay blocks
- Chip-Erase Time: 35 ms (typical)
- Sector-/Block-Erase Time: 18 ms (typical)
- Byte-Program Time: 7 µs (typical)
- Decrease total chip programming time overByte-Program operations

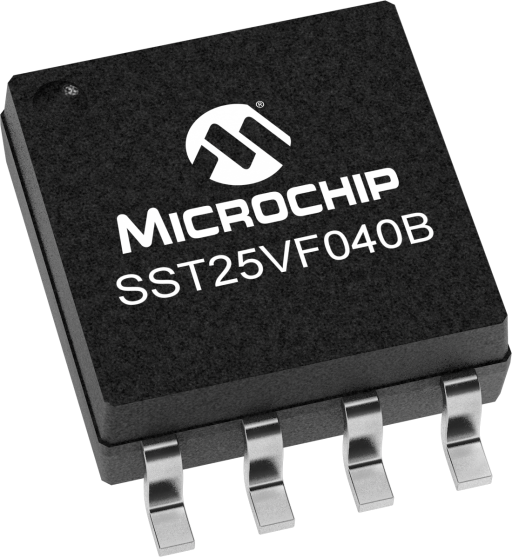

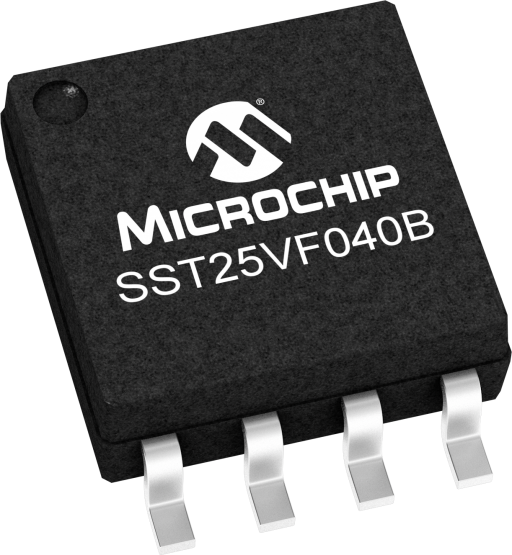

- 8-lead SOIJ (200 mils)

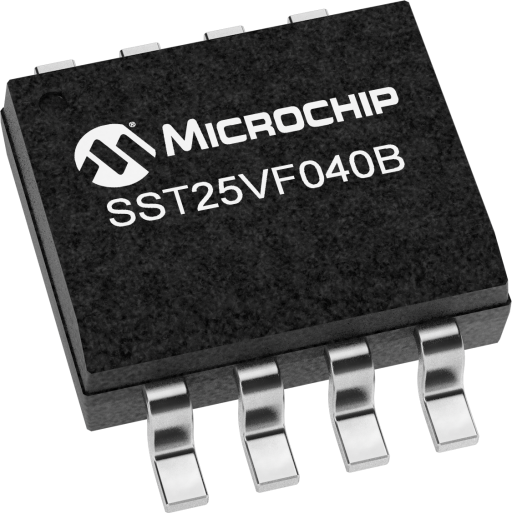

- 8-lead SOIC (150 mils)

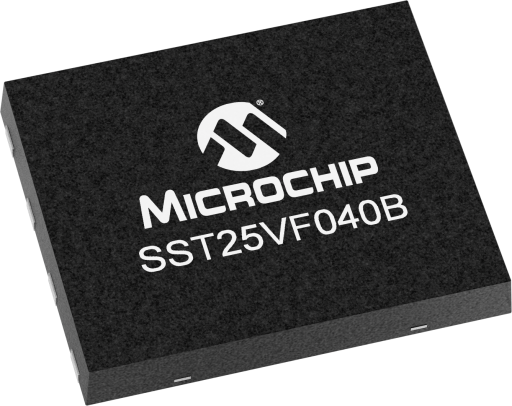

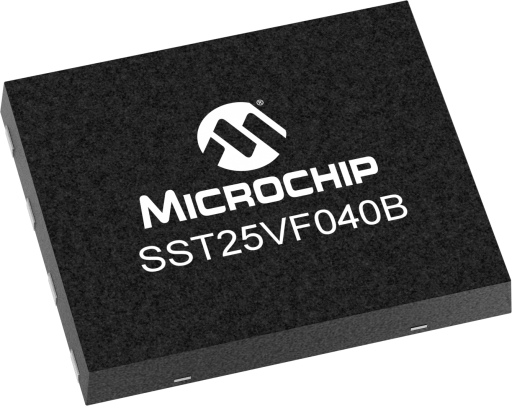

- 8-contact WSON (6mm x 5mm)

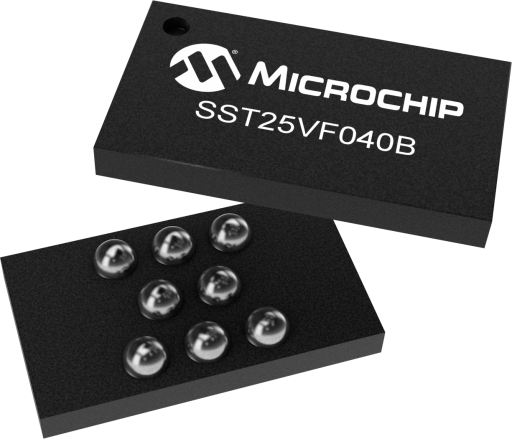

- Chip Scale Package
- All devices are RoHS compliant
The 25 series Serial Flash family features a four-wire, SPIcompatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25VF040B devices are enhanced with improved operating frequency for lower power consumption. SST25VF040B SPI serial flash memories are manufactured with SST proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.
